The Role of Hydrated Lime in Aquaculture and an Introduction to Grinding Equipment

Introduction

Hydrated lime, also known as calcium hydroxide, is a versatile chemical compound with a wide range of applications in various industries. In recent years, its importance in aquaculture has gained significant attention due to its ability to improve water quality, enhance pond productivity, and promote the health of aquatic organisms. This article explores the role of hydrated lime in aquaculture and provides an introduction to the grinding equipment necessary for its production. We will also highlight two of our advanced grinding mills that are ideal for processing hydrated lime: the SCM Series Ultrafine Mill and the MTW Series European Trapezium Mill.

The Importance of Hydrated Lime in Aquaculture

Aquaculture, the farming of aquatic organisms such as fish, crustaceans, and mollusks, is a rapidly growing industry that contributes significantly to global food security. However, maintaining optimal water quality is a constant challenge. Hydrated lime plays a crucial role in this context by:

• Adjusting pH: Hydrated lime is alkaline and can raise the pH of acidic pond water, creating a more favorable environment for aquatic life.
• Improving Water Quality: It helps in the precipitation of suspended particles and organic matter, leading to clearer water and reduced biological oxygen demand (BOD).
• Controlling Pests and Diseases: The application of hydrated lime can eliminate certain pathogens, parasites, and invasive species, thereby reducing disease outbreaks.
• Enhancing Pond Bottom: It neutralizes acidic soils at the pond bottom, promoting the release of nutrients and increasing natural food production.
• Supplying Calcium: Calcium is essential for the growth and molting of crustaceans and for bone development in fish.

Production of Hydrated Lime: The Need for Grinding

Hydrated lime is produced by slaking quicklime (calcium oxide) with water. The resulting product is a fine powder that must meet specific particle size requirements depending on its application. In aquaculture, the fineness of hydrated lime affects its reactivity, solubility, and effectiveness. Therefore, grinding is a critical step in the production process.

To achieve the desired particle size distribution, advanced grinding equipment is essential. Our company offers a range of mills suitable for processing hydrated lime, including the SCM Series Ultrafine Mill and the MTW Series European Trapezium Mill. Both mills are designed to deliver high efficiency, precise classification, and reliable performance.

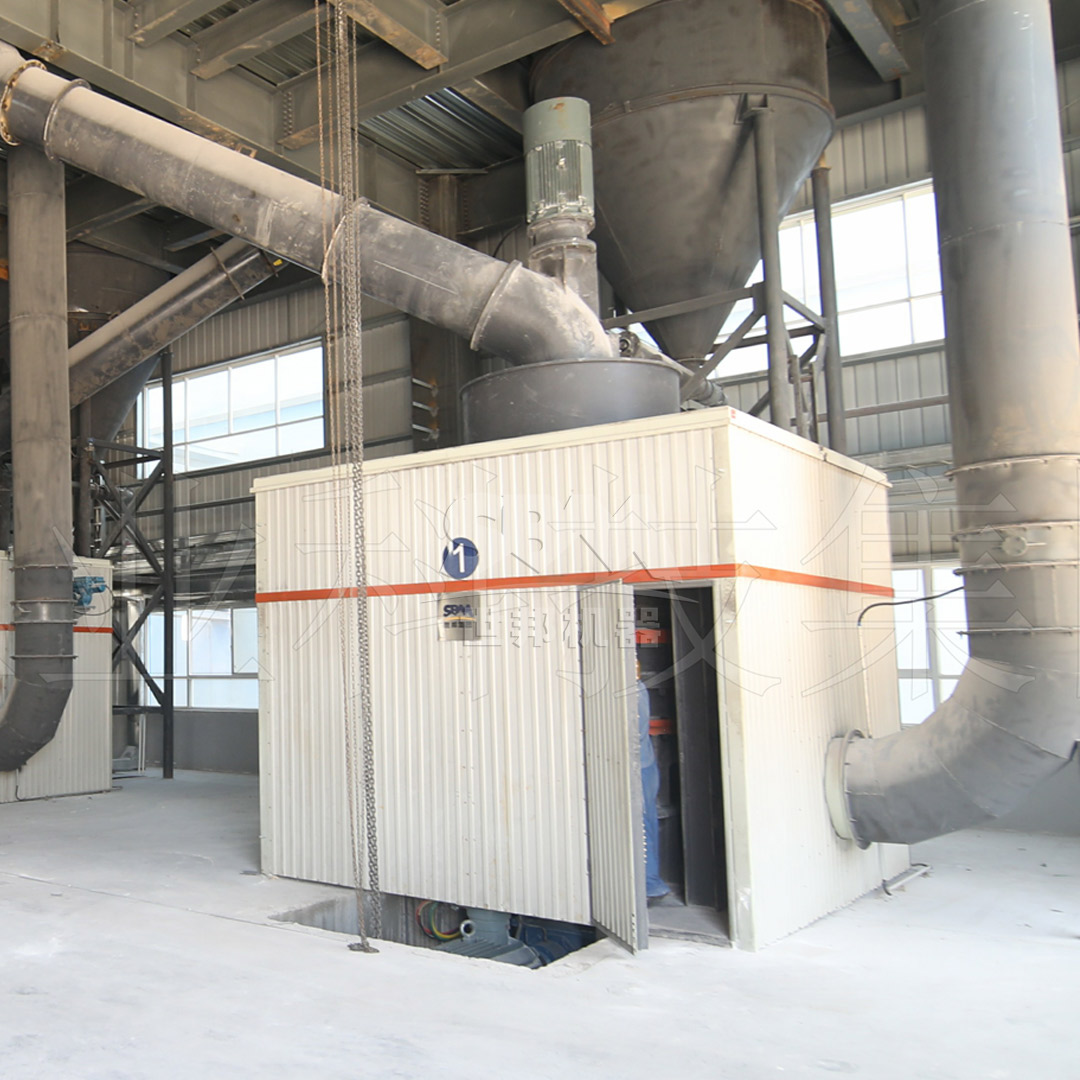

SCM Series Ultrafine Mill: High Efficiency for Fine Grinding

The SCM Series Ultrafine Mill is a state-of-the-art grinding equipment capable of producing powders with fineness ranging from 325 to 2500 mesh (45-5μm). It is ideal for processing hydrated lime to ultrafine sizes, which can enhance its reactivity and dispersion in aquaculture applications.

Key Features:

• High Efficiency & Energy Saving: The SCM mill has a capacity twice that of jet mills while consuming 30% less energy. Its intelligent control system allows for automatic feedback on finished product granularity, ensuring consistent quality.
• High-Precision Classification: The vertical turbine classifier provides precise particle size cutting, preventing coarse powder mixing and ensuring a uniform finished product.
• Durable Design: Special material rollers and rings extend service life several times over. The shaftless screw grinding chamber ensures stable operation.
• Eco-friendly & Low Noise: The pulse dust collection system exceeds international standards, and the soundproof room design keeps noise levels low.

Working Principle: The main motor drives three layers of grinding rings to rotate. Materials are dispersed into the grinding path by centrifugal force, crushed by roller pressure, and ground layer by layer. Finally, powder collection is completed by a cyclone collector and a pulse dust removal system.

Models & Specifications:

• SCM800: Capacity 0.5-4.5t/h, Main Power 75kW, Feed Size 0-20mm, Fineness 325-2500 mesh
• SCM900: Capacity 0.8-6.5t/h, Main Power 90kW, Feed Size 0-20mm, Fineness 325-2500 mesh
• SCM1000: Capacity 1.0-8.5t/h, Main Power 132kW, Feed Size 0-20mm, Fineness 325-2500 mesh
• SCM1250: Capacity 2.5-14t/h, Main Power 185kW, Feed Size 0-20mm, Fineness 325-2500 mesh
• SCM1680: Capacity 5.0-25t/h, Main Power 315kW, Feed Size 0-20mm, Fineness 325-2500 mesh

With its ability to produce ultrafine powders, the SCM Series is particularly suitable for aquaculture applications where fine hydrated lime is required for rapid pH adjustment and pathogen control.

MTW Series European Trapezium Mill: Versatile and Efficient

The MTW Series European Trapezium Mill is another excellent choice for grinding hydrated lime. With a fineness range of 30-325 mesh (down to 0.038mm) and capacities from 3 to 45 tons per hour, it offers a versatile solution for various production scales.

Key Features:

• Anti-wear Shovel Design: Combined shovel blades reduce maintenance costs, and the curved design extends grinding roller life.
• Optimized Arc Air Duct: Reduces airflow energy loss and improves transmission efficiency. High-strength guard plates protect the air duct working surface.
• Integral Bevel Gear Drive: Transmission efficiency up to 98%, saving space and reducing installation costs.
• Wear-resistant Volute Structure: Non-resistance flow design improves air selection efficiency, reducing maintenance costs by 30%.

Working Principle: The main motor drives the grinding rollers to revolve around the central axis while self-rotating to generate centrifugal force. Shovels throw materials between the ring and rollers to form a material layer, achieving efficient crushing through extrusion. The classification system precisely controls the finished product size.

Models & Specifications:

• MTW110: Capacity 3-9t/h, Main Power 55kW, Feed Size <30mm, Fineness 10-325 mesh
• MTW110Z: Capacity 3-10t/h, Main Power 55kW, Feed Size <30mm, Fineness 10-325 mesh
• MTW138Z: Capacity 6-17t/h, Main Power 90kW, Feed Size <35mm, Fineness 10-325 mesh
• MTW175G: Capacity 9.5-25t/h, Main Power 160kW, Feed Size <40mm, Fineness 10-325 mesh
• MTW215G: Capacity 15-45t/h, Main Power 280kW, Feed Size <50mm, Fineness 10-325 mesh
• MRN158: Capacity 7-21t/h, Main Power 132kW, Feed Size <40mm, Fineness 10-325 mesh
• MRN198: Capacity 12-33t/h, Main Power 220kW, Feed Size <45mm, Fineness 10-325 mesh
• MRN218: Capacity 15-45t/h, Main Power 280kW, Feed Size <50mm, Fineness 10-325 mesh

The MTW Series is known for its patented technologies, including an independent intellectual property lubrication system and advanced pulse dust removal, making it a reliable and eco-friendly option for hydrated lime processing.

Conclusion

Hydrated lime is an indispensable material in aquaculture, contributing to water quality management and aquatic health. To fully harness its benefits, it must be processed to the appropriate fineness using reliable grinding equipment. Our SCM Series Ultrafine Mill and MTW Series European Trapezium Mill are engineered to meet these demands, offering high efficiency, precision, and durability. Whether you require ultrafine powders or standard grades, our mills provide the performance and reliability needed for successful hydrated lime production. For more information on how our equipment can support your aquaculture ventures, please contact us today.
