Scales Graphite Vertical Mill Machine: High-Efficiency Grinding Solution for Graphite Powder Production
Introduction to Graphite Powder and Its Industrial Significance
Graphite is one of the most versatile non-metallic minerals in modern industry. Its unique combination of properties—including excellent electrical conductivity, thermal stability, chemical inertness, and natural lubricity—makes it indispensable across a wide range of applications. From lithium-ion battery anodes and fuel cell components to refractories, lubricants, pencils, and carbon brushes, graphite powder serves as a critical raw material in industries that drive technological innovation.
As global demand for high-purity, ultra-fine graphite powder continues to rise, manufacturers face increasing pressure to adopt grinding solutions that deliver superior fineness, consistent particle size distribution, high throughput, and energy efficiency. Traditional grinding equipment such as ball mills and jet mills often fall short in meeting these demanding requirements, especially when processing graphite—a material known for its soft, lamellar structure and tendency to smear under excessive mechanical stress.
This is where the Scales Graphite Vertical Mill Machine emerges as a game-changing solution. Specifically engineered to address the challenges of graphite powder production, this advanced vertical mill combines high-efficiency grinding, precise classification, and intelligent control to deliver exceptional results.
Why Graphite Requires Specialized Grinding Technology
Graphite presents unique challenges in comminution. Its layered crystal structure means that excessive mechanical force can destroy the lamellar morphology, reducing the material’s intrinsic value. Additionally, graphite’s natural lubricity can cause material to adhere to grinding surfaces, reducing efficiency and increasing maintenance costs.
Furthermore, different end-use applications demand vastly different particle sizes. Battery-grade graphite requires ultra-fine powders in the range of 5–25 microns, while refractory and metallurgical applications may require coarser grades between 100 and 325 mesh. A versatile grinding system must therefore offer adjustable fineness without sacrificing capacity or product quality.
The Scales graphite vertical mill machine addresses all of these challenges through its innovative design, which integrates grinding, classification, and powder collection into a single, compact system.

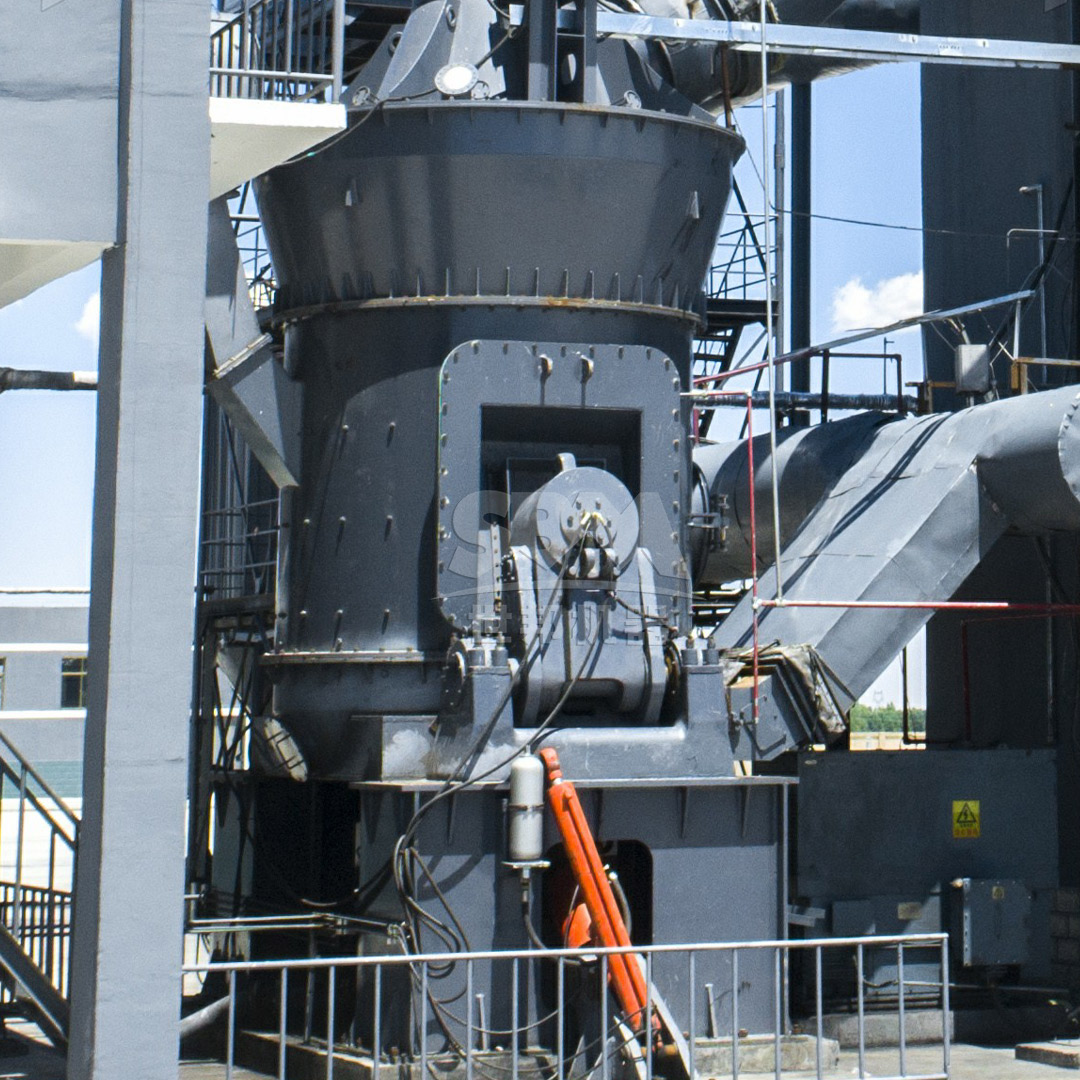

Core Technology: How the Scales Graphite Vertical Mill Works
At the heart of the Scales graphite vertical mill is a robust vertical grinding mechanism. The main motor drives a central shaft that rotates the grinding table or rings. Raw graphite feed—typically up to 20–50mm in size—enters through the central feed port and is distributed evenly across the grinding path by centrifugal force.
Grinding rollers or rings apply controlled pressure to crush and grind the material layer by layer. This bed-grinding principle is particularly well-suited to graphite, as it minimizes destructive impact forces and preserves the crystalline structure. The ground material is then carried upward by an airflow to a high-precision classifier, where fine particles are separated from coarse ones. Qualified powder exits the system via a cyclone collector and pulse dust removal unit, while oversized particles return to the grinding zone for further processing.
This closed-loop system ensures continuous, efficient operation with minimal material loss and dust emissions.
Key Advantages of the Scales Graphite Vertical Mill Machine
1. High Efficiency and Energy Savings
Compared to traditional jet mills and ball mills, the Scales vertical mill delivers significantly higher grinding efficiency. The system can achieve twice the capacity of jet mills while consuming approximately 30% less energy. This translates directly into lower operating costs and reduced environmental footprint—critical factors for graphite producers competing in a cost-sensitive global market.
2. Precision Classification for Consistent Product Quality
The integrated vertical turbine classifier enables precise particle size cutting, ensuring that no coarse powder contaminates the finished product. For battery-grade graphite, where particle size distribution directly affects electrochemical performance, this level of precision is essential. The classifier allows seamless adjustment of fineness, typically ranging from 325 to 2500 mesh (approximately 45 to 5 microns), depending on the specific model and application requirements.
3. Durable, Low-Maintenance Design
Graphite’s abrasive nature can accelerate wear on grinding components. The Scales vertical mill addresses this with specially engineered rollers and rings made from high-wear-resistant materials, extending service life several times over compared to conventional parts. The shaftless screw grinding chamber further enhances operational stability and reduces the risk of mechanical failure.
4. Eco-Friendly Operation with Low Noise
Environmental compliance is a growing concern for mineral processing operations worldwide. The Scales graphite vertical mill incorporates a pulse dust collection system that exceeds international standards for particulate emissions. Additionally, a soundproof room design ensures noise levels remain well within regulatory limits, creating a safer and more comfortable working environment.
5. Intelligent Control and Automation
The system features intelligent control with automatic finished product granularity feedback. Operators can monitor and adjust grinding parameters in real time, reducing manual intervention and ensuring consistent output quality. This smart automation capability aligns with Industry 4.0 trends and supports remote monitoring and diagnostics.

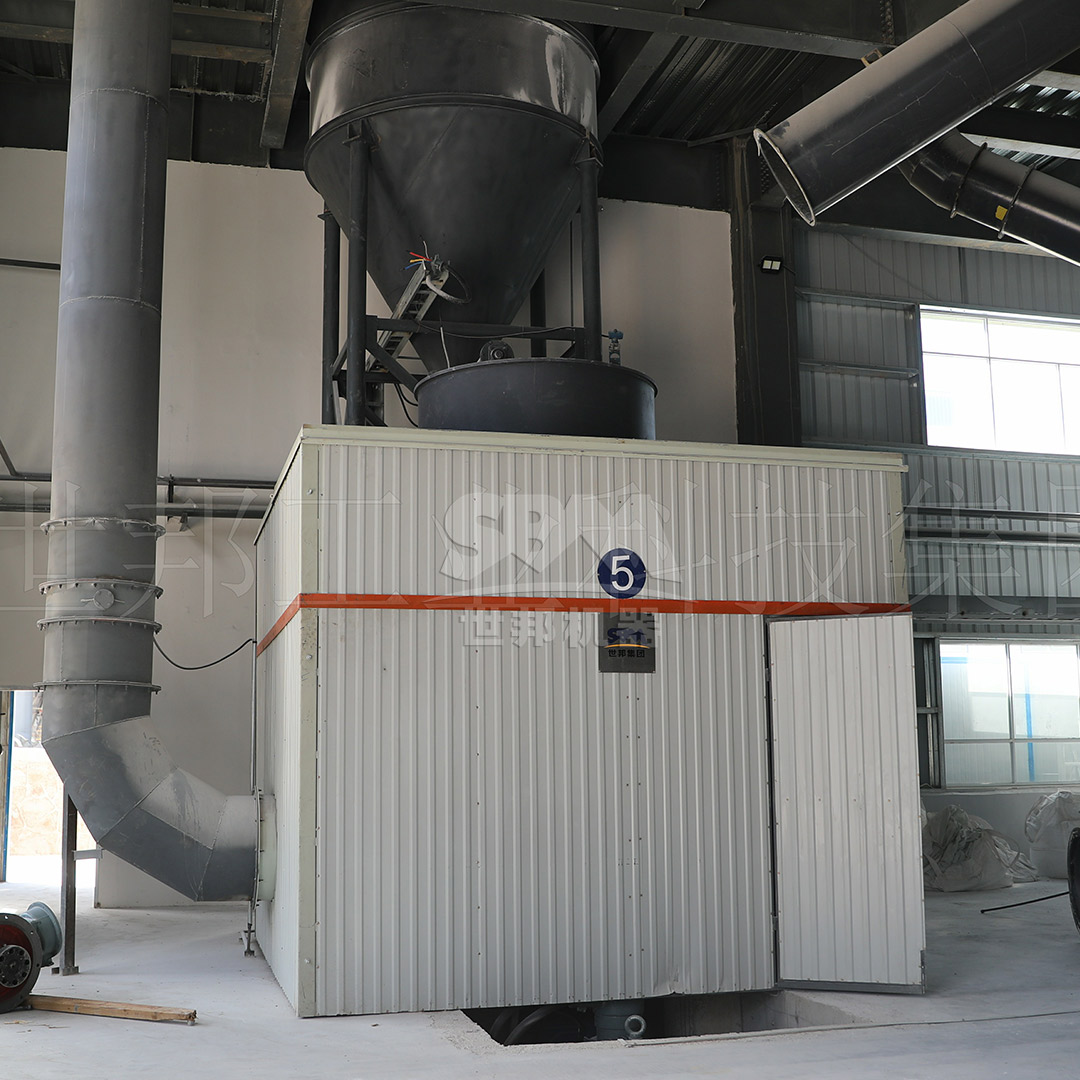

Recommended Product: SCM Series Ultrafine Mill for Graphite Powder Production
For graphite producers seeking the ultimate in ultra-fine grinding performance, we highly recommend the SCM Series Ultrafine Mill. This advanced vertical mill is specifically designed to meet the stringent requirements of high-purity, ultra-fine graphite powder production.
Core Parameters:
- Input Size: ≤20mm
- Output Fineness: 325–2500 mesh
- Capacity: 0.5–25 ton/h (depending on model)
Technical Highlights:
- Capacity is twice that of jet mills, with 30% lower energy consumption.
- Vertical turbine classifier achieves precise particle size cutting with no coarse powder mixing.
- Special material rollers and rings extend service life several times over.
- Pulse dust collection efficiency exceeds international standards.
- Shaftless screw grinding chamber ensures stable, vibration-free operation.
Available Models:
- SCM800: 0.5–4.5 t/h | 75kW
- SCM900: 0.8–6.5 t/h | 90kW
- SCM1000: 1.0–8.5 t/h | 132kW
- SCM1250: 2.5–14 t/h | 185kW
- SCM1680: 5.0–25 t/h | 315kW
With its combination of ultra-fine grinding capability, high capacity, and energy-efficient operation, the SCM Series is the ideal choice for producing battery-grade and high-purity graphite powders.

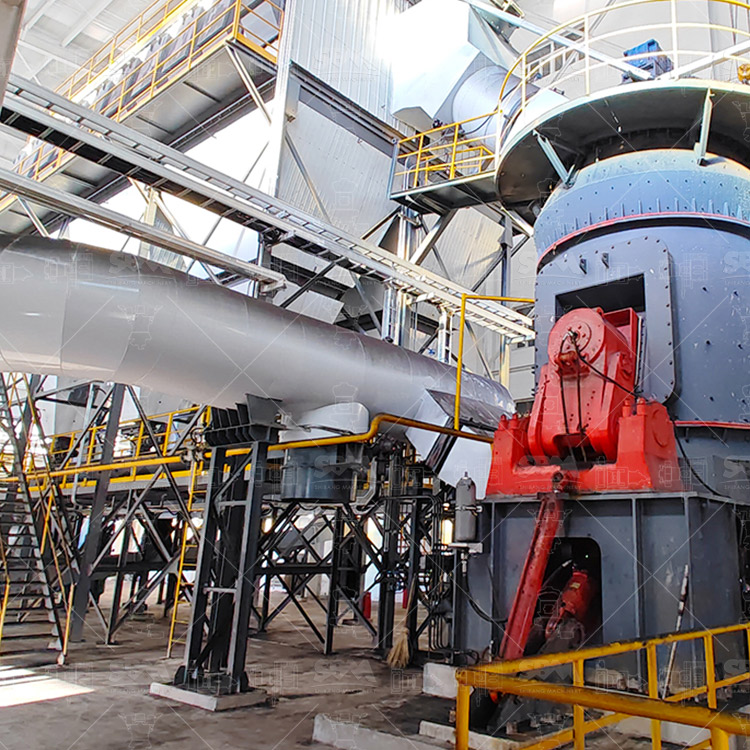

Alternative Solution: LM Series Vertical Roller Mill for Large-Scale Graphite Processing
For operations requiring even larger throughput—such as graphite mining companies processing hundreds of tons per day—the LM Series Vertical Roller Mill offers an exceptional solution.
Core Parameters:
- Input Size: ≤50mm
- Output Fineness: 30–325 mesh (up to 600 mesh for special models)
- Capacity: 3–250 ton/h (depending on model)
Key Advantages:
- Integrated design combining crushing, grinding, and classification; floor space reduced by 50%.
- Energy consumption 30–40% lower than ball mill systems.
- Non-contact design between rollers and table extends wear part life by up to 3x.
- Expert-level auto-control system with remote/local switching and real-time parameter monitoring.
- Fully sealed negative pressure operation with dust emissions well below regulatory limits.
Recommended Models for Graphite:
- LM130K: 10–28 t/h | 200kW | Fineness 170–40μm
- LM150K: 13–38 t/h | 280kW | Fineness 170–40μm
- LM170K: 18–48 t/h | 400kW | Fineness 170–40μm
- LM190K: 23–68 t/h | 500kW | Fineness 170–45μm
- LM220K: 36–105 t/h | 800kW | Fineness 170–45μm
The LM Series is particularly well-suited for large-scale graphite beneficiation plants and integrated production facilities where high throughput and low operating costs are paramount.
Applications of Graphite Powder Produced by Scales Vertical Mills
Graphite powder produced using Scales vertical mill technology is suitable for a wide range of high-value applications:
- Lithium-Ion Battery Anodes: Ultra-fine, spherical graphite powders with consistent particle size distribution are essential for maximizing battery capacity and cycle life.
- Refractory Materials: Graphite powders with controlled fineness improve thermal shock resistance and high-temperature performance in refractory bricks and crucibles.
- Lubricants: Fine graphite powders are used in high-temperature lubricants and dry film lubricants for demanding industrial applications.
- Conductive Coatings and Plastics: Graphite-filled conductive materials require precisely graded powders to achieve optimal electrical conductivity.
- Nuclear Industry: High-purity graphite powders are used in nuclear reactor moderators and shielding applications.
- Fuel Cells: Graphite bipolar plates and gas diffusion layers require ultra-fine, high-purity graphite powders.
Why Choose Scales Graphite Vertical Mill Machine?
When selecting a grinding solution for graphite powder production, several factors must be considered: fineness capability, capacity, energy efficiency, product purity, maintenance requirements, and environmental compliance. The Scales graphite vertical mill machine excels in all of these areas.
Unlike ball mills, which rely on impact and attrition and can introduce iron contamination from grinding media, the Scales vertical mill uses a bed-grinding principle that minimizes contamination and preserves graphite purity. Unlike jet mills, which are energy-intensive and limited in capacity, the Scales vertical mill offers superior throughput and lower operating costs.
Moreover, the modular design of Scales vertical mills allows for seamless integration into existing production lines, and the intelligent control system supports remote monitoring and predictive maintenance—reducing downtime and maximizing return on investment.
Conclusion: Partner with Us for Your Graphite Grinding Needs
The demand for high-quality graphite powder is set to grow exponentially as the world transitions to cleaner energy, advanced electronics, and electric mobility. To remain competitive, graphite producers must invest in grinding technology that delivers precision, efficiency, and reliability.
The Scales Graphite Vertical Mill Machine—whether in the form of the SCM Series Ultrafine Mill for ultra-fine applications or the LM Series Vertical Roller Mill for large-scale processing—represents the pinnacle of modern grinding technology. With proven performance, industry-leading energy efficiency, and comprehensive environmental compliance, Scales vertical mills are the trusted choice for graphite powder manufacturers worldwide.
Contact us today to learn more about how our vertical mill solutions can optimize your graphite powder production line and help you achieve new levels of productivity and product quality.
