What is the principle of grinding calcined kaolin in a mill?

Introduction to Calcined Kaolin and Its Grinding Requirements

Calcined kaolin, a thermally treated form of the clay mineral kaolinite, is a critical industrial material prized for its enhanced brightness, opacity, and abrasiveness compared to its hydrous counterpart. Its applications span a vast range of industries, including paper coating and filling, paints and coatings, plastics, rubber, adhesives, and advanced ceramics. The performance of calcined kaolin in these applications is intrinsically linked to its particle size distribution (PSD) and top-cut (the size of the largest particles). Achieving a fine, consistent, and controlled PSD is paramount, making the selection and operation of the grinding mill the most crucial step in its post-calcination processing.

The primary objective of grinding calcined kaolin is to de-agglomerate the sintered clusters formed during calcination and reduce them to a target fineness, typically anywhere from 325 mesh (45 μm) down to 2500 mesh (5 μm) or even finer for high-value applications. This process must be efficient, controllable, and must not introduce impurities or cause excessive wear on the equipment itself.

Fundamental Principles of Size Reduction in Mills

Grinding, or comminution, is a complex process involving multiple physical principles to achieve particle size reduction. For hard and abrasive materials like calcined kaolin, the dominant mechanisms are:

• Compression (Crushing): Application of slow, heavy forces to fracture particles between two solid surfaces.
• Impact: Application of instantaneous force via collision, either between particles and the mill’s moving parts or between particles themselves.
• Attrition (Abrasion): Application of shear or rubbing forces, scraping layers of material from a particle’s surface, which is highly effective for de-agglomeration.

An efficient mill for calcined kaolin will optimally combine these forces. Furthermore, an integral part of the modern grinding system is the classification or separation stage. An internal or external classifier continuously separates the ground material into two streams: a fine product that meets the specification and a coarse oversize that is returned to the grinding zone for further processing. This closed-circuit system is essential for achieving high efficiency and a narrow, controlled PSD, preventing over-grinding of already-fine particles and reducing energy consumption.

Key Mill Types for Grinding Calcined Kaolin

Several types of mills are employed in the industry, each with its own principle of operation and suitability for different target fineness and capacity ranges.

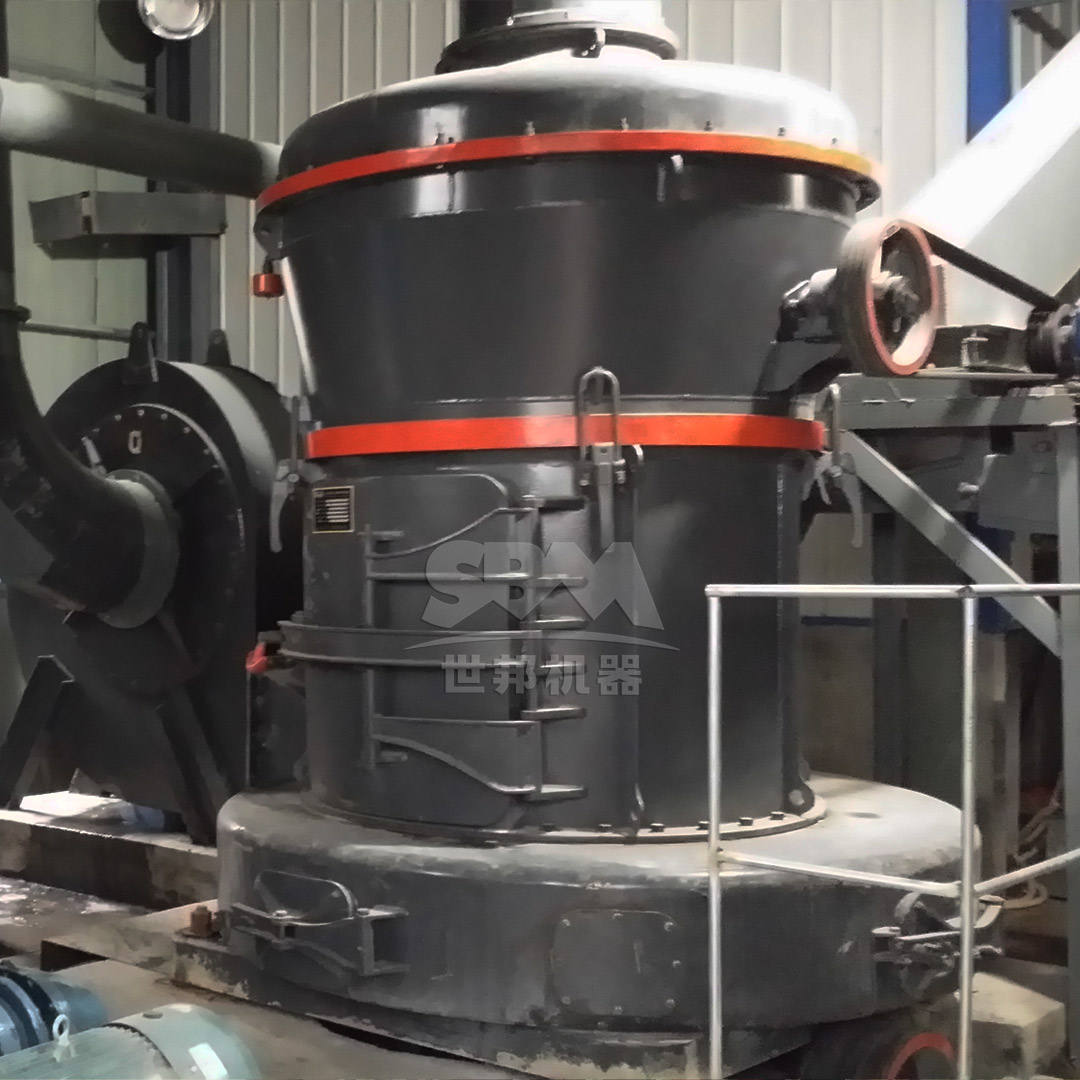

1. Raymond Mill (Roller Mill)

Principle: This is a classic mill type based on the principle of spring-loaded roller grinding. The material is fed into the grinding chamber and transported by a rotating blade (plow) under grinding rollers. The rollers, which are free to rotate, are forced against a stationary grinding ring by centrifugal force and mechanical springs. The material is crushed and ground by the rolling compression between the rollers and the ring. Ground material is carried by the incoming air stream to an integrated classifier. Oversize particles are rejected by the classifier and fall back to the grinding ring for another pass.

Suitability for Kaolin: Well-suited for coarser grinds of calcined kaolin (e.g., 200-325 mesh). Can be limited in achieving very fine cuts (e.g., >600 mesh) efficiently due to the physical constraints of the spring pressure system.

2. Ball Mill

Principle: A horizontal rotating cylinder (drum) is partially filled with grinding media, typically steel or ceramic balls. The material is loaded into the drum. As the drum rotates, the balls are lifted and then cascade down, impacting and attritioning the material trapped between them. The grinding action is a combination of impact (from the falling balls) and attrition (as particles are rubbed between balls). The fineness is controlled by the residence time, the size and density of the balls, and the rotational speed of the drum.

Suitability for Kaolin: Can produce a wide range of fineness but is generally less energy-efficient for fine grinding than more modern mills. The prolonged grinding time can lead to higher iron contamination from media wear, which is detrimental to kaolin’s brightness.

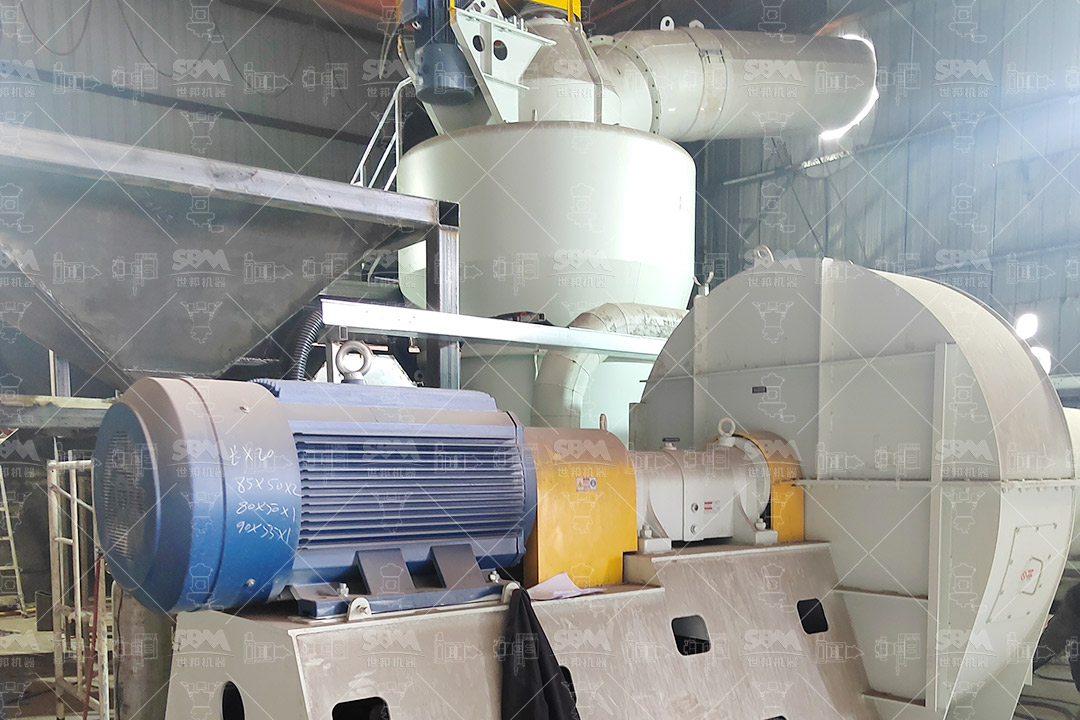

3. Vertical Roller Mill (VRM)

Principle: Material is fed onto the center of a rotating grinding table. Centrifugal force moves the material outward under the grinding rollers. The rollers, hydraulically pressed against the bed of material on the table, comminute the particles primarily through compression. Grinding force is transmitted directly to the particle bed, not metal-to-metal. Grinding efficiency is very high. A stream of hot air (or gas) flows upward around the table, drying the material (if needed) and transporting the fine particles to a classifier mounted directly atop the mill.

Suitability for Kaolin: Excellent for high-capacity applications. Offers good drying capability if the kaolin contains residual moisture. However, for the finest product grades, the PSD can be broader than that achieved by specialized ultra-fine mills.

4. Ultra-Fine Grinding Mills

This category includes mills specifically engineered for the most demanding fine and ultra-fine grinding applications. A prime example is our SCM Ultrafine Mill.

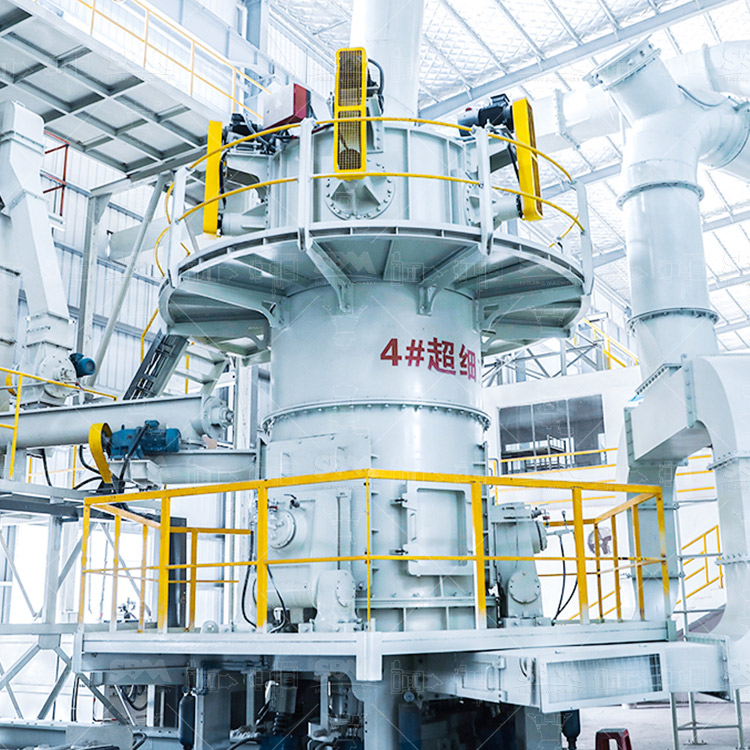

Principle: The SCM Ultrafine Mill operates on a layered grinding principle. The main motor drives the central shaft, causing the three-layer grinding ring to rotate. Material is fed into the mill and dispersed by centrifugal force into the grinding raceway. Multiple grinding rollers, arranged in layers, roll and rotate in the raceway, subjecting the material to intense compression and shear forces. The ground material is then carried by the air flow to an integrated high-precision vertical turbine classifier. The classifier wheel rotates at a variable speed, providing precise cut-point control. Only particles fine enough to overcome the classifier’s centrifugal force exit the mill to the collection system; all oversize material is rejected back to the grinding chamber for further processing.

Suitability for Kaolin: This is the ideal technology for processing high-value, ultra-fine calcined kaolin. Its core advantages directly address the challenges of kaolin grinding:

• High Efficiency & Energy Savings: With a capacity twice that of jet mills and energy consumption reduced by 30%, it significantly lowers operational costs.
• Exceptional Product Quality: The vertical turbine classifier ensures a sharp particle size cut with no coarse grit contamination, resulting in a perfectly uniform product with a D97 fineness ranging from 325 to 2500 mesh (45-5μm). This is critical for applications demanding high gloss and opacity.
• Durability: Specially hardened wear-resistant materials for the rollers and grinding ring extend service life dramatically when processing abrasive kaolin.
• Clean & Quiet Operation: The fully enclosed system with a high-efficiency pulse dust collector ensures dust emissions are below international standards, while soundproofing keeps noise levels below 75dB.

With models like the SCM800 (0.5-4.5 t/h, 75kW) up to the large-scale SCM1680 (5.0-25 t/h, 315kW), this mill series offers a scalable solution for any production requirement for ultra-fine calcined kaolin.

Conclusion: Selecting the Right Mill Principle

The principle of grinding calcined kaolin is not merely about breaking particles down; it is about doing so efficiently, controllably, and without compromising the product’s inherent qualities like brightness and purity. While several mill types can perform the task, the trend is decisively toward advanced, classifier-equipped mills that offer superior control over the final product’s particle size distribution.

For producers targeting the high-end market where ultra-fine, consistent, and grit-free calcined kaolin is demanded, the SCM Ultrafine Mill represents a best-in-class solution. Its layered grinding principle combined with precision air classification ensures optimal performance, making it the technology of choice for modern kaolin processing plants aiming for efficiency, product quality, and profitability.
