What Equipment is Used in a Petroleum Coke Grinding Mill Production Line?

Introduction

Petroleum coke (petcoke), a carbon-rich solid material derived from oil refining, has become an essential fuel and raw material in various industries. Its efficient utilization requires specialized grinding equipment to achieve the desired fineness for applications in cement production, power plants, and aluminum smelting. A complete petroleum coke grinding production line consists of multiple interconnected components working in harmony to transform raw petcoke into valuable fine powder. This article provides a comprehensive overview of the essential equipment used in these production lines, with particular focus on grinding mill selection and auxiliary systems.

Raw Material Preparation Equipment

Feeding Systems

The first stage in any petcoke grinding line involves controlled feeding of raw material. Electromagnetic vibrating feeders or belt feeders are typically employed to ensure consistent and regulated material flow into the crushing system. These feeders prevent choking and maintain optimal processing conditions throughout the production line.

Primary Crushing Equipment

Raw petroleum coke often arrives in large chunks that require size reduction before grinding. Jaw crushers and hammer mills serve as the primary crushing equipment, reducing petcoke from its initial size (which can exceed 200mm) to manageable pieces typically under 50mm. For particularly hard petcoke varieties, impact crushers may be utilized for their high reduction ratios and capacity to handle abrasive materials.

Grinding Mill Selection for Petroleum Coke

The grinding mill represents the heart of any petcoke processing line, with selection depending on required production capacity, target fineness, and economic considerations. Different mill types offer distinct advantages for specific applications.

Vertical Roller Mills (VRM)

Vertical roller mills have gained significant popularity in petcoke grinding due to their energy efficiency and ability to handle moist materials. These mills employ hydraulically-loaded rollers that press against a rotating grinding table, crushing the material through compression. The integrated classifier allows for immediate separation of fine particles, while coarse material returns for further grinding. VRMs typically consume 30-50% less energy than traditional ball mills and can process petcoke with moisture content up to 15-20% when equipped with appropriate drying systems.

Ball Mills and Tube Mills

Traditional ball mills remain a reliable choice for petcoke grinding, particularly for high-capacity operations. These rotating cylinders containing grinding media (steel balls) reduce material size through impact and attrition. While less energy-efficient than vertical mills, ball mills offer operational simplicity and can produce a wide range of product fineness. Tube mills, essentially elongated ball mills, provide increased residence time for finer grinding applications.

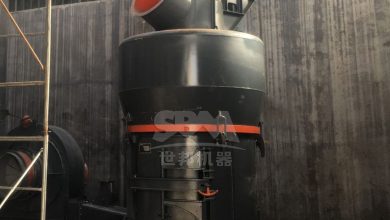

Specialized Ultrafine Grinding Mills

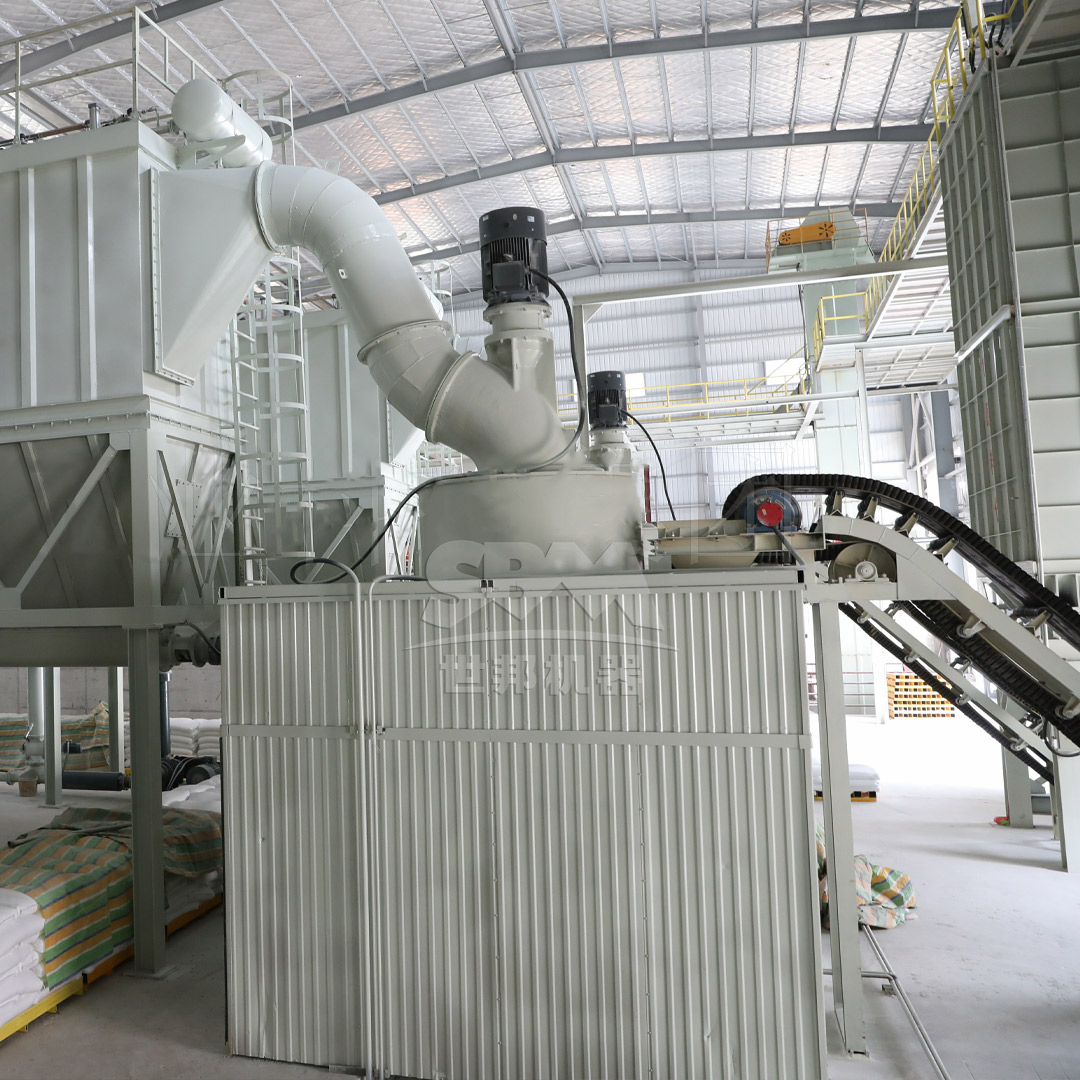

For applications requiring extremely fine petcoke powder (typically below 10μm), specialized ultrafine grinding equipment becomes necessary. These advanced mills incorporate precision classification systems that enable tight particle size distribution control. When such fine specifications are required, our SCM Ultrafine Mill represents an optimal solution with its ability to produce powder in the range of 325-2500 mesh (D97≤5μm). This mill series combines high-efficiency grinding with precision classification, achieving throughput rates of 0.5-25 tons per hour while reducing energy consumption by 30% compared to conventional jet mills. The vertical turbine classifier ensures precise particle size cuts without coarse powder contamination, while special material rollers and grinding rings significantly extend wear part lifespan.

Classification and Separation Equipment

Dynamic Classifiers

Modern petcoke grinding lines invariably incorporate dynamic classifiers that separate particles based on size and weight. These precision devices use rotating blades to create centrifugal forces that reject oversize particles back to the grinding zone while allowing properly sized material to pass. Advanced classifiers can be adjusted during operation to produce different product fineness without stopping the mill.

Cyclone Collectors

Cyclone separators provide the first stage of product collection from the air stream carrying the ground petcoke. These simple yet efficient devices use centrifugal force to separate solid particles from the conveying air, typically capturing 80-95% of the product before the air proceeds to final filtration.

Drying Systems

Petroleum coke often contains significant moisture (5-15%) that must be reduced before or during grinding to ensure processing efficiency and product quality. Two main approaches exist:

Integrated Mill Drying

Many modern grinding mills, particularly vertical roller mills, incorporate hot gas generators that introduce heated air directly into the grinding chamber. This simultaneous grinding and drying approach offers significant energy savings compared to separate drying systems.

Separate Dryers

Rotary dryers or flash dryers may be installed before the grinding mill when processing high-moisture petcoke or when the grinding equipment lacks integrated drying capability. While requiring additional space and energy, separate dryers offer more precise moisture control.

Dust Collection and Pollution Control

Comprehensive dust collection represents a critical component in petcoke grinding operations, both for product recovery and environmental compliance. Baghouse filters equipped with pulse-jet cleaning systems typically serve as the final collection stage, capturing fine particles with efficiency exceeding 99.9%. These systems must be properly designed to handle the explosive nature of fine petcoke dust, often incorporating explosion vents and suppression systems.

Product Handling and Storage

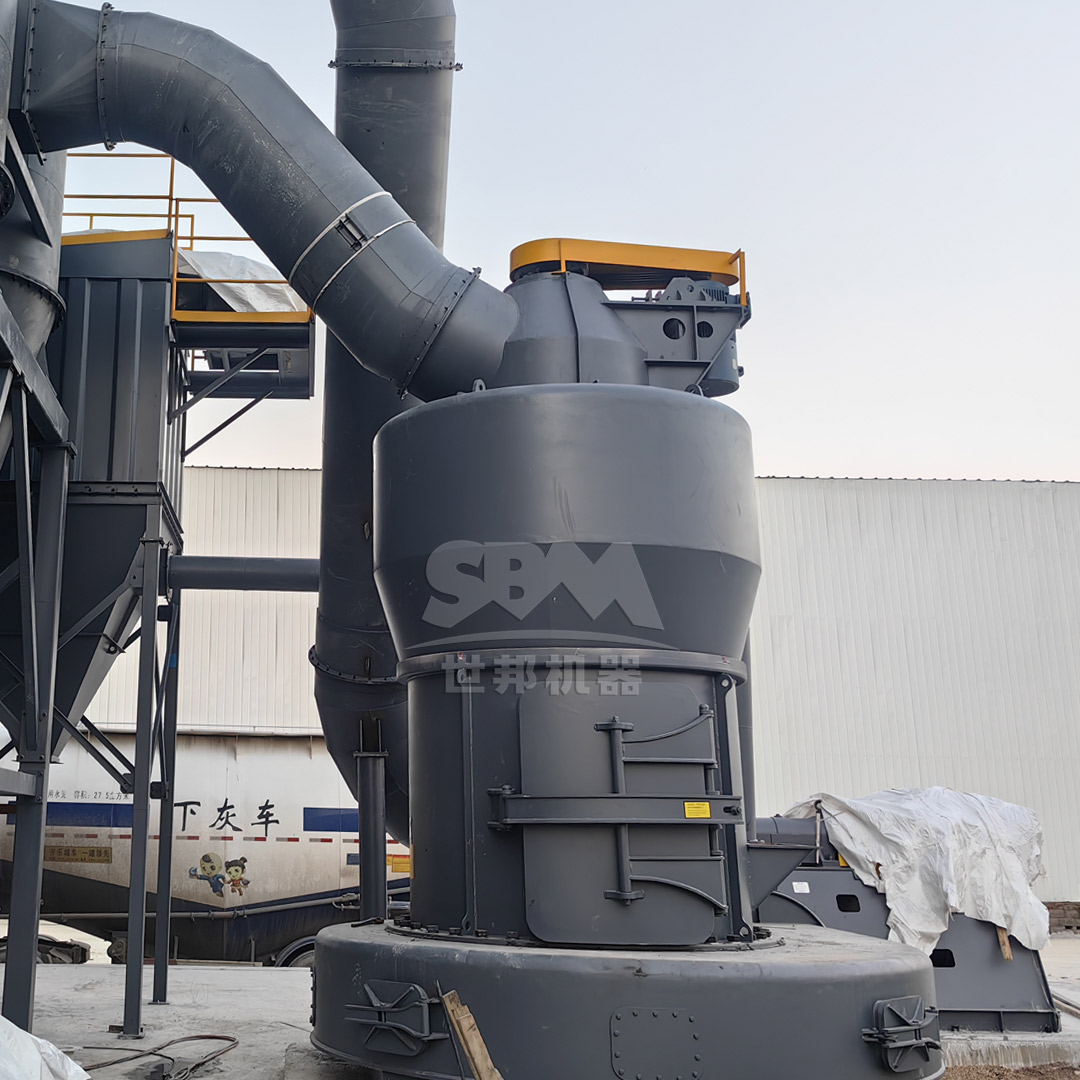

Once ground and collected, petcoke powder requires specialized handling systems to prevent dust emissions and ensure smooth operation. Pneumatic conveying systems transport the product to storage silos, which are equipped with level indicators, aeration systems to maintain powder flowability, and dust collection vents. For fine petcoke applications requiring moderate production volumes with flexible fineness adjustment, our MTW Series Trapezium Mill offers an excellent balance of performance and economy. With capacity ranging from 3-45 tons per hour and output fineness adjustable between 30-325 mesh, this mill features curved air duct technology that minimizes resistance and wear-resistant combined shovel blades that significantly reduce maintenance costs. The integral transmission with bevel gear achieves 98% transmission efficiency while saving installation space.

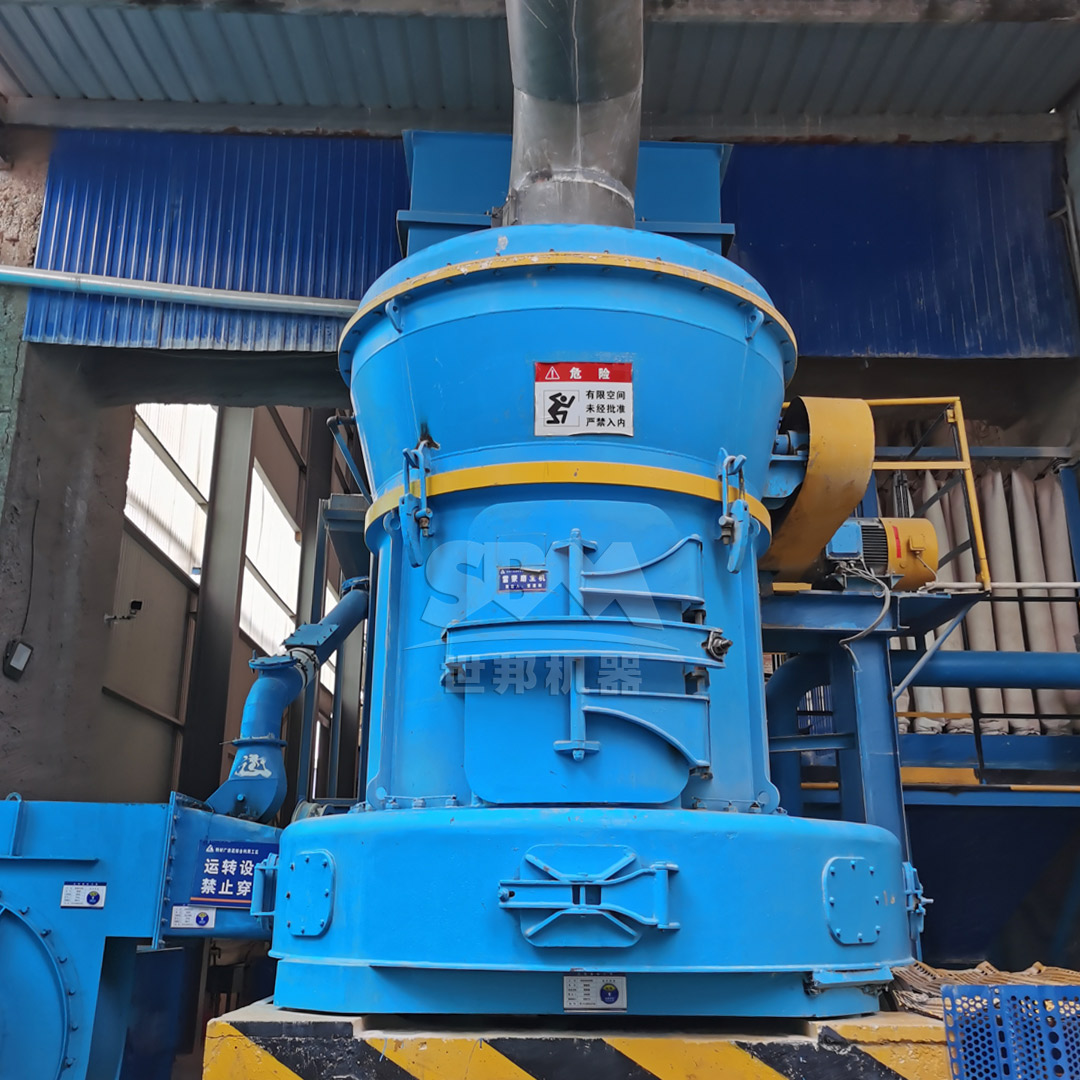

Automation and Control Systems

Modern petcoke grinding lines employ sophisticated distributed control systems (DCS) or programmable logic controllers (PLC) to monitor and regulate all aspects of operation. These systems optimize mill performance by adjusting parameters such as feed rate, grinding pressure, classifier speed, and gas flow based on continuous measurement of product fineness, temperature, and motor load. Advanced control strategies can significantly reduce energy consumption while maintaining consistent product quality.

Auxiliary Equipment

Lubrication Systems

Grinding mills require specialized lubrication systems to ensure reliable operation of bearings and gears. Centralized lubrication systems automatically deliver the proper amount of lubricant to multiple points, while specialized gear spray systems ensure adequate cooling and lubrication of large girth gears in ball mills.

Instrument Air Systems

Clean, dry compressed air is essential for operating control valves, pulse-jet dust collector cleaning, and various instrumentation throughout the grinding line. Instrument air systems typically include compressors, dryers, and filters to ensure air quality.

Conclusion

A petroleum coke grinding production line represents a complex integration of multiple equipment components working in concert to transform raw material into valuable fine powder. From initial crushing through final product collection, each piece of equipment plays a vital role in determining the overall efficiency, product quality, and economic viability of the operation. Proper equipment selection, with careful consideration of petcoke characteristics and final product requirements, forms the foundation for a successful grinding operation. As technology advances, grinding systems continue to evolve toward greater energy efficiency, tighter particle size control, and enhanced operational reliability, offering petcoke processors opportunities to improve their competitive position in increasingly demanding markets.
