Optimizing Control Room Operations for Slag Superfine Powder Grinding in Vertical Roller Mills: Expert Analysis
Introduction
The production of superfine slag powder represents a critical process in modern construction materials manufacturing, offering enhanced performance in concrete and cement applications. Vertical Roller Mills (VRMs) have emerged as the preferred technology for this demanding application due to their superior energy efficiency, precise particle size control, and operational flexibility. However, achieving optimal performance requires sophisticated control room operations that leverage advanced process knowledge, real-time monitoring capabilities, and intelligent automation systems. This expert analysis examines the key considerations for optimizing control room operations specifically for slag superfine powder grinding applications.
The Importance of Slag Superfine Powder Production
Granulated blast furnace slag, when ground to superfine levels (typically 400-600 m²/kg Blaine or 325-2500 mesh), develops excellent cementitious properties that significantly enhance concrete performance. The grinding process transforms this industrial byproduct into a valuable supplementary cementitious material that improves durability, reduces permeability, and enhances long-term strength development in concrete structures. The economic and environmental benefits of utilizing slag have driven increased demand for high-quality superfine slag powder, placing greater emphasis on efficient and reliable production processes.

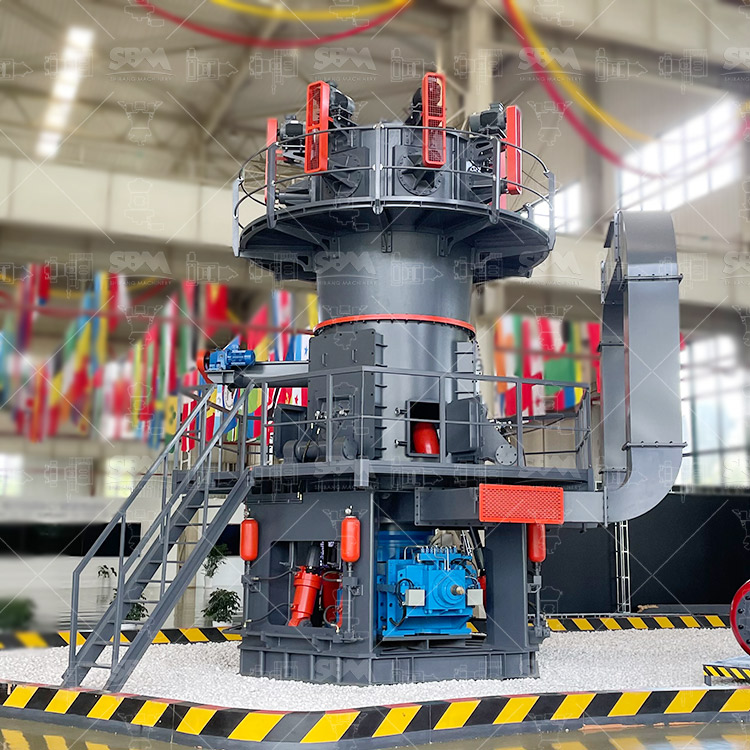

Vertical Roller Mill Technology for Slag Grinding
VRMs offer distinct advantages for slag grinding applications compared to traditional ball mill systems. The fundamental operating principle involves bed comminution where material is ground between a rotating table and rollers under hydraulic pressure. This mechanism provides higher energy efficiency, better drying capacity for moist slag materials, and superior particle size distribution control. For slag applications specifically, VRMs must handle materials with higher abrasiveness and moisture content while maintaining consistent product quality.
Modern VRMs for slag grinding incorporate several critical design features: high-pressure grinding rollers with advanced wear protection, efficient separation systems with variable rotor speeds, robust drive systems capable of handling fluctuating load conditions, and comprehensive instrumentation for process monitoring. The integration of these technologies enables production of slag powder with precisely controlled fineness and optimal particle morphology for cementitious applications.
Control Room Operations: Key Parameters and Monitoring
Effective control room operations for slag grinding VRMs require continuous monitoring and adjustment of multiple interconnected parameters. The primary control variables include:
Mill Feed Rate and Stability
Maintaining consistent feed rate is crucial for stable mill operation. Fluctuations in feed quantity or characteristics can cause vibration issues, product quality variations, and increased energy consumption. Advanced control systems utilize mass flow meters and bin level indicators to maintain optimal feed rates while compensating for material property variations.
Grinding Pressure and Bed Thickness
Hydraulic grinding pressure must be optimized to achieve efficient comminution without excessive vibration. Control operators monitor pressure trends and adjust setpoints based on product fineness requirements and mill stability indicators. Bed thickness monitoring through differential pressure measurements provides critical information about grinding efficiency.
Classification Efficiency
The dynamic separator represents a critical component for achieving target product fineness. Control room operators must monitor and adjust separator speed, air flow, and reject rates to maintain optimal classification efficiency. Modern systems utilize particle size analyzers for real-time feedback on product quality.
Temperature Control
Slag grinding often requires drying simultaneous with grinding operations. Inlet and outlet gas temperatures must be carefully controlled to optimize drying efficiency without causing operational issues such as material buildup or excessive moisture condensation. The optimal temperature profile depends on slag moisture content and mill operational parameters.
Vibration Monitoring
VRMs are susceptible to vibration issues that can cause mechanical damage and unscheduled downtime. Advanced vibration monitoring systems provide early warning of developing problems, allowing operators to take corrective action before mill shutdown becomes necessary. Trend analysis of vibration data enables predictive maintenance strategies.
Advanced Process Control Strategies
Modern control rooms implement sophisticated automation strategies that go beyond basic PID control loops. Model predictive control (MPC) systems utilize mathematical models of the grinding process to anticipate system behavior and optimize multiple variables simultaneously. These advanced controllers can maintain product quality while minimizing energy consumption and maximizing throughput.
Expert systems incorporating artificial intelligence and machine learning algorithms can identify optimal operating regimes based on historical performance data. These systems can detect subtle patterns in operational data that might escape human operators, enabling continuous process improvement and adaptation to changing raw material characteristics.
Fault detection and diagnosis (FDD) systems provide another layer of operational intelligence by identifying developing equipment issues before they cause process upsets or unplanned downtime. By analyzing trends in multiple process variables, FDD systems can distinguish between normal process variations and abnormal conditions requiring intervention.
Recommended Technology: SCM Ultrafine Mill for Premium Applications

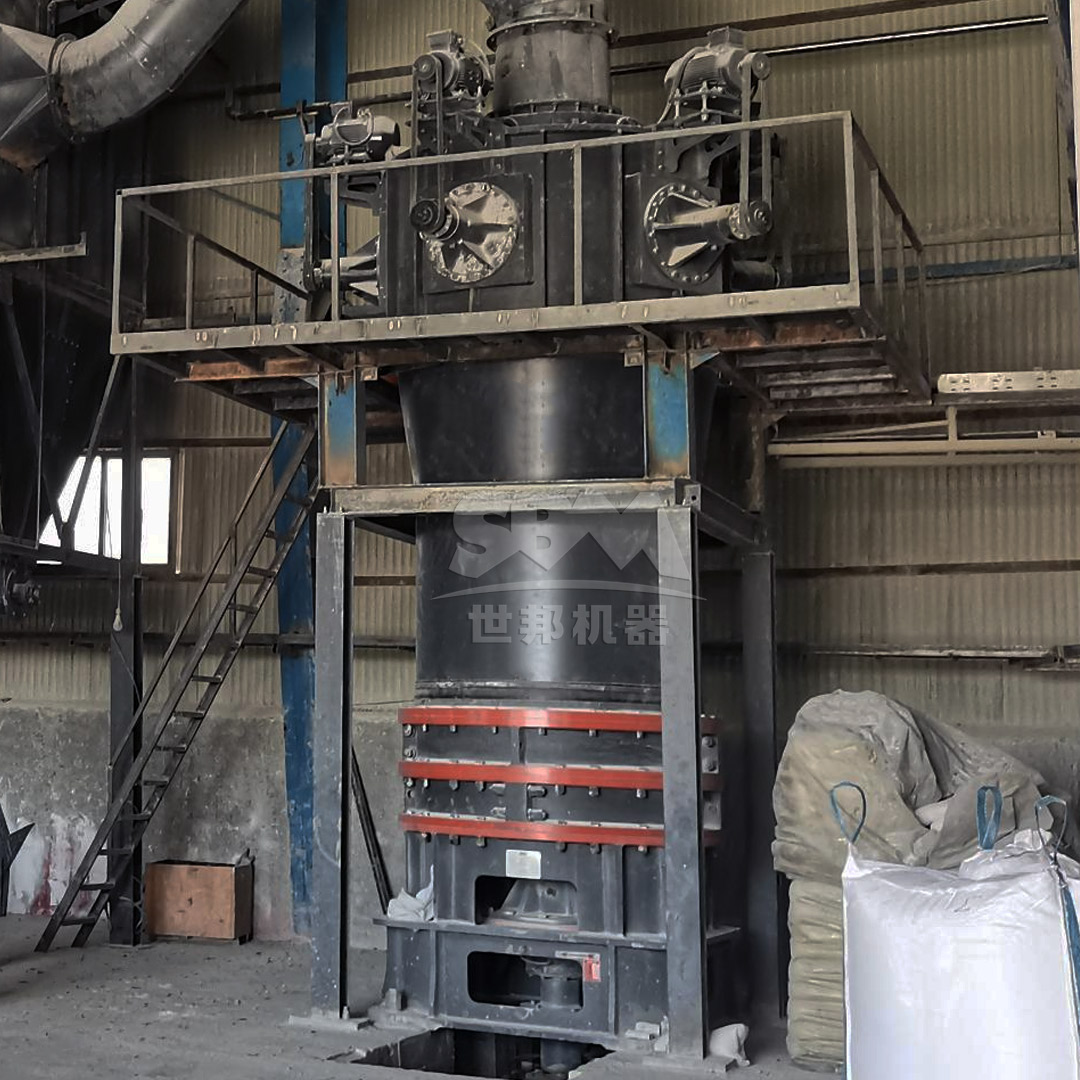

For operations requiring the highest quality slag superfine powder with exceptional fineness control, we recommend our SCM Ultrafine Mill series. This advanced grinding system delivers outstanding performance for slag applications requiring fineness levels of 325-2500 mesh (D97≤5μm).
The SCM Ultrafine Mill incorporates several technological innovations specifically beneficial for slag grinding: its vertical turbine classifier provides precise particle size切割 with no coarse powder contamination, ensuring exceptional product uniformity. The special material roller and grinding ring design offers extended service life when processing abrasive slag materials. The intelligent control system automatically adjusts operational parameters based on real-time feedback of product fineness, maintaining consistent quality despite variations in feed material characteristics.
With capacity ranging from 0.5-25 tons/hour depending on model selection, the SCM series offers scalability for various production requirements. The system’s energy efficiency – consuming 30% less power compared to jet mills – provides significant operational cost savings while the environmental performance meets stringent international standards with pulse dust collection efficiency and noise levels below 75dB.

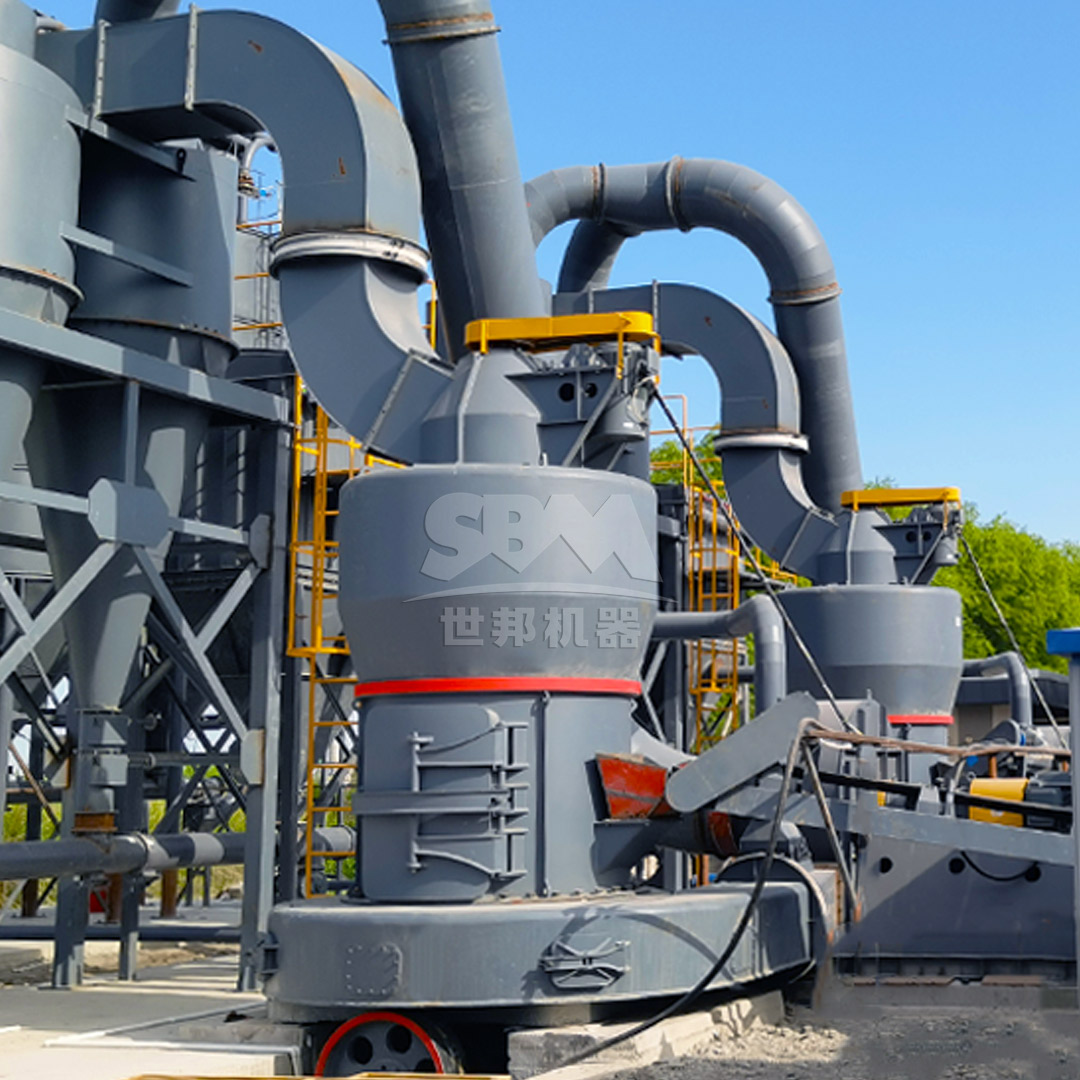

Alternative Solution: MTW Series Trapezium Mill for High-Capacity Requirements
For operations prioritizing high throughput capacity while maintaining good product quality, our MTW Series Trapezium Mill presents an excellent alternative. With capacity ranging from 3-45 tons/hour and the ability to handle feed sizes up to 50mm, this robust grinding system offers exceptional reliability for demanding slag grinding applications.
The MTW series incorporates several design features particularly suited to slag processing: its anti-wear shovel design reduces maintenance costs when processing abrasive materials, while the curved air channel optimization minimizes energy losses and improves transmission efficiency. The integrated gear drive system achieves 98% transmission efficiency, reducing power consumption and installation costs. The wear-resistant volute structure enhances air classification efficiency while reducing maintenance requirements by 30%.
This mill’s working principle – utilizing centrifugal force to create material bedding between rollers and grinding rings – provides efficient comminution with controlled energy consumption. The classification system ensures consistent product quality with fineness adjustable between 30-325 mesh, suitable for most slag application requirements.
Human Factors in Control Room Operations
Despite advances in automation technology, human operators remain essential for optimal VRM operation. Effective control room design must consider human factors to ensure operators can respond appropriately to process upsets and abnormal conditions. Control interface design should present information clearly and intuitively, highlighting critical parameters requiring attention while providing adequate context for decision-making.
Operator training programs must develop both theoretical understanding of the grinding process and practical experience in handling various operational scenarios. Simulation-based training using digital twins of the grinding system can provide valuable experience without risking actual production. Cross-training on mechanical, electrical, and process aspects enables operators to understand the interconnected nature of VRM systems.
Shift handover procedures represent another critical aspect of control room operations. Standardized documentation and communication protocols ensure continuity of operation between shifts, preventing unnecessary adjustments or missed trends in process data. Modern control systems can automatically generate shift reports highlighting key performance indicators and notable events during the previous operating period.
Data Analytics and Performance Optimization
The wealth of data available from modern VRM control systems provides opportunities for continuous performance improvement through advanced analytics. Statistical process control techniques can identify normal variation ranges for key parameters, enabling early detection of abnormal conditions. Correlation analysis between operational parameters and product quality indicators can reveal optimal operating regimes.
Energy consumption analysis can identify opportunities for efficiency improvements, potentially significantly reducing operating costs. By examining power consumption patterns relative to production rate and product fineness, operators can identify and address energy-intensive operating conditions. Maintenance planning can also benefit from data analytics through prediction of component wear based on operational history and material characteristics.
Integration of VRM data with broader plant information systems enables comprehensive performance monitoring across multiple production units. This holistic view supports optimized decision-making regarding production scheduling, maintenance planning, and resource allocation based on overall plant objectives rather than individual unit performance.
Future Trends in VRM Control Systems
The evolution of VRM control technology continues with several emerging trends likely to impact slag grinding operations. Digital twin technology, creating virtual replicas of physical grinding systems, enables advanced simulation, testing, and optimization without disrupting actual production. These digital models can predict system behavior under various conditions, supporting operational decision-making and training activities.
Increased integration of artificial intelligence and machine learning will enhance the capability of control systems to adapt to changing conditions and optimize performance autonomously. These technologies can identify complex relationships between operational parameters that may not be apparent through conventional analysis methods.
Advancements in sensor technology, particularly in-line particle size analysis, will provide more immediate feedback on product quality, enabling tighter control of fineness parameters. Wireless sensor networks and Industrial Internet of Things (IIoT) technologies will expand monitoring capabilities while reducing installation and maintenance costs.
Conclusion
Optimizing control room operations for slag superfine powder grinding in Vertical Roller Mills requires a comprehensive approach integrating advanced technology, operational expertise, and continuous improvement practices. The complex interplay between multiple process variables demands sophisticated control strategies and well-trained operators capable of interpreting system behavior and making appropriate adjustments.
Selection of appropriate grinding technology, such as our SCM Ultrafine Mill for premium applications or MTW Series Trapezium Mill for high-capacity requirements, provides the foundation for successful operation. Implementation of advanced process control strategies, supported by comprehensive data analytics and consideration of human factors, enables operations to achieve consistent product quality, maximize energy efficiency, and minimize operational costs.
As control technologies continue to evolve, embracing emerging trends such as digital twins, artificial intelligence, and enhanced sensor systems will provide opportunities for further optimization. By maintaining focus on both technological advancements and operational excellence, producers can maximize the value derived from slag superfine powder production while meeting the increasingly demanding requirements of modern construction materials markets.
