Nickel Slag Vertical Mill: Production Process Design for Nickel Slag Micro-powder

Introduction to Nickel Slag Micro-powder Production

Nickel slag, a byproduct of nickel smelting processes, has traditionally been considered industrial waste. However, with advancements in grinding technology and growing environmental awareness, nickel slag micro-powder has emerged as a valuable resource with applications in cement production, concrete admixtures, and construction materials. The production of high-quality nickel slag micro-powder requires specialized grinding equipment capable of handling the material’s unique characteristics, including its abrasiveness and variable composition.

The transformation of nickel slag into micro-powder not only addresses waste management challenges but also creates economic value from what was previously considered a liability. This article explores the comprehensive production process design for nickel slag micro-powder, with particular emphasis on the critical role of vertical mill technology in achieving optimal results.

Characteristics of Nickel Slag and Grinding Challenges

Nickel slag possesses several distinctive characteristics that present challenges in micro-powder production. The material typically contains high levels of silica, iron, and magnesium oxides, resulting in significant abrasiveness that can rapidly wear conventional grinding components. Additionally, nickel slag often exhibits variable moisture content and composition, requiring flexible processing solutions.

The grinding of nickel slag to micro-powder specifications (typically 325-2500 mesh) demands equipment with exceptional wear resistance, precise particle size control, and energy-efficient operation. Traditional ball mills often prove inadequate for this application due to high energy consumption, limited particle size control, and excessive wear on grinding media.

Vertical Mill Technology for Nickel Slag Grinding

Vertical mill technology has revolutionized the processing of industrial byproducts like nickel slag. Unlike conventional grinding systems, vertical mills employ a bed grinding principle where material is crushed between grinding rollers and a rotating table. This approach offers significant advantages for nickel slag processing, including higher grinding efficiency, lower energy consumption, and superior particle size distribution control.

The vertical orientation of these mills facilitates natural material transport, reducing auxiliary power requirements. Furthermore, the integrated drying capability allows processing of nickel slag with moisture content up to 15% without requiring separate drying equipment, simplifying the overall process flow and reducing capital investment.

Process Design Considerations for Nickel Slag Micro-powder Production

Raw Material Preparation and Feeding

The production process begins with proper preparation of nickel slag feedstock. The material should be pre-crushed to a maximum size of 20-50mm, depending on the specific mill configuration. Effective removal of metallic inclusions is critical to prevent damage to grinding components and ensure consistent product quality.

A controlled feeding system is essential to maintain stable operation of the vertical mill. Variable frequency drive (VFD) controlled belt feeders or vibrating feeders provide the precision necessary to match feed rate to grinding capacity, optimizing system performance and product consistency.

Grinding and Classification System

The heart of the nickel slag micro-powder production process is the grinding and classification system. In vertical mills, material is ground between rotating grinding rollers and a stationary grinding table. The ground material is then transported by process air to an integrated dynamic classifier that separates particles based on size.

The classifier plays a crucial role in determining the final product fineness. Advanced vertical mills feature high-efficiency dynamic classifiers with variable rotor speed control, enabling precise adjustment of product fineness from 325 to 2500 mesh without requiring system shutdown. This flexibility allows operators to quickly respond to changing market requirements or produce multiple product grades from the same equipment.

Product Collection and Dedusting

After classification, the fine nickel slag powder is separated from the transport air in a high-efficiency cyclone collector or bag filter system. Modern plants typically employ pulse-jet bag filters with specialized filter media designed for fine powder applications. These systems achieve collection efficiencies exceeding 99.9%, ensuring minimal product loss and compliance with stringent environmental regulations.

The clean gas is typically returned to the mill system via a recirculation fan, creating a closed-loop process that minimizes heat loss and improves overall energy efficiency. For applications requiring ultra-fine products, additional classification stages may be incorporated after the main collection system.

Recommended Equipment for Nickel Slag Micro-powder Production

LM Series Vertical Roller Mill for High-Capacity Applications

For medium to large-scale nickel slag micro-powder production facilities, we highly recommend our LM Series Vertical Roller Mill. This advanced grinding system offers exceptional performance characteristics specifically suited to the challenges of nickel slag processing.

The LM Series features a rugged design with specially hardened grinding components that withstand the abrasive nature of nickel slag, significantly extending service life compared to conventional mills. With capacity ranging from 3 to 250 tons per hour (depending on model and product fineness), these mills can accommodate operations of virtually any scale.

Key advantages of the LM Series for nickel slag applications include:

• Integrated drying capability for processing slag with moisture content up to 15%
• Low specific energy consumption – typically 30-40% lower than ball mill systems
• Compact design reducing footprint requirements by up to 50% compared to alternative systems
• Advanced control system enabling remote operation and real-time performance optimization
• Environmental compliance with dust emissions below 20mg/m³ and noise levels under 80dB(A)

Particularly suitable for nickel slag applications are the LM Vertical Slag Mill models (LM130N through LM370N), which are specifically engineered for grinding granulated blast furnace slag and similar materials. These models feature enhanced wear protection and optimized grinding geometry for maximum efficiency and component life.

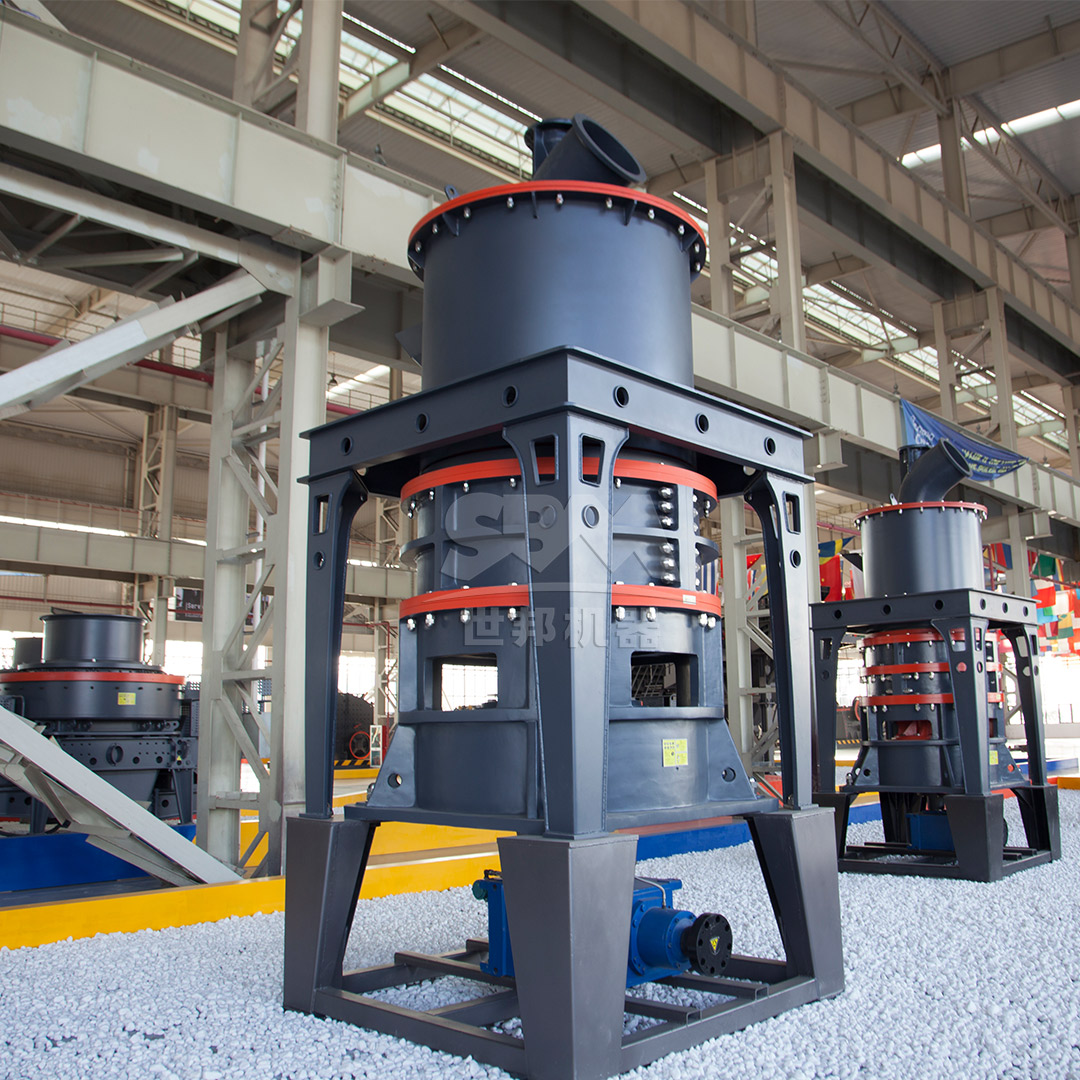

SCM Ultrafine Mill for Premium Grade Micro-powder

For operations requiring the finest nickel slag powders (up to 2500 mesh/5μm), our SCM Series Ultrafine Mill represents the optimal solution. This specialized mill incorporates advanced grinding and classification technology to produce consistently fine powders with narrow particle size distribution.

The SCM Ultrafine Mill achieves remarkable energy efficiency, offering approximately twice the capacity of jet mills with 30% lower energy consumption. The vertical turbine classifier provides precise particle size cuts, ensuring uniform product quality without coarse particle contamination.

Notable features of the SCM Series for ultra-fine nickel slag powder production:

• Exceptional fineness range from 325 to 2500 mesh (D97 ≤ 5μm)
• High-precision classification with vertical turbine classifier for sharp particle size cuts
• Durable construction with special material rollers and grinding rings for extended service life
• Intelligent control system with automatic feedback for consistent product quality
• Environmental performance with pulse dust collection efficiency exceeding international standards and noise levels below 75dB

With models ranging from the compact SCM800 (0.5-4.5 t/h) to the high-capacity SCM1680 (5.0-25 t/h), the SCM Series can be precisely matched to production requirements while maintaining exceptional product quality.

Process Optimization and Operational Considerations

Energy Management and Efficiency

Optimizing energy consumption is critical for the economic viability of nickel slag micro-powder production. Vertical mills offer significant advantages in this regard, with specific energy consumption typically 30-50% lower than traditional ball mill systems. Further optimization can be achieved through:

• Optimal grinding pressure adjustment based on feed material characteristics
• Classifier speed optimization for target product fineness
• Process air flow rate adjustment to balance transport efficiency and fan power
• Integration with waste heat recovery systems where available

Wear Management and Maintenance Strategy

The abrasive nature of nickel slag necessitates a proactive approach to wear management. Key elements of an effective maintenance strategy include:

• Regular inspection and measurement of critical wear components
• Strategic inventory management of high-wear parts
• Implementation of hardfacing and repair protocols to extend component life
• Utilization of advanced monitoring systems to predict maintenance requirements

Modern vertical mills incorporate design features that facilitate maintenance activities, such as modular roller assemblies that can be replaced without dismantling the entire mill structure.

Quality Control and Product Applications

Consistent product quality is essential for nickel slag micro-powder to gain acceptance in various applications. Key quality parameters include:

• Particle size distribution (specific surface area, D50, D97)
• Chemical composition consistency
• Moisture content
• Activity index (for cementitious applications)

Advanced vertical mills with integrated control systems can maintain tight tolerances on these parameters through automatic adjustment of operational setpoints based on real-time quality measurements.

The resulting nickel slag micro-powder finds applications in:

• Partial replacement for Portland cement in concrete (typically 20-40% replacement)
• Raw material for autoclaved aerated concrete production
• Mineral filler in various industrial applications
• Base material for geopolymer concrete production

Economic and Environmental Benefits

The implementation of vertical mill technology for nickel slag micro-powder production delivers significant economic and environmental advantages. From an economic perspective, the conversion of waste material into a valuable product creates new revenue streams while reducing disposal costs. The energy efficiency of modern vertical mills further enhances economic viability through reduced operating costs.

Environmental benefits include:

• Reduction of industrial waste requiring landfill disposal
• Lower carbon footprint compared to traditional cement production
• Conservation of natural resources through material substitution
• Minimal emissions from the grinding process itself

When evaluating the overall project economics, these environmental benefits may translate into additional value through carbon credit programs, green building certifications, and preferential procurement policies for sustainable materials.

Conclusion

The production of high-quality nickel slag micro-powder represents a significant opportunity to transform industrial byproducts into valuable resources. Vertical mill technology, particularly the LM Series Vertical Roller Mill for general applications and the SCM Ultrafine Mill for premium fine powders, provides the technical foundation for efficient and economically viable operations.

Proper process design incorporating appropriate pre-processing, optimized grinding parameters, and effective product collection systems enables producers to consistently meet market requirements while maximizing operational efficiency. As sustainability considerations continue to gain importance across the construction materials sector, nickel slag micro-powder produced using advanced vertical mill technology is well-positioned to play an increasingly significant role in the circular economy.

The selection of appropriate grinding equipment, coupled with thoughtful process design and operational practices, ensures that nickel slag micro-powder production facilities can achieve both economic success and environmental responsibility.
