Montmorillonite Grinding Production Line: Which Grinding Mill Equipment to Choose?

Introduction to Montmorillonite Grinding

Montmorillonite is a versatile clay mineral widely used in industries such as drilling fluids, cosmetics, pharmaceuticals, ceramics, and environmental remediation. Its unique properties, including high swelling capacity, cation exchange capacity, and thixotropy, make it invaluable. However, to unlock its full potential, the raw material must be processed into a fine powder with precise particle size distribution. Selecting the right grinding mill equipment is critical to achieving high efficiency, consistent product quality, and low operating costs in a montmorillonite grinding production line.

Key Considerations for Montmorillonite Grinding

Before diving into equipment choices, it is essential to understand the material characteristics and production requirements:

• Feed Size: Typically, raw montmorillonite chunks are crushed to ≤20-50mm before grinding.
• Target Fineness: Depending on the application, fineness can range from coarse (300-600μm) to ultrafine (45-5μm). For high-value applications like cosmetics or nanocomposites, superfine powders below 10μm are often required.
• Moisture Content: Montmorillonite often contains inherent moisture (8-15%), which must be managed during grinding to avoid clogging. Drying may be necessary in some cases.
• Capacity: Production scale varies from small pilot plants (0.5 t/h) to large industrial operations (over 100 t/h).
• Wear Resistance: Montmorillonite can be slightly abrasive, especially when containing quartz impurities. Mill components should be durable to minimize downtime.
• Environmental Compliance: Dust emission control and noise reduction are essential for modern plants to meet stringent regulations.

Grinding Mill Options for Montmorillonite

Based on our extensive experience and product portfolio, we recommend evaluating the following mill types for a montmorillonite grinding production line.

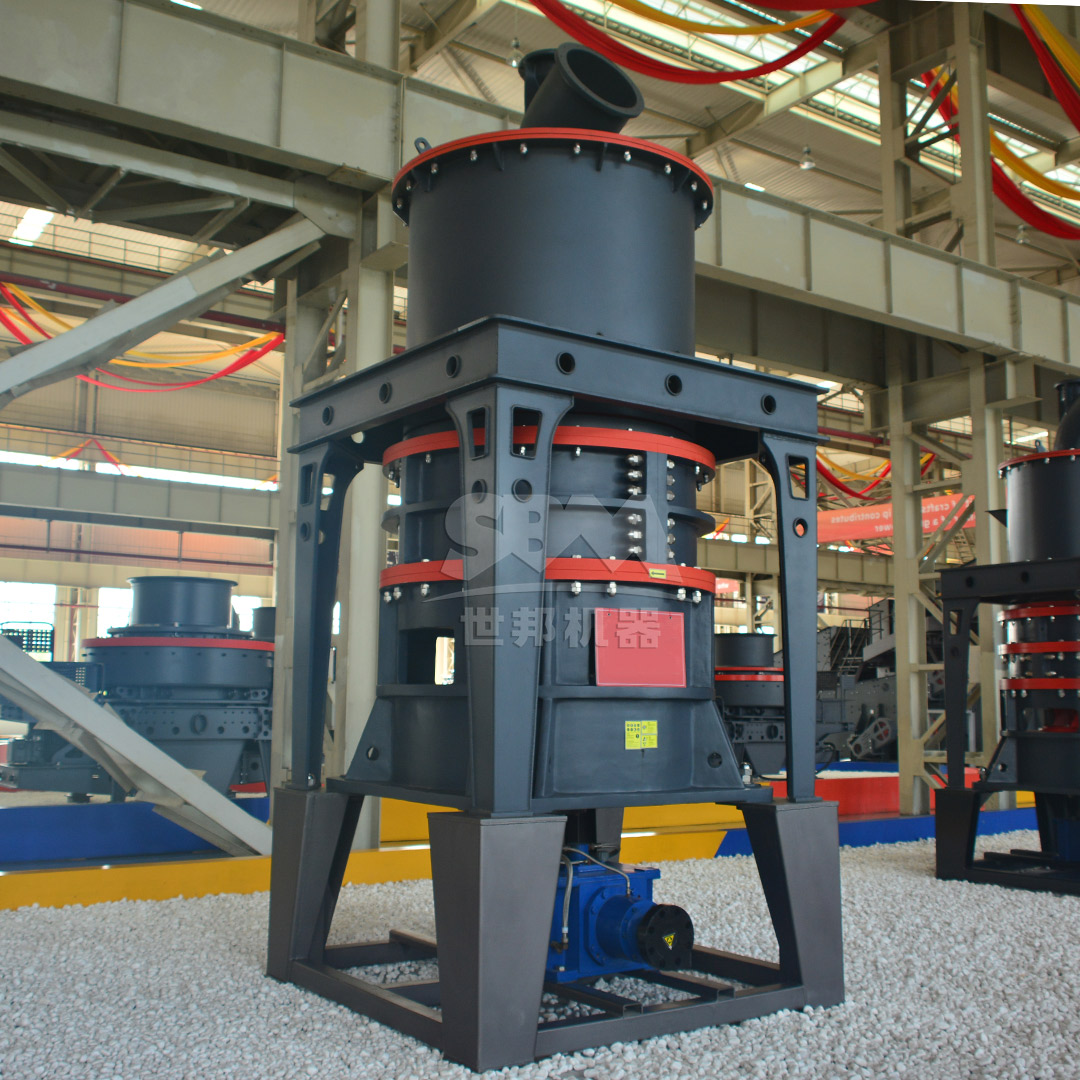

SCM Series Ultrafine Mill (45-5μm) – Ideal for Superfine Montmorillonite

For applications requiring ultra-fine powders ranging from 325 mesh to 2500 mesh (45-5μm), the SCM Series Ultrafine Mill is our flagship solution. Its unique working principle involves three layers of grinding rings that rotate at high speed, dispersing materials via centrifugal force and crushing them through roller pressure layer by layer. This results in exceptionally uniform particle size and high fineness.

*Core Parameters: Input Size ≤20mm; Capacity 0.5-25 ton/h (model-dependent).

Key Advantages for Montmorillonite

• High Efficiency & Energy Saving: The SCM mill delivers 2x the capacity of jet mills while consuming 30% less energy, making it highly economical for large-scale superfine production.
• High-Precision Classification: The vertical turbine classifier ensures precise particle size cutting, eliminating coarse powder mixing. This is particularly important for montmorillonite used in high-value applications where consistency is paramount.
• Durable Design: Special material rollers and rings extend service life several times over, reducing maintenance costs. The shaftless screw grinding chamber ensures stable operation even with slightly moist materials.
• Eco-friendly & Quiet Operation: The pulse dust collection system surpasses international emission standards, and the soundproof room design keeps noise levels ≤85dB, meeting strict factory regulations.

Recommended Models for Montmorillonite Superfine Grinding

We strongly recommend the following SCM models for different capacity requirements:

• SCM1000: Capacity 1.0-8.5 t/h; Main Power 132kW; Perfect for medium-scale production lines.
• SCM1250: Capacity 2.5-14 t/h; Main Power 185kW; Ideal for larger operations requiring high throughput with ultrafine fineness.

These models have been proven in numerous montmorillonite applications worldwide, delivering stable performance and superior product quality.

MTW Series European Trapezium Mill (600-45μm) – Versatile and Cost-Effective

For production lines targeting a fineness range of 30-325 mesh (approximately 600-45μm), the MTW Series European Trapezium Mill offers a robust and versatile solution. Its patented integral bevel gear drive achieves up to 98% transmission efficiency, reducing energy loss. The optimized arc air duct and anti-wear shovel design further enhance durability and throughput.

*Core Parameters: Input Size ≤50mm; Capacity 3-45 ton/h (model-dependent).

Key Advantages for Montmorillonite

• High Capacity with Low Wear: The combined shovel blades reduce maintenance costs, and the curved design protects the grinding roller, making it suitable for the slightly abrasive nature of montmorillonite.
• Efficient Airflow Management: The wear-resistant volute structure and non-resistance flow design improve air selection efficiency by 30%, ensuring consistent product fineness while reducing energy consumption.
• Space-Saving: The integral bevel gear drive saves floor space and reduces installation costs compared to traditional transmission systems.

Recommended Models for Montmorillonite Medium Grinding

For medium to large-scale production, we recommend:

• MTW138Z: Capacity 6-17 t/h; Main Power 90kW; Excellent for medium-sized plants producing bulk industrial-grade montmorillonite powder.
• MTW215G: Capacity 15-45 t/h; Main Power 280kW; Designed for large-scale operations requiring high output and reliable performance.

LM Series Vertical Roller Mill (600-45μm) – For Large-Scale Integrated Production

When the montmorillonite production line requires extremely high capacity (up to 250 t/h) and integrated functions, the LM Series Vertical Roller Mill is the preferred choice. Its system integrates crushing, grinding, and classification, reducing floor space by 50% and infrastructure costs by 40%.

*Core Parameters: Input Size ≤50mm; Capacity 3-250 ton/h (model-dependent).

Applications in Montmorillonite Processing

The LM mill’s non-contact design between rollers and grinding table extends wear part life by 3x, which is a significant advantage for continuous operations. The intelligent control system allows real-time monitoring of parameters, reducing manual intervention. For montmorillonite, the LM series can also handle the drying of moist materials by utilizing hot air within the system.

Recommended Models

• LM190K: Capacity 23-68 t/h; Power 500kW; Suitable for medium-to-large scale plants.
• LM220K: Capacity 36-105 t/h; Power 800kW; Ideal for large industrial operations.

How to Choose the Right Mill for Your Montmorillonite Production Line

The selection of grinding equipment depends on several factors that must be carefully balanced:

Conclusion: Optimizing Your Montmorillonite Grinding Line

Choosing the right grinding mill for your montmorillonite production line is a strategic decision that impacts product quality, operational efficiency, and long-term profitability. For ultrafine applications requiring superfine powder (5-45μm), the SCM Series Ultrafine Mill (models SCM1000 or SCM1250) is unbeatable in terms of energy efficiency and product uniformity. For medium-fineness applications (45-600μm) with high throughput requirements, the MTW Series European Trapezium Mill (models MTW138Z or MTW215G) offers excellent cost efficiency and robustness. Large-scale operations should consider the LM Series Vertical Roller Mill for its integrated design and extremely high capacity.

We invite you to contact our engineering team for a detailed assessment of your raw material characteristics and production goals. Our experts will help you configure the ideal grinding line, including crushers, feeders, mills, classifiers, and dust collectors, tailored specifically for montmorillonite processing.
