Isostatic Graphite Powder Grinding Process: A Comprehensive Guide
Introduction to Isostatic Graphite
Isostatic graphite, also known as isotropic graphite, is a premium synthetic material characterized by its uniform structure and properties in all directions. This high-purity, high-strength material is manufactured through a cold isostatic pressing (CIP) process followed by high-temperature graphitization. Its exceptional thermal stability, electrical conductivity, chemical resistance, and machinability make it indispensable across various high-tech industries including semiconductor manufacturing, EDM electrodes, solar photovoltaics, nuclear reactors, and aerospace applications.
The superior performance of isostatic graphite components heavily depends on their microstructural properties, which are significantly influenced by the powder characteristics before forming. Achieving the optimal particle size distribution, morphology, and purity through precise grinding is therefore critical to producing high-quality isostatic graphite products.
Key Challenges in Graphite Powder Grinding
Grinding isostatic graphite presents several unique challenges that distinguish it from processing other mineral materials. Understanding these challenges is essential for selecting the appropriate grinding technology and process parameters.
1. Abrasive Nature and Wear
Graphite’s crystalline structure creates highly abrasive particles that cause significant wear on grinding components. This abrasiveness necessitates the use of specialized wear-resistant materials in grinding equipment to maintain operational efficiency and consistent product quality over extended periods.
2. Particle Size Requirements
Isostatic graphite applications demand extremely fine powders with tight particle size distributions. Typical requirements range from 325 mesh (45μm) to 2500 mesh (5μm) or even finer for specialized applications. Achieving such fine sizes while maintaining narrow distributions requires advanced grinding and classification systems.
3. Contamination Control
High-purity applications, particularly in semiconductor and nuclear industries, require minimal contamination from grinding media and equipment wear. Any metallic or other contamination can compromise the electrical, thermal, and mechanical properties of the final graphite products.
4. Explosion Risks
Fine graphite powders present significant explosion hazards due to their combustible nature. Proper dust collection, explosion suppression systems, and inert gas blanketing are essential safety considerations in graphite grinding operations.
5. Moisture Sensitivity
Graphite is hygroscopic and can absorb moisture from the atmosphere, affecting flow characteristics and subsequent processing. Controlled environment grinding or appropriate drying steps may be necessary depending on application requirements.
Grinding Process Overview
The grinding process for isostatic graphite powder typically involves multiple stages to achieve the desired particle characteristics efficiently while addressing the challenges mentioned above.
Primary Crushing
Large graphite pieces are initially reduced to smaller, manageable sizes using jaw crushers or similar equipment. This stage typically produces particles in the range of 20-50mm, preparing the material for secondary grinding.
Intermediate Grinding
The crushed graphite undergoes further size reduction through hammer mills or similar impact-based equipment. This stage brings the particle size down to approximately 0-3mm, creating a more uniform feed for fine grinding operations.
Fine and Ultrafine Grinding
This critical stage determines the final particle size distribution and morphology. Various grinding technologies can be employed, each with specific advantages for graphite processing. The selection depends on the required fineness, production capacity, and quality specifications.

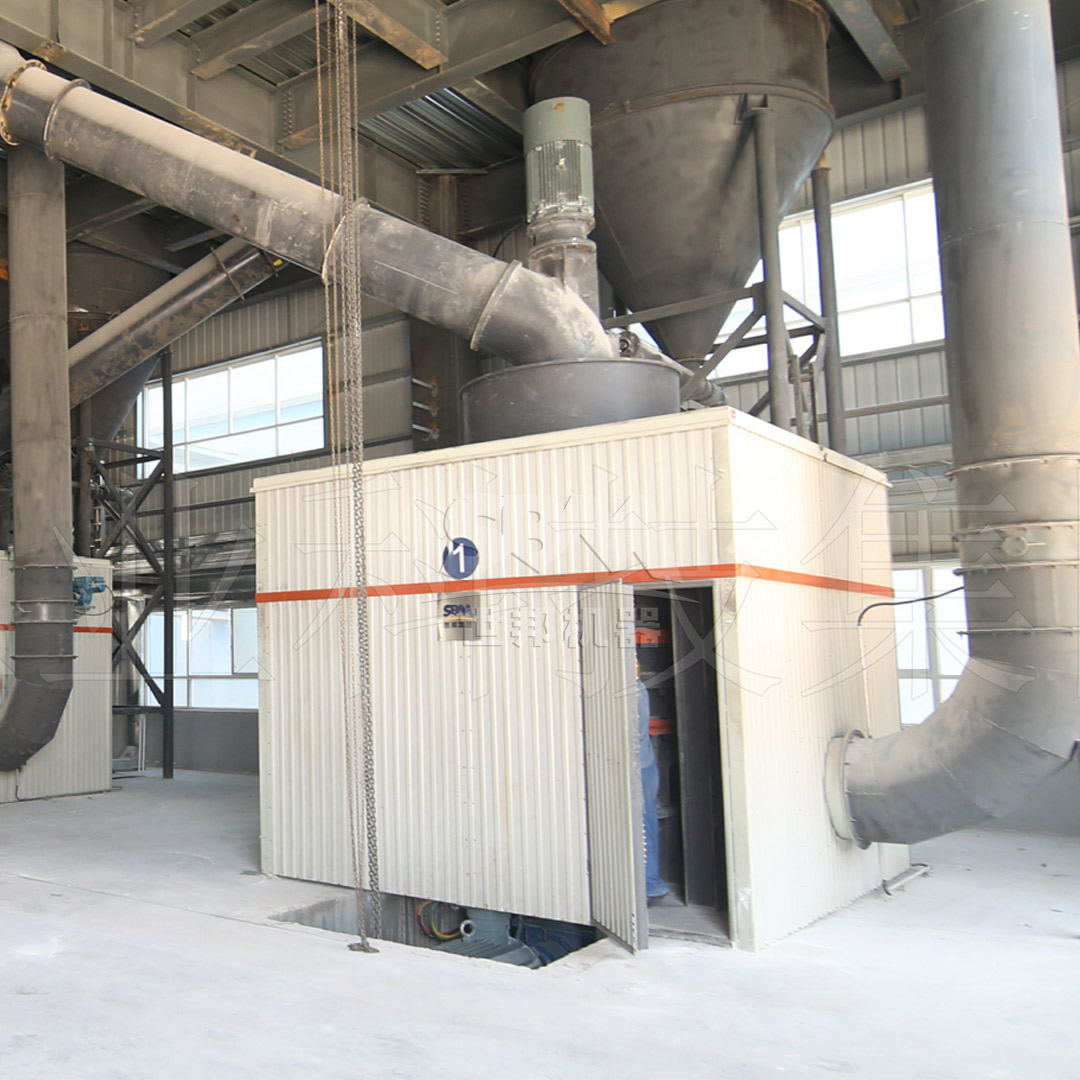

Classification and Collection
After grinding, the powder is classified to separate particles meeting size specifications from those requiring further reduction. Efficient collection systems, typically combining cyclone separators and baghouse filters, ensure high product recovery while maintaining a clean operating environment.
Advanced Grinding Technologies for Graphite
Several grinding technologies have proven effective for producing high-quality isostatic graphite powders. The choice of technology depends on specific product requirements, production scale, and economic considerations.
Ultrafine Grinding Mills
For the most demanding applications requiring particles in the 5-45μm range (325-2500 mesh), ultrafine grinding mills offer unparalleled performance. These systems combine intense grinding forces with precise classification to produce powders with narrow size distributions.
Our SCM Ultrafine Mill represents the pinnacle of graphite grinding technology, specifically engineered to address the challenges of processing advanced materials like isostatic graphite. With an output fineness range of 325-2500 mesh (D97≤5μm) and processing capacity of 0.5-25 tons per hour depending on model, this system delivers exceptional performance for high-value graphite applications.
The SCM series incorporates several critical features for graphite processing: specialized wear-resistant materials for extended component life, completely enclosed negative pressure operation to prevent contamination, intelligent control systems for consistent product quality, and comprehensive safety systems including pulse dust removal and explosion suppression capabilities.
Vertical Roller Mills
Vertical roller mills provide an efficient solution for medium to large-scale graphite production. Their principle of bed comminution between grinding rollers and a rotating table offers high energy efficiency and relatively low wear rates.
Our LM Series Vertical Roller Mill offers exceptional capabilities for graphite processing with output fineness from 30-325 mesh (special models to 600 mesh) and capacity ranging from 3-250 tons per hour. The集约化设计 (intensive design) integrates multiple functions including grinding, drying, and classification in a single compact unit, reducing footprint by 50% compared to traditional systems.
Key advantages for graphite processing include: non-contact grinding design that reduces contamination risks, expert automatic control system for consistent product quality, full sealed negative pressure operation with dust emissions <20mg/m³, and significantly lower energy consumption compared to conventional ball mill systems.
Other Grinding Technologies
Several other technologies may be employed depending on specific requirements:
Ball Mills: Traditional ball milling remains relevant for some graphite applications, particularly where certain particle morphologies are desired. Modern ball mills offer capacities up to 450 tons per hour with fineness ranging from 0.074-0.8mm.
Jet Mills: Utilizing compressed air or steam to achieve particle-on-particle impact, jet mills can produce extremely fine powders without contamination from grinding media. However, they typically have higher energy requirements and lower capacities compared to mechanical mills.
Planetary Mills: These high-energy mills are suitable for laboratory-scale production or specialized applications requiring unique particle characteristics.
Critical Process Parameters and Optimization
Optimizing the grinding process for isostatic graphite requires careful attention to several key parameters that significantly influence product quality and process efficiency.
Particle Size Distribution Control
The width of the particle size distribution significantly affects the packing density and sintering behavior of graphite powders. Narrow distributions typically produce more uniform and predictable material properties in the final product. Advanced classification systems with multiple adjustable parameters are essential for achieving the desired distribution width.
Grinding Energy and Temperature
Excessive energy input during grinding can raise material temperatures, potentially affecting graphite properties or creating safety concerns. Modern grinding systems incorporate cooling mechanisms and process controls to maintain optimal temperature ranges throughout the operation.
Atmosphere Control
For some high-purity applications, grinding under inert atmospheres (such as nitrogen or argon) may be necessary to prevent oxidation or moisture absorption. Closed-loop systems with atmosphere control capabilities address these requirements.
Contamination Management
Implementing comprehensive contamination control measures, including specialized lining materials, magnetic separation, and regular maintenance protocols, ensures the final product meets purity specifications for critical applications.
Quality Control and Testing
Rigorous quality control throughout the grinding process is essential for producing isostatic graphite powders that meet stringent application requirements. Key quality parameters include:
Particle Size Analysis
Advanced laser diffraction systems provide comprehensive particle size distribution data, ensuring consistency batch-to-batch and compliance with specification limits.
Morphology Characterization
Scanning electron microscopy (SEM) analysis reveals particle shape characteristics that influence packing behavior and sintering performance.
Chemical purity
Spectroscopic techniques including ICP-MS and XRF determine elemental contamination levels, particularly critical for semiconductor applications.
Bulk and Tap Density
These measurements provide insights into powder flow characteristics and packing behavior, important for subsequent forming processes.
Conclusion
The grinding process for isostatic graphite powder represents a critical technological operation that significantly influences the performance characteristics of final products across numerous high-value industries. Success in this demanding field requires not only advanced equipment but also deep process understanding and meticulous attention to detail.
Modern grinding technologies, particularly advanced ultrafine mills and vertical roller mills, have dramatically improved our ability to produce graphite powders with precisely controlled characteristics at commercial scales. The continuing evolution of these technologies, coupled with sophisticated process control and quality assurance methodologies, ensures that the graphite industry can meet the increasingly stringent requirements of advanced applications in electronics, energy, aerospace, and other cutting-edge fields.
Selecting the appropriate grinding technology and optimizing process parameters for specific graphite types and application requirements remains essential for achieving competitive advantage in this sophisticated market. As material specifications continue to tighten and production efficiency demands increase, the role of advanced grinding technology will only grow in importance for the isostatic graphite industry.
