How to Process Barite: A Complete Guide to the Grinding Mill Production Line
Introduction to Barite Processing
Barite (barium sulfate) is a mineral primarily used as a weighting agent in drilling muds for oil and gas exploration. Its high specific gravity (4.2-4.5) makes it ideal for controlling formation pressures during drilling operations. Beyond the petroleum industry, barite finds applications in paints, plastics, rubber, and as a filler in various industrial products. The processing of barite involves several critical stages, with grinding being the most important step that determines the final product quality and market value.
Successful barite processing requires understanding the mineral’s characteristics, including its moderate hardness (3-3.5 on Mohs scale), brittleness, and specific gravity. The grinding process must be carefully controlled to achieve the desired particle size distribution while minimizing energy consumption and maintaining product purity.
Barite Ore Characteristics and Pre-processing Requirements
Before entering the grinding phase, barite ore must undergo proper preparation. Raw barite typically contains impurities such as quartz, calcite, and various silicates that need to be removed through beneficiation processes. The initial crushing stage reduces large barite rocks to manageable sizes, usually below 50mm, making them suitable for grinding mills.
The specific gravity of barite presents both challenges and advantages during processing. While the high density facilitates gravity separation during beneficiation, it can cause settling issues in slurry systems and requires special consideration in pneumatic conveying systems. The moisture content of the feed material also significantly impacts grinding efficiency, with most mills performing optimally with moisture levels below 5%.
Key Considerations in Barite Grinding
Particle Size Requirements
Different applications demand specific barite particle size distributions. For drilling mud applications, the API specification requires that at least 97% of the material passes through a 75μm (200 mesh) sieve, and at least 30% passes through a 6μm sieve. For higher-value applications such as filler in paints and plastics, much finer grinds reaching 5μm or less may be required.
Product Whiteness and Purity
Beyond particle size, many applications require high brightness and chemical purity. The grinding process must avoid iron contamination, which can discolor the final product. This necessitates the use of ceramic or special alloy grinding media and liners in certain applications.
Energy Efficiency
Grinding is typically the most energy-intensive stage in mineral processing. Selecting the right grinding technology and optimizing operational parameters are crucial for economic viability. Modern grinding systems incorporate energy recovery and optimization features to minimize power consumption per ton of product.
Barite Grinding Mill Selection Guide
Choosing the appropriate grinding mill for barite depends on several factors including required fineness, production capacity, energy efficiency targets, and capital investment constraints. The following sections detail the most suitable mill types for barite processing.
Ultrafine Grinding Solutions (325-2500 mesh)
For applications requiring very fine barite powders, such as high-grade fillers or specialty chemicals, ultrafine grinding technology is essential. These systems must efficiently handle barite’s specific gravity while achieving narrow particle size distributions.
Our SCM Ultrafine Mill series represents the pinnacle of barite ultrafine grinding technology. With an output fineness range of 325-2500 mesh (D97≤5μm) and capacity from 0.5 to 25 tons per hour depending on model, this mill series offers exceptional performance for premium barite products. The mill’s unique design features a vertical turbine classifier that ensures precise particle size control without coarse powder contamination.
The SCM series achieves remarkable energy efficiency, delivering twice the capacity of jet mills while reducing energy consumption by 30%. Its intelligent control system automatically monitors and adjusts for consistent product quality. For barite processors targeting the high-value market segments, the SCM800 through SCM1680 models provide scalable solutions from pilot-scale to full industrial production.
Medium-fine Grinding Solutions (30-325 mesh)
For standard drilling mud grade barite and many industrial filler applications, medium-fine grinding systems offer the optimal balance between product quality and operational economics. These systems typically produce barite in the 30-325 mesh range (600-45μm).

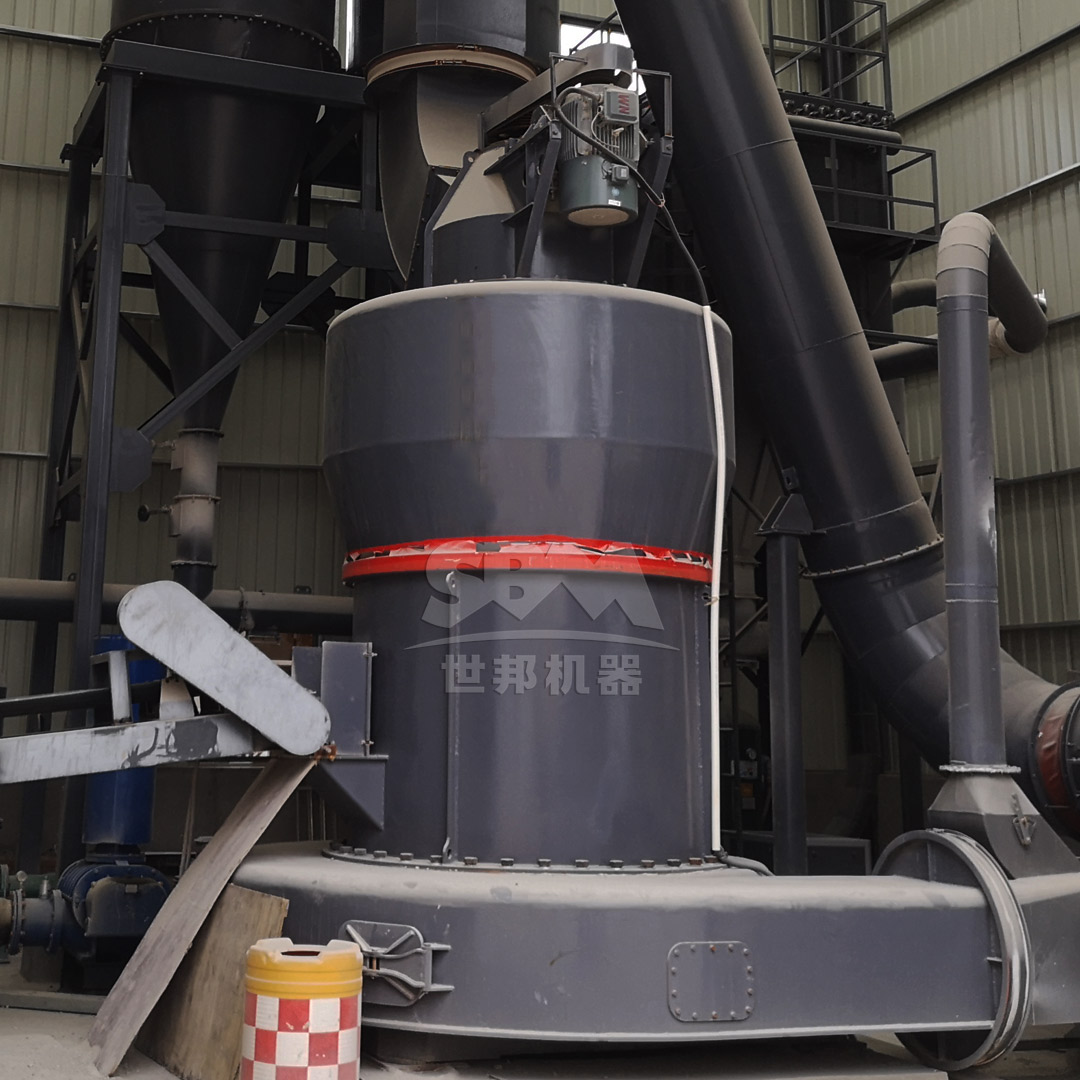

Our MTW Series Trapezium Mill excels in this application range, handling feed sizes up to 50mm and delivering capacities from 3 to 45 tons per hour. The mill’s curved air duct design minimizes energy loss during material transport, while its combined blade system reduces maintenance costs. The MTW series employs an efficient conical gear transmission system with 98% transmission efficiency, significantly reducing installation space requirements compared to conventional designs.
For barite processing plants requiring high-volume production of API-grade material, the MTW215G model offers up to 45 tons per hour capacity with excellent particle size control. The mill’s wear-resistant volute structure and non-clogging design ensure continuous operation with minimal downtime for maintenance.
Large-scale Production Solutions
For mega-scale barite processing operations serving major drilling mud markets, vertical roller mills provide unmatched efficiency and capacity. These systems integrate multiple processing steps into a single, compact unit.

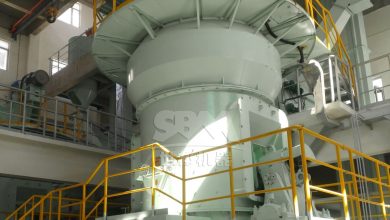

Our LM Series Vertical Roller Mills offer capacities ranging from 3 to 250 tons per hour, with the largest models capable of supplying barite for regional markets. The integrated design reduces footprint by 50% compared to traditional ball mill systems, while the non-contact grinding principle extends wear part life up to three times. The LM series particularly suits barite processing due to its ability to handle the material’s high density without issues common in other mill types.
Complete Barite Grinding Production Line Configuration
A well-designed barite grinding line integrates multiple components working in harmony to achieve optimal performance. The typical configuration includes:
Crushing System
Primary jaw crushers reduce run-of-mine barite to approximately 100-150mm. Secondary crushing using cone crushers or impact crushers further reduces the material to the 20-50mm range suitable for grinding mills. In some cases, a tertiary crushing stage may be incorporated for finer feed preparation.
Drying System
When barite ore contains significant moisture (>3%), drying becomes necessary before grinding. Rotary dryers or flash dryers efficiently reduce moisture content to optimal levels. The drying system must be designed to handle barite’s tendency to cake and its high specific gravity.
Grinding System
The heart of the production line, the grinding mill, must be selected based on the factors discussed previously. The system includes not only the mill itself but also feeding equipment, classifiers, and product collection systems.
Classification and Product Collection
Efficient classifiers ensure that only properly sized particles proceed to the final product stream. Oversize material is returned to the mill for further grinding. Cyclone separators and baghouse filters collect the finished product while maintaining environmental compliance.
Packaging and Storage
The final barite product is typically stored in silos before being packaged in bags or bulk containers. Automated packaging systems ensure consistent weight and quality control. For drilling mud applications, specific packaging standards must be met to ensure product integrity during transportation and handling.
Operational Best Practices for Barite Grinding
Optimizing Mill Parameters
Successful barite grinding requires careful adjustment of mill parameters including feed rate, classifier speed, grinding pressure (for roller mills), and air flow. These parameters must be optimized for each specific ore source as variations in hardness and impurity content can significantly affect grinding efficiency.
Wear Part Management
Despite barite’s moderate hardness, the high tonnage processed in commercial operations leads to significant wear on grinding elements. Implementing a proactive wear part monitoring and replacement program minimizes unexpected downtime and maintains product quality consistency.
Energy Management
Grinding typically accounts for 60-70% of total energy consumption in barite processing. Implementing energy monitoring systems and optimizing operational parameters can yield significant cost savings. Modern mills with variable frequency drives allow operators to match energy consumption to actual production requirements.
Case Study: Implementing SCM Ultrafine Mill for High-value Barite Production
A recent project involved upgrading a conventional barite grinding circuit to produce ultrafine barite for the plastics industry. The existing ball mill system could not economically achieve the required fineness of 2500 mesh. After thorough technical and economic evaluation, the operation selected our SCM1000 Ultrafine Mill.
The implementation resulted in a 40% reduction in specific energy consumption while increasing production capacity by 60%. The product quality consistently met the stringent specifications for plastic filler applications, commanding a 30% price premium over standard drilling grade barite. The mill’s compact design allowed installation in the existing plant footprint without major structural modifications.
Environmental Considerations in Barite Grinding
Modern barite processing plants must address several environmental aspects including dust control, noise abatement, and water management. Closed-circuit grinding systems with efficient baghouse filters typically achieve dust emissions below 20mg/m³. Noise control measures, such as acoustic enclosures and vibration damping, maintain workplace noise levels within regulatory limits.
Water management is particularly important in regions with limited water resources. While dry grinding is preferred for most barite applications, some processes may require water for dust suppression or material handling. Implementing water recycling systems minimizes fresh water consumption and effluent discharge.
Future Trends in Barite Processing Technology
The barite grinding industry continues to evolve with emphasis on energy efficiency, automation, and product quality consistency. Emerging trends include:
Advanced Process Control
Integration of artificial intelligence and machine learning algorithms for real-time optimization of grinding parameters based on ore characteristics and market requirements.
Hybrid Grinding Systems
Combining different grinding technologies in series or parallel configurations to optimize energy consumption across the particle size reduction spectrum.
Circular Economy Applications
Developing processes for recovering and reprocessing barite from drilling mud returns, reducing waste and conserving natural resources.
Conclusion
Successful barite processing requires careful selection and integration of grinding technology tailored to specific product requirements and operational constraints. From standard API-grade drilling mud to high-value ultrafine applications, modern grinding mills offer solutions that balance product quality, energy efficiency, and operational reliability. As market demands evolve and environmental considerations become increasingly important, continued innovation in barite grinding technology will drive improvements in both economic and sustainability performance.
For operations considering new barite processing facilities or upgrades to existing plants, thorough technical evaluation of available grinding technologies is essential. Our grinding experts are available to assist with circuit design, equipment selection, and operational optimization to ensure your barite processing operation achieves its full potential in today’s competitive market.
