How to Choose the Right Coal Grinding Mill for Coal-Based Activated Carbon Production

Introduction

Activated carbon production from coal requires precise grinding to achieve the optimal particle size distribution, which directly impacts the activation process and the final product’s adsorption properties. Selecting the right coal grinding mill is critical for efficiency, product quality, and operational cost. This article explores key factors to consider when choosing a coal grinding mill and highlights advanced solutions tailored for activated carbon production.

Key Factors in Mill Selection

1. Desired Particle Size and Distribution

Coal-based activated carbon typically requires fine grinding, often ranging from 45 microns to 5 microns (325 to 2500 mesh), to maximize surface area for activation. The mill must deliver consistent particle size distribution with minimal oversize or undersize particles.

2. Throughput Capacity

Production scale dictates the required throughput, which can vary from small-scale pilot plants (0.5-5 ton/h) to large industrial operations (up to 250 ton/h). The mill should match your production goals without compromising efficiency.

3. Energy Efficiency

Grinding is energy-intensive. Mills with high energy efficiency reduce operational costs and environmental impact. Look for designs that optimize power consumption per ton of output.

4. Wear Resistance and Maintenance

Coal is abrasive, leading to rapid wear of grinding components. Mills with durable materials (e.g., high-chromium alloys) and accessible maintenance features minimize downtime and lifecycle costs.

5. Environmental Compliance

Dust control and noise reduction are essential for meeting environmental regulations. Closed-loop systems with advanced dust collection and low-noise designs are preferable.

Types of Coal Grinding Mills

1. Ultrafine Grinding Mills

For producing very fine powders (e.g., D97 ≤ 5μm), ultrafine mills use high-speed rotation and precision classification. They are ideal for high-surface-area activated carbon but may have higher energy demands.

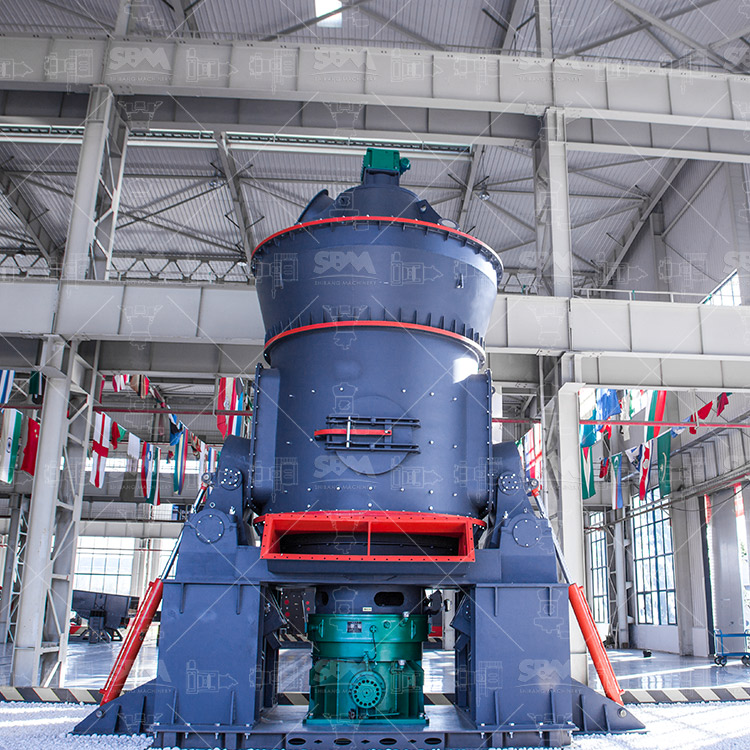

2. Vertical Roller Mills (VRM)

VRMs integrate grinding, drying, and classification in a compact system. They offer excellent energy efficiency and are suitable for medium to large capacities. Their ability to handle moist coal and provide consistent fineness makes them a popular choice.

3. Ball Mills

Ball mills are versatile and can handle a wide range of fineness (0.074-0.8mm). They are robust but less energy-efficient compared to newer technologies. They are often used in older installations or for specific applications where extreme fineness is not required.

4. Hammer Mills

Hammer mills are effective for coarse to medium grinding (0-3mm) and are often used as pre-crushers. They offer high throughput but are not suitable for very fine grinding needed for activated carbon.

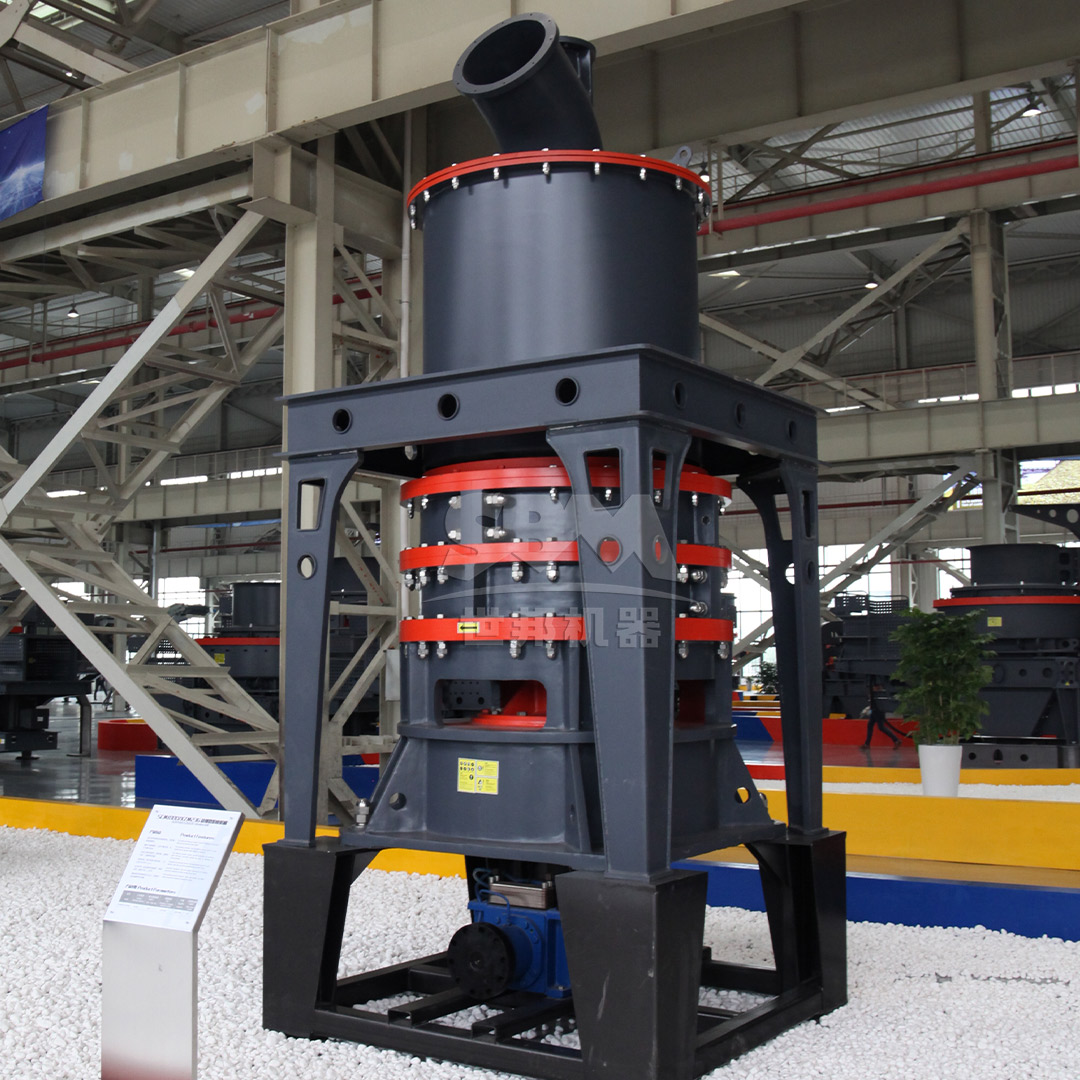

Recommended Solution: SCM Ultrafine Mill

For coal-based activated carbon production requiring ultra-fine powders, the SCM Ultrafine Mill is an excellent choice. It delivers output fineness of 325-2500 mesh (D97 ≤ 5μm) with high efficiency and low energy consumption. Key advantages include:

• High Precision Classification: Vertical turbine classifiers ensure uniform particle size without coarse contamination.
• Energy Savings: Compared to jet mills, it offers twice the capacity with 30% lower energy consumption.
• Durability: Special material rollers and grinding rings extend service life, reducing maintenance frequency.
• Environmental Benefits: Pulse dust collection exceeds international standards, and noise levels are kept below 75dB.

With models like SCM800 (0.5-4.5 ton/h) to SCM1680 (5-25 ton/h), it scales to various production needs.

Alternative Solution: MTW Series Trapezium Mill

For applications where slightly coarser grinding is acceptable (30-325 mesh), the MTW Series Trapezium Mill offers robust performance and high capacity. It handles input sizes up to 50mm and throughputs from 3-45 ton/h. Its curved air duct and wear-resistant design enhance efficiency and longevity. This mill is ideal for preliminary grinding or when the activation process can accommodate a broader particle size range.

Integration with Activation Process

The ground coal must be compatible with the activation method (e.g., steam, chemical). Uniform fine particles ensure consistent activation and high surface area. The grinding mill should integrate seamlessly with drying and classification steps to optimize the entire production line.

Conclusion

Choosing the right coal grinding mill is pivotal for efficient and high-quality activated carbon production. Factors like fineness, capacity, energy use, and maintenance must be balanced. The SCM Ultrafine Mill stands out for ultra-fine requirements, while the MTW Series Trapezium Mill offers versatility for broader applications. Investing in the appropriate technology ensures operational efficiency and product excellence.
