How Does a Limestone Grinding Mill Work? Introduction to Limestone Grinding Machines

Introduction to Limestone Grinding

Limestone, a sedimentary rock composed primarily of calcium carbonate (CaCO3), is one of the most versatile and widely used industrial minerals. Its applications span construction, agriculture, environmental protection, and manufacturing. However, raw limestone must be processed into fine powder to unlock its full potential. This is where limestone grinding mills come into play. These specialized machines transform coarse limestone rocks into precisely controlled powders with specific particle size distributions, enabling their use in everything from cement production and flue gas desulfurization to animal feed supplements and pharmaceutical applications.

The process of limestone grinding is both an art and a science, requiring sophisticated machinery that can handle the material’s abrasiveness while achieving the desired fineness and production rates. Modern grinding technology has evolved significantly from simple crushing methods to highly efficient, integrated systems that optimize energy consumption, product quality, and operational reliability.

Diagram showing limestone from quarry to final powder product through various grinding stages

Fundamental Principles of Limestone Grinding

All limestone grinding mills operate on the basic principle of reducing particle size through mechanical forces. The specific mechanism employed, however, varies significantly between different mill types, each offering distinct advantages for particular applications.

Size Reduction Mechanisms

Limestone grinding utilizes several fundamental size reduction mechanisms:

Compression: Material is crushed between two opposing surfaces, ideal for coarse to medium grinding.
Impact: Rapid collision between particles and grinding elements creates fractures throughout the material.
Attrition Particle-on-particle rubbing action produces fine powders with controlled morphology.
Shear: Cutting forces slice through material, efficient for certain crystal structures.

Most industrial limestone grinding mills combine multiple mechanisms to optimize efficiency. The selection of appropriate mechanisms depends on the desired product characteristics, feed material properties, and economic considerations.

Grinding Circuit Configurations

Limestone grinding operations typically employ one of two basic circuit configurations:

Open Circuit Grinding: Material passes through the mill once without classification and recycling. This simpler configuration is suitable when a broad particle size distribution is acceptable.
Closed Circuit Grinding: Incorporates a classification system that separates fine product from coarse material, which is returned to the mill for further grinding. This configuration offers better control over product fineness and higher efficiency.

Modern limestone grinding plants increasingly favor closed-circuit systems for their superior energy efficiency and product quality control, despite their higher initial complexity and cost.

Types of Limestone Grinding Mills

The limestone processing industry utilizes several types of grinding mills, each designed for specific ranges of feed size, product fineness, and capacity requirements.

Ball Mills

Ball mills represent one of the oldest and most established technologies for limestone grinding. These rotating cylinders containing grinding media (typically steel balls) utilize impact and attrition forces to reduce particle size. As the mill rotates, the balls are lifted and then cascade down onto the material, creating a grinding action.

Key characteristics of ball mills for limestone grinding include:

Wide particle size range capability (0.074-0.8mm)
High reliability and simple operation
Suitability for both wet and dry grinding
Large capacity designs up to 450 tons/hour

However, ball mills suffer from relatively high energy consumption and limited efficiency for producing very fine powders. They remain popular for applications requiring coarse to medium fineness where their robustness and simplicity provide economic advantages.

Vertical Roller Mills (VRM)

Vertical roller mills have revolutionized limestone grinding with their superior energy efficiency and compact design. In a VRM, material is fed onto a rotating grinding table where rollers exert pressure, crushing the limestone against the table surface. A stream of hot gas dries the material and transports the ground powder to a classifier.

Cross-sectional diagram of vertical roller mill showing grinding table, rollers, and classification system

VRMs offer significant advantages for limestone grinding:

30-50% lower energy consumption compared to ball mills
Integrated drying, grinding, and classification in a single unit
Compact footprint with 50% less space requirement
Excellent control over product fineness
Reduced noise levels (typically ≤80dB)

Our LM Series Vertical Roller Mill exemplifies modern VRM technology with its advanced features specifically designed for limestone processing. With input sizes up to 50mm and output fineness ranging from 30-325 mesh (special models achieving 600 mesh), these mills handle capacities from 3-250 tons per hour. The集约化设计 (intensive design) integrates multiple functions into a single unit, reducing footprint by 50% and cutting infrastructure costs by 40%. The磨辊与磨盘非接触设计 (non-contact roller and disc design) extends wear part life up to three times while reducing energy consumption by 30-40% compared to ball mill systems.

Ultrafine Grinding Mills

For applications requiring exceptionally fine limestone powders (typically below 10 microns), specialized ultrafine grinding mills are necessary. These mills employ advanced grinding principles and precision classification systems to achieve particle sizes difficult to obtain with conventional equipment.

Our SCM Series Ultrafine Mill represents the cutting edge in limestone ultrafine grinding technology. Capable of producing powders with fineness ranging from 325 to 2500 mesh (D97 ≤ 5μm), this mill operates with remarkable efficiency. Its working principle involves主电机驱动三层磨环旋转 (main motor driving three-layer grinding ring rotation), where material is dispersed into the grinding path by centrifugal force and undergoes逐层研磨 (layer-by-layer grinding). The vertical turbine classifier ensures precise particle size切割 (cutting) without coarse powder contamination, delivering exceptionally uniform products.

The SCM series offers outstanding technical advantages for demanding limestone applications:

高效节能 (High Efficiency and Energy Saving): Twice the capacity of jet mills with 30% lower energy consumption, featuring intelligent control with automatic feedback on product fineness.
高精度分级 (High-Precision Classification): Vertical turbine classifier enables accurate particle size distribution control.
耐用设计 (Durable Design): Special material rollers and grinding rings extend service life multiple times, with bearingless screw grinding chamber for stable operation.
环保低噪 (Environmental Protection and Low Noise): Pulse dust collection efficiency exceeds international standards, with soundproof chamber design maintaining noise levels ≤75dB.

With models ranging from the SCM800 (0.5-4.5 ton/h capacity) to the SCM1680 (5.0-25 ton/h capacity), this mill series provides solutions for various production requirements while maintaining consistent product quality across the fineness spectrum.

Key Components of Limestone Grinding Systems

A complete limestone grinding system comprises several critical components working in harmony to achieve optimal performance.

Feeding Systems

Consistent and controlled feeding is essential for stable mill operation. Various feeding mechanisms are employed depending on material characteristics and system design:

Vibratory Feeders: Provide precise control of feed rate for free-flowing materials.
Screw Feeders: Suitable for materials with poor flow characteristics or requiring airlock functionality.
Belt Feeders: Handle large volumes of material with simple operation and maintenance.

Modern grinding systems often incorporate weighing devices and control loops to maintain optimal feed rates based on mill power consumption and other operating parameters.

Classification Systems

Classification is arguably the most critical aspect of modern grinding circuits, determining final product fineness and overall system efficiency. Several classifier types are employed in limestone grinding:

Static Classifiers: Use gravitational and inertial forces for separation, suitable for coarse separations.
Dynamic Classifiers: Employ rotating blades to create centrifugal forces, enabling precise cuts in the fine particle range.
High-Efficiency Classifiers: Combine multiple separation principles for superior sharpness of separation.

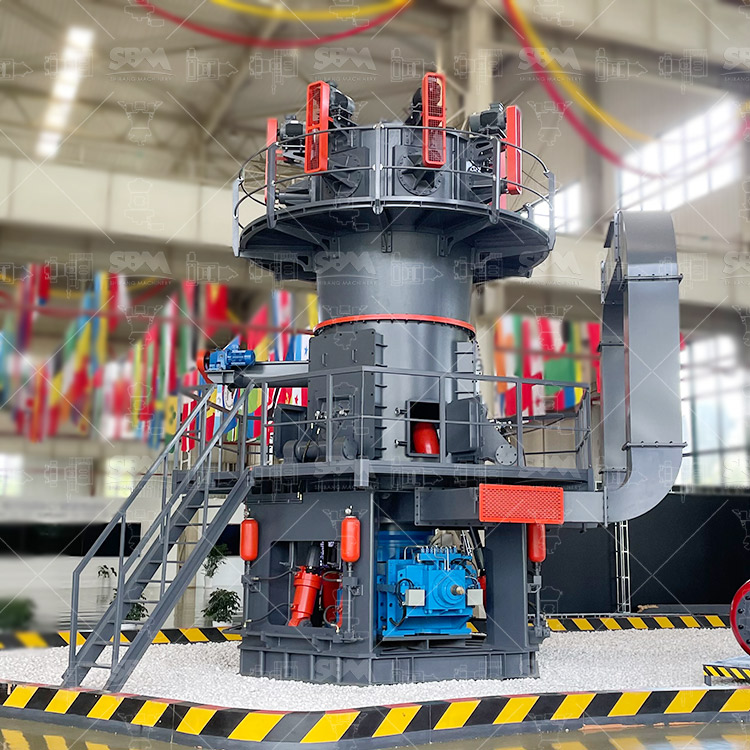

High-efficiency dynamic classifier separating fine limestone powder from coarse particles

The selection of appropriate classification technology depends on the target product fineness, required efficiency, and economic considerations. Modern classifiers offer adjustable parameters to accommodate varying product requirements without mechanical modifications.

Dust Collection and Material Handling

Limestone grinding generates significant amounts of fine dust that must be contained and collected for both product recovery and environmental compliance. Modern systems typically employ:

Baghouse Filters: High-efficiency fabric filters capable of capturing sub-micron particles.
Pulse-Jet Cleaning: Automated cleaning systems maintain filter performance without interrupting operation.
Cyclone Separators: Often used as pre-separators to reduce load on final filters.

Proper design of material handling systems is equally important, ensuring smooth transport of product between process stages while minimizing degradation and segregation.

Factors Influencing Limestone Grinding Efficiency

Several material and operational factors significantly impact the performance and efficiency of limestone grinding operations.

Material Characteristics

The grindability of limestone varies considerably depending on its geological origin and composition:

Hardness: Measured on Mohs scale, typically ranging from 2-3 for pure calcite limestone to 4 for dolomitic varieties.
Moisture Content Affects flow characteristics and may require pre-drying for optimal grinding.
Chemical Composition: Impurities like silica increase abrasiveness and affect product quality.
Crystal Structure: Influences breakage patterns and energy requirements.

Proper characterization of feed material is essential for selecting appropriate equipment and optimizing operating parameters.

Operational Parameters

Key operational parameters that influence grinding efficiency include:

Feed Rate: Must be balanced with grinding capacity to avoid overloading or inefficient operation.
Classifier Speed: Directly controls product fineness in closed-circuit systems.
Grinding Pressure: Critical parameter in vertical roller mills affecting throughput and energy consumption.
Gas Flow Rate: Influences material transport and drying in air-swept mills.

Modern grinding systems employ sophisticated control strategies to maintain optimal parameters despite variations in feed material and operating conditions.

Applications of Ground Limestone Products

The fineness and quality of ground limestone determine its suitability for various applications:

Construction Materials

Ground limestone serves as a key component in numerous construction materials:

Cement Production: As a raw material and setting regulator, typically requiring medium fineness.
Asphalt Fillers: Improves stability and durability, requiring specific particle size distributions.
Building Products: Used in drywall, paints, and coatings with carefully controlled properties.

Environmental Applications

Limestone’s chemical properties make it valuable for environmental protection:

Flue Gas Desulfurization: Fine limestone reacts with sulfur dioxide in power plant emissions.
Water Treatment: Adjusts pH and removes impurities in industrial and municipal water systems.
Soil Stabilization: Improves acidic soils in agricultural and construction applications.

Industrial Applications

Various manufacturing processes utilize ground limestone:

Plastics and Polymers: As functional fillers improving mechanical properties and reducing cost.
Paper Production: As coating and filling pigments requiring high brightness and specific particle morphology.
Pharmaceuticals and Food: Ultra-pure, fine limestone as calcium supplements and excipients.

Conclusion

Limestone grinding technology has evolved into a highly sophisticated field where equipment selection and operation significantly impact product quality, operational costs, and environmental performance. Understanding the fundamental principles, equipment options, and operational considerations is essential for designing and operating efficient limestone grinding circuits.

From traditional ball mills to advanced vertical roller mills and specialized ultrafine grinding systems, modern technology offers solutions for virtually any limestone grinding requirement. The continued advancement of grinding technology, particularly in areas of energy efficiency, precision classification, and process control, promises even greater capabilities for the future of limestone processing.

When selecting limestone grinding equipment, considerations should include not only initial capital investment but also long-term operating costs, maintenance requirements, flexibility for future product changes, and environmental compliance. With proper selection and operation, modern limestone grinding mills can deliver consistent, high-quality products efficiently and economically across a wide range of applications.
