Can Phosphorus Slag Be Used in Cement Grinding?
Introduction
The cement industry is constantly seeking sustainable and cost-effective alternatives to traditional raw materials. Among these alternatives, industrial by-products have gained significant attention due to their potential to enhance cement properties while reducing environmental impact. Phosphorus slag, a by-product of the phosphorus production process, has emerged as a promising material in cement manufacturing. This comprehensive article explores the feasibility, benefits, and technical considerations of using phosphorus slag in cement grinding operations.
Understanding Phosphorus Slag
Phosphorus slag is generated during the production of elemental phosphorus in electric arc furnaces. This industrial by-product possesses unique chemical and physical characteristics that make it suitable for cement applications. Typically, phosphorus slag contains high amounts of calcium silicate minerals, which contribute to its pozzolanic and latent hydraulic properties.
The chemical composition of phosphorus slag varies depending on the phosphate rock source and production process, but generally includes:
- Calcium oxide (CaO): 40-50%
- Silicon dioxide (SiO₂): 35-40%
- Aluminum oxide (Al₂O₃): 5-10%
- Magnesium oxide (MgO): 1-3%
- Small amounts of phosphorus pentoxide (P₂O₅) and other trace elements
Benefits of Using Phosphorus Slag in Cement
Improved Mechanical Properties
When properly ground and incorporated into cement, phosphorus slag contributes to enhanced mechanical properties. The fine particles fill the voids between cement grains, resulting in denser microstructure and improved compressive strength, particularly at later ages. Research has demonstrated that cement containing 20-30% ground phosphorus slag can achieve 28-day compressive strengths comparable to or exceeding those of ordinary Portland cement.
Enhanced Durability
Cement blends incorporating phosphorus slag exhibit superior durability characteristics. The reduced permeability of the cement matrix decreases the ingress of aggressive ions, enhancing resistance to sulfate attack, chloride penetration, and alkali-silica reaction. This makes phosphorus slag cement particularly suitable for marine environments and infrastructure exposed to deicing salts.
Environmental Advantages
The utilization of phosphorus slag in cement production offers significant environmental benefits. By replacing a portion of clinker with this industrial by-product, the cement industry can:
- Reduce CO₂ emissions associated with clinker production
- Conserve natural resources by decreasing limestone consumption
- Divert industrial waste from landfills
- Lower the overall energy consumption of cement manufacturing
Economic Considerations
From an economic perspective, phosphorus slag can reduce raw material costs when used as a supplementary cementitious material. Additionally, the grinding energy required for phosphorus slag is typically lower than that for clinker, potentially reducing overall production costs.
Technical Challenges and Solutions
Grinding Characteristics
Phosphorus slag presents unique grinding challenges due to its hard and abrasive nature. The material’s Bond Work Index typically ranges from 16-22 kWh/t, indicating moderate grindability. However, the presence of crystalline phases can increase wear on grinding media and mill components.
To address these challenges, specialized grinding equipment with enhanced wear resistance is essential. Our SCM Ultrafine Mill series offers an ideal solution for processing phosphorus slag with its special material roller and grinding ring design that extends service life multiple times compared to conventional mills. The SCM series achieves output fineness between 325-2500 mesh (D97≤5μm) with capacity ranging from 0.5-25 ton/h depending on the model.
Quality Control Considerations
Consistent quality of phosphorus slag is crucial for producing reliable cement products. Variations in chemical composition, particularly in phosphorus content, can affect setting time and early strength development. Implementing rigorous quality control measures, including regular chemical analysis and performance testing, ensures consistent cement quality.
Optimal Grinding Equipment for Phosphorus Slag

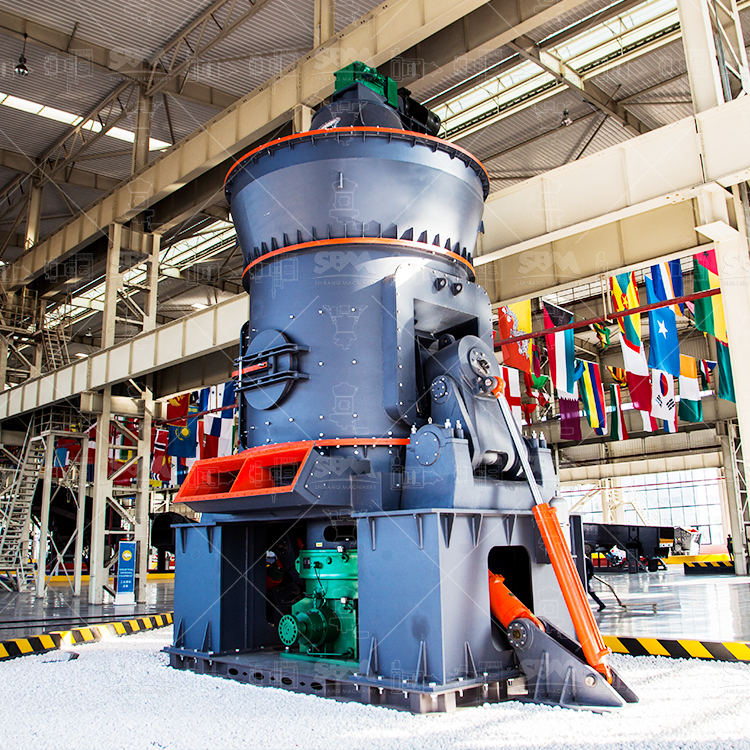

SCM Ultrafine Mill Series
For applications requiring ultra-fine grinding of phosphorus slag, our SCM Ultrafine Mill series provides exceptional performance. With input size ≤20mm and output fineness adjustable between 325-2500 mesh, these mills deliver precise particle size distribution critical for optimal cement performance.
The technical advantages of SCM Ultrafine Mills for phosphorus slag processing include:
- High Efficiency & Energy Saving: 30% lower energy consumption compared to jet mills with doubled capacity
- High Precision Classification: Vertical turbine classifier ensures accurate particle size cut without coarse powder contamination
- Durable Design: Special material rollers and grinding rings withstand abrasive materials
- Environmental Compliance: Pulse dust collection efficiency exceeds international standards with noise levels ≤75dB
The SCM1680 model, with capacity of 5.0-25 ton/h and 315kW main motor power, is particularly suitable for large-scale cement plants incorporating phosphorus slag.

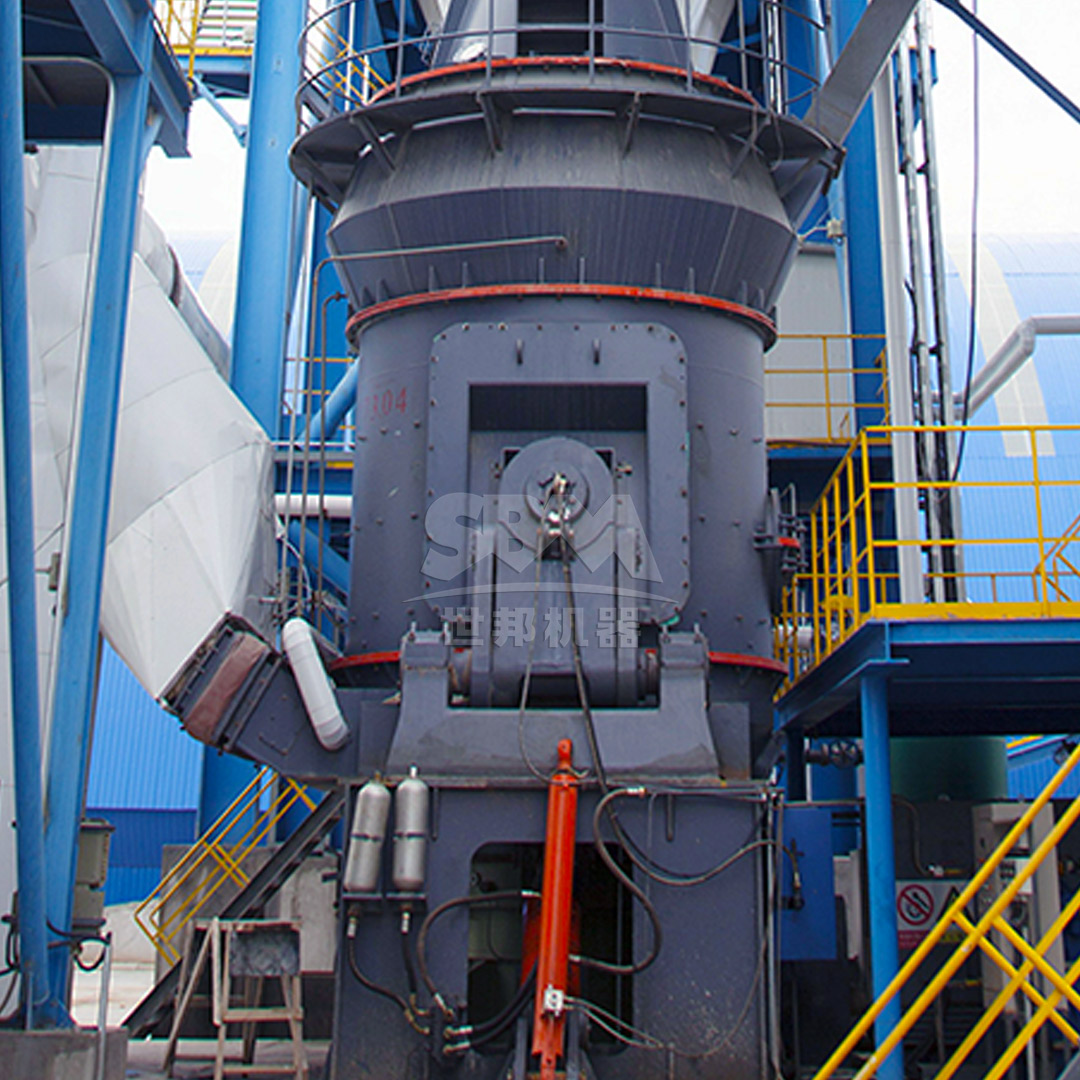

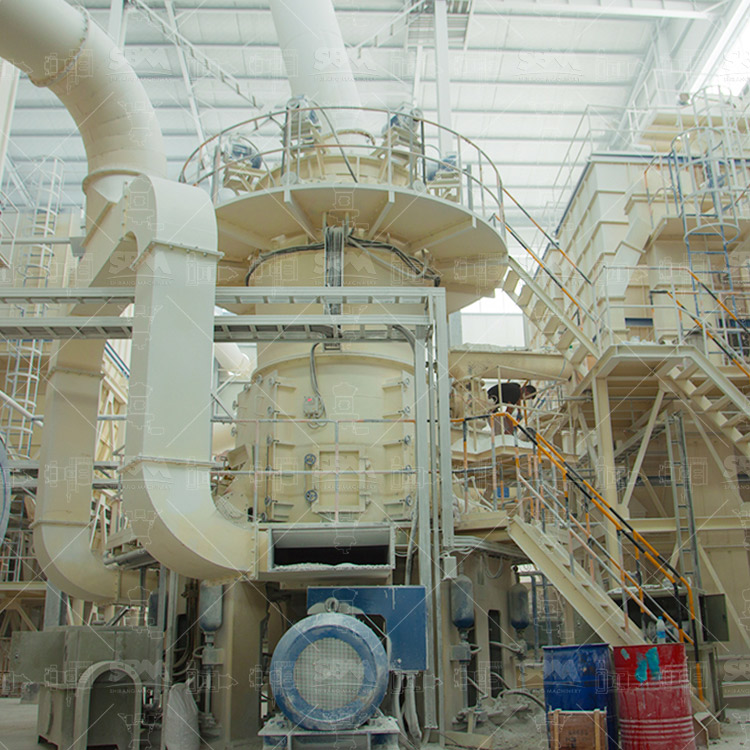

LM Series Vertical Roller Mills
For integrated grinding systems handling both clinker and phosphorus slag, our LM Series Vertical Roller Mills offer comprehensive solutions. Specifically, the Vertical Slag Mill models (LM130N to LM370N) are engineered for slag grinding applications with capacities ranging from 4-110 ton/h.
Key advantages of LM Vertical Roller Mills for phosphorus slag include:
- Integrated Design: Combined crushing, grinding, and separation functions reduce footprint by 50%
- Low Operating Costs: 30-40% lower energy consumption compared to ball mill systems
- Intelligent Control: Expert automatic control system with remote operation capability
- Environmental Performance: Fully sealed negative pressure operation with dust emission <20mg/m³
The LM220N model, with 20-26 ton/h capacity and 900-1000kW main motor power, represents an optimal balance between capacity and energy efficiency for medium to large cement plants.
Processing Parameters and Optimization
Optimal Fineness Requirements
The grinding fineness of phosphorus slag significantly influences its reactivity in cement systems. Research indicates that Blaine specific surface areas of 400-500 m²/kg typically provide the best balance between grinding cost and cement performance. Our grinding equipment allows precise control of product fineness to meet these optimal specifications.
Moisture Content Management
Phosphorus slag moisture content should be maintained below 1-2% for efficient grinding and storage. The drying capabilities integrated into our vertical roller mills effectively handle moisture levels up to 15% in feed material, eliminating the need for separate drying equipment.
Case Studies and Practical Applications
Successful Implementation in Cement Plants
Several cement plants worldwide have successfully incorporated phosphorus slag into their production processes. A case study from a European cement manufacturer demonstrated that replacing 25% of clinker with ground phosphorus slag resulted in:
- 18% reduction in specific energy consumption
- 22% decrease in CO₂ emissions
- 15% lower production costs
- Improved concrete durability indicators
Performance in Blended Cements
Phosphorus slag has been successfully used in various cement types, including:
- Portland phosphorus slag cement (up to 35% slag content)
- Composite cements with multiple supplementary materials
- Specialty cements for specific applications
Future Prospects and Research Directions
The utilization of phosphorus slag in cement is expected to grow as sustainability becomes increasingly important in construction materials. Ongoing research focuses on:
- Optimizing activation methods to enhance early strength development
- Developing specialized grinding aids for phosphorus slag
- Exploring novel cement formulations with higher slag incorporation rates
- Investigating long-term performance in various environmental conditions
Conclusion
Phosphorus slag represents a valuable resource for the cement industry, offering technical, economic, and environmental benefits when properly processed and incorporated into cement formulations. The successful utilization of phosphorus slag requires appropriate grinding technology capable of handling its specific characteristics. Our specialized grinding equipment, particularly the SCM Ultrafine Mill series and LM Vertical Roller Mills, provide optimal solutions for processing phosphorus slag to the required fineness while maintaining operational efficiency and cost-effectiveness.
As the cement industry continues to evolve toward more sustainable practices, the strategic use of industrial by-products like phosphorus slag will play an increasingly important role in reducing environmental impact while maintaining product performance. With proper processing and quality control, phosphorus slag cement can deliver comparable or superior performance to traditional Portland cement across a wide range of applications.
