Ultrafine Graphite Carbon Powder Processing with Ring Roller Mill Technology

Introduction to Ultrafine Graphite Processing

Graphite carbon powder is a critical material in industries ranging from lithium-ion batteries to high-temperature lubricants. The demand for ultrafine graphite powder (D97 ≤5μm) has surged with advancements in energy storage and conductive materials. Traditional grinding methods often fail to achieve the required fineness while maintaining cost efficiency. This article explores the revolutionary ring roller mill technology that addresses these challenges.

Technical Challenges in Graphite Micronization

1. Particle Size Distribution Control

Graphite’s layered crystal structure requires precise shear forces rather than impact crushing to prevent particle delamination. Conventional ball mills produce irregular flake sizes with wide distribution ranges (Span >1.5).

2. Contamination Risks

Metallic wear from grinding media can introduce iron contamination (>200ppm), degrading graphite’s electrical conductivity. Ceramic-lined mills reduce this but sacrifice grinding efficiency.

3. Energy Consumption

Jet mills achieving 5μm fineness consume 800-1200kWh/ton, making production costs prohibitive for industrial-scale applications.

Ring Roller Mill Technological Breakthroughs

The XZM Ultrafine Mill series represents a paradigm shift in graphite processing through these innovations:

1. Multi-Layer Grinding Principle

Three concentric grinding rings create progressive micronization zones:

• Primary Zone (20→100μm): Coarse crushing with 50-70kN roller pressure
• Intermediate Zone (100→10μm): Shear-dominant grinding at 25-30m/s peripheral speed
• Finishing Zone (10→5μm): Particle alignment and final polishing

2. Patented Turbine Classifier

The integrated vertical classifier achieves:

• 97% classification efficiency at 5μm cut point
• Narrow particle distribution (Span <0.8)
• Dynamic adjustment via frequency converter (0-50Hz)

Case Study: Industrial Application

A Chinese anode material producer achieved these results with XZM236 Ultrafine Mill:

ZENITH’s Recommended Solutions

For graphite processors seeking optimal solutions, we recommend:

1. XZM Ultrafine Mill Series

Specifically designed for carbonaceous materials:

• Model XZM244: 2.5-14 ton/h capacity with 185kW main motor
• Special ceramic-coated grinding components (Al2O3 99.5%)
• Integrated inert gas circulation system for explosive atmospheres

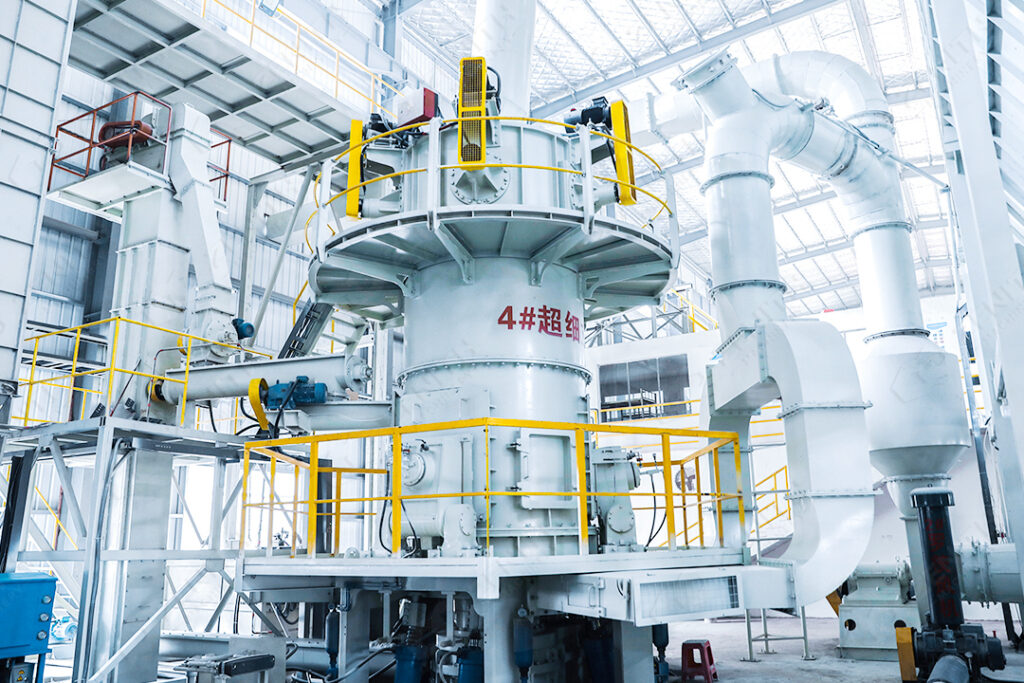

2. LUM Ultrafine Vertical Mill

Alternative for large-scale production:

• Modular design for capacities up to 15 ton/h
• Multi-stage separation with 98% collection efficiency
• Remote monitoring via ZENITH IoT platform

Ring roller mill technology has redefined ultrafine graphite production standards. ZENITH’s XZM series delivers unmatched combination of precision, efficiency, and purity – evidenced by installations in 17 graphite processing plants worldwide. Our engineering team provides customized solutions from laboratory-scale trials to full production lines, backed by 24/7 technical support across global operations.
