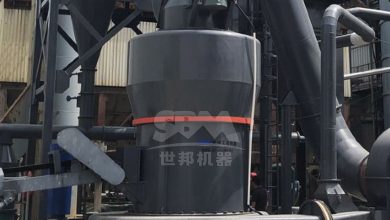

MTM European Trapezium Mill
MTM series trapezium mills are a stable grinding equipment, which are generated and practicle used with more 30years for producing 80-325mesh mineral powder. Features less investment and adaptability to materials, MTM mills are very popular with customers.
- Input: 0-35mm
- Capacity: 3-22TPH
- Material: limestone, calcite, dolomite, petroleum coke, gypsum, barite, marble, talc, pulverized coal, etc.
Specification
| Name | MTM100 | MTM130 | MTM160 | |
| Ring roll number(pcs) | 4 | 5 | 6 | |
| Major diameter of roller(mm) | Φ310X170 | Φ410X210 | Φ480X270 | |
| Inner diameter of roller(mm) | Φ950X170 | Φ1280X210 | Φ1600X270 | |
| Revolving Speed(rmin) | 130 | 103 | 82 | |
| Max feed size(mm) | <25 | <30 | <35 | |
| Final size(mm) | 1.6-0.045 fineness can reach to 0.038 |
1.6-0.045 fineness can reach to 0.038 |
1.6-0.045 fineness can reach to 0.038 |
|
| Output(th) | 3-8 | 6-11 | 9-22 | |
| Main unit motor | Power(kW) | 37 | 75 | 132 |
| Centrifugal induced draft fan motor | Power(kW) | 37 | 75 | 132 |
| Classifier speed regulating motor | Power(kW) | 5.5 | 7.5 | 18.5 |
| Elevator | Elevator model | TH210 | TH210 | TH315 |
| Power(kW) | 3 | 3 | 4 | |
| Jaw Crusher | Jaw Crusher Model | PE200×350 | PE250×400 | PE250×750 |
| Power(kW) | 7.5 | 15 | 22 | |
| Magnetic vibrating feeder | Main unit motor | GZ2F | GZ3F | GZ3F |
| Power(kW) | 0.15 | 0.2 | 0.2 | |
