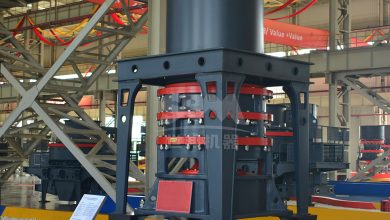

LUM Ultrafine Vertical Mill
LUM Ultrafine Vertical Grinding Mill adopts the latest Taiwan grinding roller technology and German powder separating technology.
- Input: 0-10mm
-
Capacity: 5-18TPH
- Material: limestone, calcite, dolomite, petroleum coke, gypsum, barite, marble, talc, pulverized coal, etc.
Specification
|
Model |
LUM1525 |
LUM1632 |
LUM1836 |
||||||||||||||||||
|
Main machine power(kW) |
220～250 |
280～315 |
355～400 |
||||||||||||||||||
| Power concentrator power(Kw) | 1×75/6×15 | 1×110/6X22/8×15 | 1×132/8×22 | ||||||||||||||||||
| Fan power(Kw) | 160~200 | 220~250 | 315~355 | ||||||||||||||||||
| Capacity(t/h) | 10.5~11.5 | 8~9 | 6~7 | 4~4.5 | 3~3.5 | 2.2~2.5 | 1.6~2.0 | 12.5~13.5 | 11.5~12.5 | 8.5~9.5 | 5.5~6.5 | 4~5 | 2.8~3.2 | 2~2.5 | 14~15 | 12~13 | 11~12 | 7.5~8.5 | 5.5~6.5 | 3.2~3.6 | 2.3~2.8 |
| 325 mesh residue on sieve(%) | 0.015 | 0.015 | 0.01 | 0 | 0 | 0 | 0 | 0.015 | 0.015 | 0.01 | 0 | 0 | 0 | 0 | 0.015 | 0.015 | 0.01 | 0 | 0 | 0 | 0 |
| Content>2μm(%) | 33±2 | 38±2 | 43±2 | 48±2 | 53±2 | 60±2 | 70±2 | 33±2 | 38±2 | 43±2 | 48±2 | 53±2 | 60±2 | 70±2 | 33±2 | 38±2 | 43±2 | 48±2 | 53±2 | 60±2 | 70±2 |
| Average particke size D50(μm) | 4.2±0.5 | 3.0±0.4 | 2.6±0.2 | 1.8±0.2 | 1.6±0.6 | 1.4±0.6 | 1.2±0.2 | 4.2±0.5 | 3.0±0.4 | 2.6±0.2 | 1.8±0.2 | 1.6±0.6 | 1.4±0.6 | 1.2±0.2 | 4.2±0.5 | 3.0±0.4 | 2.6±0.2 | 1.8±0.2 | 1.6±0.6 | 1.4±0.6 | 1.2±0.2 |
| Size distribution D97(μm) | 30±2.0 | 15±1.5 | 15±1.0 | 10±1.0 | 8±0.5 | 6.5±0.5 | 5±0.5 | 30±2.0 | 15±1.5 | 15±1.0 | 10±1.0 | 8±0.5 | 6.5±0.5 | 5±0.5 | 30±2.0 | 15±1.5 | 15±1.0 | 10±1.0 | 8±0.5 | 6.5±0.5 | 5±0.5 |
| Compact apparent specific gravity(g/cm^3) | 1.18 | 1.06 | 0.90 | 0.85 | 0.76 | 0.65 | 0.55 | 1.18 | 1.06 | 0.90 | 0.85 | 0.76 | 0.65 | 0.55 | 1.18 | 1.06 | 0.90 | 0.85 | 0.76 | 0.65 | 0.55 |
| Loose apparent specific gravity(g/cm^3) | 0.45 | 0.40 | 0.34 | 0.32 | 0.28 | 0.25 | 0.2 | 0.45 | 0.40 | 0.34 | 0.32 | 0.28 | 0.25 | 0.2 | 0.45 | 0.40 | 0.34 | 0.32 | 0.28 | 0.25 | 0.2 |
| Moisture content(%) | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 | Below 0.3 |
