Which Manufacturers Produce Silica Grinding Mills?
Introduction to Silica Grinding Technology
Silica, also known as silicon dioxide (SiO2), is one of the most abundant minerals on Earth and finds extensive applications across various industries including glass manufacturing, construction, electronics, ceramics, and chemicals. The processing of silica requires specialized grinding equipment capable of achieving precise particle size distributions while maintaining high efficiency and low contamination levels. This article explores the leading manufacturers and technologies in silica grinding mills, with a focus on the technical specifications that make certain equipment particularly suitable for silica processing applications.
Types of Silica Grinding Mills
Ultrafine Grinding Mills
For applications requiring extremely fine silica powders (typically below 5μm), ultrafine grinding mills represent the optimal solution. These mills employ advanced classification systems to achieve precise particle size control and narrow size distributions. The key challenge in ultrafine silica grinding lies in managing heat generation and avoiding contamination during the milling process.

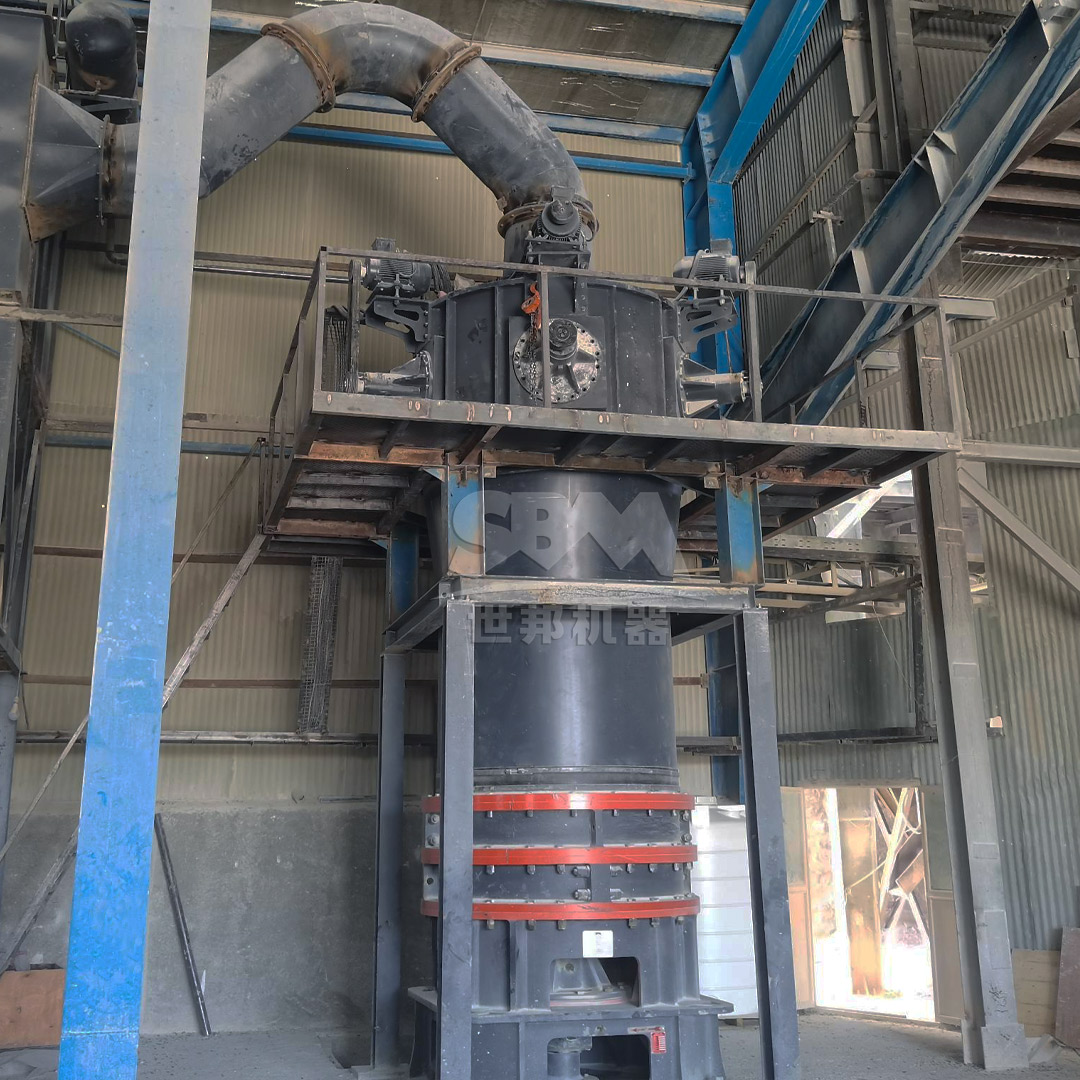

Among the prominent solutions in this category, the SCM Series Ultrafine Mill stands out for silica applications. This mill achieves output fineness ranging from 325 to 2500 mesh (D97≤5μm) with throughput capacities from 0.5 to 25 tons per hour depending on the specific model. What makes this equipment particularly suitable for silica grinding is its energy-efficient design, which reduces power consumption by 30% compared to conventional jet mills while doubling the production capacity. The integrated vertical turbine classifier ensures precise particle size cuts without coarse powder contamination, resulting in consistently uniform silica products. The special material composition of the grinding rollers and rings extends service life significantly, while the pulse dust collection system exceeds international environmental standards with noise levels maintained below 75dB.
Vertical Roller Mills
Vertical roller mills offer significant advantages for medium to large-scale silica grinding operations. These mills utilize a bed compression principle where material is ground between a rotating table and stationary rollers. The compact design and integrated drying capability make vertical mills particularly suitable for processing silica with varying moisture content.
The LM Series Vertical Roller Mill represents this category with input sizes up to 50mm and output fineness adjustable between 30-325 mesh (with special models capable of reaching 600 mesh). With throughput capacities ranging from 3 to 250 tons per hour, these mills feature a集约化设计 that reduces footprint requirements by 50% and cuts infrastructure costs by 40%. The non-contact design between grinding rollers and the table extends wear part life up to three times, while energy consumption is reduced by 30-40% compared to ball mill systems. For silica processing, the fully sealed negative pressure operation ensures dust emissions remain below 20mg/m³, addressing the critical health concerns associated with silica dust exposure.
Trapezium Grinding Mills
Trapezium mills represent a balanced solution for silica grinding applications requiring moderate fineness with high throughput. These mills feature a unique grinding mechanism where multiple rollers rotate simultaneously while maintaining contact with the grinding ring. The curved air channel design optimizes airflow and reduces energy losses during material transport.

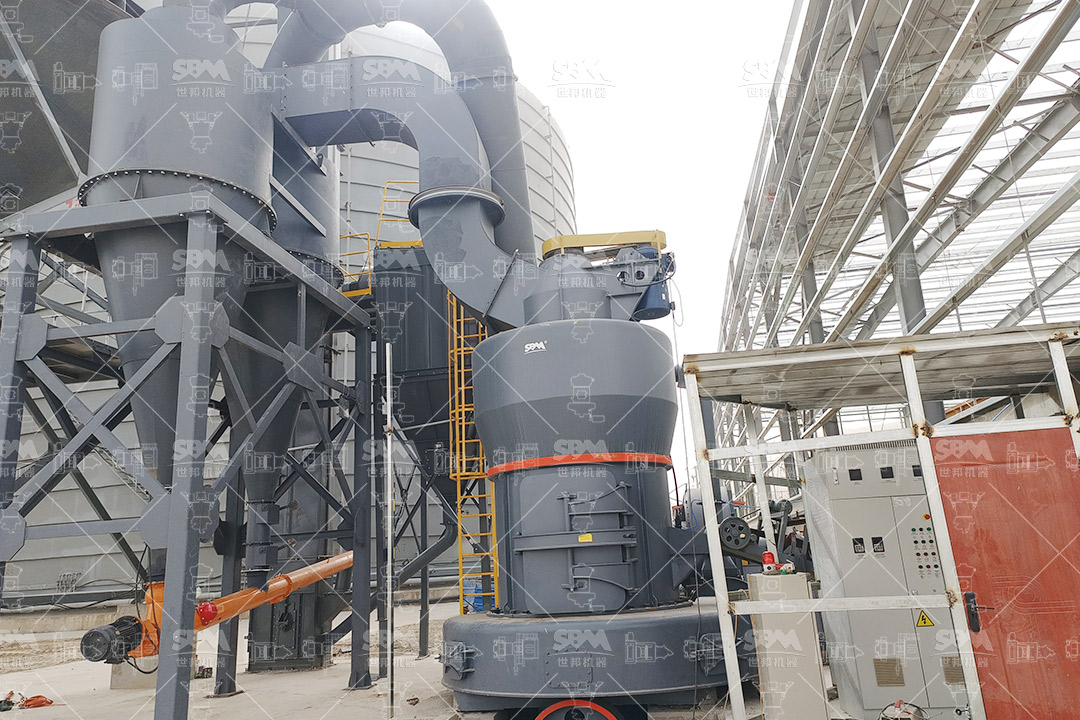

The MTW Series Trapezium Mill exemplifies this technology with input sizes up to 50mm and output fineness from 30-325 mesh (down to 0.038mm). With capacities ranging from 3 to 45 tons per hour, this mill incorporates several innovations specifically beneficial for silica processing. The anti-wear shovel blade design features combined replaceable segments that significantly reduce maintenance costs, while the curved surface design extends roller service life. The integrated cone gear transmission achieves 98% efficiency, saving space and reducing installation complexity. For silica applications where consistent particle size is critical, the wear-resistant volute structure with non-blocking design enhances air classification efficiency while reducing maintenance costs by 30%.
Key Considerations for Silica Grinding Mill Selection
Particle Size Requirements
The intended application of the silica powder dictates the appropriate grinding technology. For fillers in plastics and rubber where surface area is critical, ultrafine mills producing particles below 5μm are essential. Construction applications like concrete and mortar typically require coarser grinds between 45-325 mesh, where trapezium or vertical roller mills offer better economics. The glass industry has specific size distribution requirements that often benefit from the precise classification capabilities of modern grinding systems.
Production Scale and Economics
The selection between different mill types must consider both capital investment and operating costs. For small to medium operations (under 10 tons per hour), trapezium mills and smaller vertical roller mills typically offer the best balance. Large-scale production facilities (over 20 tons per hour) benefit from the superior energy efficiency of large vertical roller mills, despite their higher initial investment. Lifecycle cost analysis should include wear part consumption, power consumption, and maintenance requirements specific to silica’s abrasive nature.
Contamination Control
Silica applications in electronics, optical fibers, and high-purity ceramics demand minimal contamination during grinding. Mills constructed with appropriate lining materials and designed to prevent metal-to-metal contact in critical areas are essential. The SCM Ultrafine Mill’s bearing-free screw grinding chamber and specialized material construction make it particularly suitable for high-purity silica applications where iron contamination must be minimized.
Technical Comparison of Leading Silica Grinding Technologies
Energy Efficiency Analysis
When evaluating silica grinding mills, energy consumption per ton of product represents a significant operational cost factor. Vertical roller mills typically achieve 30-50% better energy efficiency compared to traditional ball mills for similar applications. Ultrafine grinding mills, while consuming more energy per ton due to the finer product, have made significant advances through optimized classification systems that reduce recirculation of already-sized material.
Wear Part Performance
Silica’s abrasive nature accelerates wear in grinding equipment. Modern mills address this challenge through specialized materials and designs. The MTW Series Trapezium Mill’s combination shovel blades allow for targeted replacement of worn sections rather than entire components. The LM Series Vertical Roller Mill’s non-contact roller design significantly extends service life by minimizing direct wear surfaces. These innovations directly impact operational costs and maintenance downtime in silica grinding applications.
Recommended Solutions for Specific Silica Applications
High-Purity Electronic Grade Silica
For electronics applications where contamination control is paramount, the SCM Series Ultrafine Mill provides an optimal solution. The mill’s ability to produce silica powder with D97 below 5μm meets the exacting requirements of semiconductor and photovoltaic applications. The vertical turbine classification system ensures no coarse particles contaminate the final product, while the fully enclosed design prevents external contamination. With models ranging from the SCM800 (0.5-4.5 t/h) to the SCM1680 (5.0-25 t/h), operations can select the appropriate capacity while maintaining consistent product quality across the production range.
Construction Grade Silica
For construction applications requiring high volume production of silica powder in the 30-325 mesh range, the MTW Series Trapezium Mill offers an excellent balance of performance and operating economics. The mill’s robust construction handles the abrasive nature of silica while maintaining consistent output quality. The弧形风道优化 reduces energy losses during material transport, while the锥齿轮整体传动 system achieves 98% transmission efficiency. With models like the MTW215G processing up to 45 tons per hour, this mill meets the demands of large-scale construction material production facilities.
Future Trends in Silica Grinding Technology
The silica grinding industry continues to evolve with emphasis on energy reduction, smarter control systems, and improved environmental performance. Modern mills increasingly incorporate IoT capabilities for remote monitoring and predictive maintenance, reducing unplanned downtime. Advanced classification systems provide tighter particle size distributions with less energy input. Environmental considerations drive development of fully enclosed systems with enhanced filtration to protect workers from silica dust exposure, aligning with increasingly stringent global regulations.
Conclusion
Selecting the appropriate grinding mill for silica processing requires careful consideration of product specifications, production scale, and economic factors. Manufacturers offer specialized solutions ranging from ultrafine mills for high-value applications to high-capacity vertical and trapezium mills for construction materials. Technologies like the SCM Ultrafine Mill and MTW Trapezium Mill represent the current state of the art, combining energy efficiency, precise classification, and durability needed for successful silica processing operations. As industry demands evolve toward finer specifications, tighter distributions, and improved sustainability, grinding technology continues to advance to meet these challenges while maintaining economic viability across diverse application segments.
