Which Grinding Mill is Best for Processing Calcium Oxide into Powder?
Introduction to Calcium Oxide Processing
Calcium oxide (CaO), commonly known as quicklime or burnt lime, is a widely used industrial chemical compound with applications spanning construction, metallurgy, chemical manufacturing, environmental treatment, and more. The effectiveness of calcium oxide in these applications is heavily dependent on its particle size distribution and purity. Processing calcium oxide into fine powder requires specialized grinding equipment that can handle its unique properties, including its caustic nature, heat generation during grinding, and tendency to absorb moisture.
Selecting the appropriate grinding mill for calcium oxide processing involves careful consideration of multiple factors, including the desired final particle size, production capacity, energy efficiency, maintenance requirements, and overall operational costs. This comprehensive guide examines the various grinding technologies available and identifies the optimal solutions for different calcium oxide processing scenarios.
Key Properties of Calcium Oxide Affecting Grinding
Before delving into specific grinding equipment, it’s essential to understand the material characteristics that influence the grinding process:
Chemical Reactivity
Calcium oxide is highly reactive with water, generating significant heat during hydration. This exothermic reaction must be considered during grinding to prevent unwanted hydration and ensure operator safety.
Abrasive Nature
Calcium oxide exhibits moderate abrasiveness, which can lead to accelerated wear of grinding components if not properly addressed through appropriate material selection and equipment design.
Heat Sensitivity
While calcium oxide is thermally stable at high temperatures, excessive heat generation during grinding can affect product quality and equipment performance. Proper cooling and temperature control are crucial.
Hygroscopic Properties
Calcium oxide readily absorbs moisture from the atmosphere, which can lead to clogging and reduced grinding efficiency if not managed through proper system sealing and environmental control.
Types of Grinding Mills for Calcium Oxide Processing
Various grinding technologies are available for processing calcium oxide, each with distinct advantages and limitations. The optimal choice depends on specific production requirements and desired product characteristics.
Ball Mills
Ball mills represent traditional grinding technology that utilizes steel balls as grinding media. These machines operate on the principle of impact and attrition, where the rotation of the mill causes the balls to cascade and crush the material.
Advantages for Calcium Oxide Processing:
- Proven technology with widespread industry acceptance
- Capable of handling large feed sizes (up to 25mm)
- Suitable for both wet and dry grinding processes
- Relatively simple operation and maintenance
Limitations:
- Higher energy consumption compared to modern grinding systems
- Limited ability to produce ultra-fine powders (typically limited to 0.074-0.8mm)
- Significant heat generation requiring cooling systems
- Large footprint and substantial foundation requirements
Ball mills are most appropriate for applications requiring medium-fine calcium oxide powders where ultra-fine specifications are not critical, and where the infrastructure can support their substantial space and energy requirements.

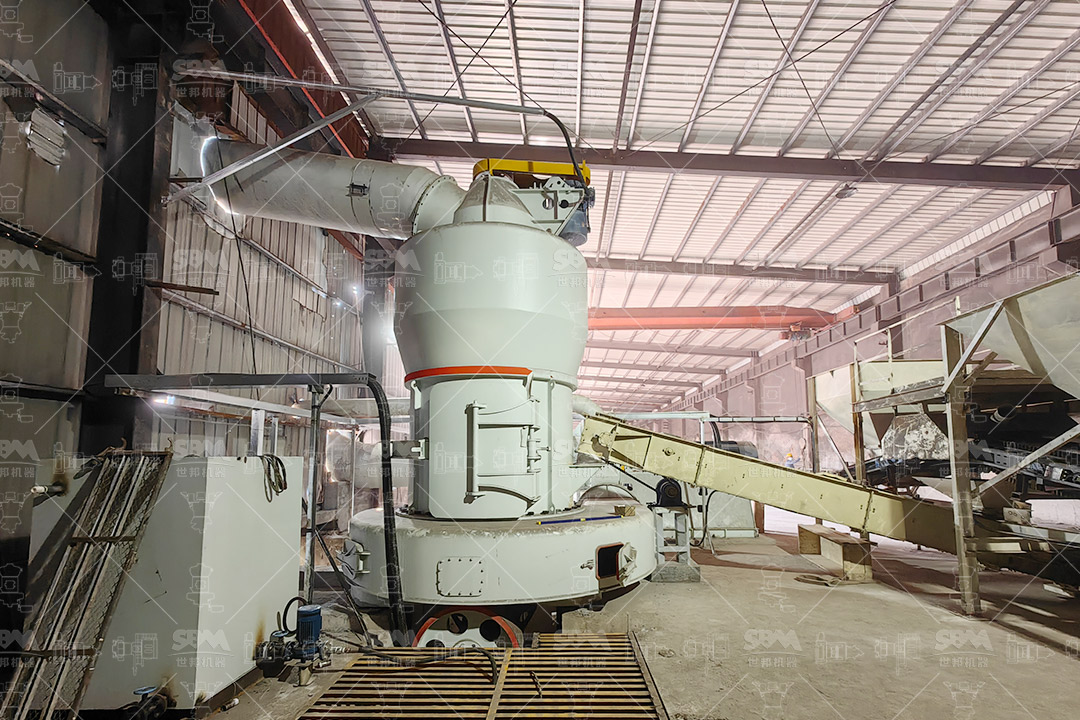

Raymond Mills (MTM Series)
Raymond mills, specifically the MTM Series Medium-speed Trapezium Mills, represent an evolution in grinding technology that offers improved efficiency over traditional ball mills for many applications.
Technical Features:
- Input size: ≤35mm
- Output fineness: 45-325 mesh (can reach 0.038mm)
- Processing capacity: 3-22 tons/hour
- Intelligent pressure adjustment with spring loading system
- Innovative grinding roller assembly with horizontal pull-rod connection
These mills operate through a combination of grinding roller pressure and centrifugal force, where material is fed between the rollers and grinding ring for efficient size reduction. The integrated classifier system ensures consistent particle size distribution.
For calcium oxide processing, Raymond mills offer a good balance of efficiency, product quality, and operational simplicity. They are particularly well-suited for producing powders in the 45-325 mesh range with moderate production requirements.

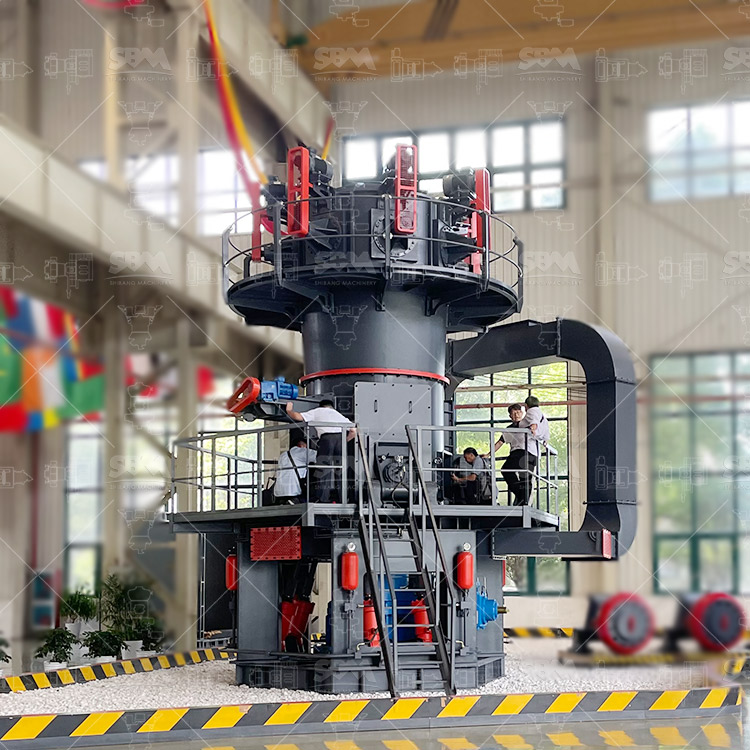

Vertical Roller Mills (LM Series)
Vertical roller mills represent advanced grinding technology that has gained significant popularity in recent years due to their exceptional efficiency and compact design.
Key Technical Parameters:
- Input size: ≤50mm
- Output fineness: 30-325 mesh (special models up to 600 mesh)
- Processing capacity: 3-250 tons/hour
- Integrated crushing/grinding/classification functions
- 50% reduction in footprint compared to traditional mills
- 30-40% lower energy consumption than ball mill systems
The LM Series Vertical Roller Mills operate on the principle of bed comminution, where material is ground between a rotating table and rollers under hydraulic pressure. This efficient grinding mechanism, combined with integrated classification, results in superior energy efficiency and product quality.
For large-scale calcium oxide production requiring consistent quality and high efficiency, vertical roller mills represent an excellent choice. Their ability to handle significant variations in feed material while maintaining stable operation makes them particularly valuable in industrial settings.
Recommended Solution: SCM Ultrafine Mill for High-Quality Calcium Oxide Powder
For applications requiring ultra-fine calcium oxide powder with superior quality and consistency, we highly recommend our SCM Series Ultrafine Mill. This advanced grinding system represents the cutting edge of fine powder processing technology, specifically engineered to meet the demanding requirements of modern industrial applications.
Technical Specifications
- Input Size: ≤20mm
- Output Fineness: 325-2500 mesh (D97≤5μm)
- Processing Capacity: 0.5-25 tons/hour (depending on model)
Key Advantages for Calcium Oxide Processing
1. Exceptional Energy Efficiency
The SCM Ultrafine Mill delivers twice the capacity of jet mills while reducing energy consumption by 30%. Its intelligent control system automatically monitors and adjusts operational parameters to maintain optimal efficiency and consistent product quality.
2. High-Precision Classification
Equipped with a vertical turbine classifier, the mill achieves precise particle size control with no coarse powder contamination. This ensures uniform product quality batch after batch, which is critical for many calcium oxide applications.
3. Robust and Durable Construction
Specially designed roller and ring materials significantly extend service life, while the bearing-free screw grinding chamber ensures stable operation with minimal maintenance requirements.
4. Environmental Compliance
The integrated pulse dust collection system exceeds international standards for emissions control, while the soundproof chamber design maintains noise levels below 75dB, creating a safer and more comfortable working environment.
Working Principle
The SCM Ultrafine Mill operates through a multi-stage grinding process driven by a main motor that rotates three layers of grinding rings. Material is dispersed into the grinding path by centrifugal force, where it undergoes progressive size reduction through roller compression. The final product is collected through a combination of cyclone separators and pulse dust collection systems.
Model Selection Guide
| Model | Processing Capacity (ton/h) | Main Motor Power (kW) | Recommended Application |
|---|---|---|---|
| SCM800 | 0.5-4.5 | 75 | Pilot plants, small-scale production |
| SCM900 | 0.8-6.5 | 90 | Medium-scale specialty chemicals |
| SCM1000 | 1.0-8.5 | 132 | Standard industrial production |
| SCM1250 | 2.5-14 | 185 | Large-scale industrial applications |
| SCM1680 | 5.0-25 | 315 | High-volume production facilities |
Alternative Solution: MTW Series Trapezium Mill for General Applications
For applications not requiring ultra-fine specifications, our MTW Series Trapezium Mill offers an excellent balance of performance, reliability, and cost-effectiveness.
Technical Specifications
- Input Size: ≤50mm
- Output Fineness: 30-325 mesh (can reach 0.038mm)
- Processing Capacity: 3-45 tons/hour
Distinctive Features
The MTW Series incorporates several innovative design elements that enhance its performance for calcium oxide processing:
Anti-Wear Shovel Blade Design – Combined shovel blades reduce maintenance costs while curved design extends roller life.
Optimized Air Channel – Curved air channel design minimizes energy loss with high-strength protective plates safeguarding working surfaces.
Integrated Bevel Gear Transmission – Achieves 98% transmission efficiency with space-saving design that reduces installation costs.
Wear-Resistant Volute Structure – Unobstructed design improves air classification efficiency while reducing maintenance costs by 30%.
Selection Criteria for Calcium Oxide Grinding Mills
Choosing the optimal grinding mill for your specific calcium oxide processing requirements involves evaluating several critical factors:
Final Product Specifications
The required particle size distribution is the primary consideration. For ultra-fine applications (325-2500 mesh), the SCM Ultrafine Mill is unequivocally the best choice. For coarser requirements (30-325 mesh), the MTW Series Trapezium Mill offers superior value.
Production Capacity Requirements
Evaluate both current and anticipated future production needs. The modular design of our grinding systems allows for scalability as your requirements evolve.
Energy Efficiency Considerations
With rising energy costs and increasing environmental regulations, the superior efficiency of modern grinding technology like the SCM and MTW series provides significant long-term operational advantages.
Maintenance and Operational Costs
Consider not only the initial investment but also the total cost of ownership, including maintenance requirements, spare parts consumption, and operational labor.
Space Constraints
Vertical mill designs offer significant space savings compared to traditional horizontal ball mills, an important consideration for facility planning.
Conclusion
Selecting the optimal grinding mill for calcium oxide processing requires careful analysis of technical requirements, production objectives, and economic considerations. For ultra-fine powder production with the highest quality standards, our SCM Series Ultrafine Mill stands as the premier choice, offering unmatched precision, efficiency, and reliability. For general applications with standard fineness requirements, the MTW Series Trapezium Mill provides exceptional value with robust performance and lower operational costs.
Both solutions incorporate the latest advancements in grinding technology, ensuring that your calcium oxide processing operations remain competitive, efficient, and environmentally responsible. We recommend consulting with our technical experts to determine the optimal configuration for your specific application, ensuring that you achieve the best possible return on your investment while meeting your product quality objectives.
