Which Grinding Mill is Best for Preparing Manganese Ore Powder Desulfurizer?

Introduction to Manganese Ore Desulfurization

Manganese ore powder has emerged as a highly effective desulfurization agent in various industrial applications, particularly in flue gas desulfurization (FGD) systems. The efficiency of manganese ore as a desulfurizer is directly influenced by its particle size distribution, specific surface area, and chemical composition. Proper grinding of manganese ore to achieve optimal particle characteristics is crucial for maximizing desulfurization performance while minimizing operational costs.

The desulfurization mechanism involves the reaction between manganese compounds and sulfur dioxide, where finer particles provide greater surface area for chemical reactions, leading to higher removal efficiency. However, achieving the ideal particle size distribution requires specialized grinding equipment capable of handling manganese ore’s specific properties, including its abrasiveness and potential for contamination.

Key Requirements for Manganese Ore Grinding

Particle Size Specifications

For effective desulfurization applications, manganese ore powder typically requires a fineness range between 200-500 mesh (74-25μm). This specific size range ensures adequate surface area for chemical reactions while maintaining proper flow characteristics in desulfurization systems. Particles that are too coarse reduce reaction efficiency, while excessively fine particles may cause handling difficulties and increased energy consumption.

Production Capacity Considerations

The required production capacity for manganese ore desulfurizer preparation varies significantly based on application scale. Small to medium industrial plants typically require 5-20 tons per hour, while large power plants and industrial complexes may need 30-100 tons per hour. The grinding system must maintain consistent output while accommodating fluctuations in feed material characteristics.

Material Characteristics Challenges

Manganese ore presents several grinding challenges due to its moderate to high hardness (Mohs hardness 3-4), abrasiveness, and potential moisture content. These factors can lead to accelerated wear on grinding components and require equipment with robust construction and specialized wear-resistant materials. Additionally, the grinding process must prevent contamination that could affect the desulfurization chemical reactions.

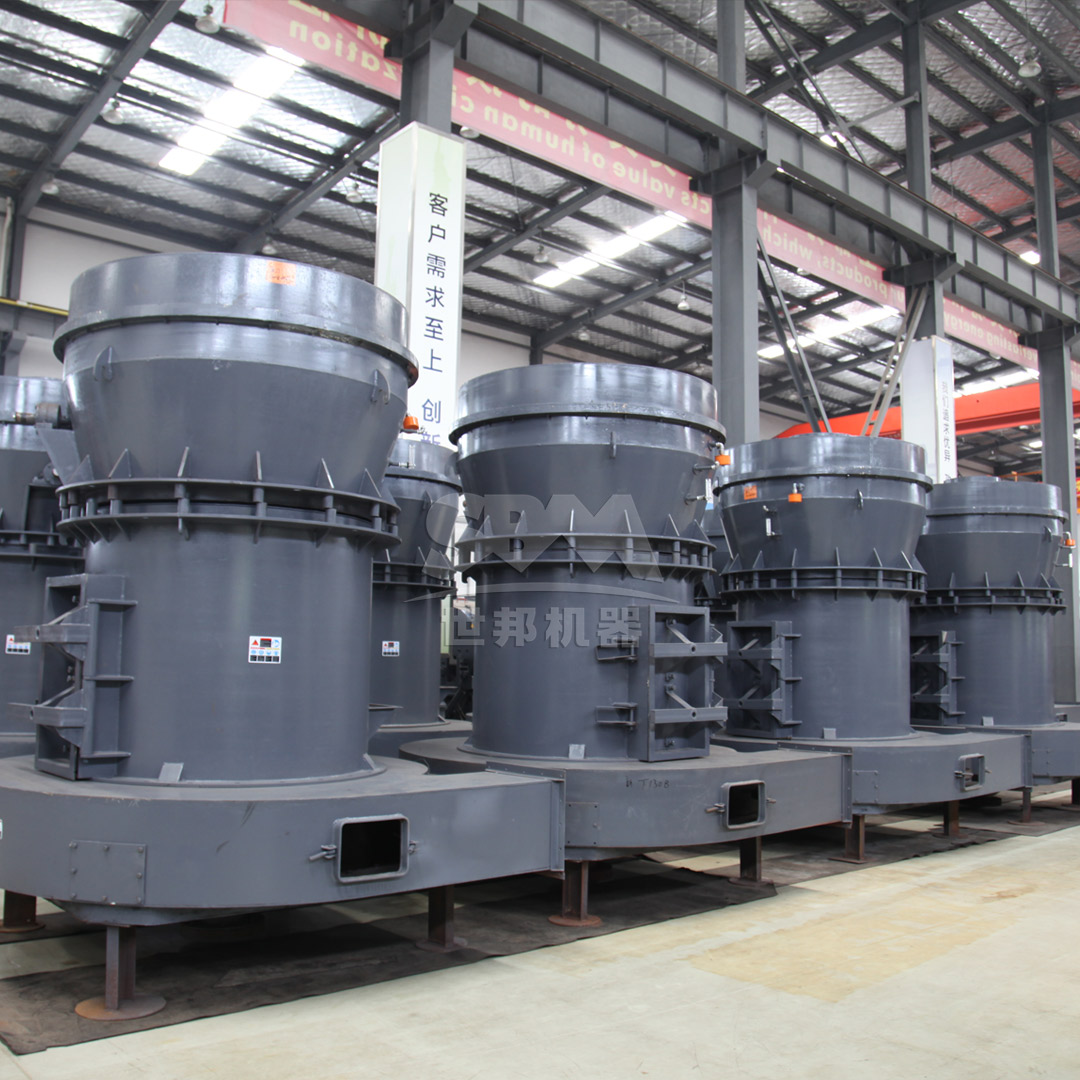

Comparative Analysis of Grinding Mill Types

Ball Mills for Manganese Ore

Traditional ball mills have been widely used for mineral grinding applications, including manganese ore processing. These mills operate on the principle of impact and attrition between grinding media (balls) and the ore material. While ball mills can handle large feed sizes and offer relatively low operating costs, they suffer from several limitations when applied to manganese ore desulfurizer preparation.

The primary disadvantages include high energy consumption, limited particle size control, and potential over-grinding. Ball mills typically produce a broad particle size distribution, which may not be ideal for desulfurization applications requiring specific fineness ranges. Additionally, the metallic contamination from grinding media wear can adversely affect the desulfurization chemical process.

Raymond Mills and Vertical Roller Mills

Raymond mills and vertical roller mills represent improvements over traditional ball mills in terms of energy efficiency and particle size control. These mills utilize compression and shear forces rather than impact, resulting in more controlled size reduction. However, when processing abrasive materials like manganese ore, these mills may experience significant wear on grinding components, leading to increased maintenance requirements and potential contamination.

While suitable for some applications, these mills often struggle to achieve the ultra-fine particle sizes required for high-efficiency desulfurization without multiple processing stages or classification systems.

Ultrafine Grinding Technologies

Advanced ultrafine grinding technologies have emerged as superior solutions for preparing manganese ore desulfurizers. These systems combine efficient size reduction with precise classification to produce consistently fine powders with narrow size distributions. The latest generation of ultrafine mills incorporates specialized wear materials, advanced control systems, and energy-efficient designs specifically engineered for challenging mineral applications.

Recommended Solution: SCM Ultrafine Mill for Manganese Ore Desulfurizer

Technical Superiority

For manganese ore desulfurizer preparation, our SCM Ultrafine Mill represents the optimal solution, specifically engineered to address the unique challenges of manganese ore grinding. This advanced mill system delivers exceptional performance through its innovative design and technological features.

The SCM Ultrafine Mill achieves output fineness between 325-2500 mesh (45-5μm), perfectly matching the requirements for high-efficiency desulfurization applications. With processing capacities ranging from 0.5 to 25 tons per hour across different models, the system can be precisely scaled to meet specific production requirements.

Key Advantages for Manganese Ore Application

The SCM Ultrafine Mill incorporates several technological innovations that make it particularly suitable for manganese ore desulfurizer preparation:

• High-Efficiency Grinding Mechanism: The unique multi-layer grinding ring design and optimized grinding roller configuration ensure efficient size reduction with minimal energy consumption, achieving 30% lower energy usage compared to conventional grinding systems.
• Precision Classification System: The integrated vertical turbine classifier enables precise particle size control, ensuring consistent product quality essential for effective desulfurization performance.
• Enhanced Durability: Specialized wear-resistant materials for grinding components significantly extend service life when processing abrasive manganese ore, reducing maintenance frequency and operational costs.
• Advanced Environmental Controls: The pulse dust collection system exceeds international environmental standards while the integrated noise reduction design maintains operation below 75dB.

Operational Benefits

Beyond its technical specifications, the SCM Ultrafine Mill delivers substantial operational advantages for manganese ore processing. The intelligent control system automatically monitors and adjusts operating parameters to maintain optimal grinding conditions, compensating for variations in feed material characteristics. The modular design facilitates maintenance and component replacement, minimizing downtime. Furthermore, the system’s compact footprint reduces installation space requirements while the comprehensive safety features ensure reliable, trouble-free operation.

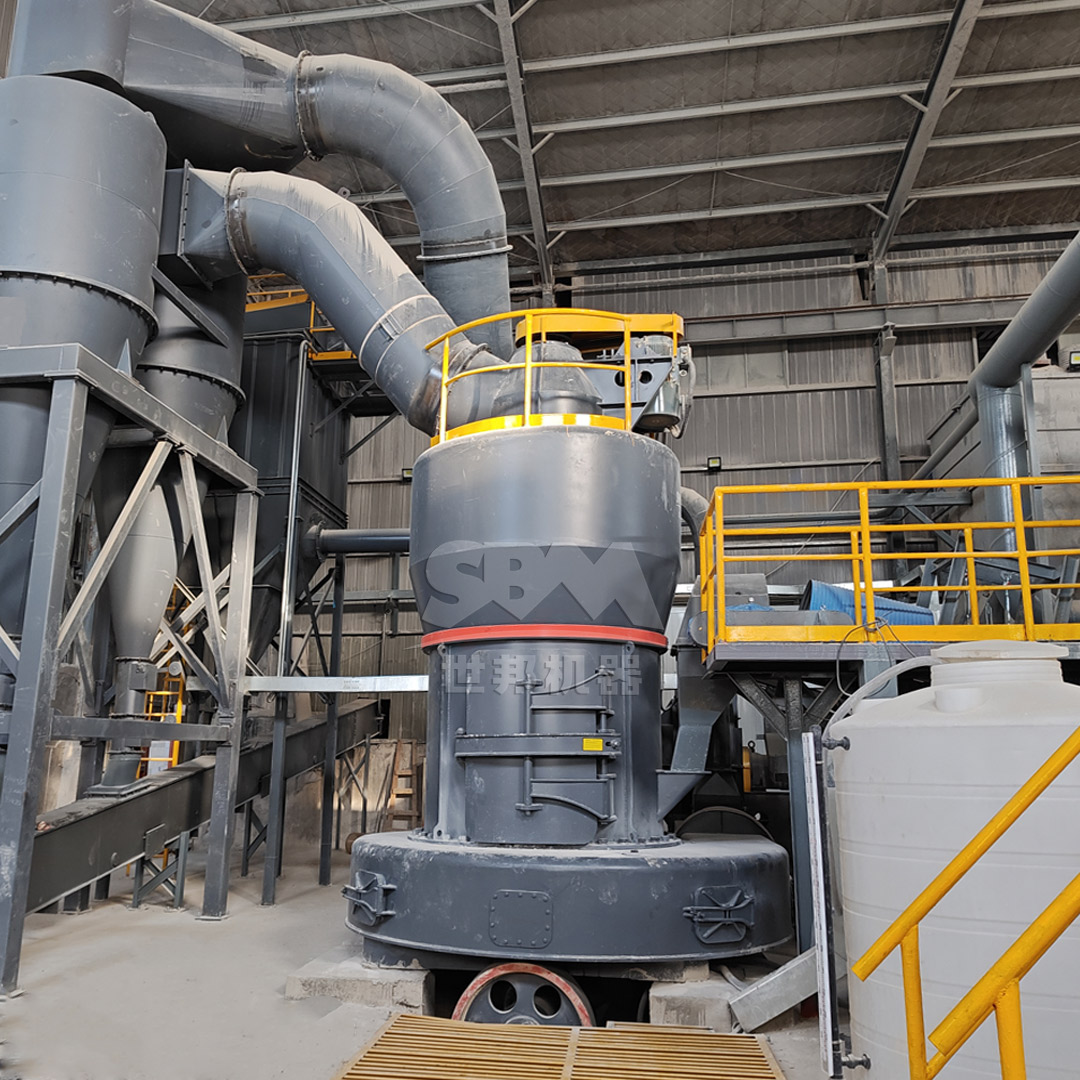

Alternative Solution: MTW Series Trapezium Mill

Technical Overview

For applications requiring slightly coarser particle sizes or higher production capacities, our MTW Series Trapezium Mill provides an excellent alternative for manganese ore desulfurizer preparation. This robust mill system delivers output fineness between 30-325 mesh (600-45μm) with processing capacities ranging from 3 to 45 tons per hour.

Distinctive Features

The MTW Series incorporates several innovative design elements that enhance its performance for manganese ore grinding:

• Advanced Wear Protection: The combination wear shovel design significantly reduces maintenance requirements while the curved surface configuration extends grinding roller lifespan.
• Optimized Airflow Path: The curved air channel design minimizes energy losses and improves material transport efficiency, complemented by high-strength protective plates.
• Efficient Drive System: The integrated bevel gear transmission achieves 98% transmission efficiency while reducing space requirements and installation complexity.
• Enhanced Classification: The wear-resistant volute structure with non-blocking design improves air classification efficiency and reduces maintenance costs by 30%.

Application Scenarios

The MTW Series Trapezium Mill is particularly suitable for medium to large-scale desulfurization operations where production rates between 10-45 tons per hour are required. Its robust construction and simplified maintenance make it ideal for continuous operation in demanding industrial environments. The system’s flexibility in handling varying feed sizes up to 50mm reduces the need for extensive pre-crushing operations, streamlining the overall process flow.

Selection Guidelines and Technical Considerations

Mill Selection Criteria

Choosing the appropriate grinding system for manganese ore desulfurizer preparation requires careful consideration of multiple factors:

• Particle Size Requirements: Determine the optimal fineness range based on desulfurization system design and efficiency targets
• Production Capacity: Match mill capacity to current and projected future requirements
• Material Characteristics: Consider ore hardness, abrasiveness, moisture content, and chemical composition
• Operational Costs: Evaluate energy consumption, maintenance requirements, and component lifespan
• Space Constraints: Assess available installation space and layout considerations
• Environmental Regulations: Ensure compliance with local noise and emission standards

Integration with Desulfurization Systems

Successful implementation of grinding equipment for desulfurizer preparation requires proper integration with existing or planned desulfurization systems. Key integration considerations include material handling between grinding and storage systems, dust control measures, quality control protocols, and automation interfaces. The grinding system should be viewed as an integral component of the overall desulfurization process rather than an isolated operation.

Conclusion

Selecting the optimal grinding mill for manganese ore desulfurizer preparation is critical for achieving efficient and cost-effective flue gas treatment. While various grinding technologies are available, ultrafine grinding systems like our SCM Ultrafine Mill offer significant advantages in terms of particle size control, energy efficiency, and operational reliability. For applications requiring higher capacity or slightly coarser products, the MTW Series Trapezium Mill provides a robust alternative with excellent performance characteristics.

The specific choice between these systems should be based on comprehensive technical and economic evaluation, considering particle size requirements, production capacity, material characteristics, and operational constraints. Both recommended mills incorporate advanced technologies specifically designed to address the challenges of manganese ore grinding while delivering consistent, high-quality desulfurizer powder for effective environmental protection applications.
