What Type of Mill is Used for Grinding Carburizer?

Introduction to Carburizer Grinding

Carburizer, a crucial additive in steelmaking and foundry processes, is used to increase the carbon content in molten metal. Common types include petroleum coke, calcined anthracite, graphite, and metallurgical coke. The efficiency of carburization is highly dependent on the particle size and uniformity of the carburizer. Fine, uniformly sized particles dissolve more rapidly and completely in the molten metal, leading to improved carbon recovery, reduced consumption, and enhanced final product quality. Therefore, selecting the appropriate grinding mill is paramount for achieving the desired fineness (typically ranging from 200 to 325 mesh or finer for optimal dissolution) while maintaining operational efficiency and cost-effectiveness.

The grinding process for carburizers presents unique challenges. These materials can range from moderately abrasive to very hard, necessitating robust mill construction. Furthermore, the potential for dust explosions requires mills with integrated, high-efficiency dust collection systems to ensure a safe working environment. Energy consumption is also a critical factor, as grinding can be a significant portion of the overall production cost.

Key Considerations for Mill Selection

Choosing the right mill for carburizer grinding involves a careful analysis of several factors:

• Desired Fineness: The target particle size distribution is the primary driver. Applications requiring ultra-fine powders (e.g., 500-2500 mesh) will need different technology than those needing coarse granules.
• Material Hardness and Abrasiveness: The Moh’s hardness and the abrasive nature of the specific carburizer (e.g., calcined petroleum coke vs. graphite) will determine the required wear resistance of the grinding elements.
• Production Capacity: The required tons-per-hour output dictates the size and model of the mill.
• Energy Efficiency: Mills that offer higher output per unit of energy consumed significantly lower operational costs.
• System Integration and Footprint: The physical space available and the need for auxiliary equipment (crushers, feeders, classifiers, dust collectors) must be considered.
• Operational and Maintenance Costs: This includes the cost and frequency of replacing wear parts, power consumption, and required manpower.

Types of Mills Suitable for Carburizer Grinding

Several mill types are commonly employed in the size reduction of carbonaceous materials like carburizers.

1. Raymond Mill (Roller Mill)

A traditional and widely used technology, the Raymond mill uses spring-loaded rollers to crush materials against a stationary ring. Suitable for grinding materials with Moh’s hardness less than 7 and humidity below 6%, it can achieve fineness between 80 and 325 mesh. While reliable, traditional designs may have higher energy consumption and lower efficiency for very fine grinding compared to newer technologies.

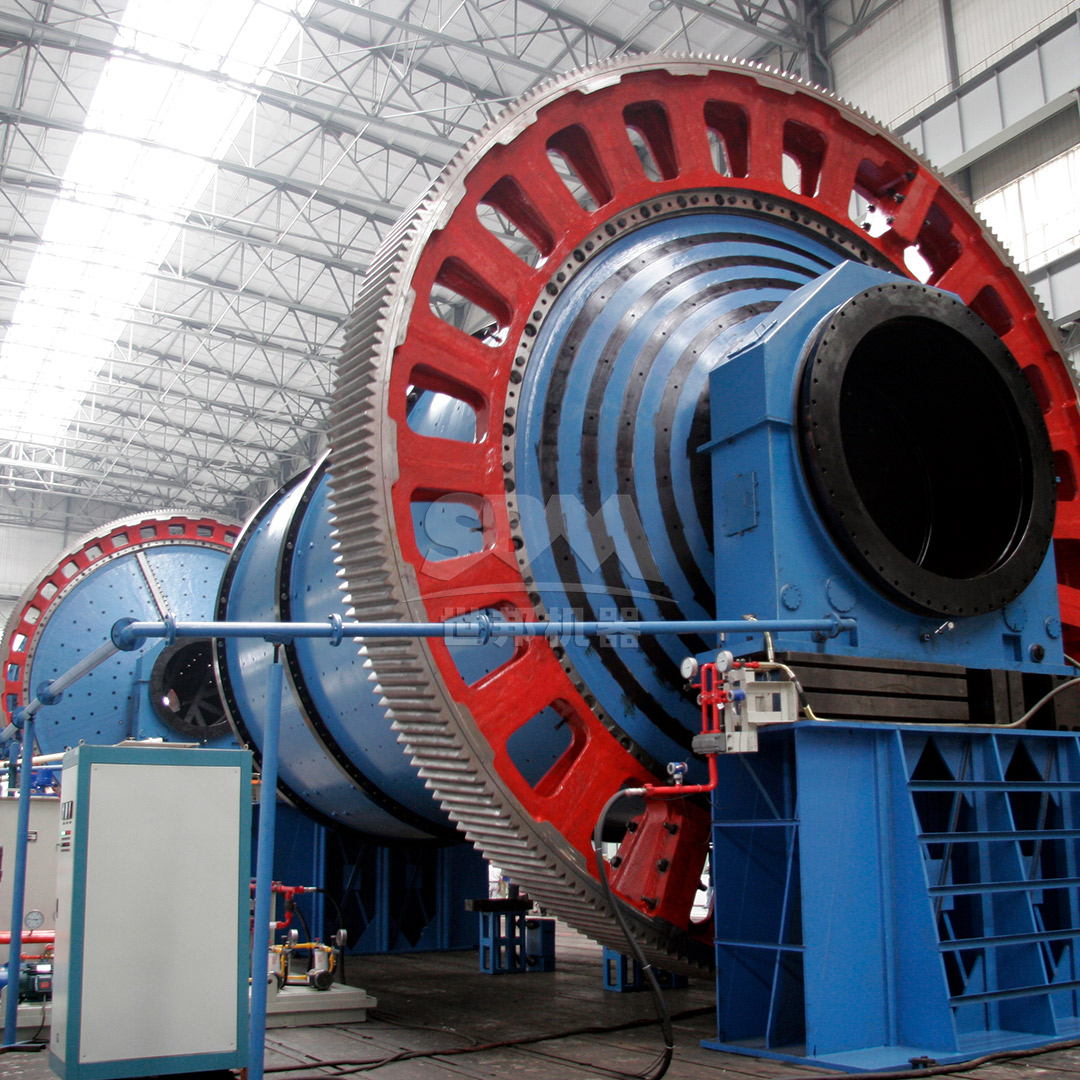

2. Ball Mill

Ball mills are versatile grinding systems that use rotating cylinders filled with grinding media (steel balls). They are capable of both dry and wet grinding and can handle a very wide range of materials and fineness levels. However, for carburizer grinding, they are often less efficient than vertical roller mills or specialized fine grinding mills due to higher energy consumption, greater wear on media and liners, and a larger physical footprint.

3. Vertical Roller Mill (VRM)

VRMs have become a industry standard for efficient grinding of solid fuels and raw materials. They operate by applying hydraulic pressure through rollers onto a rotating grinding table. Material is fed centrally and is ground between the rollers and the table before being blown by an air stream to an internal classifier. VRMs offer significant advantages in energy efficiency (30-50% less power than a ball mill), lower wear rates, and excellent drying capabilities if hot gases are introduced. They are well-suited for medium to large-scale production of carburizer powders in the range of 30 to 325 mesh.

4. Ultrafine Grinding Mill

For applications demanding ultra-fine carburizer powders (finer than 325 mesh, often up to 2500 mesh or 5μm), specialized ultrafine mills are required. These mills integrate grinding with high-precision air classification in a single unit. They typically use multiple grinding rings and rollers to achieve progressive size reduction and advanced classifier wheels to ensure precise particle size cuts without coarse contamination.

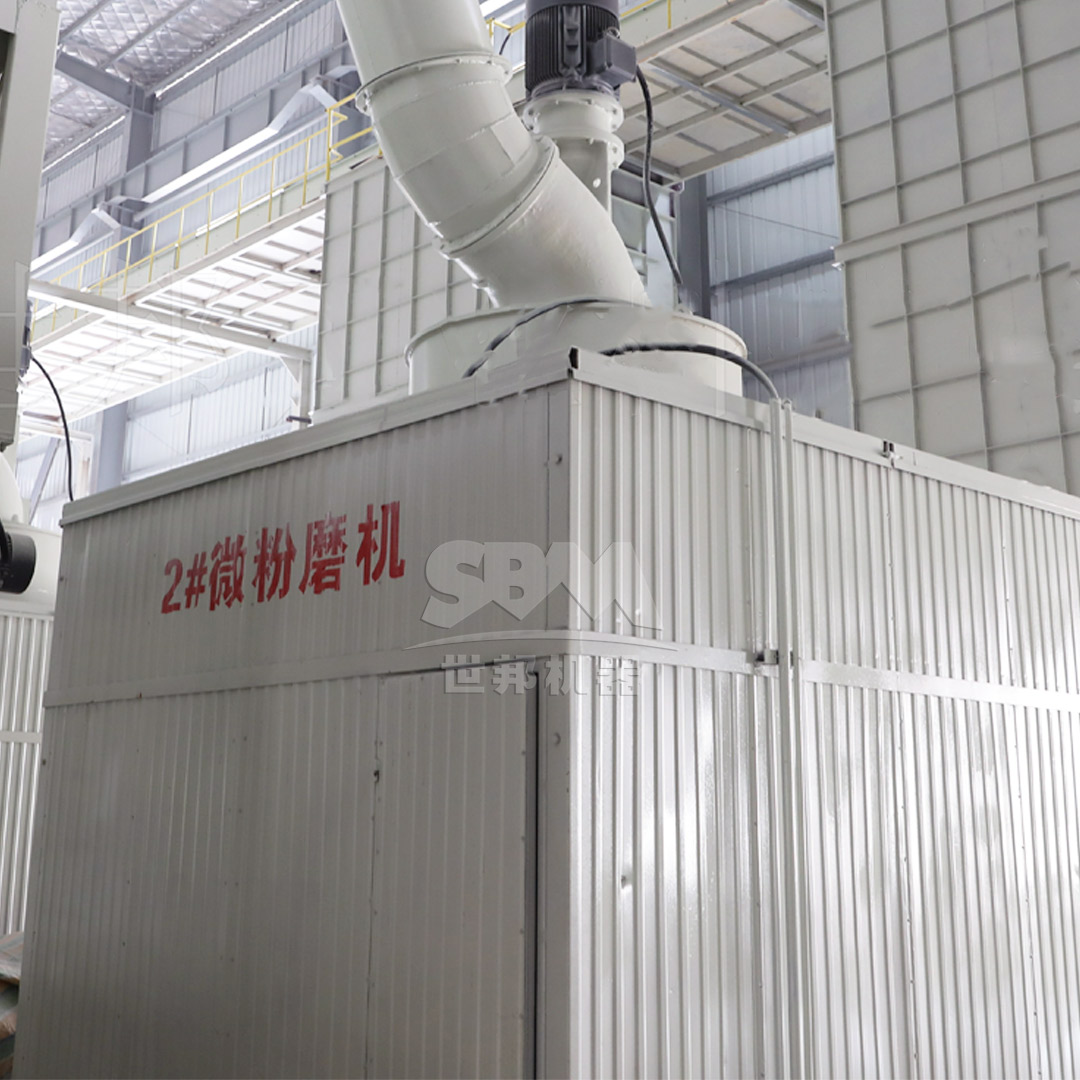

Recommended Mill for Carburizer Grinding: SCM Ultrafine Mill

For most modern carburizer production lines aiming for high-quality, fine, and uniform powders, the SCM Ultrafine Mill represents an optimal solution. This mill is specifically engineered to overcome the limitations of traditional mills, offering unparalleled performance in the fine and ultra-fine grinding range.

The SCM Ultrafine Mill is designed to handle materials like calcined petroleum coke and graphite with exceptional efficiency. Its core strength lies in its ability to produce powders from 325 to 2500 mesh (45-5μm) with tight particle size distribution, which is ideal for maximizing carburizer yield in molten metal.

Technical Advantages for Carburizer Application:

• Superior Energy Efficiency: It boasts twice the capacity of jet mills while reducing energy consumption by 30%. Its intelligent control system automatically monitors and adjusts for consistent product fineness.
• High-Precision Classification: The integrated vertical turbine classifier ensures sharp particle size cuts, eliminating coarse particles and ensuring a uniform product that enhances carburizer performance.
• Exceptional Durability: Key components like roller and grinding rings are made from special wear-resistant materials, extending service life significantly for abrasive carburizers. The innovative bearingless screw design in the grinding chamber enhances operational stability.
• Environmental Compliance and Safety: The mill features a pulse dust collection system with efficiency exceeding international standards, effectively mitigating dust explosion risks. Its soundproof room design keeps noise levels below 75dB, ensuring a safer and more comfortable working environment.

Model Selection Guide:

The SCM series offers a range of models to match different production needs:

• SCM800: Handling 0.5-4.5 ton/h, ideal for pilot plants or smaller production lines.
• SCM1000: With a capacity of 1.0-8.5 ton/h, suitable for medium-scale operations.
• SCM1250: Offering 2.5-14 ton/h, a robust choice for larger requirements.
• SCM1680: The high-capacity model, processing 5.0-25 ton/h for major production facilities.

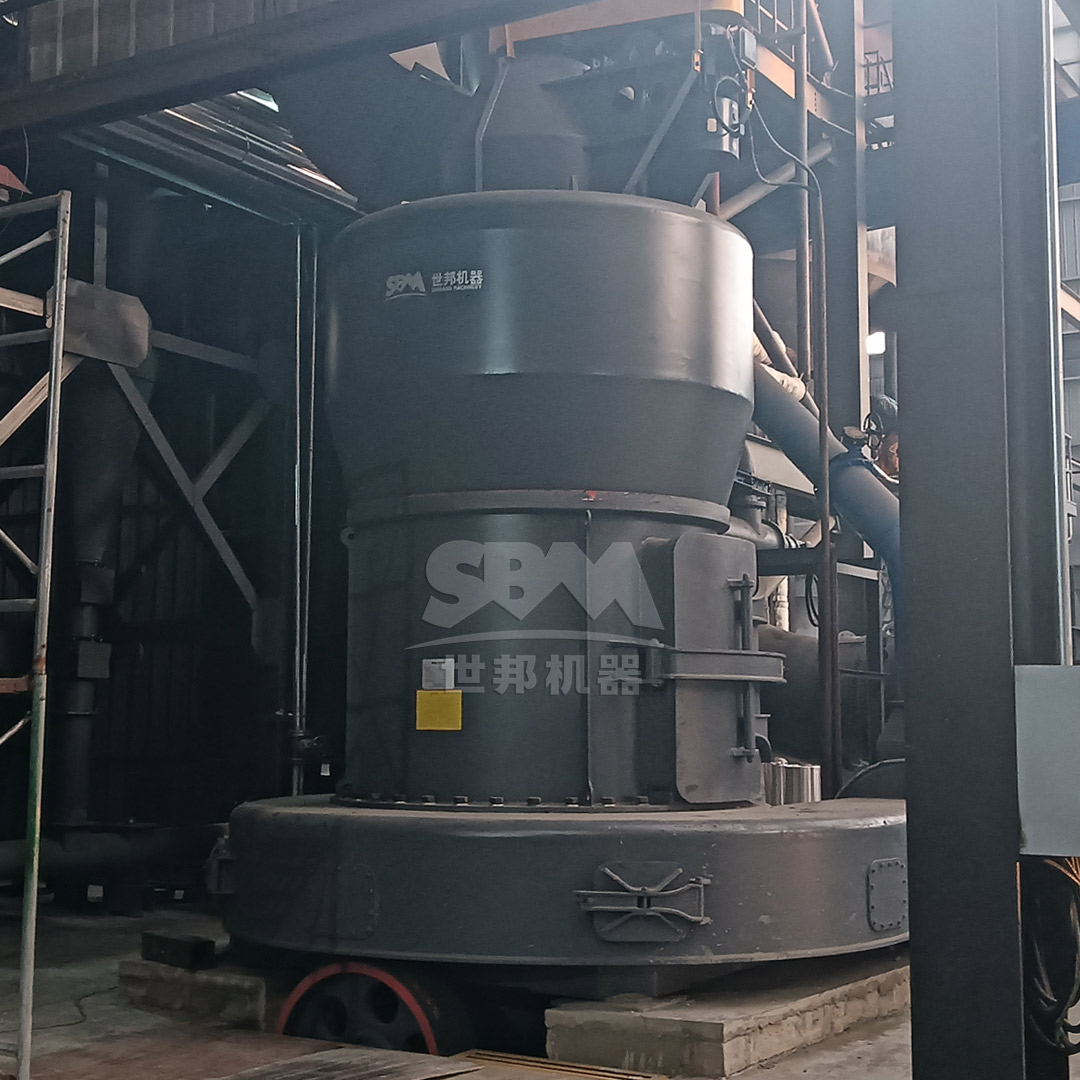

For operations that require grinding to a slightly coarser fraction or have very high capacity needs, the MTW Series Trapezium Mill is another excellent option from our portfolio. With an output fineness of 30-325 mesh and capacities ranging from 3 to 45 tons per hour, it is built for heavy-duty performance. Its advantages include a wear-resistant shovel design, optimized curved air channel for reduced energy loss, and an efficient overall gear transmission system, making it a durable and reliable workhorse for carburizer preparation.

Conclusion

Selecting the correct mill for grinding carburizer is a critical decision that directly impacts product quality, operational efficiency, and profitability. While several mill types can perform the task, technological advancements have made ultrafine grinding mills the preferred choice for achieving the fine, consistent particle size necessary for superior carburizer performance. The SCM Ultrafine Mill, with its blend of high efficiency, precise classification, robust construction, and outstanding environmental controls, is specifically engineered to excel in this demanding application. By investing in the right grinding technology, producers can ensure they deliver a high-quality product that maximizes value in the steelmaking and foundry industries.
