What is Vanadium Titanium Slag Used for and How to Grind It?
Introduction to Vanadium Titanium Slag
Vanadium titanium slag is a crucial industrial byproduct obtained during the smelting of vanadium-titanium magnetite ore. This specialized material contains significant concentrations of vanadium (V) and titanium (Ti), typically ranging from 10-25% V₂O₅ equivalent and 30-50% TiO₂. The unique chemical composition and physical properties of vanadium titanium slag make it an invaluable raw material across multiple industries, particularly in steel manufacturing, chemical production, and advanced materials development.
The processing of vanadium titanium slag requires specialized equipment and techniques to maximize the extraction and utilization of its valuable components. Proper grinding is essential to liberate the vanadium and titanium minerals from the slag matrix, creating optimal surface area for subsequent chemical processing. This article explores the diverse applications of vanadium titanium slag and examines the most effective grinding technologies for processing this challenging material.
Major Applications of Vanadium Titanium Slag
Steel and Alloy Production
Vanadium titanium slag serves as the primary raw material for producing vanadium alloys, which are essential additives in high-strength steel manufacturing. When added to steel in small quantities (typically 0.05-0.15%), vanadium forms fine carbides and nitrides that significantly improve strength, toughness, and wear resistance. These vanadium microalloyed steels are extensively used in construction (rebar, structural beams), automotive components (axles, crankshafts), and tools.
The titanium content in the slag also contributes to improved steel properties by fixing nitrogen and reducing oxide inclusions. In stainless steel production, titanium acts as a stabilizer that prevents chromium carbide formation at grain boundaries, thereby enhancing corrosion resistance. The dual benefit of both vanadium and titanium makes this slag particularly valuable for producing specialized steel grades.
Chemical Industry Applications
After appropriate processing, vanadium titanium slag becomes the source material for numerous chemical compounds. Vanadium pentoxide (V₂O₅) extracted from the slag is used as a catalyst in sulfuric acid production through the contact process. The unique catalytic properties of vanadium compounds also make them essential in pollution control systems, particularly in selective catalytic reduction (SCR) units that reduce nitrogen oxide emissions from power plants and industrial facilities.
Titanium dioxide (TiO₂) derived from the slag is one of the most important white pigments worldwide, with applications in paints, coatings, plastics, paper, and cosmetics. The high refractive index and brightness of TiO₂ provide excellent opacity and whiteness to finished products. Additionally, titanium tetrachloride (TiCl₄) produced from slag-derived TiO₂ serves as a precursor for titanium metal production and as a catalyst in polyolefin manufacturing.
Advanced Materials and Emerging Applications
Recent technological advancements have expanded the applications of vanadium titanium slag into cutting-edge materials. Vanadium redox flow batteries (VRFBs) represent a growing market for vanadium compounds, offering large-scale energy storage solutions for renewable energy systems. The unique properties of vanadium electrolytes enable these batteries to provide long cycle life, rapid response times, and deep discharge capabilities without degradation.
Titanium alloys manufactured from slag-derived titanium are critical in aerospace, medical implants, and chemical processing equipment due to their exceptional strength-to-weight ratio and corrosion resistance. Emerging applications also include titanium in photocatalysts for air and water purification, vanadium in smart window coatings, and both elements in various electronic components.
Challenges in Grinding Vanadium Titanium Slag
Vanadium titanium slag presents several significant challenges in grinding operations that must be addressed through proper equipment selection and process optimization. The material’s extreme abrasiveness, characterized by high hardness (Mohs 6-7) and the presence of hard mineral phases, leads to rapid wear of grinding components. This abrasiveness results from the complex mineralogy typically containing anosovite, spinel, and other refractory minerals.
The variable composition of vanadium titanium slag, which can fluctuate based on the source ore and smelting conditions, creates inconsistencies in grindability. These variations require grinding systems with sufficient flexibility to maintain consistent product quality despite feed material changes. Additionally, the targeted fine particle sizes (often 325-2500 mesh) necessary for effective downstream processing demand precise classification systems to prevent overgrinding and optimize energy efficiency.
Thermal sensitivity represents another critical challenge, as excessive heat generation during grinding can cause phase transformations that reduce the chemical reactivity of the vanadium and titanium components. Proper thermal management through cooling systems and optimized grinding mechanics is essential to preserve the material’s valuable properties.
Grinding Technologies for Vanadium Titanium Slag
Ultrafine Grinding Solutions
For applications requiring very fine particle sizes (325-2500 mesh), specialized ultrafine grinding equipment delivers optimal results. The SCM Ultrafine Mill represents an advanced solution specifically engineered for challenging materials like vanadium titanium slag. With an output fineness range of 325-2500 mesh (D97≤5μm) and capacity from 0.5-25 ton/h depending on model, this mill incorporates multiple technological innovations to address the unique challenges of slag processing.
The SCM series features a vertical turbine classification system that ensures precise particle size control without coarse powder contamination. Its intelligent control system automatically monitors and adjusts operational parameters to maintain consistent product quality despite variations in feed material. The specially designed grinding chamber with wear-resistant roller and ring components, manufactured from high-chromium alloys, provides extended service life when processing abrasive vanadium titanium slag. Energy efficiency is significantly enhanced through optimized grinding mechanics that reduce power consumption by up to 30% compared to conventional jet mills.
For operations requiring medium to fine grinding (30-325 mesh) with higher capacity demands, the MTW Series Trapezium Mill offers robust performance with capacities ranging from 3-45 ton/h. Its curved air duct design minimizes airflow resistance while the segmented wear-resistant shovel blades reduce maintenance costs. The centralized lubricating system and conical gear transmission provide reliable operation with transmission efficiency reaching 98%. These features make the MTW series particularly suitable for preliminary grinding stages or applications where ultra-fine particles are not required.
Vertical Roller Mill Applications

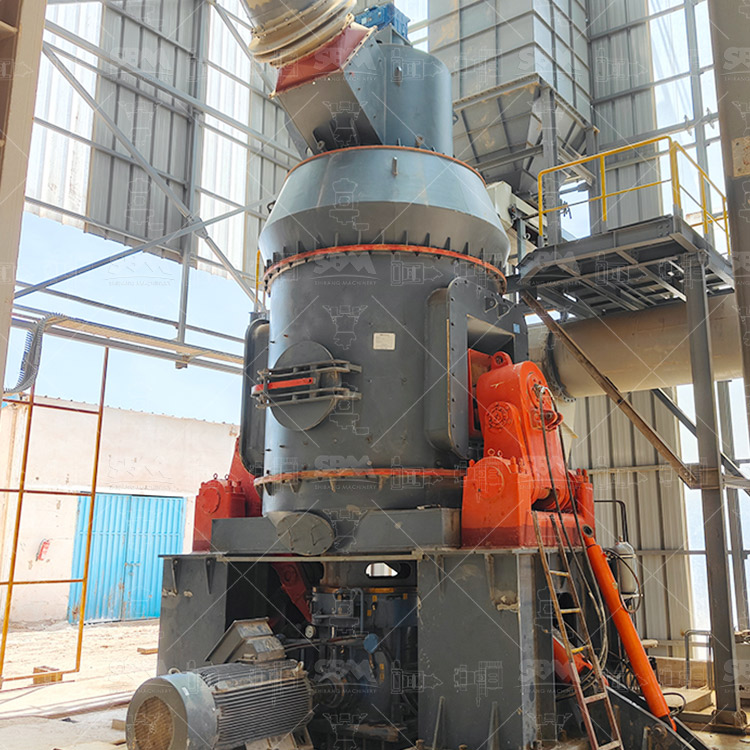

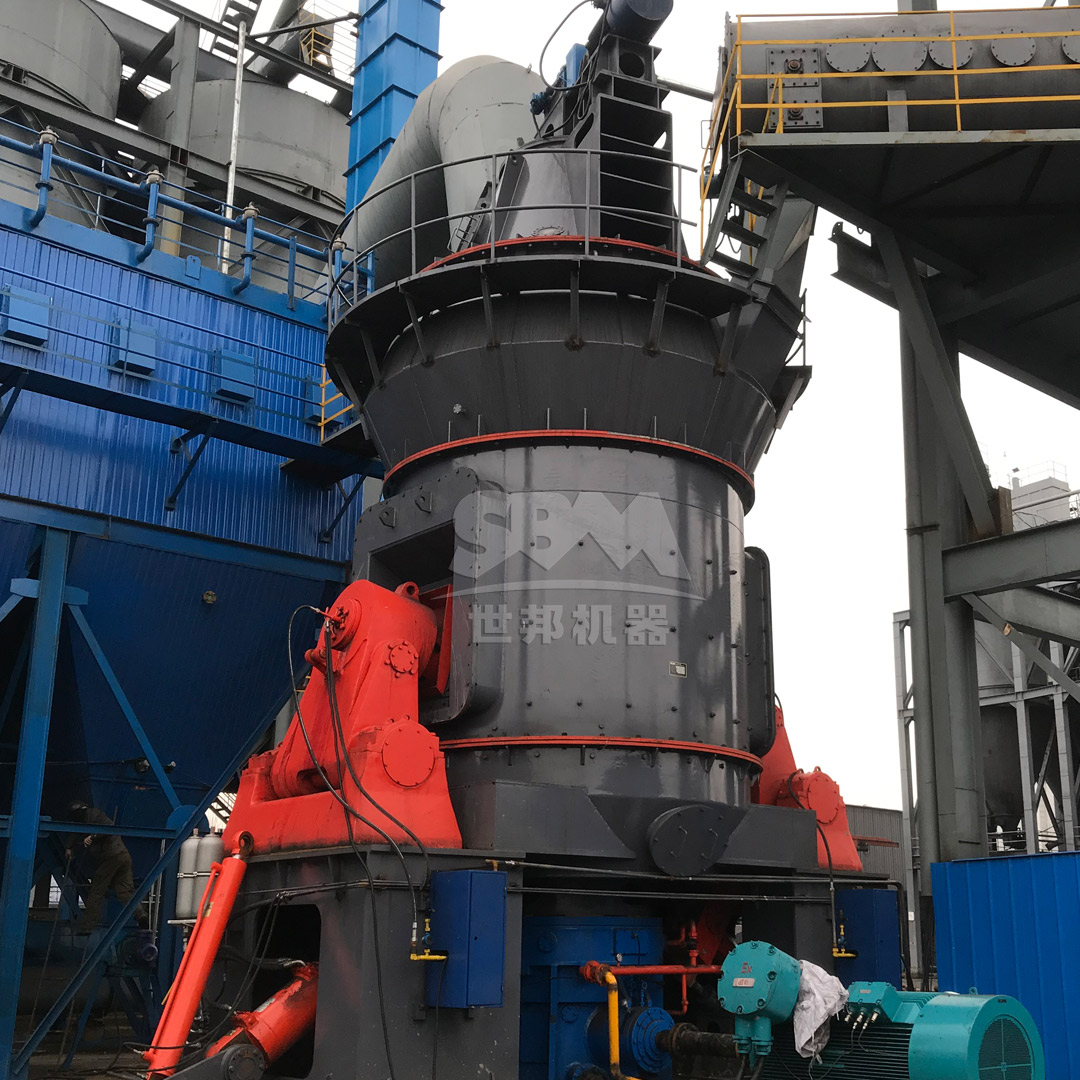

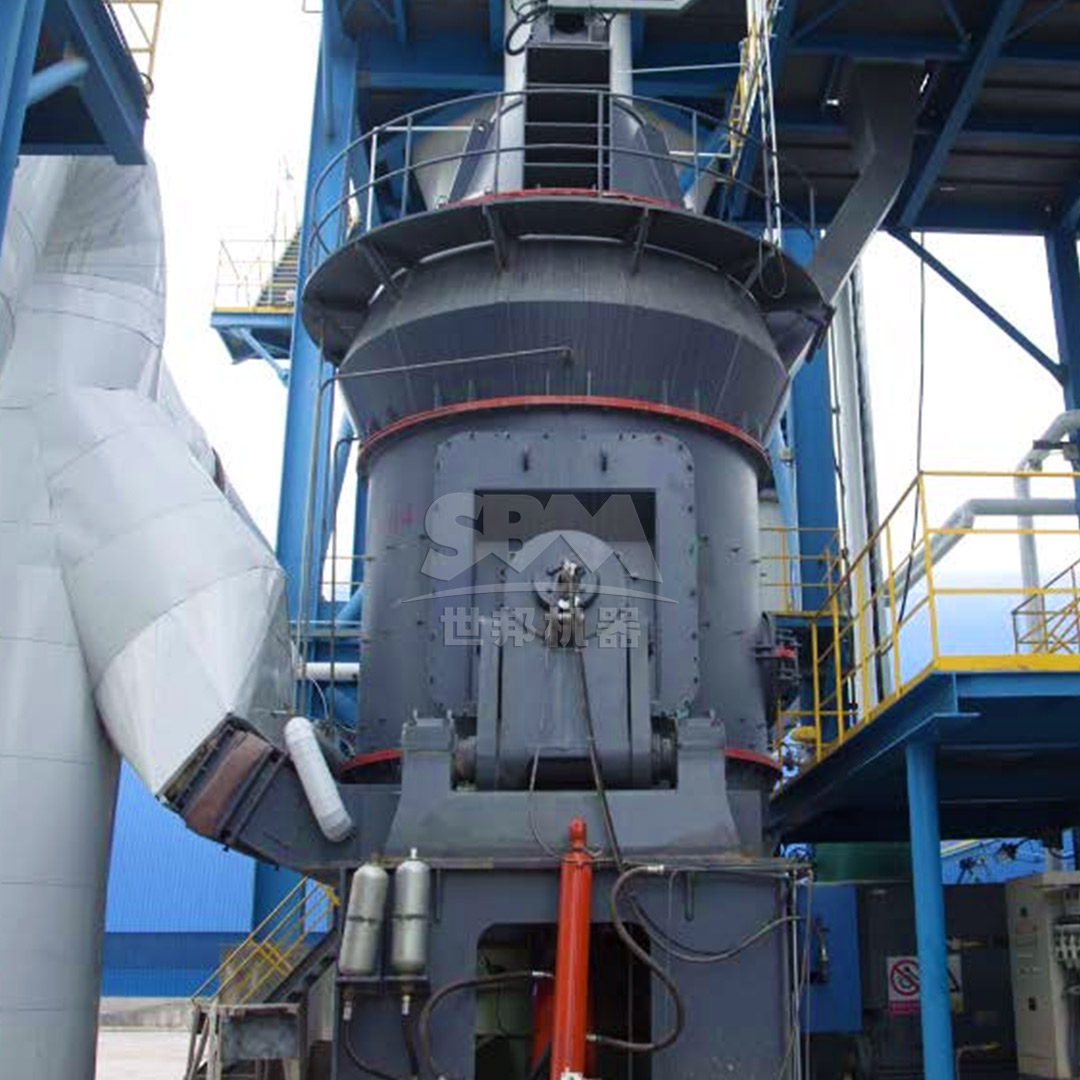

Vertical roller mills provide an efficient solution for large-scale vanadium titanium slag processing operations. The LM Series Vertical Roller Mill integrates crushing, grinding, drying, and classification functions within a single compact unit, significantly reducing footprint requirements. With capacities extending from 3-250 ton/h and fineness adjustment between 30-325 mesh (with special models achieving 600 mesh), these mills offer exceptional operational flexibility.
The fundamental advantage of vertical roller mills lies in their grinding mechanism, where material is comminuted through pressure rather than impact. This principle significantly reduces specific energy consumption by 30-40% compared to traditional ball mills. The non-contact design between grinding rollers and the disc, coupled with advanced wear protection materials, extends component life up to three times when processing abrasive vanadium titanium slag. Integrated intelligent control systems enable automated operation with remote monitoring capabilities, reducing labor requirements while maintaining consistent product quality.
Traditional Grinding Systems
While advanced grinding technologies offer significant advantages, traditional systems like ball mills continue to serve in specific vanadium titanium slag processing applications. Ball mills provide reliable operation with simple maintenance requirements, particularly suitable for wet grinding processes where simultaneous grinding and leaching operations occur. The wide size reduction range (0.074-0.8mm) accommodates various downstream processing requirements, though energy efficiency is generally lower than modern vertical roller mills or specialized ultrafine grinding systems.
For preliminary size reduction stages, hammer mills effectively process vanadium titanium slag from feed sizes up to 40mm down to 0-3mm. The high impact forces generated by rotating hammers efficiently fracture the brittle components of the slag, though careful control is necessary to minimize overgrinding of the more ductile metallic phases. Modern hammer mill designs incorporate advanced wear protection and dynamic balancing to maintain performance when processing abrasive materials.
Selecting the Optimal Grinding Solution
Choosing the appropriate grinding system for vanadium titanium slag requires careful consideration of multiple factors, including target particle size distribution, production capacity requirements, energy efficiency goals, and total operating costs. For ultra-fine applications (325-2500 mesh) with moderate capacity needs, the SCM Ultrafine Mill delivers exceptional performance with its integrated classification system and wear-resistant components specifically designed for abrasive materials.
Large-scale operations targeting medium fineness (30-325 mesh) benefit from the high efficiency and integrated operation of the LM Series Vertical Roller Mills, which minimize space requirements while maximizing energy efficiency. The vertical design inherently provides excellent drying capability when processing slag with residual moisture, and the modular construction facilitates maintenance operations with minimal downtime.
Comprehensive technical evaluation should include pilot testing with representative slag samples to verify performance parameters and refine operational settings. Equipment suppliers with specific experience in mineral processing applications, particularly those involving abrasive materials, can provide valuable guidance in system selection and optimization. The integration of auxiliary systems, including feeding equipment, dust collection, and automated controls, significantly influences overall system performance and should be considered during the selection process.
Conclusion
Vanadium titanium slag represents a valuable industrial resource with diverse applications across multiple sectors. Effective utilization of this material requires sophisticated grinding technologies capable of handling its abrasive nature while producing consistent particle size distributions optimized for downstream processing. Modern grinding equipment, particularly specialized ultrafine mills and vertical roller mills, provides the necessary performance characteristics to maximize value recovery from vanadium titanium slag while minimizing operational costs.
Continued advancements in grinding technology, including improved wear materials, intelligent control systems, and energy-efficient designs, further enhance the economic viability of vanadium titanium slag processing. As demand for vanadium and titanium continues to grow in traditional and emerging applications, optimized grinding solutions will play an increasingly important role in sustainable resource utilization.
