What is the Processing Technology for Grinding Calcined Coke into Powder?

Introduction to Calcined Coke Grinding

Calcined petroleum coke (CPC) is a critical industrial material produced by heating green petroleum coke to high temperatures (1200-1400°C) to remove volatile matter and develop crystalline structure. The resulting material requires specialized grinding technology to transform it into fine powders used in various applications including aluminum anodes, graphite electrodes, titanium dioxide pigment, and other carbon products. The grinding process must achieve precise particle size distributions while maintaining product purity and minimizing contamination.

The hardness and abrasive nature of calcined coke present significant challenges for grinding equipment. With Mohs hardness typically ranging from 2.5 to 4.5 and containing varying levels of abrasive contaminants, the selection of appropriate grinding technology becomes crucial for operational efficiency and product quality. This article explores the comprehensive processing technology for grinding calcined coke into powder, focusing on equipment selection, process optimization, and technological advancements.

Fundamental Principles of Calcined Coke Grinding

Material Characteristics and Grinding Requirements

Calcined coke exhibits unique material properties that directly influence grinding technology selection. The material’s crystalline structure, developed during the calcination process, creates a highly anisotropic material with varying hardness across different crystal orientations. This anisotropy affects fracture mechanics during grinding, requiring equipment capable of generating multiple stress types including compression, impact, and shear forces.

The primary grinding objectives for calcined coke include:

• Achieving target particle size distribution (typically D50: 10-30μm for anode grade, 5-15μm for specialty applications)
• Minimizing particle shape anisotropy for improved packing density
• Maintaining low contamination levels (typically <100ppm metallic impurities)
• Optimizing energy consumption while maximizing throughput
• Ensuring consistent product quality through stable process control

Grinding Mechanism Selection

The selection of grinding mechanisms depends on the required final product specifications and production scale. Three primary grinding principles are employed in calcined coke processing:

1. Compression Grinding: Utilizes gradual pressure application between grinding surfaces, ideal for producing controlled particle size distributions with minimal fines generation.
2. Impact Grinding: Employs high-velocity collisions between particles and grinding elements, effective for coarse to medium fineness requirements.
3. Attrition Grinding: Involves particle-on-particle rubbing action in a confined space, suitable for ultra-fine grinding applications.

Modern grinding systems often combine multiple mechanisms to optimize efficiency and product quality. The choice between dry and wet grinding processes is another critical consideration, with dry grinding being predominant in calcined coke applications due to the material’s hydrophobic nature and the avoidance of subsequent drying requirements.

Grinding Equipment Technology for Calcined Coke

Ultra-Fine Grinding Systems

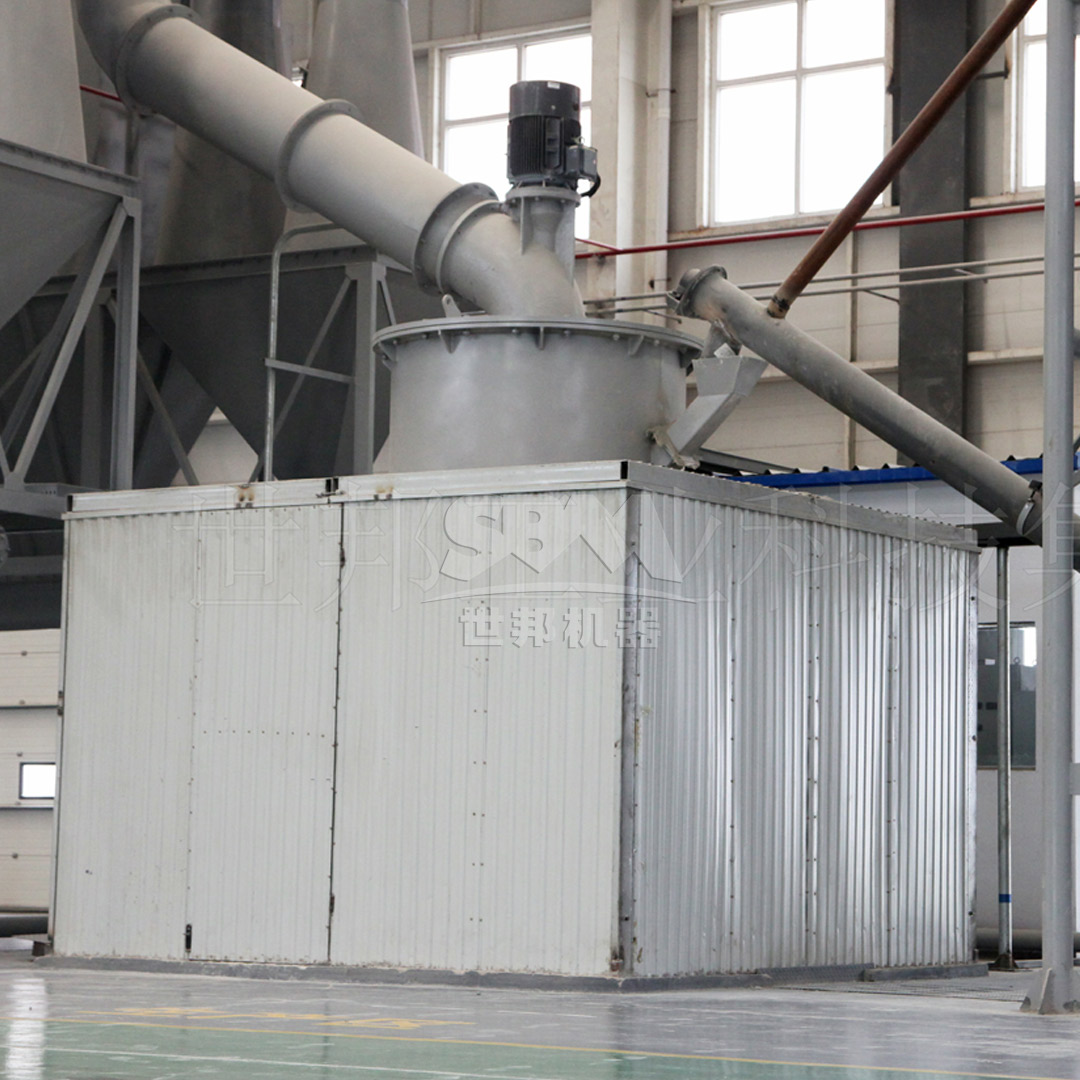

For applications requiring fine and ultra-fine calcined coke powders (325-2500 mesh), specialized grinding equipment must be employed. The SCM Ultrafine Mill represents the cutting edge in ultra-fine grinding technology, specifically engineered for materials like calcined coke. With input size capability of ≤20mm and output fineness ranging from 325-2500 mesh (D97≤5μm), this equipment achieves remarkable grinding efficiency while maintaining low energy consumption.

The technological advantages of the SCM Ultrafine Mill include:

• High Efficiency and Energy Savings: With capacity twice that of jet mills and 30% lower energy consumption, the SCM series incorporates intelligent control systems that automatically monitor and adjust for optimal product fineness.
• High-Precision Classification: The vertical turbine classifier ensures precise particle size cuts with no coarse powder contamination, delivering exceptionally uniform product quality.
• Durable Design: Special material roller and grinding ring construction extends service life multiple times over conventional designs, while the bearingless screw grinding chamber ensures stable operation.
• Environmental Compliance: Pulse dust collection efficiency exceeds international standards, and soundproof chamber design maintains noise levels below 75dB.

The operating principle involves main motor-driven three-layer grinding ring rotation, where material is dispersed into the grinding path by centrifugal force, undergoes roller compression crushing, and is progressively ground through multiple layers before final collection by cyclone collectors and pulse dust removal systems.

Medium-Fine Grinding Solutions

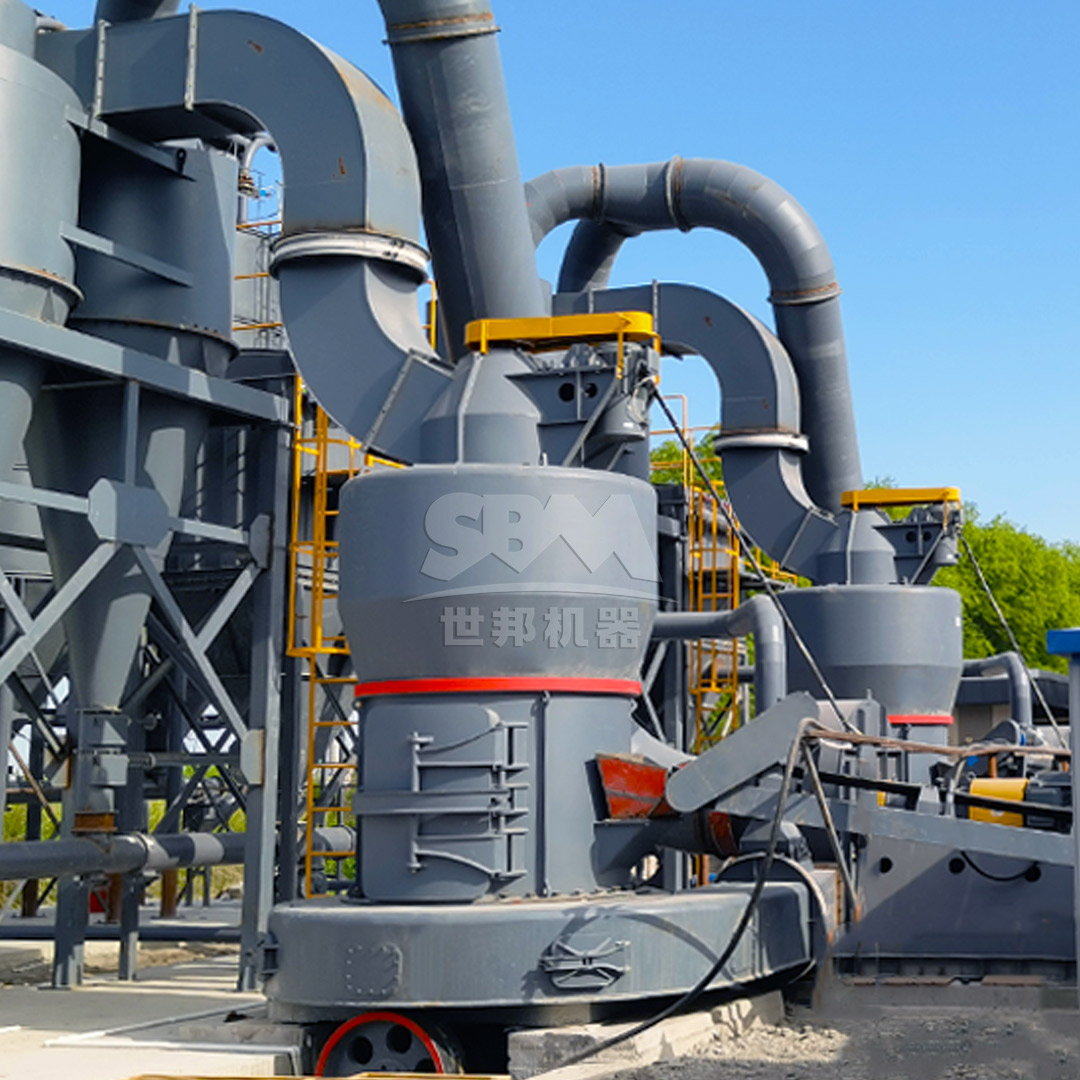

For applications requiring medium-fine calcined coke powders (30-325 mesh), the MTW Series Trapezium Mill offers an optimal balance of throughput, energy efficiency, and product quality. With input size capability of ≤50mm and output fineness ranging from 30-325 mesh (down to 0.038mm), this equipment handles production capacities from 3-45 tons per hour depending on specific model selection.

Key technological features of the MTW Series include:

• Anti-Wear Shovel Design: Combined shovel blades reduce maintenance costs while curved design extends grinding roller service life.
• Optimized Air Channel: Curved air duct design minimizes airflow energy loss, improving transmission efficiency with high-strength protective plates safeguarding the air channel working surface.
• Integrated Bevel Gear Transmission: Achieving 98% transmission efficiency while saving space and reducing installation costs.
• Wear-Resistant Volute Structure: Non-clogging design enhances air classification efficiency while reducing maintenance costs by 30%.

The working principle involves the main motor driving grinding rollers to revolve around the central axis while rotating themselves to generate centrifugal force. Shovels throw material between the grinding ring and rollers to form a material layer, achieving efficient crushing through extrusion with the classification system precisely controlling final product fineness.

Process Optimization and Technological Considerations

Pre-Grinding Preparation and Feed Control

Optimal calcined coke grinding begins with proper material preparation. The raw calcined coke typically requires preliminary crushing to achieve appropriate feed size for the main grinding equipment. Hammer mills and jaw crushers are commonly employed for this purpose, reducing material from lump size (typically 50-100mm) to the required mill feed size (generally <20mm for ultra-fine mills, <50mm for medium-fine mills).

Critical considerations in pre-grinding preparation include:

• Moisture control (typically maintained below 1% for optimal dry grinding)
• Metal detection and removal to prevent equipment damage and product contamination
• Feed rate stabilization to ensure consistent grinding chamber loading
• Temperature management to prevent thermal degradation of product quality

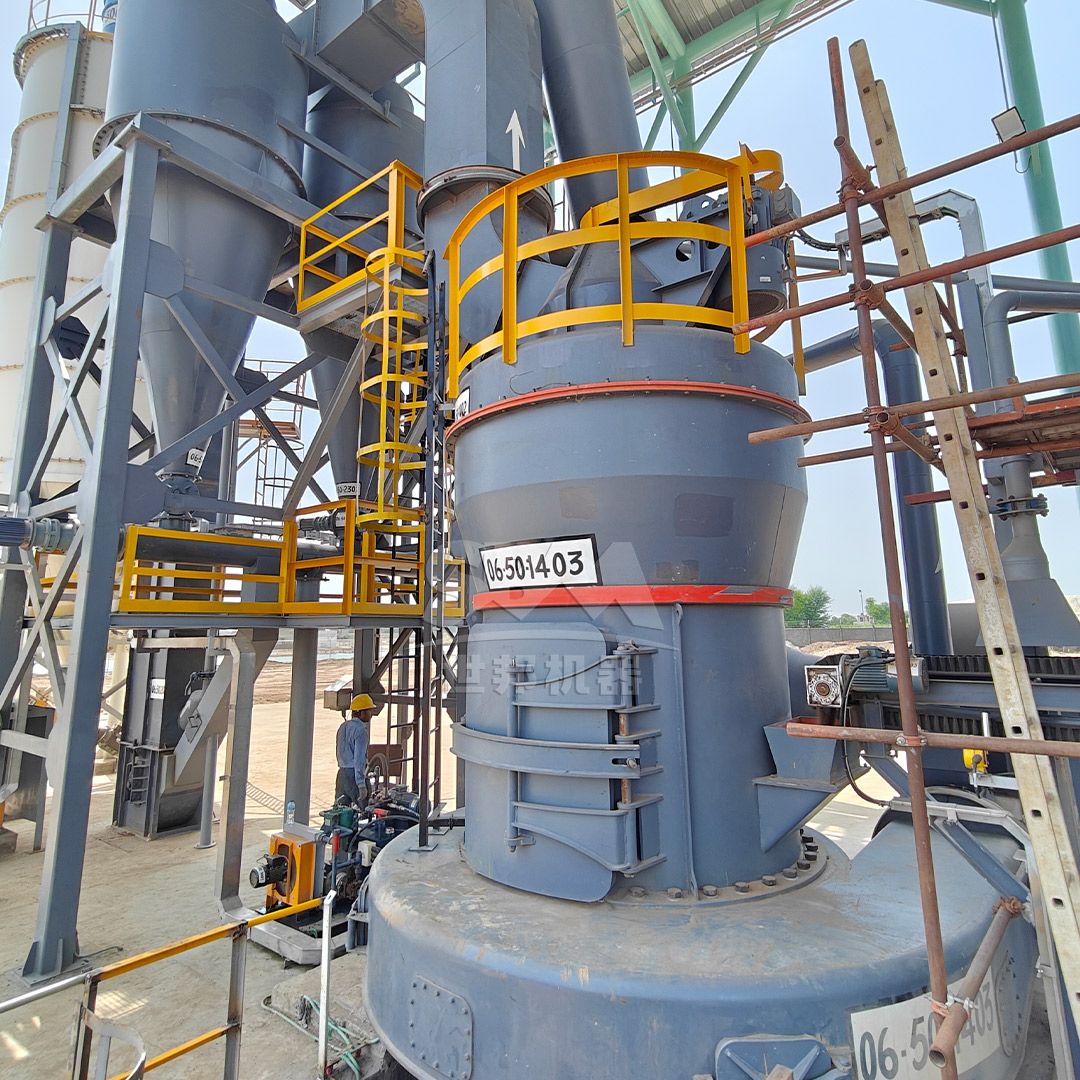

Classification and Product Control

Modern calcined coke grinding systems incorporate sophisticated classification technology to achieve precise particle size control. Both static and dynamic classifiers are employed, with the selection depending on the specific fineness requirements and production scale. Key classification parameters include:

• Cut point accuracy and sharpness of separation
• Classification efficiency and fines recovery
• Energy consumption per ton of classified product
• Maintenance requirements and wear resistance

The integration of real-time particle size monitoring with automated classifier adjustment represents the current state of the art in calcined coke grinding technology. Advanced systems employ laser diffraction analyzers or online digital image analysis to provide continuous feedback for process optimization.

Equipment Selection Guidelines

Technical and Economic Considerations

Selecting the appropriate grinding technology for calcined coke requires careful evaluation of multiple factors:

For ultra-fine applications, the SCM Ultrafine Mill series offers comprehensive solutions with models ranging from SCM800 (0.5-4.5 tph, 75kW) to SCM1680 (5.0-25 tph, 315kW), ensuring appropriate equipment selection for any production requirement. The vertical turbine classification system provides unparalleled precision in particle size control, critical for high-value calcined coke applications.

For medium-fine requirements, the MTW Series Trapezium Mill delivers exceptional value with models including MTW110 (3-9 tph, 55kW) through MRN218 (15-45 tph, 280kW). The innovative curved air duct and integrated bevel gear transmission provide operational efficiencies unmatched by conventional grinding systems.

Operational Best Practices and Maintenance

Optimizing Grinding Performance

Maximizing the performance and longevity of calcined coke grinding equipment requires adherence to established operational best practices:

• Consistent Feed Quality: Maintain uniform feed size distribution and moisture content to ensure stable grinding chamber dynamics
• Optimal Classifier Settings: Regularly calibrate and adjust classifier speed based on product fineness requirements and wear conditions
• Wear Monitoring: Implement systematic inspection and measurement of critical wear components including grinding rolls, rings, and classifier blades
• Energy Management: Monitor specific energy consumption (kWh/ton) as a key performance indicator for process optimization

Preventive Maintenance Strategies

Effective maintenance programs for calcined coke grinding equipment should include:

• Scheduled inspection and replacement of wear parts based on documented service life expectations
• Vibration monitoring and analysis to detect developing mechanical issues
• Lubrication system maintenance following manufacturer specifications
• Classifier balancing and alignment verification during scheduled shutdowns
• Comprehensive documentation of maintenance activities and component life

Future Trends in Calcined Coke Grinding Technology

The evolution of calcined coke grinding technology continues to focus on several key areas:

• Digitalization and IoT Integration: Implementation of smart sensors and data analytics for predictive maintenance and process optimization
• Advanced Material Science: Development of superior wear-resistant materials extending component service life
• Energy Efficiency Innovations: Novel grinding chamber designs and classification systems reducing specific energy consumption
• Modular System Design: Flexible equipment configurations enabling rapid adaptation to changing product requirements
• Sustainability Enhancements: Improved dust collection, noise reduction, and overall environmental performance

Equipment manufacturers continue to innovate, with companies developing next-generation grinding systems that incorporate these advancements while maintaining the reliability and performance demanded by the calcined coke industry.

Conclusion

The processing technology for grinding calcined coke into powder has evolved significantly, with modern equipment offering unprecedented levels of efficiency, product quality, and operational reliability. The selection between ultra-fine and medium-fine grinding systems depends on specific application requirements, with the SCM Ultrafine Mill and MTW Series Trapezium Mill representing optimal solutions for their respective fineness ranges.

Successful implementation requires comprehensive understanding of material characteristics, grinding mechanisms, classification principles, and operational best practices. As technology continues to advance, the calcined coke industry can expect further improvements in energy efficiency, product quality control, and environmental performance, ensuring this critical industrial process remains both economically viable and environmentally sustainable.
