What is the Mesh Size Requirement for Ultrafine Tourmaline Powder as a Filler and Which Grinding Mill is Recommended?
Introduction to Ultrafine Tourmaline Powder as a Functional Filler
Tourmaline, a complex crystalline boron silicate mineral, has gained significant attention in various industrial applications due to its unique piezoelectric and pyroelectric properties. When processed into ultrafine powder, tourmaline serves as an exceptional functional filler in plastics, coatings, cosmetics, and textile industries. The effectiveness of tourmaline as a filler is directly related to its particle size distribution, making the selection of appropriate grinding technology crucial for achieving optimal performance characteristics.
Mesh Size Requirements for Ultrafine Tourmaline Powder
The mesh size requirement for tourmaline powder varies depending on the specific application, but generally falls within the ultrafine range for maximum functional performance. For most industrial applications as a filler, tourmaline powder typically requires a fineness between 800-2500 mesh (approximately 18-5μm). This ultra-fine particle size ensures several critical benefits:
Enhanced Surface Area and Reactivity
At ultrafine particle sizes (D97 ≤ 5μm), tourmaline exhibits dramatically increased surface area, which enhances its piezoelectric effects and improves dispersion within matrix materials. The increased surface area allows for better interaction with polymer chains in composite materials, resulting in improved mechanical properties and functional performance.
Optimal Dispersion Characteristics
Particles in the 5-18μm range demonstrate excellent dispersion properties, preventing agglomeration and ensuring uniform distribution within the host material. This is particularly important for applications in cosmetics and coatings where smooth texture and even application are essential.
Maximized Functional Properties
The unique properties of tourmaline, including far-infrared emission and negative ion generation, are significantly enhanced at ultrafine particle sizes. Research indicates that particles below 10μm exhibit up to 30% higher functional performance compared to coarser grades.
Technical Challenges in Tourmaline Grinding
Grinding tourmaline to ultrafine specifications presents several technical challenges that must be addressed through proper equipment selection:
Hardness Considerations
Tourmaline has a Mohs hardness of 7-7.5, making it considerably harder than many other minerals commonly processed in grinding mills. This hardness requires specialized wear-resistant materials in the grinding chamber to maintain consistent performance and avoid contamination from worn components.
Thermal Sensitivity
Excessive heat generation during grinding can degrade tourmaline’s functional properties. Maintaining controlled temperatures below 80°C is essential to preserve the mineral’s piezoelectric characteristics.
Particle Size Distribution Control
Achieving narrow particle size distribution is critical for filler applications. Wide distribution can lead to inconsistent performance and processing difficulties in downstream applications.
Recommended Grinding Mill for Ultrafine Tourmaline Powder

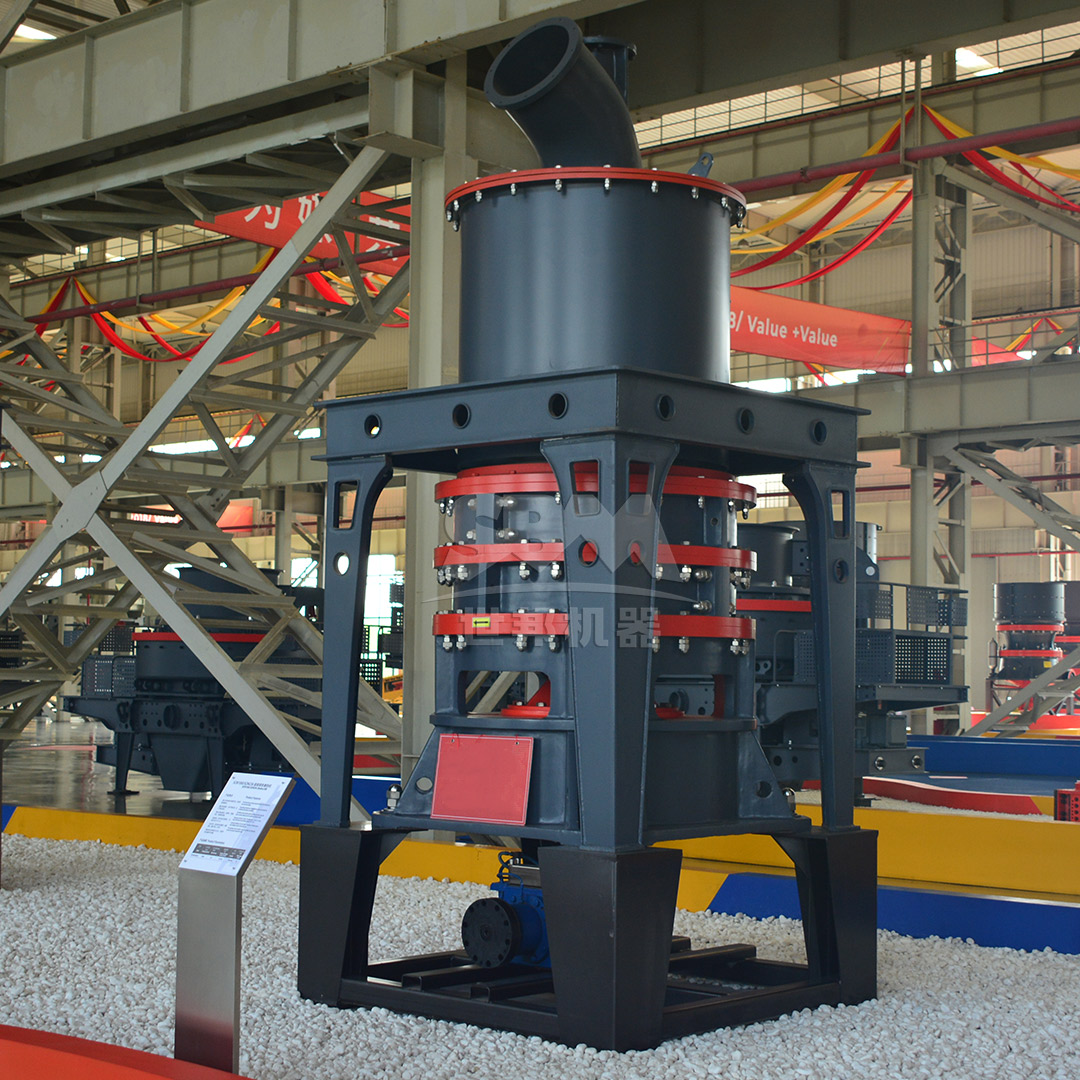

Based on the specific requirements for tourmaline processing, the SCM Series Ultrafine Mill emerges as the ideal solution for producing high-quality ultrafine tourmaline powder. This mill is specifically engineered to address the unique challenges of hard mineral processing while maintaining the functional integrity of the material.
SCM Ultrafine Mill Technical Specifications
The SCM series is designed with tourmaline and similar hard minerals in mind, featuring:
- Input Size: ≤20mm, accommodating typical tourmaline feed stock
- Output Fineness: 325-2500 mesh (D97 ≤ 5μm), perfectly matching tourmaline filler requirements
- Processing Capacity: 0.5-25 ton/h, scalable for various production needs
Key Technological Advantages for Tourmaline Processing
High-Efficiency Grinding System
The SCM mill’s unique grinding mechanism utilizes multiple layers of grinding rings and rollers to achieve progressive size reduction. This multi-stage approach is particularly effective for hard materials like tourmaline, ensuring efficient energy utilization while minimizing heat generation. The mill operates at approximately 30% lower energy consumption compared to conventional jet mills, with twice the production capacity.
Precision Classification Technology
Equipped with a vertical turbine classifier, the SCM mill provides precise particle size control essential for tourmaline applications. The classifier ensures that no coarse particles contaminate the final product, achieving consistent D97 values of 5μm or lower as required for high-performance fillers.
Advanced Wear Protection
Recognizing tourmaline’s abrasive nature, the SCM mill incorporates special alloy materials for rollers and grinding rings that offer several times longer service life compared to standard components. The bearing-free screw design in the grinding chamber further enhances durability and stability during continuous operation.
Temperature Control System
The mill incorporates intelligent temperature monitoring and control systems that prevent thermal degradation of tourmaline’s functional properties. Through optimized airflow and heat exchange mechanisms, operating temperatures remain within safe limits throughout the grinding process.

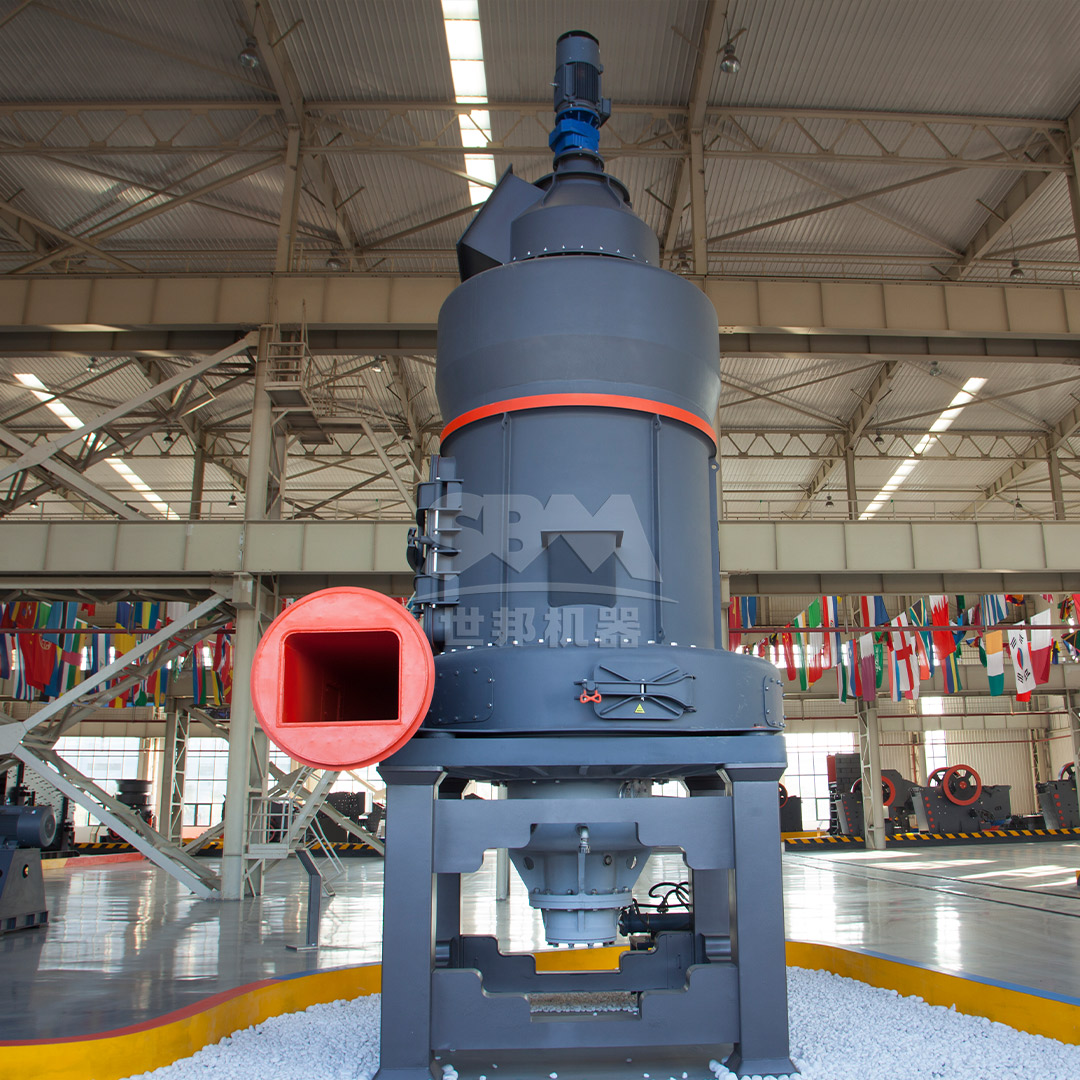

Alternative Solution: MTW Series Trapezium Mill for Coarser Applications
For applications requiring slightly coarser tourmaline powder (30-325 mesh), the MTW Series Trapezium Mill provides an excellent alternative. This mill offers several distinctive features:
MTW Series Technical Highlights
- Input Size: ≤50mm, handling larger feed materials
- Output Fineness: 30-325 mesh (down to 0.038mm)
- Processing Capacity: 3-45 ton/h, suitable for high-volume production
Specialized Features for Mineral Processing
The MTW series incorporates curved air duct technology that reduces energy loss and improves material transmission efficiency. The combined blade design significantly reduces maintenance costs, while the integral transmission system achieves 98% transmission efficiency. These features make the MTW mill particularly suitable for operations where tourmaline is processed alongside other minerals or where slightly broader particle size distributions are acceptable.
Comparative Analysis: SCM vs. Alternative Grinding Technologies
When evaluating grinding technologies for tourmaline powder production, several factors distinguish the SCM Ultrafine Mill from conventional approaches:
Compared to Ball Mills
Traditional ball mills typically produce particles in the 74-800μm range, insufficient for ultrafine tourmaline applications. Additionally, ball mills generate significant heat and have higher contamination risks due to grinding media wear.
Compared to Jet Mills
While jet mills can achieve similar fineness, they consume approximately 30% more energy than the SCM mill and have lower production capacities. The SCM mill’s mechanical grinding action also provides better control over particle morphology.
Compared to Raymond Mills
Conventional Raymond mills are limited to approximately 400 mesh, making them unsuitable for true ultrafine tourmaline applications. Their classification efficiency is also inferior to the precision systems in the SCM mill.
Operational Considerations for Tourmaline Grinding
Successful production of ultrafine tourmaline powder requires attention to several operational factors:
Feed Material Preparation
Proper crushing and pre-sizing of tourmaline feedstock to ≤20mm ensures optimal performance of the SCM mill. This preparation step maximizes grinding efficiency and minimizes wear on grinding components.
Moisture Control
Maintaining feed moisture below 5% is recommended to prevent clogging and ensure efficient classification. Integrated drying systems can be incorporated when processing higher-moisture materials.
System Integration
The SCM mill can be integrated with automated feeding, classification, and collection systems to create a complete tourmaline processing line. This integration ensures consistent product quality and reduces operational labor requirements.
Quality Control and Testing Protocols
Implementing rigorous quality control measures is essential for producing tourmaline powder that meets filler specifications:
Particle Size Analysis
Regular laser diffraction analysis should be conducted to verify that D97 values remain within specified limits. The SCM mill’s consistent performance typically maintains variation within ±2% of target values.
Functional Property Verification
Periodic testing of tourmaline’s piezoelectric and far-infrared emission properties ensures that the grinding process has not degraded the material’s functional characteristics.
Contamination Monitoring
Regular elemental analysis helps detect any contamination from wear parts, ensuring the final product’s purity meets application requirements.
Economic Considerations and Return on Investment
The selection of appropriate grinding technology has significant economic implications:
Energy Efficiency
The SCM Ultrafine Mill’s 30% energy savings compared to alternative technologies translates to substantial operational cost reductions, particularly important given tourmaline’s hardness and the energy-intensive nature of ultrafine grinding.
Maintenance Costs
Extended component life and reduced maintenance requirements contribute to lower overall operating costs. The specialized wear materials in the SCM mill typically last 3-5 times longer than standard components when processing abrasive materials like tourmaline.
Product Value Enhancement
The ability to consistently produce high-quality ultrafine tourmaline powder commands premium pricing in specialty filler markets, providing rapid return on investment for the grinding equipment.
Conclusion
The production of ultrafine tourmaline powder for filler applications requires precise control over particle size distribution, with optimal performance achieved at 800-2500 mesh (D97 ≤ 5μm). The SCM Series Ultrafine Mill represents the most appropriate technology for achieving these specifications while maintaining the functional properties of tourmaline. Its combination of precision classification, wear-resistant construction, energy efficiency, and temperature control makes it uniquely suited for this challenging application. For operations requiring slightly coarser specifications or having different economic constraints, the MTW Series Trapezium Mill provides a viable alternative with its own set of advantages. Proper selection and operation of grinding equipment is essential for maximizing the value of tourmaline as a functional filler in various industrial applications.
