What is the limestone grinding process with vertical roller mill? Introduction to structure and grinding technology

Introduction to Limestone Grinding with Vertical Roller Mills

Limestone grinding represents one of the most fundamental processes in numerous industrial sectors, including construction materials, chemical production, environmental applications, and agricultural supplements. The vertical roller mill (VRM) has emerged as the preferred equipment for limestone grinding operations due to its superior energy efficiency, compact design, and excellent product quality control compared to traditional ball mills and other grinding systems.

The fundamental principle behind vertical roller mills involves the application of pressure and shear forces to the material bed between grinding elements, followed by immediate classification of the ground product. This integrated approach to size reduction and separation creates a highly efficient system that has revolutionized mineral processing operations worldwide.

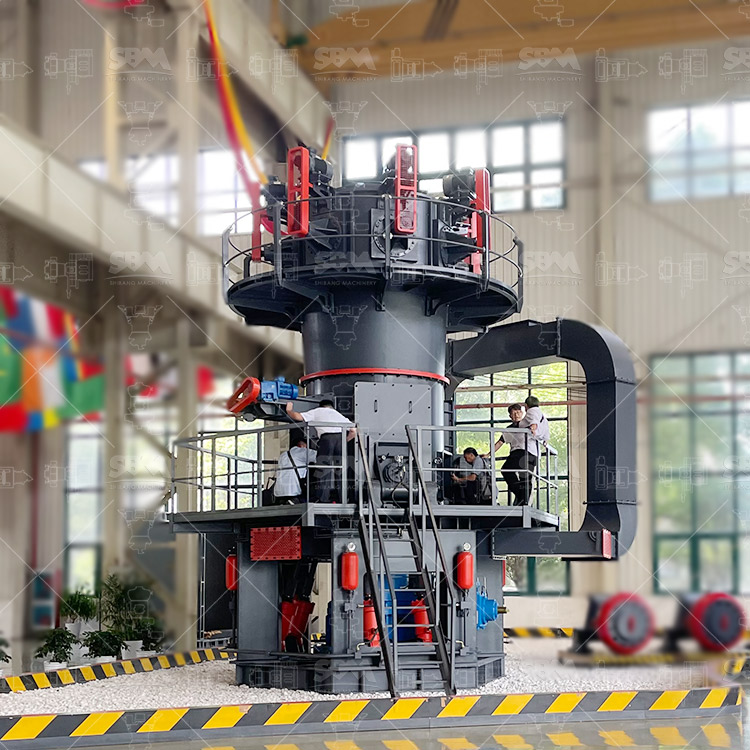

Structural Components of Vertical Roller Mills

Understanding the structural configuration of vertical roller mills is essential to appreciating their operational efficiency in limestone grinding applications. The major components work in concert to achieve optimal grinding performance.

Grinding Table and Rollers

The heart of the VRM system consists of a rotating grinding table and multiple grinding rollers that apply pressure to the material. The grinding table, driven by a planetary gearbox, rotates at controlled speeds while the rollers, hydraulically loaded against the table, exert grinding pressure on the limestone feed. The geometry of both rollers and table is carefully engineered to maximize the grinding efficiency and minimize wear.

Modern VRM designs feature segmented grinding tables and tires that can be replaced individually, significantly reducing maintenance downtime and costs. The material composition of these components is specifically selected for limestone applications, typically utilizing high-chromium cast iron or similar wear-resistant alloys.

Classification System

Located above the grinding zone, the dynamic classifier represents a critical component that determines the final product fineness. The classifier consists of a rotor with multiple blades that rotate at variable speeds, creating a centrifugal force field that separates particles according to size. Coarse particles are rejected back to the grinding bed for further size reduction, while properly sized particles pass through the classifier to the product collection system.

The precision of modern classification systems enables producers to maintain tight control over product particle size distribution, a crucial factor in many limestone applications where specific surface area or particle morphology directly impacts product performance.

Drive and Transmission System

The main drive system of a vertical roller mill typically consists of an electric motor connected to the grinding table through a planetary gearbox. This arrangement provides the high torque required for grinding operations while maintaining compact equipment dimensions. Modern VRM designs incorporate sophisticated monitoring systems that track gearbox health, vibration levels, and bearing temperatures to prevent unexpected failures.

Feed and Discharge Systems

The feed system introduces limestone to the center of the grinding table, where centrifugal force distributes it across the grinding track. The design of the feed chute and material deflectors ensures even distribution across the grinding bed, which is essential for stable mill operation and consistent product quality.

Following classification, the ground limestone is transported by air to the product collection system, typically consisting of cyclones and baghouse filters. The mill fan, located after the collection system, provides the necessary air flow through the mill and maintains the required pressure differentials.

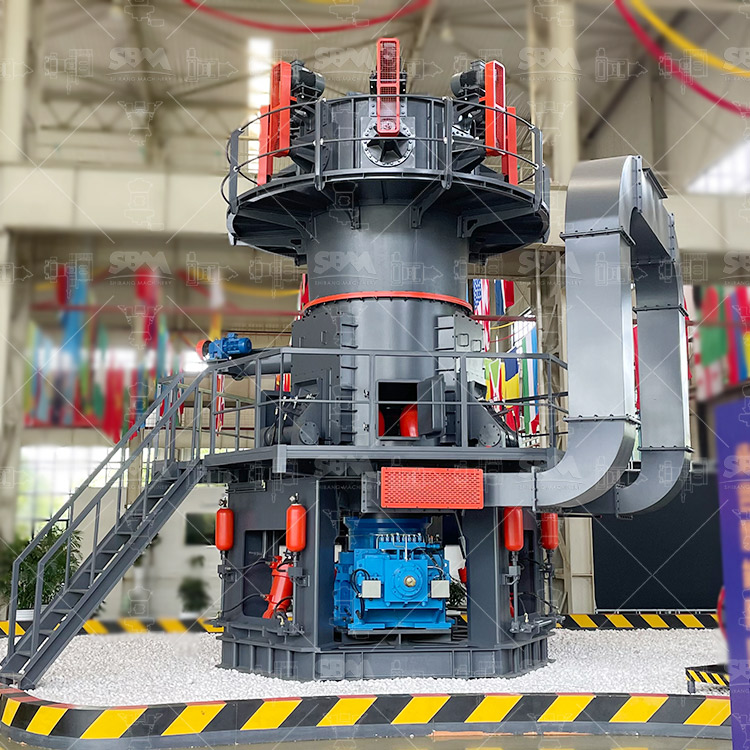

Limestone Grinding Technology in Vertical Roller Mills

The grinding process for limestone in vertical roller mills follows a systematic approach that optimizes energy consumption while achieving the desired product characteristics.

Material Preparation and Feeding

Proper preparation of limestone feed material is essential for efficient VRM operation. The raw limestone should be pre-crushed to a maximum particle size compatible with the mill design, typically ranging from 5-10% of the grinding roller diameter. Moisture content must be controlled, as excessive moisture can lead to operational problems including material buildup, reduced grinding efficiency, and increased energy consumption.

The feed system must provide a consistent and controllable flow of material to the mill. Modern systems employ weigh feeders or similar precision feeding equipment to maintain optimal feed rates that match the mill’s grinding capacity.

Grinding and Comminution Mechanism

Within the VRM, limestone undergoes several comminution mechanisms simultaneously. As material enters the grinding zone, it forms a bed between the rollers and the grinding table. The primary size reduction occurs through:

• Interparticle crushing where particles are crushed against each other within the material bed
• Compression forces applied directly by the grinding rollers
• Shear forces resulting from the velocity differential between the rotating table and rollers

The material bed acts as a stress-transmitting medium, distributing the grinding forces evenly and protecting the grinding elements from metal-to-metal contact. This bed grinding principle contributes significantly to the VRM’s high energy efficiency and low wear rates compared to impact-based grinding systems.

Drying and Classification

In many limestone grinding applications, simultaneous drying is required to achieve the desired product moisture content. Hot gas, typically generated by a dedicated hot gas generator or recovered from other process streams, is introduced at the base of the mill and flows upward through the grinding zone. The gas stream serves dual purposes: transporting the ground material to the classifier and evaporating moisture from the feed material.

The classification stage represents a critical control point for product quality. By adjusting the classifier rotor speed, operators can precisely control the product fineness without changing other mill parameters. This flexibility allows quick response to changing product requirements and ensures consistent quality even with variations in feed material characteristics.

Product Collection and System Operation

Following classification, the fine limestone product is transported by the process gas to the collection system. Most modern installations utilize a two-stage collection approach, with cyclones recovering the bulk of the product and fabric filters capturing the remaining fines. The collected product is then conveyed to storage or downstream processes, while the cleaned gas is either recirculated to the mill or vented to atmosphere.

System operation is typically automated through a sophisticated control system that monitors and adjusts key parameters including:

• Mill feed rate
• Grinding pressure
• Classifier speed
• Gas flow and temperature
• System pressures

These control systems optimize mill performance, maintain product quality, and protect the equipment from operational upsets.

Technical Advantages of Vertical Roller Mills for Limestone Grinding

The adoption of vertical roller mill technology for limestone grinding offers numerous advantages over traditional grinding systems, contributing to their widespread acceptance across the industry.

Energy Efficiency

VRMs typically demonstrate 30-50% lower specific energy consumption compared to ball mills for similar applications. This significant reduction stems from several factors:

• The efficient bed grinding mechanism minimizes energy losses
• Integrated classification eliminates the need for separate classification equipment with its associated energy requirements
• The ability to utilize waste heat from other processes for drying reduces thermal energy consumption

With energy costs representing a substantial portion of operating expenses in grinding operations, these efficiency improvements directly translate to lower production costs and reduced environmental impact.

Product Quality and Flexibility

Vertical roller mills offer exceptional control over product characteristics, particularly particle size distribution. The immediate removal of fines through classification prevents overgrinding, resulting in a steeper particle size distribution curve with fewer ultra-fine particles. This product characteristic is beneficial in many limestone applications where controlled reactivity or packing density is required.

The flexibility to quickly adjust product fineness through classifier speed changes allows operators to respond rapidly to changing market requirements or produce multiple products from the same equipment. This operational flexibility represents a significant competitive advantage in dynamic market environments.

Space Requirements and Capital Costs

The compact design of vertical roller mills results in significantly smaller footprint requirements compared to alternative grinding systems. This space efficiency reduces building costs and allows for installation in constrained sites. Additionally, the simplified foundation requirements of VRMs contribute to lower civil engineering costs during plant construction.

Recommended Equipment for Limestone Grinding Applications

Based on extensive industry experience and technical requirements for limestone processing, we recommend our LM Series Vertical Roller Mill as an optimal solution for most limestone grinding applications. This equipment series combines proven design principles with modern technological advancements to deliver outstanding performance in limestone processing.

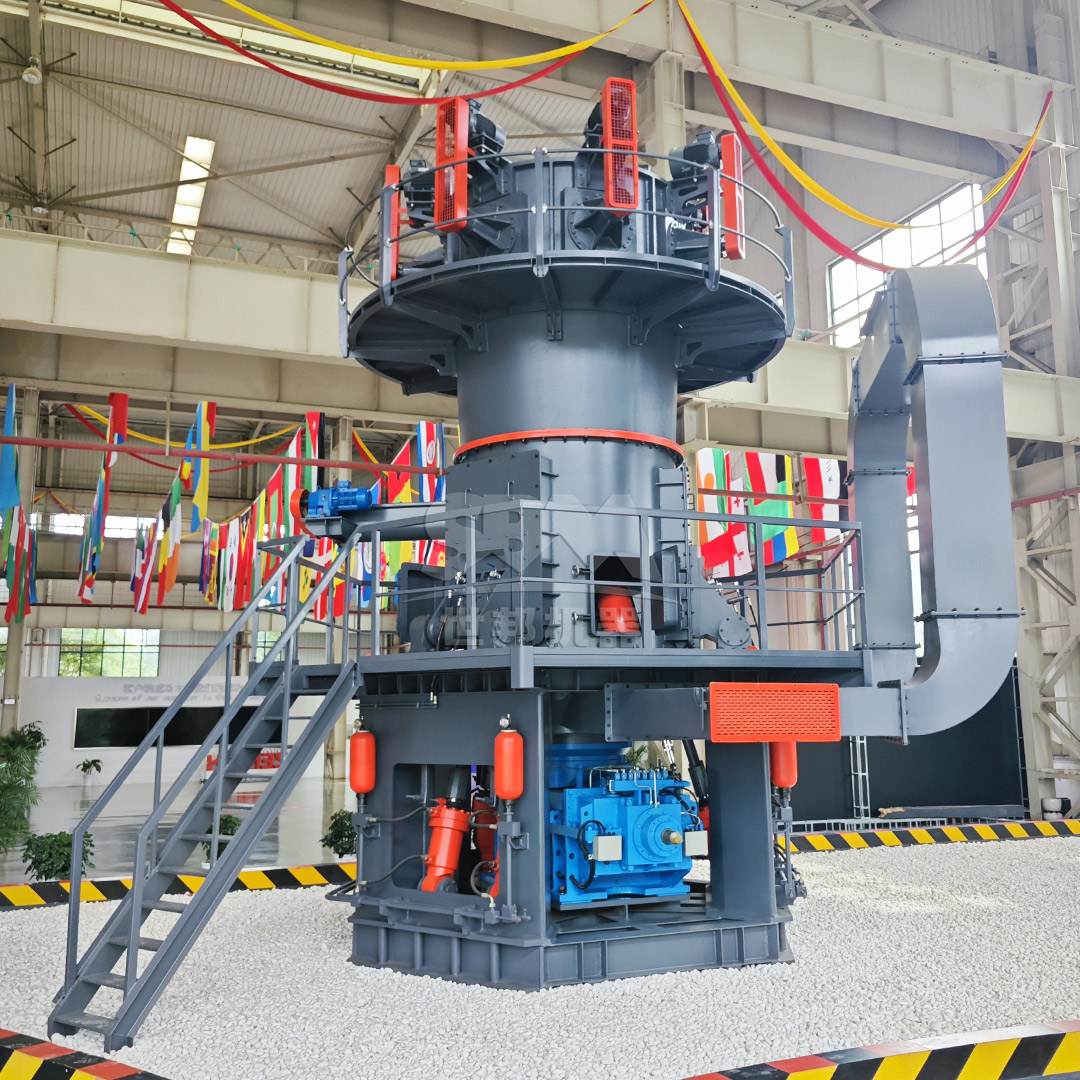

LM Series Vertical Roller Mill Key Features

The LM Series Vertical Roller Mill incorporates several design innovations that make it particularly suitable for limestone grinding:

• Integrated Design: The system combines crushing, grinding, and separation functions, reducing footprint requirements by 50% compared to traditional systems
• Low Operating Costs: Non-contact design between grinding rollers and table extends wear part life up to 3 times, while energy consumption is 30-40% lower than ball mill systems
• Intelligent Control: Expert automatic control system supports remote/local operation switching with real-time monitoring of operational parameters
• Environmental Compliance: Fully sealed negative pressure operation ensures dust emissions remain below 20mg/m³ with operating noise levels ≤80dB(A)

With capacity ranges from 3-250 tons per hour and the ability to produce products from 30-325 mesh (with special models achieving 600 mesh), the LM Series provides the flexibility to meet diverse production requirements while maintaining optimal efficiency.

Application-Specific Considerations

For operations requiring ultra-fine limestone products, our SCM Series Ultrafine Mill represents an excellent alternative, capable of producing powders with fineness ranging from 325-2500 mesh (D97≤5μm). This equipment features a vertical turbine classifier that ensures precise particle size cuts without coarse powder contamination, delivering exceptionally uniform products for specialized applications.

The SCM Series achieves remarkable energy efficiency, with capacity twice that of jet mills while reducing energy consumption by 30%. Its intelligent control system provides automatic feedback on product particle size, ensuring consistent quality with minimal operator intervention.

Operational Considerations and Best Practices

Successful operation of vertical roller mills for limestone grinding requires attention to several key operational aspects that influence equipment performance, product quality, and operational costs.

Wear Management

While VRMs generally exhibit lower wear rates than impact-based grinding systems, proper wear management remains essential for maintaining operational efficiency. Key strategies include:

• Regular inspection and measurement of grinding elements
• Systematic rotation of grinding rollers to equalize wear
• Monitoring of grinding pressure and adjustment as components wear
• Selection of appropriate wear protection materials based on limestone characteristics

Modern VRM designs incorporate features that facilitate wear management, including hydraulic systems that allow roller positioning adjustments to compensate for wear without requiring mechanical shims.

Process Optimization

Optimizing VRM operation involves balancing multiple parameters to achieve the desired combination of production rate, product quality, and energy consumption. Key optimization parameters include:

• Material bed thickness and stability
• Grinding pressure
• Classifier speed
• Gas flow rate and temperature
• System pressure differential

Advanced control systems utilize model-based predictive control strategies to maintain optimal operation across varying conditions, automatically adjusting parameters to compensate for changes in feed material characteristics or product requirements.

Conclusion

Vertical roller mill technology has transformed limestone grinding operations, offering significant advantages in energy efficiency, product quality control, and operational flexibility compared to traditional grinding systems. The integrated approach to size reduction, drying, and classification creates a highly efficient process that meets the evolving demands of modern industrial operations.

As limestone continues to serve as a critical raw material across multiple industries, the adoption of advanced grinding technologies like the LM Series Vertical Roller Mill will play an increasingly important role in enhancing competitiveness through reduced operating costs, improved product quality, and minimized environmental impact. With continuous technological advancements focusing on intelligent control systems, wear resistance, and energy optimization, vertical roller mills will remain at the forefront of limestone processing technology for the foreseeable future.
