What is the Complete Set of Equipment for Processing Fluorite Powder?

Introduction to Fluorite Powder Processing

Fluorite, also known as fluorspar, is a crucial industrial mineral with extensive applications in metallurgy, chemical industry, ceramics, and construction. The processing of fluorite into high-quality powder requires a comprehensive system of specialized equipment designed to handle its unique physical and chemical properties. This article provides a detailed examination of the complete equipment set necessary for efficient fluorite powder production, from raw material preparation to final product collection.

Understanding Fluorite Characteristics

Fluorite typically exhibits a Mohs hardness of 4, making it relatively soft compared to other industrial minerals. However, its brittleness and specific cleavage properties require specialized processing equipment that can achieve the desired fineness without excessive energy consumption. The complete processing system must address several critical factors including feed size reduction, controlled grinding, precise classification, efficient collection, and environmental protection.

Primary Crushing Equipment

The first stage in fluorite processing involves reducing large raw fluorite rocks to manageable sizes. Jaw crushers serve as the primary crushing equipment, typically reducing fluorite from mine-run sizes of 200-500mm down to 20-50mm. Modern jaw crushers feature hydraulic adjustment systems that allow operators to quickly change the discharge opening to achieve different product sizes. For medium-hard fluorite ores, a crushing ratio of 6:1 to 8:1 is typically achievable in a single crushing stage.

Key considerations for primary crusher selection include:

• Feed opening size matching maximum feed dimensions
• Crushing chamber design optimized for fluorite’s abrasiveness
• Wear protection with manganese steel jaw plates
• Hydraulic clearing systems to minimize downtime during blockages

Secondary and Tertiary Crushing Systems

Following primary crushing, secondary reduction equipment further processes the material to meet the feed requirements of grinding mills. Cone crushers are commonly employed for this stage, providing efficient size reduction with minimal fines generation. For operations requiring multiple product sizes or dealing with varying ore characteristics, impact crushers offer flexibility in product control.

For ultra-fine powder production requirements, additional tertiary crushing may be necessary. Here, specialized fine crushing equipment such as our Hammer Mill series proves particularly effective. With an output range of 0-3mm, these hammer mills provide ideal feed material for subsequent grinding stages. The optimized cavity design and high manganese steel wear components ensure stable operation with fluorite’s specific characteristics, while the compact footprint reduces overall plant space requirements.

Grinding Mill Selection for Fluorite

The heart of any fluorite powder processing system is the grinding mill. Selection depends primarily on the required product fineness, production capacity, and economic considerations. For coarse to medium fineness applications (45-325 mesh), traditional solutions include ball mills and Raymond mills. However, modern operations increasingly favor more efficient vertical roller mills for their lower energy consumption and smaller footprint.

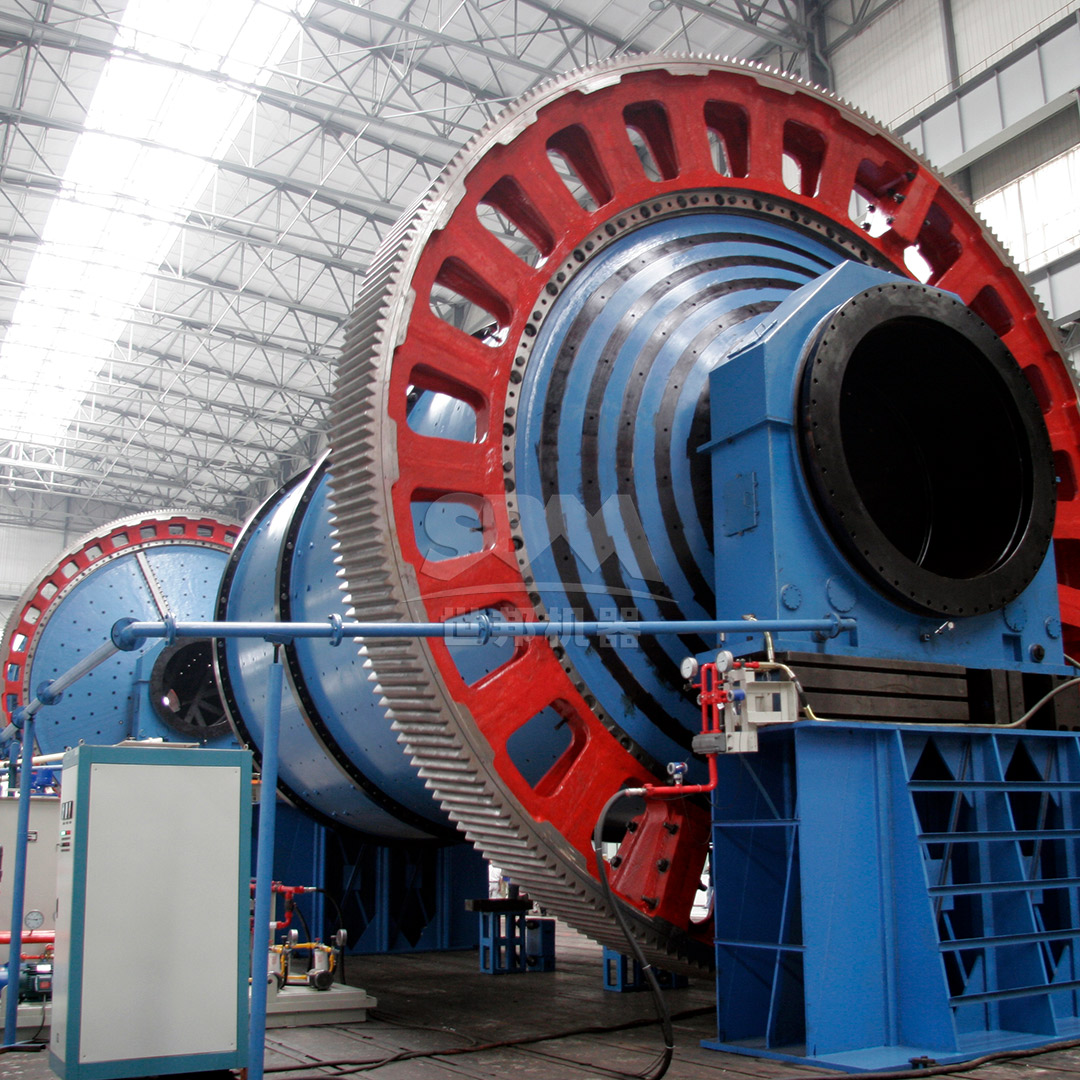

Ball Mills for Fluorite Grinding

Ball mills represent the traditional workhorse for mineral grinding applications. For fluorite processing, ball mills offer the advantage of processing a wide range of feed sizes and producing consistent product quality. Wet grinding ball mills can achieve finer products with lower energy consumption per ton, though they require subsequent drying stages. Dry grinding ball mills provide simpler operation but typically consume more energy.

Our GMQG and GMQY series ball mills feature robust construction with high-chrome alloy grinding media and specialized liner designs that minimize wear while maintaining grinding efficiency. With capacities ranging from 0.65 to 450 tons per hour and product fineness between 0.074-0.8mm, these mills can be matched to virtually any production requirement.

Vertical Roller Mills for Enhanced Efficiency

Vertical roller mills (VRMs) have revolutionized mineral processing with their significantly higher energy efficiency compared to traditional ball mills. By employing a bed compression grinding principle rather than impact and attrition, VRMs can reduce specific energy consumption by 30-50% while producing similar product fineness.

Our LM Series Vertical Roller Mills represent the state-of-the-art in fluorite grinding technology. These integrated systems combine grinding, drying, classification, and conveying in a single compact unit. Key advantages include:

• 50% reduction in footprint compared to ball mill systems
• 30-40% lower energy consumption
• Ability to handle moist feed materials with integrated drying
• Excellent product quality with narrow particle size distribution
• Low noise emission (<80dB) and minimal dust generation

The LM series offers multiple configurations specifically engineered for different application requirements, from the LM130K with 10-28 t/h capacity to the massive LM280K handling 50-170 t/h. For operations requiring extremely fine products, the LM-X series can achieve fineness up to 600 mesh while maintaining high throughput rates.

Ultra-Fine Grinding Solutions

For applications requiring ultra-fine fluorite powder (325-2500 mesh), specialized grinding equipment becomes necessary. Conventional ball mills and vertical roller mills face efficiency limitations in this fineness range, making technologies like our SCM Ultrafine Mill particularly valuable.

The SCM series represents the pinnacle of ultra-fine grinding technology, capable of producing powder with D97 ≤ 5μm (2500 mesh). This advanced mill incorporates multiple technological innovations including a vertical turbine classifier for precise particle size control, special wear-resistant grinding components that extend service life, and intelligent control systems that automatically maintain optimal operating parameters.

Key performance advantages of the SCM Ultrafine Mill for fluorite processing include:

• Output fineness: 325-2500 mesh (45-5μm)
• Capacity range: 0.5-25 tons per hour across different models
• Energy consumption: 30% lower than conventional jet mills
• Advanced classification: No coarse powder contamination in final product
• Environmental performance: Pulse dust collection with efficiency exceeding international standards
• Low noise operation: ≤75dB through integrated acoustic insulation

The working principle involves a main motor driving multiple grinding rings in layers. Material is dispersed into the grinding path by centrifugal force, undergoes progressive compression grinding between rollers and rings, and is finally collected by a cyclone separator and pulse dust collection system. This multi-stage approach ensures extremely uniform product quality with minimal energy input.

Classification and Separation Equipment

Proper classification is essential for producing fluorite powder with the required particle size distribution. Air classifiers represent the most common solution for dry powder processing, using aerodynamic principles to separate particles by size. Modern high-efficiency classifiers can achieve sharpness of cut (kappa values) exceeding 0.8, ensuring minimal misplaced particles.

For operations requiring multiple product fractions, multi-stage classification systems can be implemented. These typically consist of primary classifiers removing oversize material with secondary and tertiary units producing specific product cuts. The integration of classification systems with grinding mills in closed-circuit configurations significantly improves overall system efficiency by preventing overgrinding of already-sized material.

Dust Collection and Environmental Control

Comprehensive dust collection is critical in fluorite powder processing due to both environmental regulations and product recovery requirements. Modern plants typically employ pulse-jet baghouse filters with filtration efficiencies exceeding 99.9%. These systems not only ensure compliance with emission standards but also maximize product yield by capturing valuable fine powder that would otherwise be lost.

Key considerations for dust collection system design include:

• Adequate air-to-cloth ratio for the specific application
• Appropriate filter media selection based on particle characteristics
• Explosion protection measures for potentially combustible dusts
• Heat recovery options for energy optimization

Our integrated approach combines grinding mills with matched dust collection systems, ensuring optimal performance while maintaining emissions below 20mg/m³ as required by international standards.

Material Handling and Storage Solutions

Efficient material handling is often overlooked in processing system design but plays a crucial role in overall plant performance. For fluorite powder, appropriate conveying systems must address potential issues including dust generation, segregation, and degradation. Pneumatic conveying systems offer the most flexible solution for fine powders, though mechanical conveyors may be preferable for certain applications.

Storage system design must consider fluorite’s flow characteristics, potential for compaction, and moisture sensitivity. Silo design should incorporate appropriate discharge aids, level monitoring, and segregation prevention measures. For ultra-fine products, specialized storage and handling techniques may be necessary to maintain product quality.

Automation and Process Control

Modern fluorite processing plants increasingly rely on sophisticated automation systems to optimize performance and reduce operating costs. Distributed control systems (DCS) or programmable logic controllers (PLC) monitor and adjust key parameters including:

• Mill load and power consumption
• Classifier speed and air flow
• Product fineness through online particle size analysis
• System pressure drops and temperatures

Advanced control strategies can significantly improve product consistency while reducing energy consumption and operator intervention. Our grinding systems feature integrated expert control systems that automatically maintain optimal operating conditions based on feed characteristics and product requirements.

Equipment Selection Guidelines

Selecting the appropriate equipment combination for a specific fluorite processing application requires careful consideration of multiple factors:

Production Capacity Requirements

The required production rate directly influences equipment sizing and configuration. Small operations (under 5 t/h) may favor compact systems like our MTM series, while large-scale operations benefit from the economies of scale offered by LM series vertical mills or large ball mills.

Product Fineness Specifications

The target particle size distribution determines the appropriate grinding and classification technology. For coarse to medium fineness (30-325 mesh), our MTW Series Trapezium Mill offers an excellent balance of performance and operating cost. For ultra-fine applications (325-2500 mesh), the SCM Ultrafine Mill provides unmatched capability.

Feed Material Characteristics

Variations in fluorite ore characteristics including hardness, moisture content, and impurity levels can significantly impact equipment selection. Our technical team can provide specific recommendations based on comprehensive testing of customer feed materials.

Economic Considerations

Total cost of ownership includes not only initial capital investment but also operating costs (primarily energy and wear parts), maintenance requirements, and expected equipment lifetime. In most cases, the higher efficiency of modern grinding technologies like vertical roller mills and ultra-fine mills justifies their premium initial cost through reduced operating expenses.

Conclusion

The complete set of equipment for processing fluorite powder encompasses multiple integrated subsystems working in harmony to transform raw ore into high-value powder products. From primary crushing through final product collection, each component must be carefully selected and configured to match specific application requirements. Modern processing systems increasingly favor energy-efficient technologies like vertical roller mills and specialized ultra-fine grinding equipment, which offer significant advantages in operating cost, product quality, and environmental performance.

As fluorite applications continue to diversify and quality requirements become more stringent, the importance of proper equipment selection and system design cannot be overstated. With decades of experience in mineral processing equipment design and manufacturing, our company offers comprehensive solutions tailored to each customer’s unique requirements, ensuring optimal performance throughout the equipment lifecycle.
