What is the Best Grinding Equipment for Coal Gangue and Its Applications?
Introduction to Coal Gangue Grinding
Coal gangue, a solid waste generated during coal mining and washing processes, presents both environmental challenges and valuable opportunities for resource utilization. With typical hardness ranging from 3 to 4 on the Mohs scale and moisture content below 15%, coal gangue requires specialized grinding equipment to transform it into useful materials. The choice of grinding technology directly impacts production efficiency, product quality, and economic viability of coal gangue utilization projects.
Effective grinding of coal gangue serves multiple purposes: it increases the specific surface area for better reactivity in construction materials, improves the combustion efficiency when used as fuel, and enhances the pozzolanic activity for cement production. The selection of appropriate grinding equipment depends on various factors including required fineness, production capacity, energy consumption, and investment budget.
Key Considerations for Coal Gangue Grinding Equipment
Material Characteristics Analysis
Coal gangue exhibits unique properties that influence grinding equipment selection. Its composition typically includes clay minerals, quartz, feldspar, and various carbonaceous materials. The presence of hard quartz components (Mohs hardness 7) mixed with softer clay minerals creates challenging grinding conditions. Equipment must handle this heterogeneity while maintaining consistent product quality.
The abrasiveness of coal gangue varies significantly depending on geological formation. High quartz content increases wear on grinding components, making equipment durability a critical factor. Additionally, the moisture content affects grinding efficiency, with optimal levels typically below 8% for most grinding systems.
Production Requirements
Different applications demand specific product characteristics. Construction applications such as cement additives typically require fineness of 325-400 mesh, while high-value applications like rubber and plastic fillers may need ultra-fine powders reaching 1250-2500 mesh. Production capacity requirements range from small-scale operations (2-5 tons per hour) to large industrial plants (20-50 tons per hour).
Modern coal gangue grinding operations must also consider environmental regulations, particularly regarding dust emissions and noise levels. Equipment with integrated dust collection systems and noise reduction features provides significant advantages in meeting stringent environmental standards.
Types of Grinding Equipment for Coal Gangue

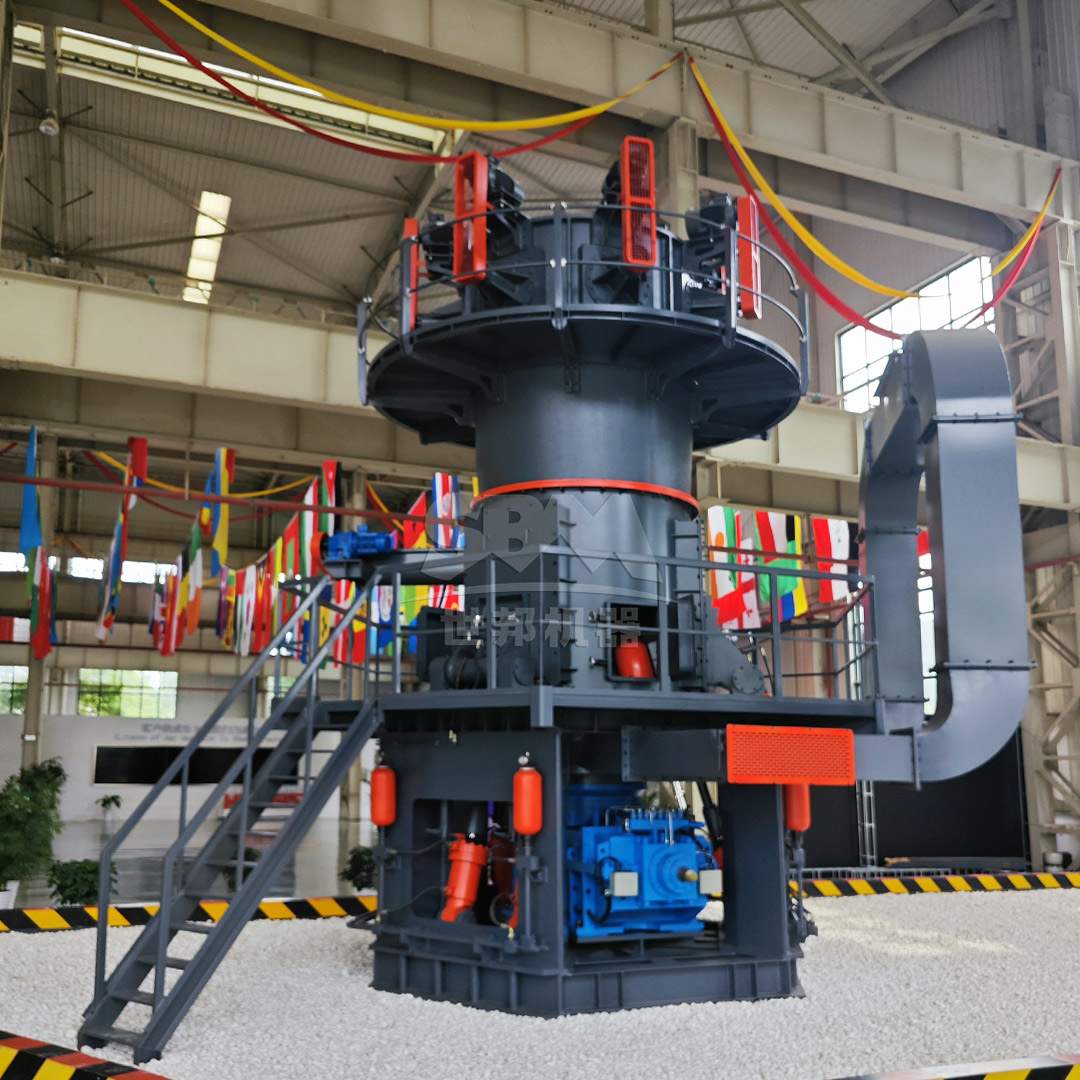

Vertical Roller Mills
Vertical roller mills represent one of the most efficient solutions for medium to large-scale coal gangue grinding operations. These systems integrate multiple functions including grinding, drying, classification, and conveying in a single compact unit. The fundamental working principle involves material being fed centrally onto the grinding table where it is ground between the table and rollers under hydraulic pressure.
The key advantages of vertical roller mills for coal gangue processing include their high grinding efficiency (energy savings of 30-50% compared to ball mills), ability to handle moist materials through integrated drying systems, and excellent product quality control through adjustable classifier speed. Their compact design reduces civil engineering costs and facilitates installation in existing facilities.
Ultrafine Grinding Mills
For applications requiring very fine powders, ultrafine grinding mills offer specialized solutions. These systems typically employ multiple grinding stages and high-precision classification to achieve fineness levels up to 2500 mesh. The grinding mechanism often combines impact, shear, and compression forces to break down the complex mineral structure of coal gangue.
Ultrafine grinding of coal gangue enhances its pozzolanic activity and surface characteristics, making it suitable for high-value applications in polymers, coatings, and advanced construction materials. While these systems have higher specific energy consumption than coarser grinding equipment, the value-added products justify the additional operating costs in many cases.
Recommended Equipment for Coal Gangue Grinding
SCM Series Ultrafine Mill: Optimal Solution for High-Value Applications
For operations targeting premium markets requiring ultra-fine coal gangue powders, the SCM Series Ultrafine Mill represents the ideal technological solution. This advanced grinding system delivers exceptional performance with output fineness ranging from 325 to 2500 mesh (D97≤5μm), making it perfectly suited for transforming coal gangue into high-value fillers and additives.
The SCM Ultrafine Mill incorporates several technological innovations specifically beneficial for coal gangue processing. Its vertical turbine classifier ensures precise particle size distribution without coarse particle contamination, critical for applications in plastics, rubber, and advanced cement formulations. The special material composition of grinding rollers and rings provides extended service life when processing abrasive coal gangue with high quartz content.
With capacity options ranging from 0.5 to 25 tons per hour across different models, the SCM series accommodates various production scales. The SCM1680 model, with its 315kW main motor and 25 t/h capacity, is particularly suitable for large-scale industrial operations. The system’s energy efficiency – offering 30% reduction compared to jet mills – significantly lowers operating costs while maintaining superior product quality.

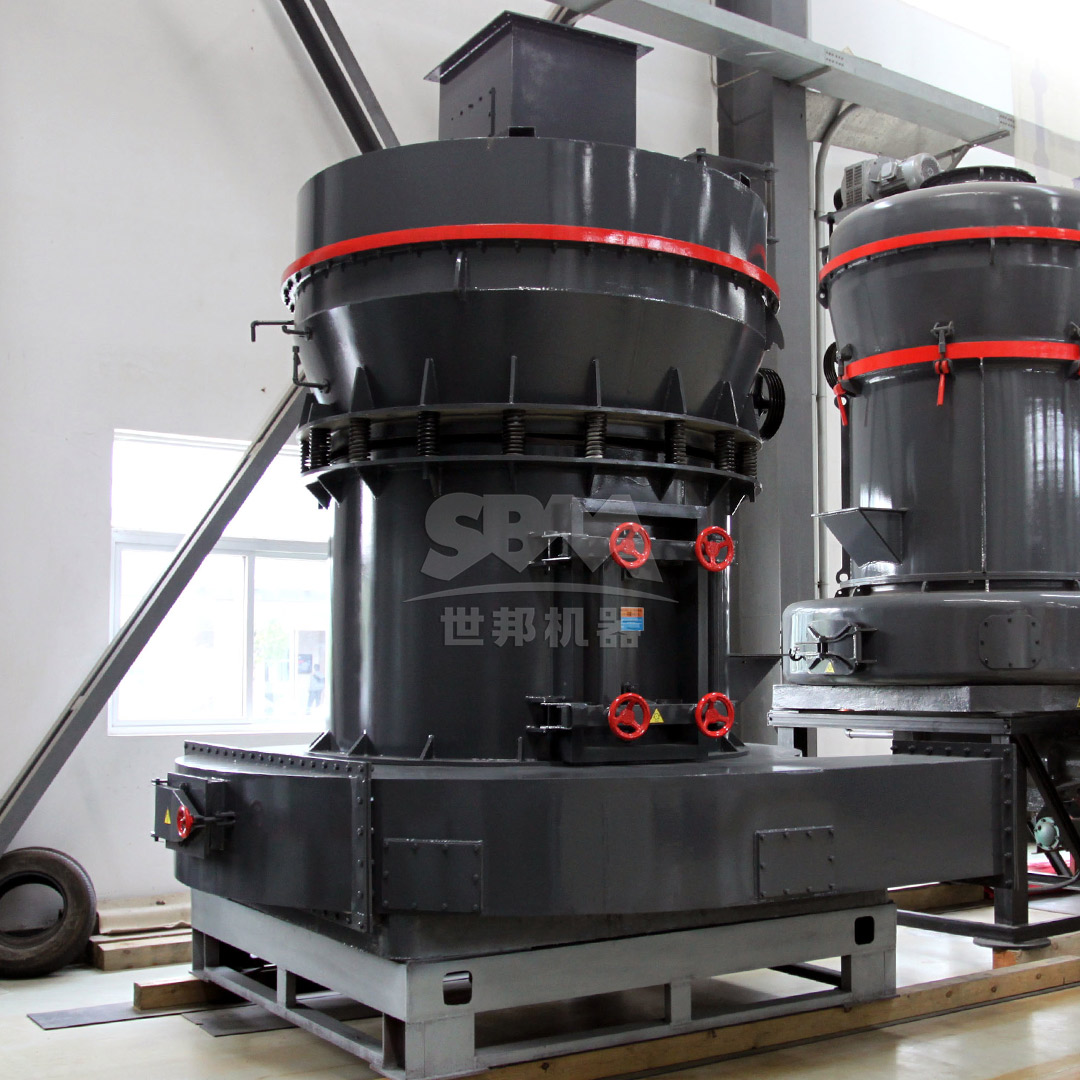

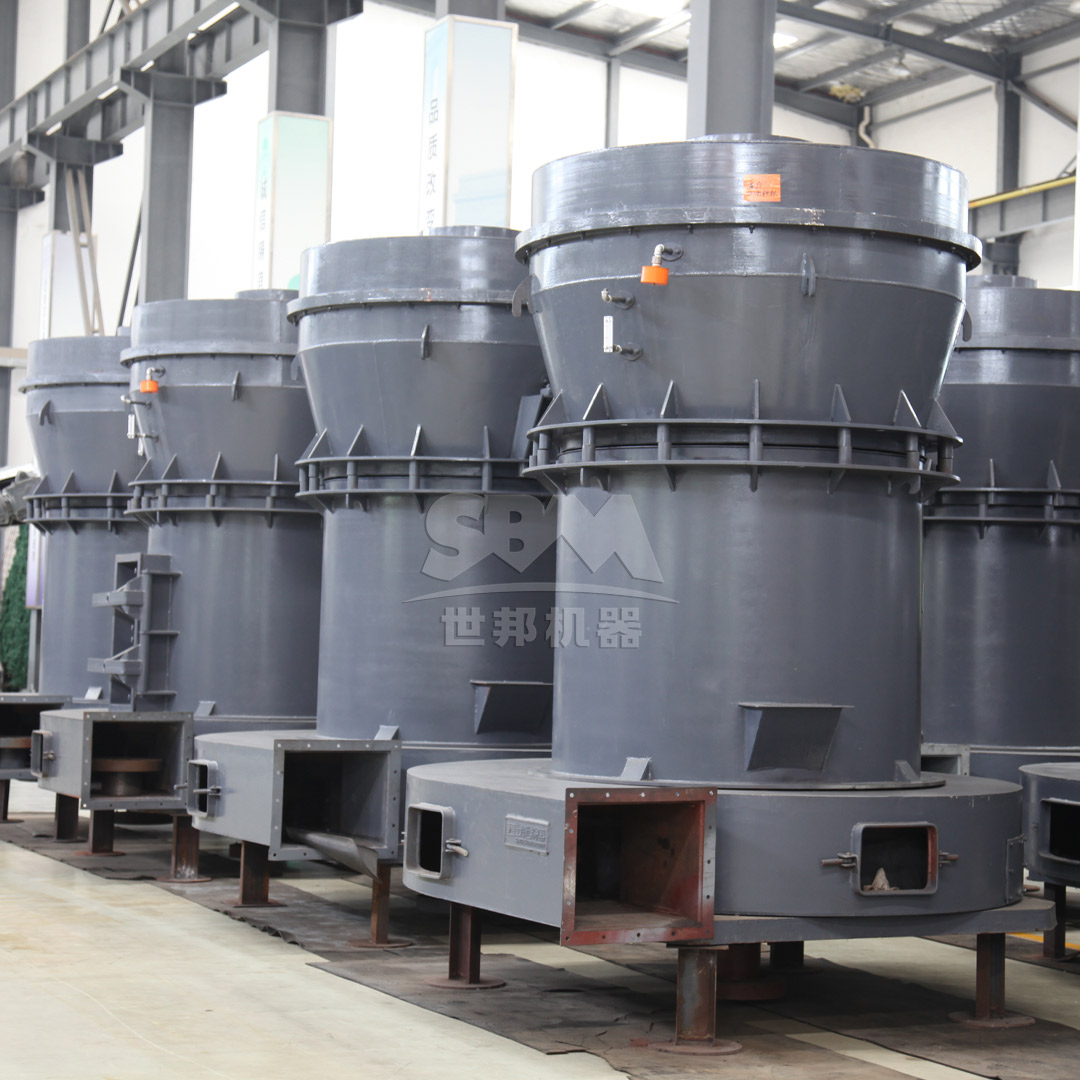

MTW Series Trapezium Mill: Cost-Effective Solution for Construction Materials
For applications focused on construction materials where cost efficiency and high throughput are paramount, the MTW Series Trapezium Mill provides an excellent balance of performance and economy. This robust grinding system handles feed sizes up to 50mm and produces powders in the 30-325 mesh range, ideal for cement additives, concrete admixtures, and brick manufacturing.
The MTW series incorporates several design features that make it particularly suitable for coal gangue processing. Its curved air channel design reduces energy consumption while improving material transport efficiency. The wear-resistant shovel blades and grinding rollers are engineered specifically for abrasive materials, significantly reducing maintenance requirements and downtime.
With capacity options from 3 to 45 tons per hour, the MTW series serves operations of all scales. The MTW215G model, with 280kW main motor and 45 t/h capacity, represents the high-end solution for large-volume production. The integrated pulse dust collection system ensures environmental compliance with emissions well below international standards.
Technical Comparison and Selection Guidelines
Performance Parameters Analysis
When selecting between the SCM Ultrafine Mill and MTW Trapezium Mill for coal gangue processing, several technical factors must be considered. For ultra-fine applications (above 800 mesh) where product value justifies higher energy consumption, the SCM series delivers superior performance. For standard construction applications (200-400 mesh) requiring high throughput at minimal operating cost, the MTW series offers better economic returns.
The abrasion resistance of both systems has been specifically enhanced for coal gangue processing. The SCM series utilizes special alloy grinding components with service life 2-3 times longer than conventional materials when processing high-quartz coal gangue. The MTW series features easily replaceable segmented shovel blades and grinding rollers, minimizing maintenance downtime.
Economic Considerations
The total cost of ownership includes initial investment, energy consumption, maintenance costs, and product value. For operations targeting construction markets, the MTW series typically achieves return on investment within 12-18 months due to lower capital cost and high throughput. For premium applications, the SCM series justifies its higher initial investment through superior product pricing and specialized market access.
Energy consumption varies significantly between the two systems. The MTW series consumes 25-35 kWh per ton for producing 325-mesh powder, while the SCM series requires 45-60 kWh per ton for 1250-mesh product. However, the value of ultra-fine coal gangue powder can be 3-5 times higher than standard grades, altering the economic calculation.
Applications of Processed Coal Gangue Powder
Construction Materials
Ground coal gangue finds extensive application in construction materials, particularly as a pozzolanic additive in cement and concrete. When milled to 325-400 mesh, coal gangue demonstrates excellent pozzolanic activity, reacting with calcium hydroxide to form additional cementitious compounds. This application typically requires the consistent quality and appropriate fineness provided by the MTW Series Trapezium Mill.
In cement production, coal gangue can replace 15-30% of clinker, significantly reducing CO2 emissions and production costs. The grinding fineness and particle size distribution critically influence the strength development and durability of the final cement product. Properly ground coal gangue also improves workability and reduces permeability in concrete applications.
Advanced Material Applications
Ultra-fine coal gangue powders produced by the SCM Series Ultrafine Mill enable advanced applications in polymer composites, coatings, and functional fillers. At fineness levels above 1250 mesh, the material develops unique surface characteristics and reinforcement properties valuable in specialty composites.
In the plastics industry, surface-modified ultra-fine coal gangue improves mechanical properties while reducing material costs. The fine particle size and platelet structure enhance stiffness, dimensional stability, and surface finish. Similar benefits apply to rubber products, where coal gangue filler can partially replace more expensive reinforcing materials.
Operational Best Practices
System Optimization
Maximizing the performance of coal gangue grinding systems requires attention to several operational factors. Feed size distribution should be controlled within equipment specifications – typically below 20mm for the SCM series and below 50mm for the MTW series. Pre-crushing using jaw crushers or hammer mills ensures optimal grinding efficiency and reduces wear on grinding components.
Moisture control represents another critical factor. While both recommended systems can handle certain moisture levels through integrated drying, optimal operation occurs with feed moisture below 8%. Pre-drying systems may be necessary in high-humidity environments to maintain grinding efficiency and product quality.
Maintenance Strategies
Proactive maintenance significantly extends equipment life and reduces operating costs. For coal gangue grinding, particular attention should be paid to wear parts including grinding rollers, rings, and classifier blades. The SCM series features specially formulated wear materials that typically last 2000-3000 operating hours before requiring replacement.
Regular inspection and lubrication schedules prevent unexpected downtime. The centralized lubrication systems in both recommended equipment options simplify maintenance procedures. Monitoring power consumption and product fineness provides early indication of wear development, allowing planned maintenance during scheduled production stops.
Conclusion
The selection of optimal grinding equipment for coal gangue processing depends on specific application requirements, production scale, and economic considerations. For standard construction applications requiring 30-325 mesh products, the MTW Series Trapezium Mill offers excellent performance with low operating costs. For high-value applications demanding ultra-fine powders (325-2500 mesh), the SCM Series Ultrafine Mill provides unmatched technical capabilities.
Both systems incorporate advanced features specifically beneficial for coal gangue processing, including enhanced wear resistance, precise classification, and integrated environmental controls. The comprehensive model ranges ensure suitable options for operations of all scales, from pilot plants to large industrial facilities. With proper equipment selection and operational practices, coal gangue transformation becomes both economically viable and environmentally beneficial.
