What is Aluminum Oxide Grinding Equipment and How is it Used?

Introduction to Aluminum Oxide Grinding

Aluminum oxide (Al2O3), also known as alumina, is one of the most versatile and widely used abrasive materials in industrial applications. Derived from bauxite ore through the Bayer process, aluminum oxide is valued for its exceptional hardness (9 on the Mohs scale), high thermal stability, and chemical inertness. To harness these properties effectively in various sectors—from metallurgy and ceramics to electronics and construction—the raw material must be processed into specific, controlled particle sizes. This is where specialized aluminum oxide grinding equipment comes into play.

Grinding equipment for aluminum oxide is designed to reduce the material to a desired fineness, which can range from coarse grits for abrasive blasting to ultra-fine powders for advanced ceramics and polishing compounds. The choice of grinding technology significantly impacts the final product’s quality, production efficiency, and operational costs. This article explores the key types of grinding mills used for processing aluminum oxide, their working principles, and industrial applications, with a focus on advanced solutions that enhance performance and sustainability.

Key Types of Grinding Equipment for Aluminum Oxide

Different applications require different particle size distributions and production capacities. Therefore, several types of grinding mills are employed in the processing of aluminum oxide, each with distinct mechanisms and advantages.

1. Ball Mills

Ball mills are a traditional and widely used grinding solution. They consist of a rotating cylindrical shell partially filled with grinding media, such as steel or ceramic balls. The material is fed into the drum, and as it rotates, the balls cascade and impact the material, causing size reduction through both impact and attrition.

Advantages: Ball mills are known for their simplicity, reliability, and ability to produce a wide range of particle sizes. They are suitable for both wet and dry grinding processes.

Limitations for Aluminum Oxide: While effective, ball mills can be less energy-efficient compared to newer technologies, especially for achieving very fine powders. They may also introduce contamination from the grinding media and have a larger footprint.

2. Raymond Mills (MTM Series)

Raymond mills, or medium-speed trapezium mills, are a common choice for grinding non-metallic minerals to medium fineness. They operate on the principle of roller grinding. The central axis rotates, causing the grinding rollers to swing outward and press against the grinding ring. A shovel feeds the material into the path of the rollers, where it is crushed and ground.

Advantages: These mills offer stable operation, high efficiency, and a relatively small footprint. They are well-suited for producing powders in the 30-325 mesh range.

Application: Ideal for producing standard-grade aluminum oxide powders used in refractories and surface coatings.

3. Vertical Roller Mills (LM Series)

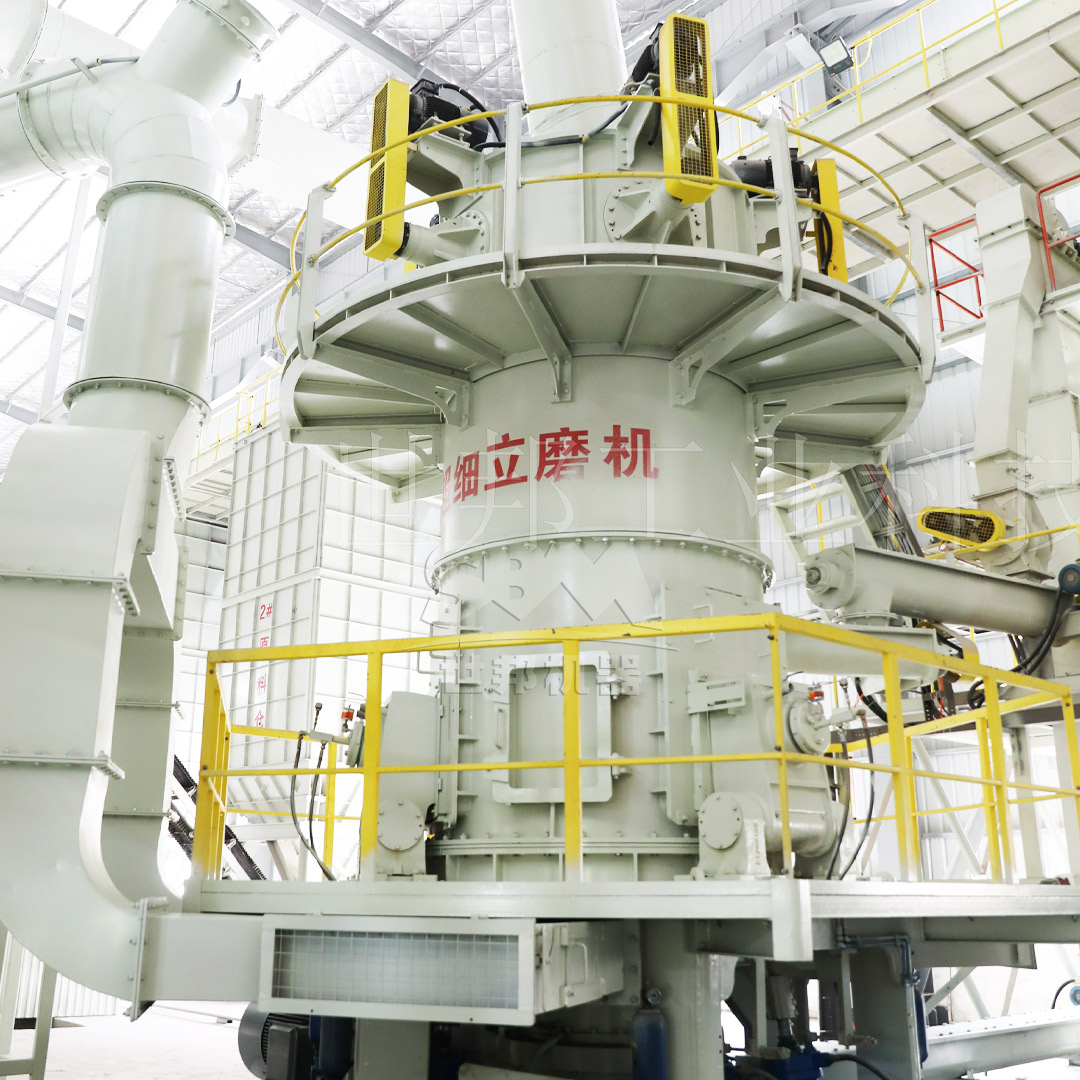

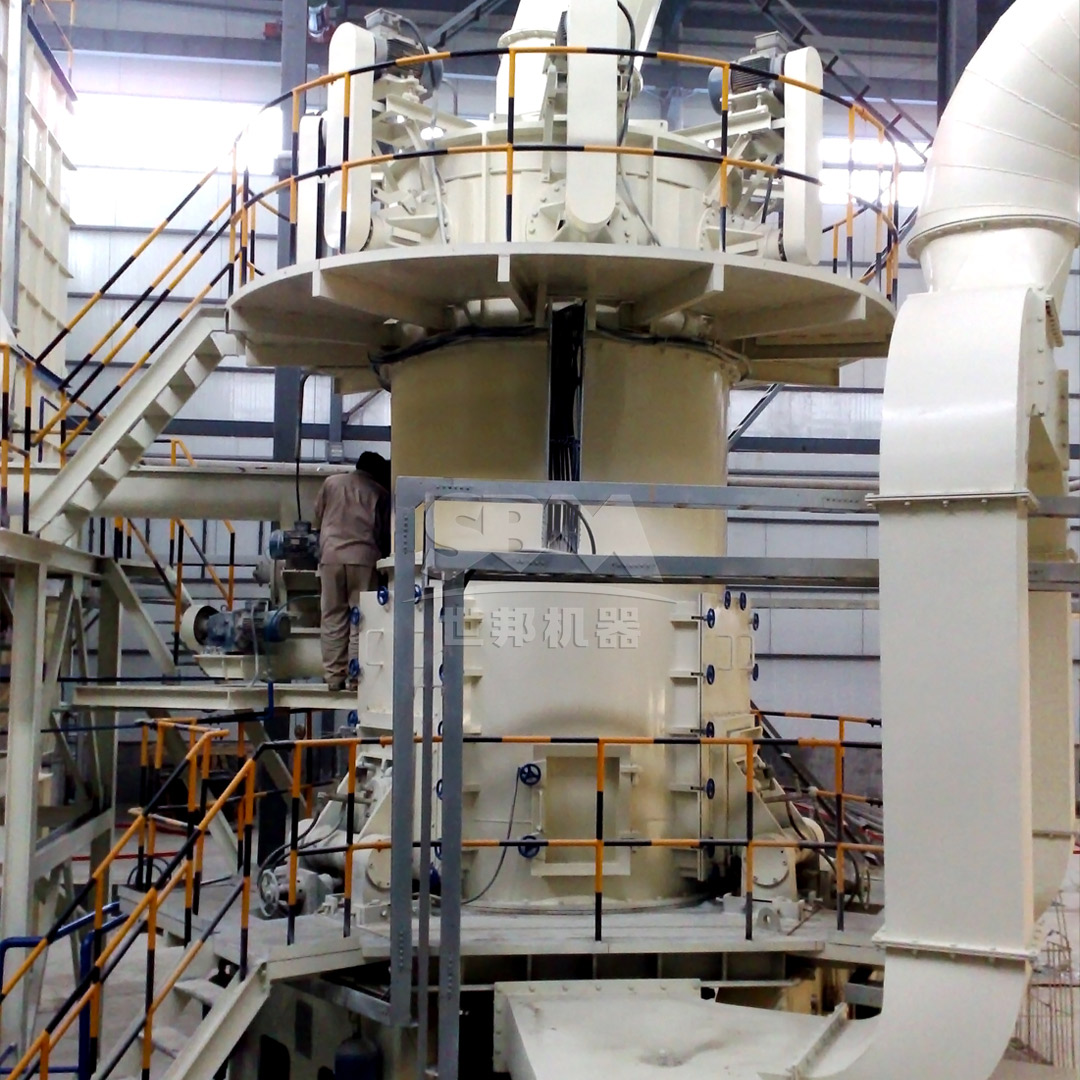

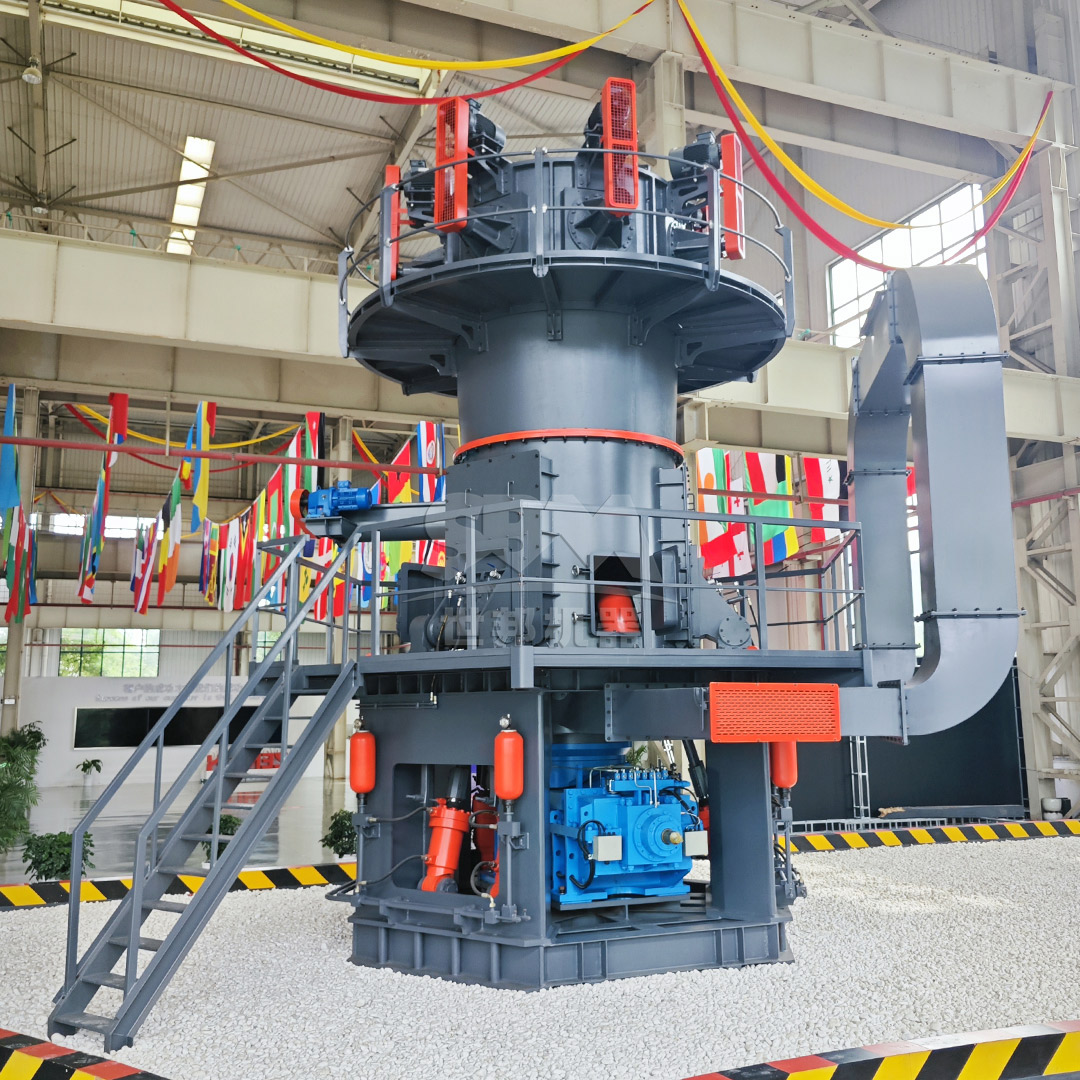

Vertical Roller Mills (VRMs) represent a significant advancement in grinding technology. Material is fed onto a rotating grinding table and is ground under pressure by hydraulically loaded rollers. The ground material is then transported by an air stream to a classifier, where oversized particles are separated and returned to the table for further grinding.

Advantages: VRMs are highly energy-efficient, as they combine grinding, drying (if needed), and classification in a single unit. They have a compact design, lower noise levels, and can handle higher capacity demands. Their ability to produce a consistent and narrow particle size distribution makes them excellent for high-quality alumina production.

4. Ultrafine Grinding Mills (SCM Series)

For applications requiring the finest aluminum oxide powders—often down to 5 microns or less—ultrafine grinding mills are essential. Our SCM Ultrafine Mill is a premier example of this technology, engineered to deliver superior performance for high-value products.

Technical Advantages:

• High Efficiency & Energy Saving: Offers twice the capacity of jet mills while reducing energy consumption by 30%. Its intelligent control system provides automatic feedback on product fineness.
• High-Precision Classification: Equipped with a vertical turbine classifier that ensures precise particle size cuts and a uniform product without coarse grain contamination.
• Durable Design: Features specially hardened grinding rollers and rings that last several times longer than conventional parts. The innovative bearing-free screw grinding chamber ensures stable operation.
• Eco-Friendly & Low Noise: Incorporates a pulse dust collector with efficiency exceeding international standards and a soundproof room design, keeping operational noise below 75dB.

How It Works: The SCM mill is driven by a main motor that rotates multiple layers of grinding rings. Material is fed into the mill and dispersed by centrifugal force into the grinding raceway. It is progressively crushed and ground between the rollers and rings. The final fine powder is collected by a cyclone collector and a pulse dust removal system.

For any operation focused on producing high-purity, superfine aluminum oxide for advanced ceramics, electronic substrates, or precision polishing, the SCM Ultrafine Mill is an investment in quality, efficiency, and long-term reliability. With models ranging from the SCM800 (0.5-4.5 t/h) to the high-capacity SCM1680 (5.0-25 t/h), there is a configuration to meet various production needs.

How Aluminum Oxide Grinding Equipment is Used in Industry

The finely ground aluminum oxide produced by this equipment is a critical raw material in countless industries.

1. Abrasives Manufacturing

This is the largest application. Ground alumina is bonded to create grinding wheels, sharpening stones, sandpapers, and abrasive blasting media. The grit size directly determines the aggressiveness of the cut and the surface finish.

2. Refractories

Aluminum oxide’s high melting point makes it ideal for refractory bricks, castables, and ceramics used to line furnaces, kilns, and incinerators. These products must withstand extreme temperatures and chemical corrosion.

3. Advanced Ceramics

Ultra-fine, high-purity alumina powders are sintered to create technical ceramics used in armor plating, semiconductor substrates, cutting tools, and biomedical implants like hip replacements. The consistency of the powder is paramount for the structural integrity of the final product.

4. Polishing and Lapping

Very fine alumina powders are suspended in liquids to create slurries for polishing optical lenses, semiconductor wafers, and precision metal components, providing a scratch-free, mirror-like finish.

Selecting the Right Grinding Equipment

Choosing the optimal mill for your aluminum oxide processing requires careful consideration of several factors:

• Desired Fineness: Coarse abrasives can use hammer or ball mills, while fine ceramics require ultrafine mills like the SCM series.
• Production Capacity: From small batch processing to large-scale continuous production, matching the mill’s throughput to your needs is crucial.
• Energy Efficiency: Newer technologies like VRMs and ultrafine mills offer significant energy savings over traditional ball mills.
• Contamination Control: For high-purity applications, mills with ceramic or special alloy linings and grinding elements are necessary to prevent iron contamination.
• Total Cost of Ownership: Consider not only the initial investment but also maintenance costs, wear part longevity, and energy consumption.

Conclusion

Aluminum oxide grinding equipment is the backbone of transforming a raw, hard mineral into a valuable industrial commodity. The evolution from traditional ball mills to highly efficient, precision-focused systems like Vertical Roller Mills and Ultrafine Grinding Mills has revolutionized the industry, enabling higher quality products, greater efficiency, and more sustainable operations. For manufacturers seeking to produce superior aluminum oxide powders, investing in advanced technology is not just an option—it is a necessity to remain competitive in a demanding global market. Understanding the capabilities and applications of different grinding systems is the first step toward optimizing your production process and achieving excellence in your final product.
