What Grinding Mill is Needed for 200 Mesh Quartz Sand Processing?

Introduction to Quartz Sand Processing Requirements

Quartz sand, composed primarily of silicon dioxide (SiO₂), is one of the most abundant minerals on Earth and finds extensive applications in glass manufacturing, foundry, construction, ceramics, and electronics industries. The processing of quartz sand to specific particle sizes is crucial for meeting various industrial specifications. Among these, 200 mesh (approximately 74 microns) represents a common requirement for many applications, particularly in glass production and foundry sands.

Processing quartz to 200 mesh presents unique challenges due to its hardness (7 on the Mohs scale) and abrasive nature. The selection of appropriate grinding equipment must consider not only the target fineness but also energy efficiency, wear resistance, production capacity, and overall operational costs. This article provides a comprehensive analysis of grinding solutions for 200 mesh quartz sand processing, with particular focus on optimal equipment selection.

Understanding 200 Mesh Specification

In particle size measurement, “mesh” refers to the number of openings in one linear inch of screen. A 200 mesh screen has 200 openings per inch, which corresponds to an opening size of approximately 74 microns. For quartz sand processing, achieving consistent 200 mesh product typically means that at least 90-95% of particles pass through a 200 mesh screen.

The 200 mesh specification is particularly important for:

• Glass manufacturing: Where consistent particle size ensures uniform melting
• Foundry applications: Where proper grain distribution affects mold quality
• Construction materials: Where fineness influences binding properties
• Ceramic production: Where particle size affects forming and firing characteristics

Key Considerations for Quartz Grinding Mill Selection

Material Characteristics

Quartz possesses several material properties that significantly impact grinding equipment selection:

• High Hardness: At 7 on the Mohs scale, quartz is considerably harder than many other industrial minerals, necessitating robust grinding elements and wear-resistant materials.
• Abrasiveness: The sharp, angular nature of quartz particles causes significant wear on grinding components, increasing maintenance requirements.
• Chemical Purity: For many applications, maintaining chemical purity during grinding is essential, requiring equipment that minimizes iron contamination.

Production Capacity Requirements

The required production capacity directly influences mill selection. Small-scale operations (1-5 tons per hour) have different equipment needs compared to large-scale industrial production (20+ tons per hour). The mill must be appropriately sized to ensure economic viability while meeting production targets.

Energy Efficiency

Grinding operations typically account for a significant portion of total processing costs. Energy-efficient mills can reduce operational expenses by 20-40% compared to conventional equipment, making efficiency a critical selection criterion.

Product Quality Consistency

Maintaining consistent particle size distribution is essential for many quartz applications. Mills with integrated classification systems typically produce more uniform products with narrower size distributions.

Recommended Grinding Mills for 200 Mesh Quartz Sand

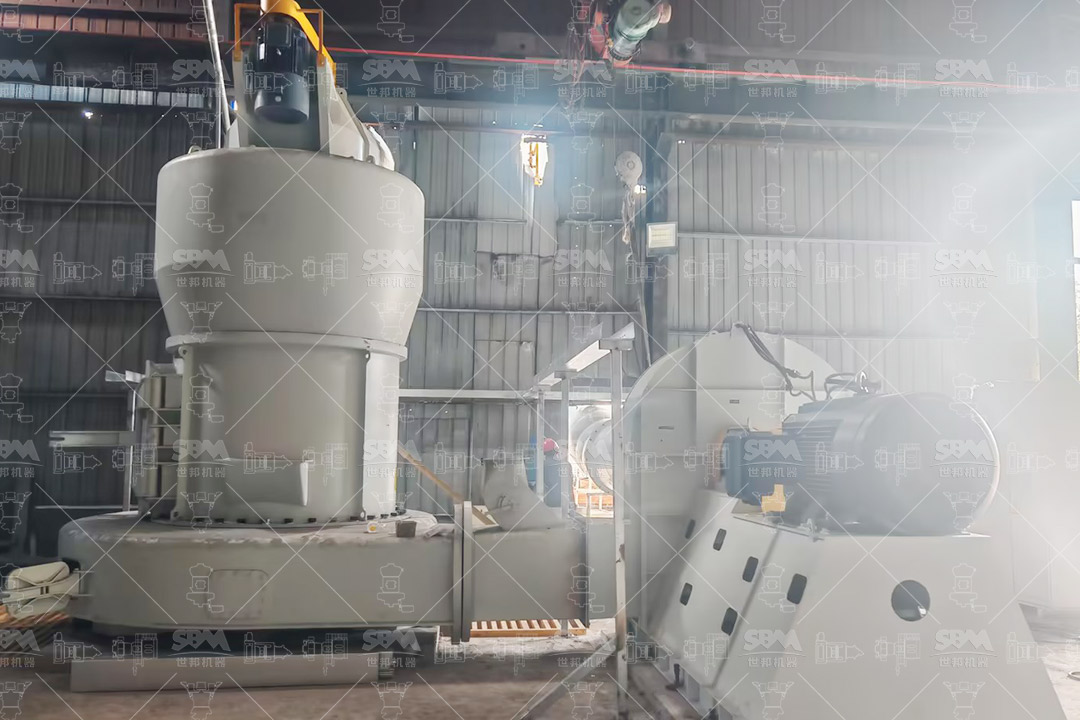

MTW Series Trapezium Mill – The Optimal Solution

For most 200 mesh quartz sand processing applications, the MTW Series Trapezium Mill represents an excellent balance of performance, efficiency, and operational cost. Specifically designed for medium-fine grinding applications, this mill offers several advantages for quartz processing:

Technical Advantages for Quartz Processing:

• Anti-wear Shovel Design: The combination shovel plates significantly reduce maintenance costs when processing abrasive quartz materials. The curved design extends grinding roller life, crucial for maintaining performance with hard quartz.
• Optimized Air Channel: The curved air channel reduces energy consumption while improving material transport efficiency. The high-strength protective plates safeguard the air channel working surface against quartz abrasion.
• Integrated Bevel Gear Transmission: With transmission efficiency reaching 98%, this system provides reliable power delivery while reducing installation footprint and costs.
• Wear-Resistant Volute Structure: The obstruction-free design enhances air classification efficiency while reducing maintenance costs by approximately 30% compared to conventional designs.

Model Recommendations:

• MTW138Z: With a capacity of 6-17 tons per hour and main motor power of 90kW, this model suits medium-scale quartz processing operations requiring consistent 200 mesh output.
• MTW175G: Offering 9.5-25 tons per hour capacity with 160kW main motor power, this model is ideal for larger operations needing high-volume production of 200 mesh quartz sand.

The MTW Series achieves the target 200 mesh fineness (approximately 74 microns) efficiently while maintaining low operating costs and high reliability – essential factors for profitable quartz processing operations.

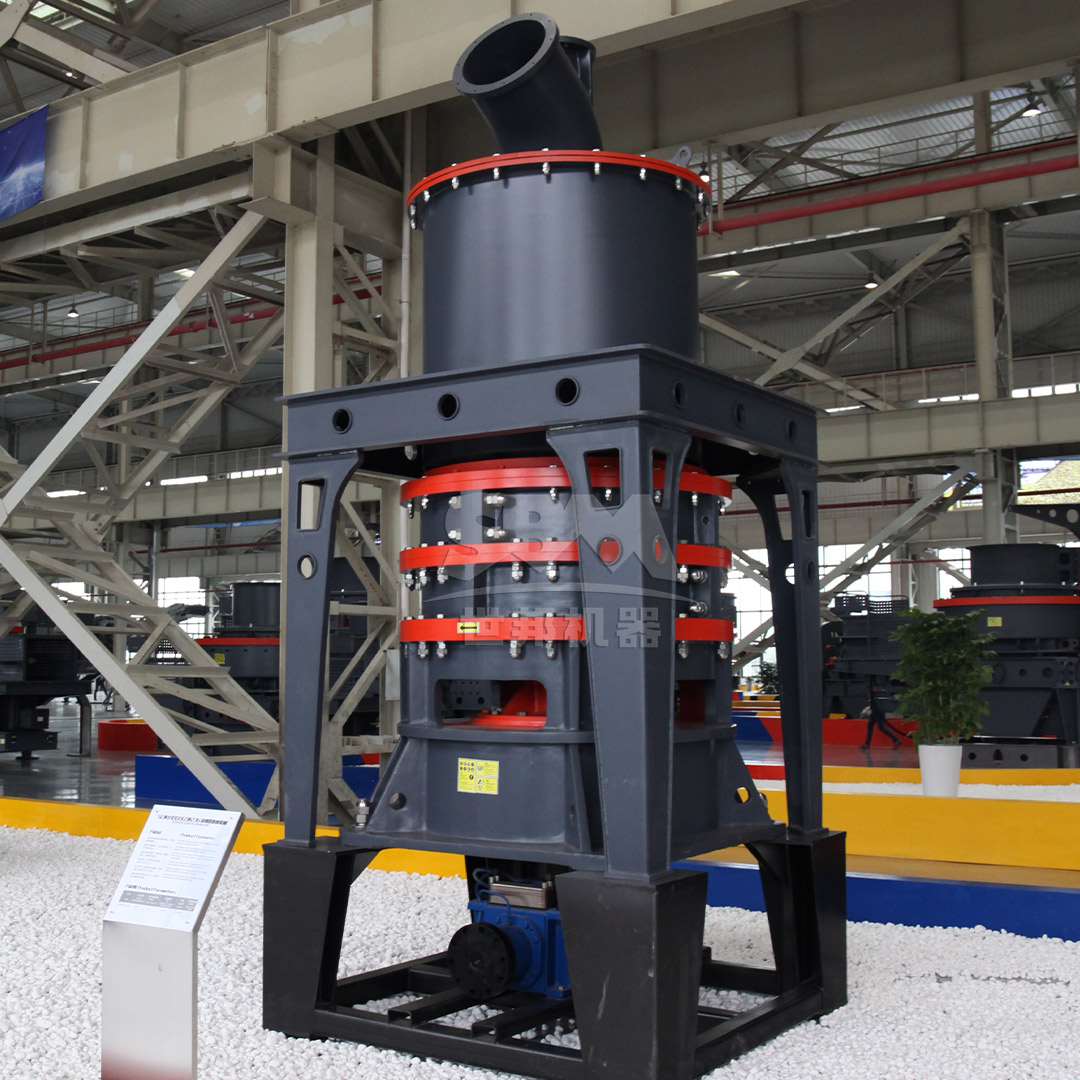

SCM Series Ultrafine Mill – For Higher Fineness Requirements

For operations that may require occasional production of finer quartz powders beyond 200 mesh, or for processors seeking maximum flexibility, the SCM Series Ultrafine Mill provides an excellent alternative. While capable of producing much finer powders (up to 2500 mesh), it efficiently handles 200 mesh quartz sand with several distinct advantages:

Technical Advantages for Quartz Processing:

• High-Efficiency Classification: The vertical turbine classifier enables precise particle size control, ensuring consistent 200 mesh product without coarse particle contamination.
• Energy Efficiency: With capacity twice that of jet mills and 30% lower energy consumption, the SCM Series offers significant operational cost savings.
• Durable Construction: Special material grinding rollers and rings provide extended service life – critical when processing abrasive quartz materials.
• Environmental Compliance: Pulse dust collection efficiency exceeds international standards, while soundproofing design maintains noise levels below 75dB.

Model Recommendations:

• SCM1000: With capacity of 1.0-8.5 tons per hour and 132kW main motor power, this model suits operations requiring flexibility in product fineness.
• SCM1250: Offering 2.5-14 tons per hour capacity with 185kW power, this model serves medium-scale operations needing future flexibility for finer products.

Comparative Analysis of Grinding Solutions

When selecting between the MTW Series Trapezium Mill and SCM Series Ultrafine Mill for 200 mesh quartz processing, several factors should be considered:

Parameter	MTW Series	SCM Series
Optimal Fineness Range	30-325 mesh	325-2500 mesh
Energy Efficiency at 200 mesh	Excellent	Very Good
Wear Resistance	Very Good	Excellent
Capital Investment	Moderate	Higher
Flexibility for Finer Products	Limited	Excellent

For dedicated 200 mesh quartz sand production, the MTW Series generally provides the most cost-effective solution. However, for operations requiring frequent product changes or potential future expansion into finer products, the SCM Series offers greater long-term flexibility.

Auxiliary Equipment Considerations

Successful quartz processing requires more than just the grinding mill. Several auxiliary systems are essential for optimal operation:

Feeding Systems

Consistent, controlled feeding is crucial for maintaining stable mill operation and product quality. Vibratory feeders with variable speed control typically provide the best results for quartz processing, ensuring uniform feed rates that match mill capacity.

Classification Systems

While both recommended mills include integrated classification, additional external classifiers may be beneficial for specific applications requiring extremely tight particle size distributions.

Dust Collection

Effective dust collection is essential for both environmental compliance and product recovery. Pulse-jet baghouse collectors typically provide the best performance for quartz applications, with collection efficiencies exceeding 99.9%.

Operational Best Practices for Quartz Grinding

Moisture Control

Quartz feed moisture should typically be maintained below 2-3% for optimal dry grinding efficiency. Higher moisture levels can lead to material buildup, reduced throughput, and classification problems.

Wear Management

Given quartz’s abrasiveness, implementing a proactive wear management program is essential. Regular inspection of grinding elements, along with maintenance scheduling based on operating hours rather than failure, significantly improves operational reliability.

Product Quality Monitoring

Regular particle size analysis using sieve testing or laser diffraction equipment ensures consistent product quality. Automated sampling systems provide the most reliable quality control for continuous operations.

Economic Considerations

The economic viability of quartz grinding operations depends on several factors beyond equipment selection:

Total Cost of Ownership

While initial equipment investment is important, the total cost of ownership over the equipment’s operational life typically shows greater variation. Key cost components include:

• Energy consumption (typically 40-60% of operating cost)
• Wear part replacement (20-30% of operating cost)
• Maintenance labor (10-15% of operating cost)
• Downtime impacts (5-10% of operating cost)

Return on Investment Analysis

Both recommended mills typically achieve payback periods of 12-24 months based on reduced operating costs compared to conventional grinding technologies. The exact return depends on local energy costs, production volume, and maintenance practices.

Conclusion

Selecting the appropriate grinding mill for 200 mesh quartz sand processing requires careful consideration of multiple factors, including production requirements, product specifications, and economic constraints. For most applications, the MTW Series Trapezium Mill provides the optimal balance of performance, efficiency, and operating costs. Its specialized design for medium-fine grinding, combined with robust construction suitable for abrasive materials, makes it particularly well-suited for quartz processing operations.

For operations requiring greater flexibility or potential expansion into ultrafine products, the SCM Series Ultrafine Mill offers excellent performance with the capability to produce much finer materials when needed.

Proper implementation, including appropriate auxiliary equipment and operational practices, ensures that quartz processing operations achieve consistent product quality while maintaining economic viability. By selecting the right grinding technology and implementing best practices, processors can optimize their operations for long-term success in the competitive quartz sand market.
