What grinding machines are used for slag recycling and reuse?
Introduction to Slag Recycling and Grinding Technology
Slag, a byproduct of metallurgical processes, has evolved from industrial waste to a valuable resource in construction and manufacturing. Effective recycling requires specialized grinding equipment capable of processing this abrasive material into consistent, high-quality powders. The transformation of slag into useful products depends heavily on the selection of appropriate grinding machinery that can handle its unique physical and chemical properties.
Modern slag recycling operations demand equipment that combines high throughput, energy efficiency, and precise particle size control. The grinding process must accommodate various types of slag, including blast furnace slag, steel slag, and non-ferrous slag, each with distinct characteristics and recycling requirements. This article explores the primary grinding technologies employed in slag recycling and their specific applications in industrial settings.
Types of Grinding Machines for Slag Processing
Vertical Roller Mills for Large-Scale Slag Grinding

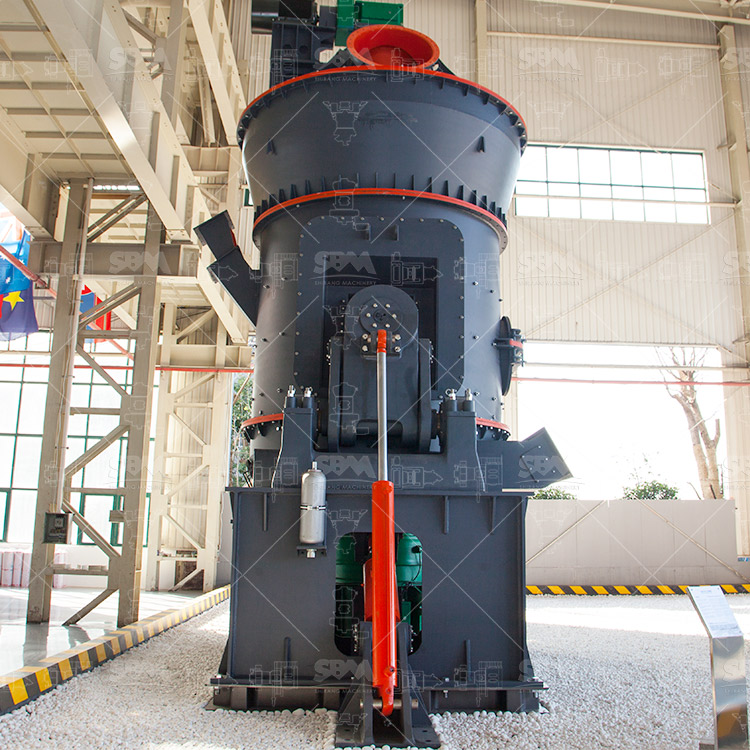

Vertical roller mills (VRMs) represent the most advanced technology for large-scale slag grinding operations. These systems integrate multiple functions—crushing, grinding, drying, and classification—within a single compact unit. The vertical orientation and grinding mechanism make them particularly suitable for processing slag with moisture content up to 15-20% without requiring pre-drying.
The working principle involves material being fed centrally onto a rotating grinding table where centrifugal force distributes it evenly. Hydraulically loaded grinding rollers then compress the material bed, achieving efficient comminution through inter-particle crushing. The ground material is transported by air to an integrated dynamic classifier where oversize particles are separated and returned to the grinding zone for further processing.
For slag-specific applications, our LM Series Vertical Roller Mill offers exceptional performance with its specialized design features. The system’s ability to handle feed sizes up to 50mm and produce fineness ranging from 30-325 mesh makes it ideal for various slag applications. Particularly noteworthy are the Vertical Slag Mill models (LM130N to LM370N) specifically engineered for granulated blast furnace slag, achieving specific surface areas exceeding 420m²/kg with output moisture content below 1%.
The LM Series demonstrates remarkable efficiency with energy consumption 30-40% lower than traditional ball mill systems. Its compact design reduces footprint requirements by 50% compared to conventional grinding circuits, while the negative pressure operation ensures dust emissions remain below 20mg/m³. These characteristics make it the preferred solution for modern slag grinding plants seeking to maximize productivity while minimizing environmental impact.
Ultrafine Grinding Systems for High-Value Applications
When slag must be processed to ultrafine levels for specialized applications such as high-performance concrete or advanced ceramics, ultrafine grinding mills provide the necessary precision. These systems typically produce powders in the range of 325-2500 mesh (5-45μm), unlocking the full potential of slag as a functional material rather than merely a filler.

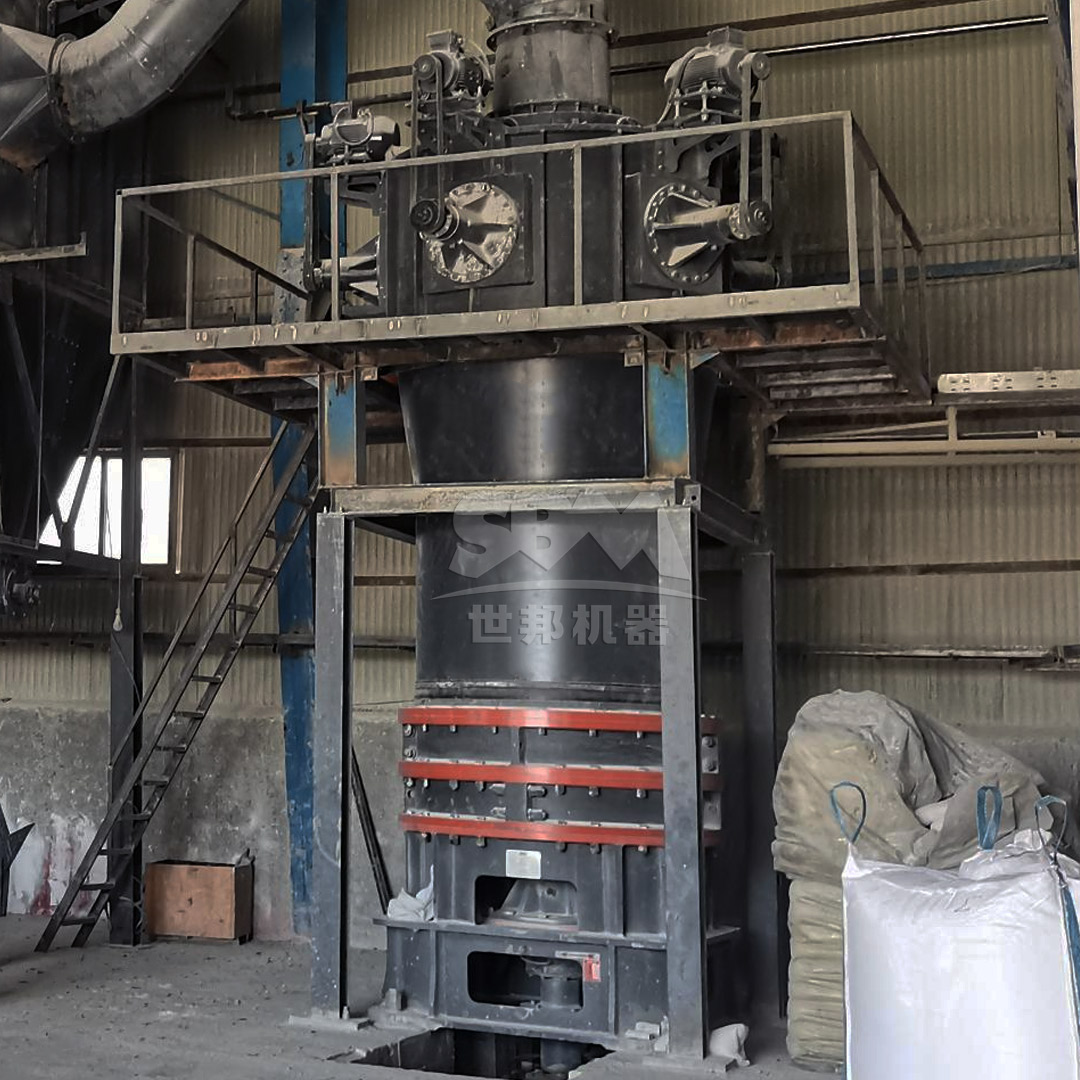

Our SCM Ultrafine Mill represents the pinnacle of ultrafine grinding technology for slag valorization. With its ability to process 20mm feed material into powders as fine as 5μm (D97), this equipment enables production of premium slag products for the most demanding applications. The mill’s vertical turbine classifier ensures precise particle size distribution without coarse particle contamination, while the intelligent control system automatically maintains target fineness through real-time feedback mechanisms.
The SCM series delivers outstanding operational economy, achieving twice the capacity of jet mills while reducing energy consumption by 30%. Models ranging from SCM800 to SCM1680 offer processing capacities from 0.5 to 25 tons per hour, accommodating operations of various scales. The specially designed grinding rollers and rings, manufactured from wear-resistant materials, provide extended service life that significantly reduces operating costs in abrasive slag applications.
Trapezium Mills for Medium-Scale Operations
For medium-scale slag processing requirements, trapezium mills offer a balanced solution combining respectable capacity with operational flexibility. The curved duct design and integral transmission system of these mills provide reliable performance with reduced maintenance requirements compared to more complex grinding systems.
The MTW Series Trapezium Mill handles feed materials up to 50mm and produces fineness from 30-325 mesh, covering the majority of slag applications in construction materials. Its innovative wear-resistant shovel design reduces maintenance frequency, while the bevel gear overall transmission achieves 98% efficiency with compact installation dimensions. Models from MTW110 to MRN218 offer capacities from 3 to 45 tons per hour, making them suitable for regional slag processing facilities.
These mills incorporate multiple patent technologies including internal oil lubrication systems and advanced pulse dust collection, ensuring environmentally compliant operation with minimal dust emissions. The combination of curved air duct technology and wear-resistant volute structure reduces energy losses while extending component life, resulting in maintenance costs approximately 30% lower than conventional designs.
Technical Considerations for Slag Grinding System Selection
Material Characteristics and Processing Requirements
Selecting appropriate grinding equipment for slag recycling begins with comprehensive analysis of the specific slag properties. Critical parameters include chemical composition, moisture content, grindability index, abrasiveness, and the target product specifications. Blast furnace slag typically exhibits Bond work indices of 18-23 kWh/t, while steel slag may reach 25-30 kWh/t due to its higher iron content and hardness.
The presence of metallic iron in slag presents particular challenges, requiring magnetic separation prior to grinding or the selection of equipment with tramp iron protection systems. Moisture management is another crucial consideration, with some grinding systems capable of handling moist feed while others require pre-drying. Understanding these material characteristics ensures selection of equipment that will deliver optimal performance and longevity.
Production Scale and Economic Factors
The economic viability of slag recycling operations depends heavily on matching equipment capacity to available material supply and market demand. Large-scale integrated steel plants generating hundreds of tons of slag daily benefit from high-capacity systems like the LM Series Vertical Roller Mills, while smaller operations may find trapezium or ultrafine mills more appropriate.
Total cost of ownership analysis should consider not only initial investment but also energy consumption, wear part replacement costs, maintenance requirements, and operational flexibility. Modern grinding systems with intelligent controls and remote monitoring capabilities can significantly reduce labor costs while optimizing performance. The integration of grinding systems with material handling, storage, and packaging operations further enhances overall economic efficiency.
Advanced Features in Modern Slag Grinding Equipment
Intelligent Control and Automation Systems
Contemporary slag grinding machines incorporate sophisticated control systems that optimize performance while minimizing operator intervention. These systems continuously monitor critical parameters including motor load, grinding pressure, material feed rate, and product fineness, automatically adjusting operational settings to maintain target specifications.
Remote monitoring capabilities enable technical support and troubleshooting without requiring physical presence at the installation site, reducing downtime and improving operational reliability. The automation systems also include safety interlocks and predictive maintenance features that identify potential issues before they result in equipment failure, further enhancing operational continuity.
Environmental Performance and Sustainability
Modern grinding equipment designed for slag recycling prioritizes environmental performance through multiple approaches. Advanced dust collection systems with pulse-jet cleaning achieve filtration efficiencies exceeding 99.9%, ensuring emissions comply with the most stringent environmental standards. Noise reduction technologies, including acoustic enclosures and vibration damping systems, maintain operational noise levels below 80 dB(A), creating better working conditions.
Energy efficiency represents another critical environmental consideration, with contemporary grinding systems consuming 30-50% less energy than traditional technologies. This not only reduces operating costs but also minimizes the carbon footprint of slag recycling operations. The compact designs of modern mills further contribute to sustainability by reducing the physical footprint and associated infrastructure requirements.
Conclusion: Optimizing Slag Recycling Through Appropriate Technology Selection
The successful recycling and reuse of slag depends fundamentally on selecting grinding equipment matched to specific material characteristics, production requirements, and economic considerations. From high-capacity vertical roller mills for large-scale operations to precision ultrafine grinding systems for value-added applications, modern technology offers solutions for virtually every slag processing scenario.
Equipment selection should balance technical capabilities with operational economics, considering not only initial investment but long-term operating costs and product quality requirements. The continuing advancement of grinding technology, particularly in areas of energy efficiency, automation, and environmental performance, ensures that slag recycling will remain an economically and environmentally sustainable practice for the foreseeable future.
By leveraging appropriate grinding technology, industries can transform slag from a disposal challenge to a valuable resource, contributing to circular economy principles while generating economic returns. The technical sophistication of contemporary grinding systems enables production of consistent, high-quality slag products that meet the exacting requirements of modern construction and manufacturing applications.
