What are the uses of aluminum plant waste electrolyte blocks and how to process electrolysis cell crust blocks?

Introduction

The aluminum smelting industry generates significant amounts of solid waste materials, primarily in the form of spent potlining (SPL) or electrolyte blocks and electrolysis cell crust blocks. These materials, if not properly managed, can pose environmental challenges due to their chemical composition. However, with advanced processing technologies, these waste streams can be transformed into valuable resources for various industrial applications. This article explores the potential uses of aluminum plant waste electrolyte blocks and provides comprehensive guidance on processing electrolysis cell crust blocks.

Composition and Characteristics of Aluminum Plant Waste

Waste Electrolyte Blocks

Spent potlining, commonly referred to as waste electrolyte blocks, consists primarily of carbonaceous materials, fluorides, cyanides, and various metallic impurities. The typical composition includes:

• Carbon content: 40-60%
• Fluoride compounds: 15-25%
• Cryolite (Na3AlF6): 10-20%
• Aluminum oxides: 5-15%
• Various metallic impurities and cyanide compounds

These materials are classified as hazardous waste in many jurisdictions due to their leachable fluoride and cyanide content, requiring specialized handling and processing.

Electrolysis Cell Crust Blocks

Electrolysis cell crust blocks form on the surface of aluminum reduction cells during the smelting process. They typically contain:

• Aluminum fluoride (AlF3)
• Cryolite
• Alumina (Al2O3)
• Various sodium and calcium fluorides
• Traces of metallic aluminum

Potential Applications and Uses of Processed Waste Materials

Construction Materials

Properly processed electrolyte blocks can be utilized in construction applications:

• Cement additive: The fluoride content can act as a mineralizer in cement production, reducing clinkering temperature and energy consumption
• Aggregate substitute: After thermal treatment and size reduction, the material can replace conventional aggregates in concrete applications
• Road base material: Processed material can be used in road construction when properly stabilized

Refractory and Ceramic Industries

The high-temperature resistant properties of processed electrolyte materials make them suitable for:

• Refractory brick production
• Ceramic frits and glazes
• Abrasive manufacturing

Chemical Industry Applications

Recovered fluoride compounds can be reused in various chemical processes:

• Fluorination agents
• Fluxing materials in metallurgical processes
• Production of synthetic cryolite

Processing Technologies for Electrolysis Cell Crust Blocks

Primary Crushing and Size Reduction

The initial processing stage involves reducing the large crust blocks to manageable sizes. This typically involves:

• Primary jaw crushing to reduce blocks to 50-100mm fragments
• Secondary crushing using impact or cone crushers
• Tertiary crushing for further size reduction

For this stage, our PC4012-90 Hammer Mill proves particularly effective, with its ability to handle input sizes up to 40mm and produce consistent 0-3mm output, making it ideal for the initial size reduction of crust blocks.

Fine Grinding and Classification

After primary crushing, the material requires fine grinding to achieve the desired particle size distribution for various applications. This is where advanced milling technology becomes crucial.

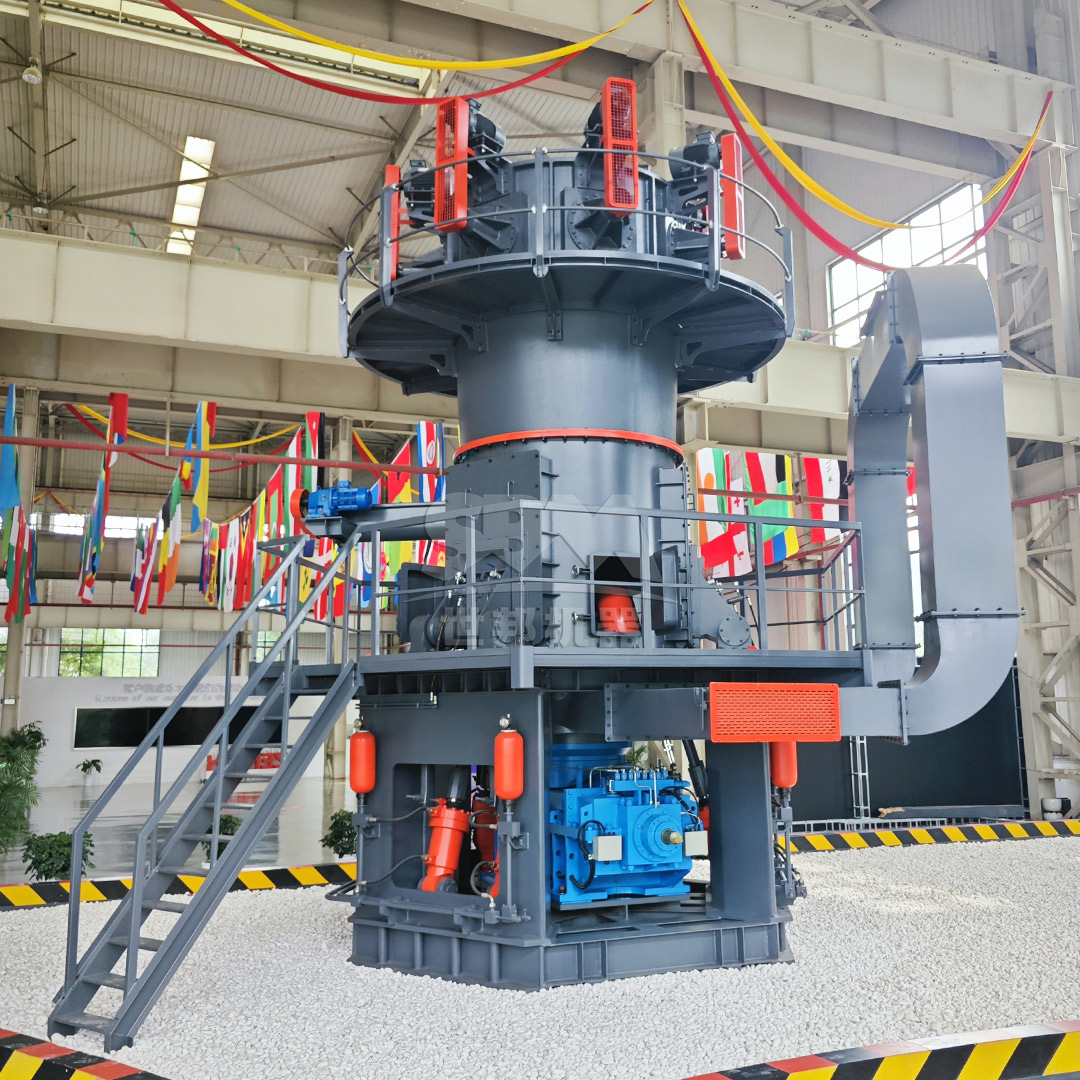

Our SCM Series Ultrafine Mill offers exceptional performance in processing aluminum plant waste materials. With an input size of ≤20mm and output fineness ranging from 325-2500 mesh (D97≤5μm), this mill provides precise control over particle size distribution. The vertical turbine classifier ensures accurate particle size cuts without coarse powder contamination, while the special material rollers and grinding rings significantly extend service life – a critical factor when processing abrasive materials like electrolyte crust blocks.

The SCM Ultrafine Mill’s efficient energy consumption (30% lower than jet mills with double the capacity) makes it economically viable for waste processing operations. Models ranging from SCM800 with 0.5-4.5 ton/h capacity to SCM1680 with 5.0-25 ton/h capacity provide flexibility for operations of various scales.

Thermal Treatment and Detoxification

Many aluminum plant waste materials require thermal treatment to destroy cyanide compounds and stabilize fluoride content:

• Rotary kiln treatment at 1000-1200°C
• Plasma arc treatment for complete destruction of organic compounds
• Microwave-assisted thermal treatment for energy efficiency

Leaching and Chemical Processing

Hydrometallurgical processes can recover valuable components:

• Acid leaching for fluoride recovery
• Alkaline leaching for aluminum extraction
• Selective precipitation for metal recovery

Integrated Processing Flow Sheet

Step 1: Material Preparation

Raw electrolyte blocks and crust materials are sorted, with metallic aluminum recovered through magnetic separation or manual sorting. The remaining material is prepared for size reduction.

Step 2: Primary Size Reduction

Using our hammer mill technology, the material is reduced to 0-3mm particles, creating a uniform feed for subsequent processing stages.

Step 3: Fine Grinding

The MTW Series Trapezium Mill provides an excellent solution for intermediate grinding applications. With input sizes up to 50mm and output fineness of 30-325 mesh, this mill handles the abrasive nature of electrolyte materials efficiently. The curved air channel design reduces energy consumption while the combined shovel blades minimize maintenance costs – particularly important when processing materials with variable composition.

For operations requiring higher throughput, the MTW215G model offers 15-45 ton/h capacity with 280kW main motor power, making it suitable for large-scale aluminum plant waste processing facilities.

Step 4: Thermal Treatment

The ground material undergoes thermal processing to destroy hazardous compounds and stabilize the material for subsequent use.

Step 5: Final Processing and Quality Control

The processed material is classified according to particle size and composition, with quality parameters verified before dispatch to end-users.

Economic and Environmental Considerations

Economic Benefits

Proper processing of aluminum plant waste offers significant economic advantages:

• Reduced landfill costs and associated liabilities
• Revenue generation from sale of processed materials
• Reduced raw material costs through internal recycling
• Potential carbon credit benefits from waste minimization

Environmental Compliance

Modern processing technologies ensure compliance with environmental regulations:

• Effective containment and treatment of fluoride emissions
• Complete destruction of cyanide compounds
• Minimization of leachable contaminants in final products
• Compliance with local and international waste management standards

Case Studies and Implementation Examples

European Aluminum Smelter Implementation

A major European aluminum producer implemented a comprehensive waste processing system utilizing our grinding technology, achieving:

• 85% reduction in hazardous waste disposal
• Annual cost savings of €2.3 million
• Production of 15,000 tons annually of construction-grade additive material
• Zero waste to landfill target achievement

North American Recycling Facility

A dedicated recycling facility in North America processes electrolyte blocks from multiple aluminum plants, featuring:

• Integrated crushing and grinding circuit with SCM1680 Ultrafine Mill
• Thermal treatment system for complete detoxification
• Product quality certification for construction applications
• Annual processing capacity of 50,000 tons

Future Trends and Technological Developments

Advanced Separation Technologies

Emerging technologies promise improved recovery rates and product quality:

• Electrostatic separation for enhanced metal recovery
• Membrane filtration for fluoride concentration and recovery
• Advanced sensor-based sorting for impurity removal

Circular Economy Integration

The aluminum industry is moving toward complete circular economy models where:

• All process wastes are utilized as resources
• Closed-loop material flows minimize external inputs
• Product design considers end-of-life recyclability

Conclusion

The processing of aluminum plant waste electrolyte blocks and electrolysis cell crust blocks represents both an environmental imperative and economic opportunity. With advanced processing technologies like our SCM Series Ultrafine Mill and MTW Series Trapezium Mill, these challenging waste materials can be transformed into valuable products for construction, chemical, and refractory applications. The key to successful implementation lies in selecting appropriate technology matched to specific material characteristics and end-product requirements, while ensuring compliance with environmental regulations and economic viability.

As the aluminum industry continues to embrace circular economy principles, the efficient processing of these waste streams will become increasingly important for sustainable operations and competitive advantage.
