Wet Grinding of Calcium Carbonate: Production Process and Industrial Applications

Introduction to Wet Grinding of Calcium Carbonate

Calcium carbonate (CaCO₃) is one of the most abundant minerals on Earth, with extensive applications across various industries including paper, plastics, paints, coatings, and pharmaceuticals. The production of high-quality calcium carbonate requires precise grinding techniques to achieve the desired particle size distribution and surface properties. While dry grinding methods are commonly employed, wet grinding has emerged as a superior approach for producing ultrafine and narrow-sized calcium carbonate particles with enhanced properties.

Wet grinding involves dispersing calcium carbonate in a liquid medium, typically water, and subjecting it to mechanical forces that reduce particle size. This process offers several advantages over dry grinding, including higher efficiency, better particle size control, reduced energy consumption, and minimized dust generation. The resulting slurry can be directly used in various applications or further processed into dry powder through drying techniques.

The Wet Grinding Production Process

Raw Material Preparation

The wet grinding process begins with the selection and preparation of high-purity calcium carbonate feedstock. Natural calcium carbonate sources include limestone, marble, and chalk, while synthetic precipitated calcium carbonate (PCC) can also be used. The raw material is first crushed to a manageable size, typically below 20mm, using primary crushers such as jaw crushers or impact crushers.

For operations requiring consistent feed size and improved grinding efficiency, our PC4012-90 Hammer Mill offers an excellent solution for preliminary size reduction. With a processing capacity of 15-40 tons per hour and the ability to produce output sizes of 0-3mm, this equipment ensures optimal feed preparation for subsequent wet grinding stages. The high manganese steel hammer heads and optimized crushing chamber design provide exceptional durability and consistent performance.

Wet Grinding Technology and Equipment

In the wet grinding stage, the pre-crushed calcium carbonate is mixed with water and grinding aids to form a slurry with specific solid content, typically ranging from 60% to 75%. This slurry is then fed into wet grinding mills, where mechanical forces reduce the particle size to the desired fineness.

The most common equipment for wet grinding includes:

• Ball Mills: Traditional wet ball mills remain widely used for calcium carbonate grinding. These rotating cylinders contain grinding media (balls) that impact and attrition the particles. Our GMQG2445 Ball Mill offers a processing capacity of 55-10.5 tons per hour with output fineness ranging from 0.074-0.8mm, making it suitable for various wet grinding applications.
• Stirred Media Mills: Also known as attritors or bead mills, these mills use agitated grinding media to achieve finer particle sizes more efficiently than traditional ball mills.
• Vertical Mills: Specially designed vertical mills can also be adapted for wet grinding applications, offering high efficiency and precise particle size control.

The grinding process parameters, including slurry density, grinding media size and density, mill speed, and residence time, are carefully controlled to achieve the target particle size distribution and product properties.

Classification and Separation

Following the grinding stage, the calcium carbonate slurry undergoes classification to separate particles according to size. Hydrocyclones are commonly used for this purpose, separating the slurry into fine and coarse fractions. The coarse fraction is returned to the grinding mill for further size reduction, while the fine fraction proceeds to the next processing stage.

For operations requiring extremely fine and narrowly distributed particles, additional classification steps using high-efficiency classifiers may be employed to achieve precise cut points and remove oversize particles.

Surface Modification and Final Processing

Depending on the intended application, the ground calcium carbonate may undergo surface modification to enhance its properties and compatibility with different matrices. Common surface treatments include stearic acid coating, titanate coupling agents, or silane treatments, which improve dispersion, reduce viscosity, and enhance mechanical properties in composite materials.

The final calcium carbonate slurry can be used directly in liquid formulations or dewatered and dried to produce dry powder. Dewatering is typically accomplished using filter presses, vacuum filters, or centrifuges, followed by drying in spray dryers, flash dryers, or rotary dryers.

Industrial Applications of Wet Ground Calcium Carbonate

Paper Industry

Wet ground calcium carbonate is extensively used as a filler and coating pigment in the paper industry. Its fine particle size, narrow size distribution, and high brightness make it ideal for improving paper opacity, brightness, smoothness, and printability. In paper coating applications, calcium carbonate slurry is directly applied to paper surfaces, providing excellent coverage and enhancing the printing surface properties.

The paper industry typically requires calcium carbonate with particle sizes ranging from 0.5 to 2.0 micrometers, which can be efficiently produced through wet grinding processes. The ability to control particle shape and size distribution through precise grinding and classification enables paper manufacturers to optimize their formulations for specific paper grades and printing requirements.

Paints and Coatings

In the paints and coatings industry, wet ground calcium carbonate serves as an extender pigment that improves hiding power, durability, and weather resistance while reducing formulation costs. The fine particle size and narrow distribution achieved through wet grinding contribute to better dispersion in paint systems, improved film formation, and enhanced mechanical properties.

For high-quality architectural paints, industrial coatings, and specialty coatings, calcium carbonate with controlled particle size and surface treatment is essential for achieving optimal performance. Wet grinding enables the production of calcium carbonate with specific properties tailored to different coating applications, including water-based, solvent-based, and powder coatings.

Plastics and Polymers

Calcium carbonate is widely used as a functional filler in plastic and polymer composites, where it improves mechanical properties, reduces material costs, and enhances processing characteristics. Wet ground calcium carbonate offers advantages in plastic applications due to its fine particle size, which provides better dispersion in polymer matrices and improved impact strength, stiffness, and heat distortion temperature.

In masterbatch production, calcium carbonate slurry can be directly incorporated into carrier resins, simplifying the manufacturing process and reducing energy consumption compared to using dry powder. The surface-treated versions of wet ground calcium carbonate provide improved compatibility with various polymer systems, resulting in enhanced mechanical properties and better processability.

Adhesives and Sealants

The controlled particle size and shape of wet ground calcium carbonate make it an ideal filler for adhesives and sealants, where it improves rheological properties, enhances cohesion, and reduces shrinkage. The fine particles contribute to smooth application properties and improved bond strength in various adhesive formulations.

In sealant applications, calcium carbonate helps control viscosity, sag resistance, and extrusion characteristics while maintaining flexibility and durability. The ability to produce calcium carbonate with specific particle size distributions through wet grinding enables formulators to tailor their products for specific application requirements.

Advanced Grinding Solutions for Calcium Carbonate

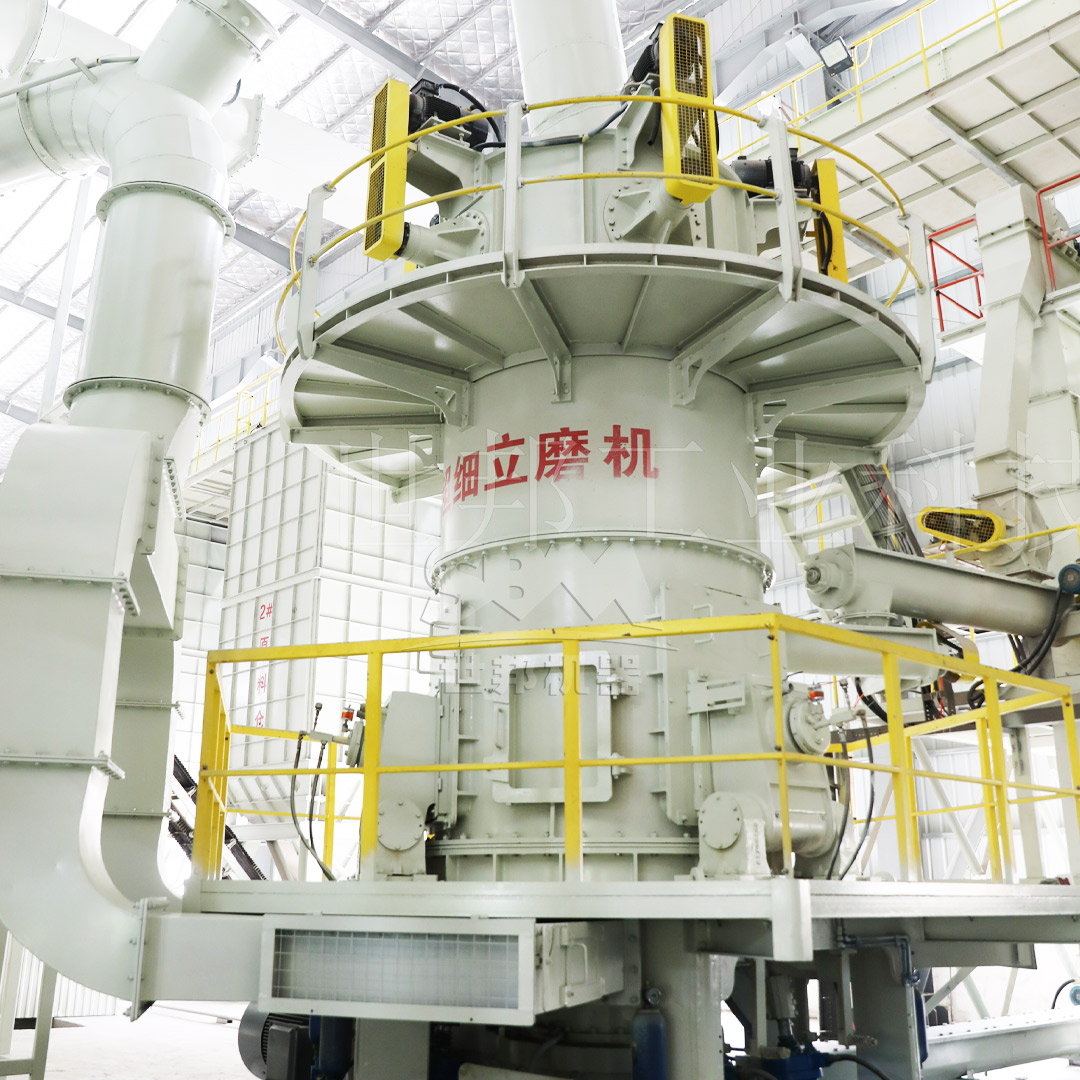

Modern calcium carbonate production demands equipment that can deliver consistent quality, high efficiency, and operational reliability. For operations requiring both wet and dry processing capabilities, our LM Series Vertical Roller Mill offers exceptional versatility and performance.

With input sizes up to 50mm and output fineness ranging from 30-325 mesh (special models up to 600 mesh), the LM series provides processing capacities from 3-250 tons per hour depending on the specific model. The集约化设计 integrates crushing, grinding, and classification functions in a single unit, reducing footprint by 50% and significantly lowering infrastructure costs. The磨辊与磨盘非接触设计 extends wear part life by three times while reducing energy consumption by 30-40% compared to traditional ball mill systems.

Key advantages of the LM series for calcium carbonate processing include:

• Intelligent control systems with expert automation and remote operation capabilities
• Full sealed negative pressure operation with dust emissions below 20mg/m³
• Low noise operation at ≤80dB(A)
• Modular roller assembly for quick replacement and maintenance
• Dynamic separator technology for precise particle size control

For specialized applications requiring ultrafine calcium carbonate with particle sizes down to 5μm, our SCM Ultrafine Mill delivers exceptional performance with output fineness ranging from 325-2500 mesh. The vertical turbine classifier ensures precise particle size切割 with no coarse powder contamination, while the special material rollers and grinding rings provide extended service life. With processing capacities from 0.5-25 tons per hour and energy consumption 30% lower than jet mills, the SCM series represents the forefront of ultrafine grinding technology.

Quality Control and Technical Specifications

Producing consistent quality wet ground calcium carbonate requires rigorous quality control throughout the manufacturing process. Key parameters monitored include:

• Particle size distribution (laser diffraction analysis)
• Specific surface area (BET method)
• Brightness and color characteristics
• Chemical composition and purity
• Rheological properties of slurries
• Surface treatment efficiency

Modern production facilities employ automated control systems that continuously monitor and adjust process parameters to maintain product consistency. Advanced instrumentation, including online particle size analyzers and consistency transmitters, enables real-time optimization of the grinding and classification processes.

Environmental Considerations and Sustainability

Wet grinding of calcium carbonate offers several environmental advantages over dry processing methods. The water-based system naturally suppresses dust generation, reducing airborne particulate emissions and improving workplace safety. Modern wet grinding facilities incorporate closed-loop water systems that minimize freshwater consumption and prevent wastewater discharge.

Energy efficiency remains a key focus area, with advanced grinding technologies significantly reducing specific energy consumption compared to traditional methods. The integration of high-efficiency classifiers and optimized grinding media further enhances the sustainability of wet grinding operations.

Future Trends and Developments

The future of wet grinding technology for calcium carbonate is moving toward greater automation, higher energy efficiency, and enhanced product customization. Emerging trends include:

• Integration of artificial intelligence and machine learning for process optimization
• Development of nano-sized calcium carbonate through advanced grinding and classification technologies
• Increased focus on sustainable production methods and circular economy principles
• Customized surface modification techniques for specialized applications
• Hybrid grinding systems combining multiple technologies for optimal performance

As industries continue to demand higher performance materials with specific functional properties, wet grinding technology will play an increasingly important role in meeting these requirements through precise control of particle characteristics and surface properties.

Conclusion

Wet grinding represents a sophisticated and efficient approach to calcium carbonate processing, enabling the production of high-quality products with tailored properties for diverse industrial applications. The technology continues to evolve, with advanced equipment like our LM Series Vertical Roller Mill and SCM Ultrafine Mill pushing the boundaries of efficiency, product quality, and environmental performance.

As market demands for finer particles, narrower size distributions, and specialized surface properties continue to grow, wet grinding technology will remain at the forefront of calcium carbonate production, driving innovation across multiple industries and contributing to the development of advanced materials with enhanced performance characteristics.
