Vertical Slag Grinding Mill: Equipment and Concrete Application
Introduction to Slag Grinding Technology
The utilization of industrial by-products has become increasingly important in modern construction materials, with ground granulated blast furnace slag (GGBFS) representing one of the most valuable supplementary cementitious materials. Vertical slag grinding mills have emerged as the preferred technology for processing slag into high-quality powder for concrete applications. These specialized grinding systems offer significant advantages over traditional ball mills in terms of energy efficiency, product quality, and operational flexibility.
Fundamentals of Slag Grinding
Slag grinding presents unique challenges due to the material’s hardness, abrasiveness, and specific surface area requirements. The grinding process must achieve a fineness of at least 420 m²/kg while maintaining consistent particle size distribution. Vertical mills accomplish this through their unique grinding mechanism that combines compression, shear, and impact forces in a single compact unit.
Vertical Mill Technology for Slag Processing
Working Principle

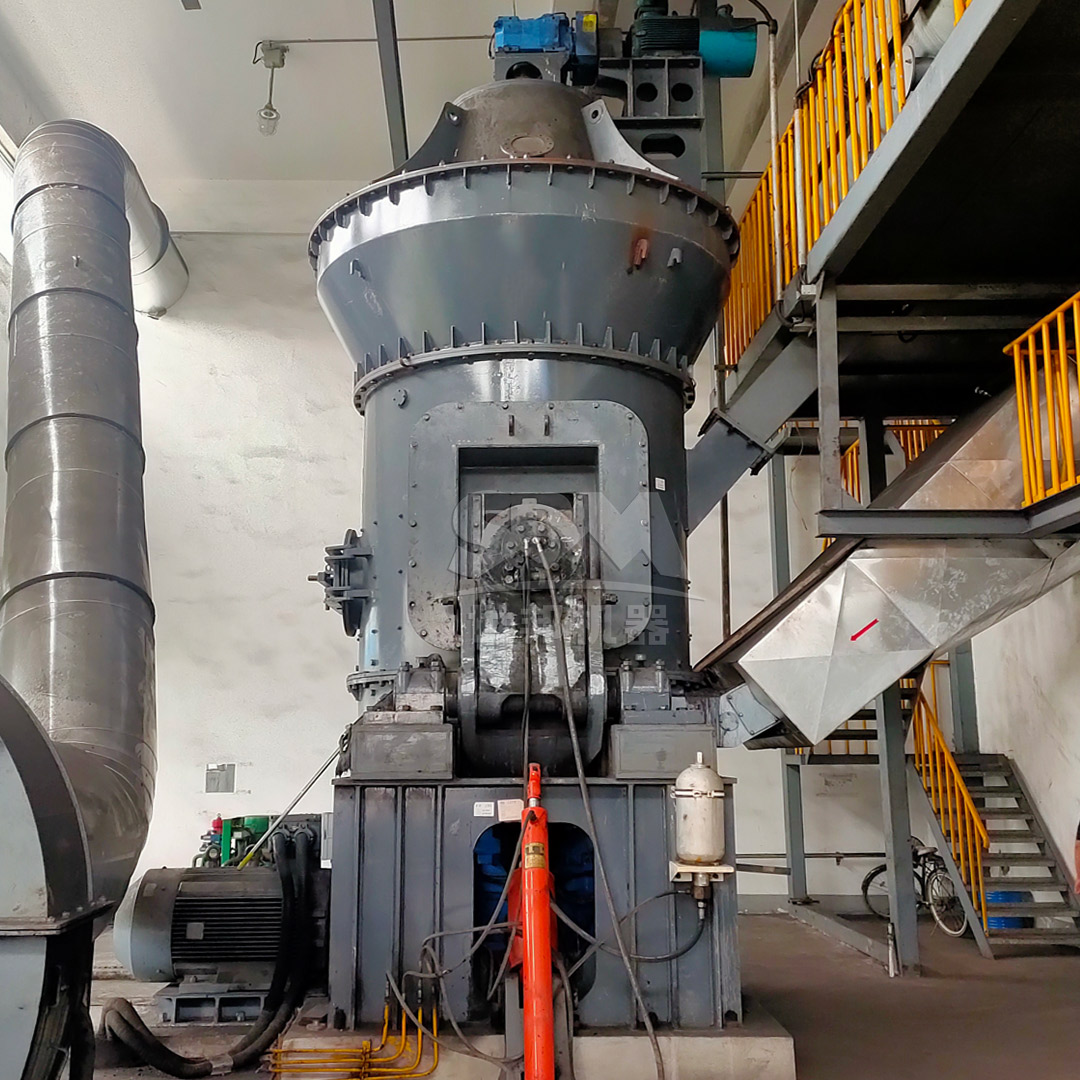

Vertical slag grinding mills operate on the principle of bed comminution, where material is ground between a rotating table and stationary rollers. The process begins with slag feed material entering the center of the grinding table. Centrifugal force distributes the material outward where it passes under the grinding rollers. Hydraulic pressure applied to the rollers creates the necessary grinding force to pulverize the slag particles.
Simultaneously, hot gas enters through the nozzle ring surrounding the grinding table, fluidizing and transporting the ground material to the integrated classifier. The classifier separates fine particles that meet the required fineness specification from coarse particles, which return to the grinding table for further processing. This closed-circuit operation ensures optimal energy utilization and consistent product quality.
Key Technological Advantages
Modern vertical slag grinding mills incorporate several advanced features that make them particularly suitable for slag processing. Their compact design integrates multiple functions including drying, grinding, classification, and conveying within a single unit. The ability to handle moist slag (up to 15% moisture content) while simultaneously drying and grinding the material represents a significant operational advantage.
Energy efficiency stands as one of the most compelling benefits, with vertical mills consuming 30-40% less energy compared to traditional ball mill systems. This efficiency stems from the direct grinding principle and the elimination of the need for ancillary equipment like bucket elevators and conveyor systems. Additionally, the low noise emission (≤80 dB) and minimal dust emission (<20 mg/m³) align with modern environmental standards.
Equipment Selection for Slag Grinding Applications
Critical Performance Parameters
Selecting the appropriate vertical mill for slag grinding requires careful consideration of several key parameters. Production capacity requirements dictate the mill size, with modern systems offering capacities ranging from 4 to 110 tons per hour. The target Blaine fineness, typically ≥420 m²/kg for slag cement applications, influences the classifier design and grinding pressure settings.
Feed material characteristics including moisture content, grindability (Bond work index ≤23 kWh/t), and chemical composition (particularly iron content ≤1%) significantly impact equipment selection and operational parameters. The mill must also accommodate variations in slag properties while maintaining consistent product quality.
Recommended Equipment: LM Series Vertical Slag Mill
For professional slag grinding operations, we recommend our LM Series Vertical Slag Mill, specifically engineered for processing granulated blast furnace slag. This specialized equipment offers several distinct advantages for slag applications:
The LM Series features a robust design with specially hardened grinding elements that withstand the abrasive nature of slag. The integrated high-efficiency classifier ensures precise particle size control, while the optimized grinding geometry maximizes energy utilization. The mill’s ability to handle high moisture content without pre-drying represents a significant operational advantage.
Our LM220N model, with its 2800mm grinding table diameter and 900-1000 kW main motor power, delivers 20-26 tons per hour of high-quality slag powder with specific surface area exceeding 420 m²/kg. For larger production requirements, the LM370N model achieves 90-110 tons per hour with a 4500mm grinding table and 3150-3300 kW power rating. All models feature advanced control systems that optimize grinding pressure, table speed, and classifier settings for maximum efficiency and product consistency.
Concrete Applications of Ground Slag
Performance Benefits in Concrete

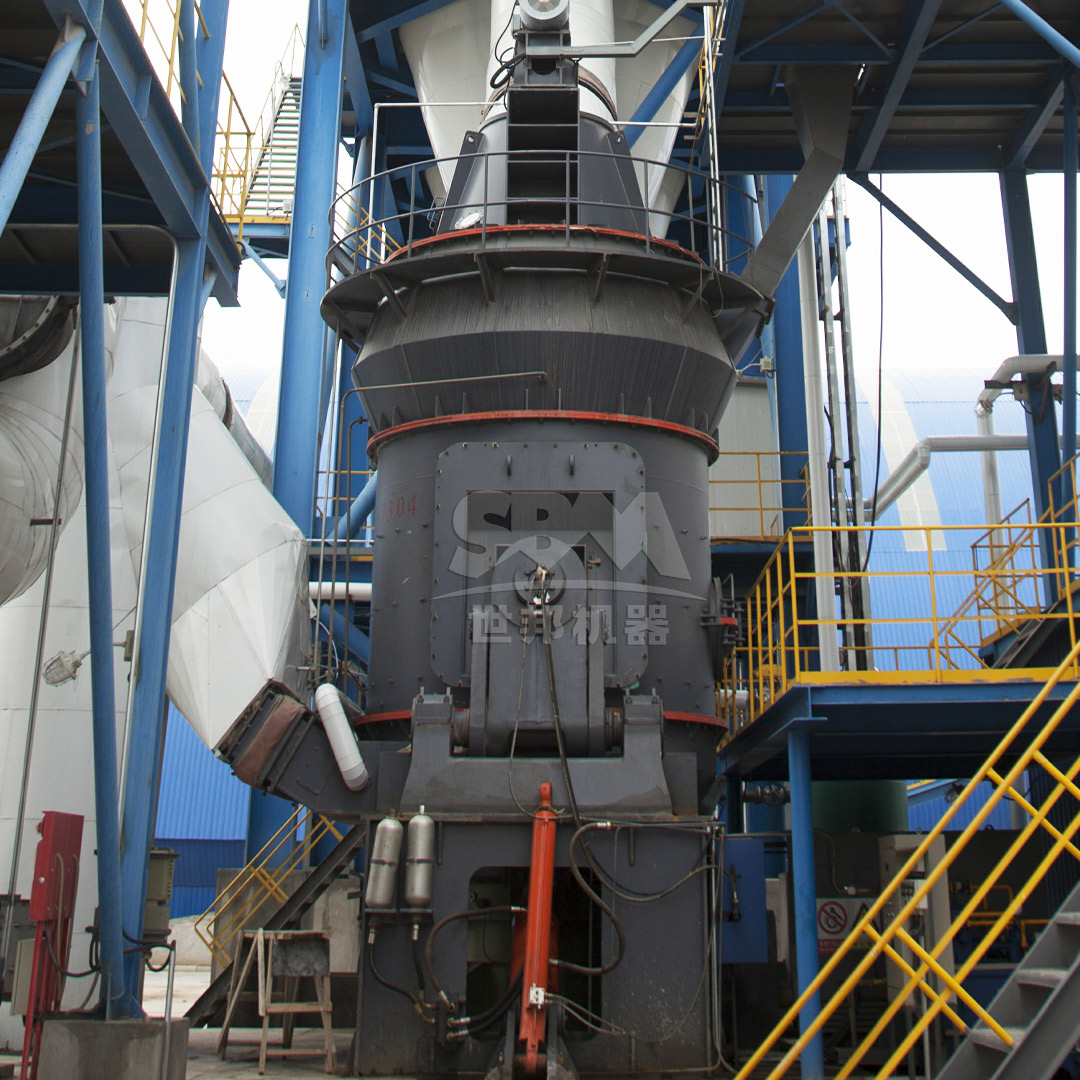

When properly ground to the appropriate fineness using vertical mills, slag develops excellent cementitious properties that significantly enhance concrete performance. The incorporation of GGBFS in concrete mixtures improves workability through the spherical particle shape and reduced water demand. This results in better pumpability and finishing characteristics, particularly in high-performance concrete applications.
The secondary hydration reaction between slag and calcium hydroxide produces additional calcium silicate hydrate (C-S-H) gel, which densifies the concrete microstructure. This refined pore structure enhances durability by reducing permeability and improving resistance to sulfate attack, chloride penetration, and alkali-silica reaction. Concrete containing slag typically demonstrates superior long-term strength development and reduced heat of hydration, making it ideal for mass concrete applications.
Optimal Replacement Levels
The performance benefits of slag in concrete depend significantly on the fineness achieved during the grinding process. Slag ground in vertical mills to 420-500 m²/kg specific surface area typically replaces 25-50% of Portland cement in concrete mixtures. Higher replacement levels up to 70% are possible in specialized applications where moderate early strength is acceptable.
The optimal replacement level depends on multiple factors including concrete performance requirements, exposure conditions, and construction schedule constraints. Our technical support team can provide specific recommendations based on project requirements and local material characteristics.
Operational Considerations for Slag Grinding Plants
System Integration and Optimization

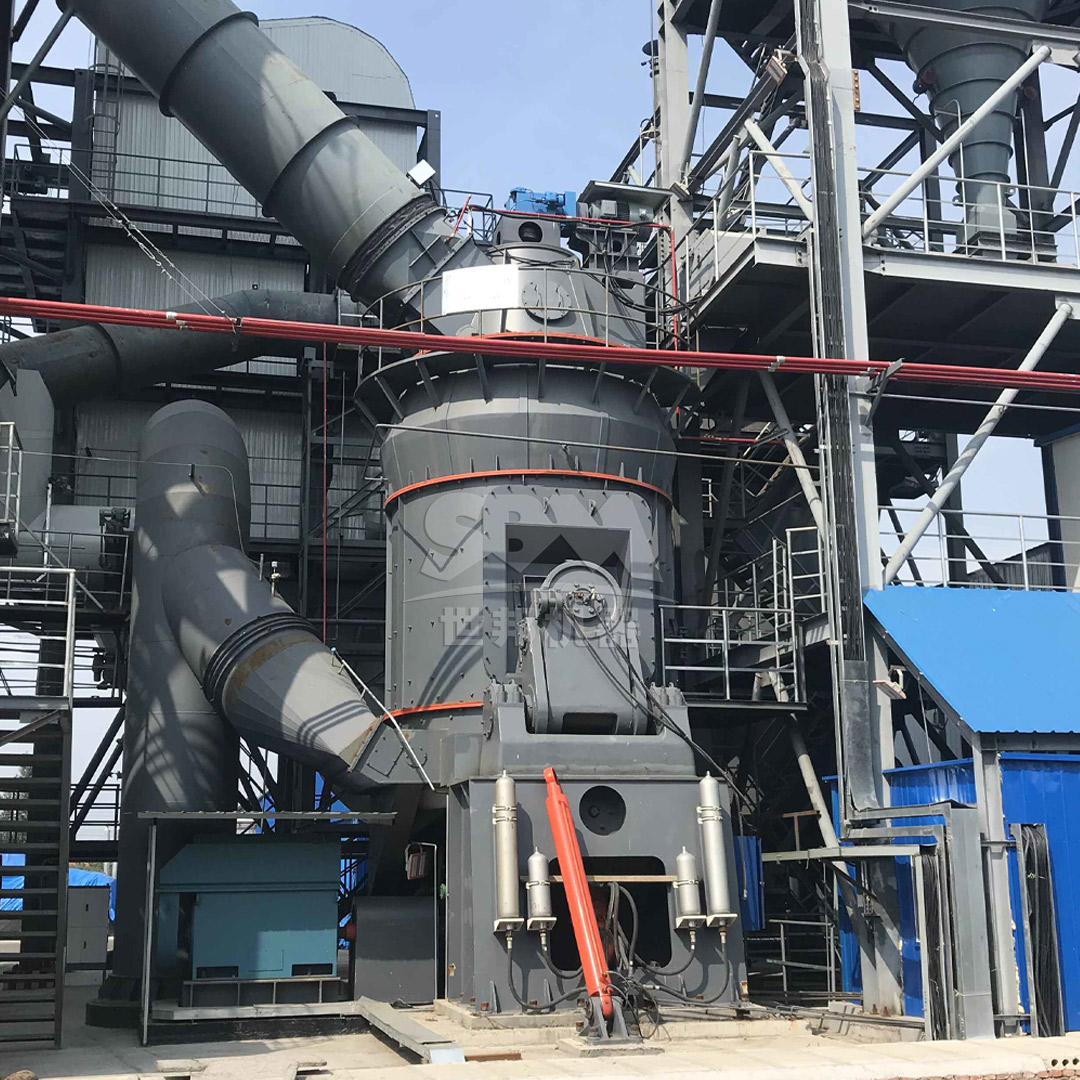

Successful slag grinding operations require careful integration of the vertical mill with auxiliary equipment including feed systems, product collection, and storage facilities. The mill system must be properly balanced to ensure stable operation and consistent product quality. This includes optimization of grinding pressure, gas flow, classifier speed, and feed rate based on real-time operational data.
Modern vertical mills incorporate advanced control systems that automatically adjust operational parameters to maintain target fineness and production rate. These systems continuously monitor power consumption, pressure differentials, and temperature profiles to optimize performance and prevent operational issues.
Alternative Solution: SCM Ultrafine Mill for Specialized Applications
For applications requiring ultra-fine slag powder with D97 ≤ 5μm (2500 mesh), we recommend our SCM Ultrafine Mill as a specialized solution. This advanced grinding system incorporates a vertical turbine classifier that achieves precise particle size control with no coarse powder contamination. The SCM series offers production capacities from 0.5 to 25 tons per hour with significantly reduced energy consumption compared to conventional ultrafine grinding systems.
The SCM1680 model, with its 315 kW main motor, delivers 5-25 tons per hour of ultra-fine slag powder, making it ideal for high-value applications where exceptional fineness and particle size distribution are critical. The mill’s intelligent control system automatically maintains target fineness through continuous feedback and adjustment of operational parameters.
Economic and Environmental Benefits
Lifecycle Cost Analysis
The economic advantages of vertical slag grinding mills extend beyond reduced energy consumption. Their compact design requires approximately 50% less space compared to ball mill systems, resulting in lower construction costs. The integrated design also reduces installation time and complexity, allowing for quicker project implementation.
Maintenance costs are significantly lower due to the extended service life of grinding components and the simplified mechanical design. Our LM Series mills feature special wear-resistant materials that provide 2-3 times longer service life compared to conventional grinding elements. The modular design of critical components enables quick replacement during planned maintenance shutdowns, minimizing production losses.
Sustainability Contributions
From an environmental perspective, vertical slag grinding mills contribute significantly to sustainable construction practices. By enabling the utilization of industrial by-products, these systems reduce the environmental impact associated with Portland cement production. The grinding process itself operates with high efficiency and minimal emissions, supporting corporate sustainability goals and regulatory compliance.
The use of slag in concrete reduces the carbon footprint of construction projects while enhancing material performance and durability. This combination of economic and environmental benefits makes vertical slag grinding technology an essential component of modern, sustainable construction materials production.
Conclusion
Vertical slag grinding mills represent the state-of-the-art in slag processing technology, offering unmatched efficiency, product quality, and operational flexibility. Their ability to transform industrial by-products into high-value construction materials supports both economic and environmental objectives in the building materials industry. As concrete technology continues to evolve toward higher performance and sustainability, the role of properly ground slag will become increasingly important.
