Utilization of Steel Slag in Building Materials: Applications and Benefits

Introduction

The global construction industry is under increasing pressure to adopt sustainable practices and reduce its environmental footprint. One promising avenue is the utilization of industrial by-products, such as steel slag, as valuable raw materials. Steel slag, a by-product of the steelmaking process, has long been considered a waste material. However, with advancements in processing technology, it is now recognized as a high-performance component in various building materials. This article explores the applications and benefits of using steel slag in construction, highlighting the critical role of advanced grinding equipment in unlocking its potential.

What is Steel Slag?

Steel slag is a calcio-silicate material generated during the separation of molten steel from impurities in steel-making furnaces. Its chemical composition is similar to that of Portland cement, primarily containing calcium oxide, silicon dioxide, iron oxides, and aluminum oxide. The physical properties of raw slag—its hardness, irregular shape, and variable size—make it challenging to process but immensely valuable once properly treated. The key to transforming this industrial byproduct into a premium construction material lies in the precision grinding process, which tailors its particle size distribution and activates its latent hydraulic properties.

Applications of Steel Slag in Building Materials

1. Steel Slag Cement and Concrete

Finely ground steel slag powder, with a high specific surface area, can be used as a supplementary cementitious material (SCM) or even as a primary component in alkali-activated cements. When milled to a fineness of 420-500 m²/kg or higher, it exhibits pozzolanic and latent hydraulic activity. Replacing 20-50% of Portland cement with such finely processed slag significantly enhances the long-term strength and durability of concrete. It improves resistance to chloride penetration, sulfate attack, and alkali-silica reaction, making it ideal for marine structures, bridges, and pavements.

2. Steel Slag Aggregates

Processed and screened steel slag is an excellent substitute for natural aggregates in asphalt concrete and road bases. Its angular shape and high bulk density provide superior mechanical interlock and bearing capacity. Roads constructed with steel slag aggregates demonstrate higher resistance to rutting and wear, leading to longer service life. Furthermore, its high friction coefficient makes it an ideal material for anti-skid surfacing applications.

3. Geotechnical Applications and Backfill

Steel slag’s excellent drainage properties and high shear strength make it suitable for geotechnical applications such as backfill for retaining walls, land reclamation, and sub-base layers. Its weight and stability provide excellent support, while its composition can help in stabilizing certain types of contaminated soils.

4. Production of Autoclaved Aerated Concrete (AAC)

The silica-rich composition of certain steel slags makes them a perfect raw material for the production of Autoclaved Aerated Concrete blocks. Finely ground slag acts as a siliceous component, reacting with lime under high-pressure steam to form strong, lightweight, and insulating building blocks.

Benefits of Utilizing Steel Slag

Environmental Sustainability

The most significant benefit is the diversion of millions of tons of industrial waste from landfills. Using slag reduces the need for quarrying virgin raw materials like limestone and gravel, thereby conserving natural resources and reducing the energy consumption and greenhouse gas emissions associated with their extraction and processing.

Enhanced Material Performance

Construction materials incorporating steel slag often outperform their conventional counterparts. Slag concrete boasts higher later-age strength and superior durability. Slag aggregates provide better stability and skid resistance. These performance enhancements lead to more resilient and longer-lasting infrastructure.

Economic Advantages

For steel plants, selling slag transforms a waste disposal cost into a revenue stream. For construction companies, slag-based materials can be a cost-effective alternative, especially when natural resources are scarce or expensive. The overall reduction in life-cycle costs of structures due to increased durability presents a compelling economic case.

The Critical Role of Grinding Technology: Introducing Our SCM Ultrafine Mill

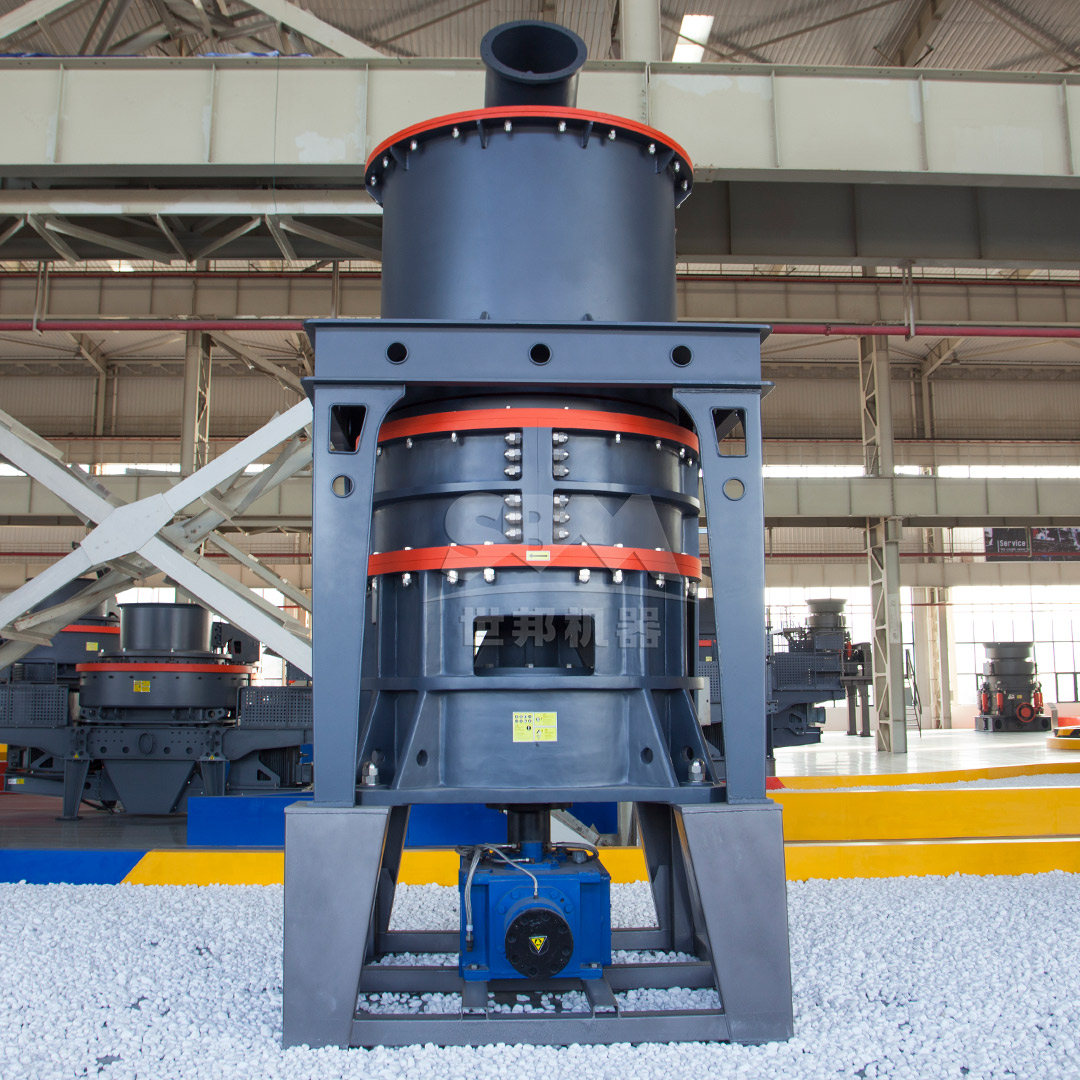

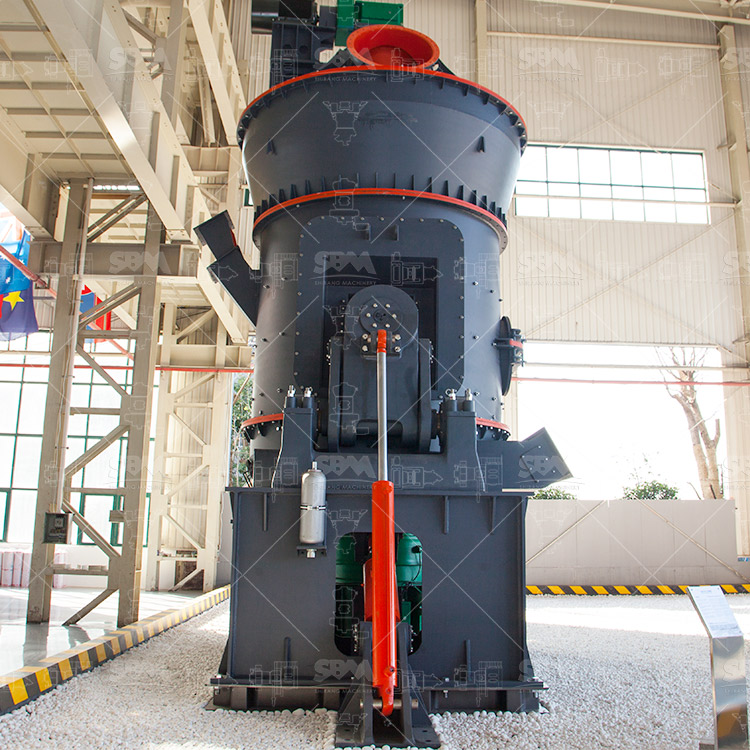

The transformation of coarse, inactive steel slag into a highly reactive powder is the cornerstone of its value addition. This process demands robust, precise, and efficient grinding technology. Our SCM Series Ultrafine Mill is engineered specifically for such high-performance mineral processing applications.

This mill excels in producing the ultra-fine powders required to activate the cementitious properties of steel slag. With an output fineness ranging from 325 to 2500 mesh (D97 ≤ 5μm), it can achieve the specific surface area crucial for optimal reactivity in cement blends. Its processing capacity of 0.5-25 tons per hour caters to various production scales, from pilot projects to large industrial operations.

The technical advantages of the SCM Mill make it ideal for slag processing:

• Efficient & Energy-Saving: It offers twice the capacity of jet mills while reducing energy consumption by 30%, significantly lowering the operational cost of slag valorization.
• High-Precision Classification: The integrated vertical turbo classifier ensures a sharp particle size cut, producing a uniform product without coarse grit contamination, which is vital for high-quality SCMs.
• Durable Design: Special alloy rollers and grinding rings are designed to withstand the abrasive nature of steel slag, extending service life and reducing maintenance downtime.
• Environmental Compliance: The pulse dust collection system exceeds international standards, ensuring a clean production process with minimal environmental impact.

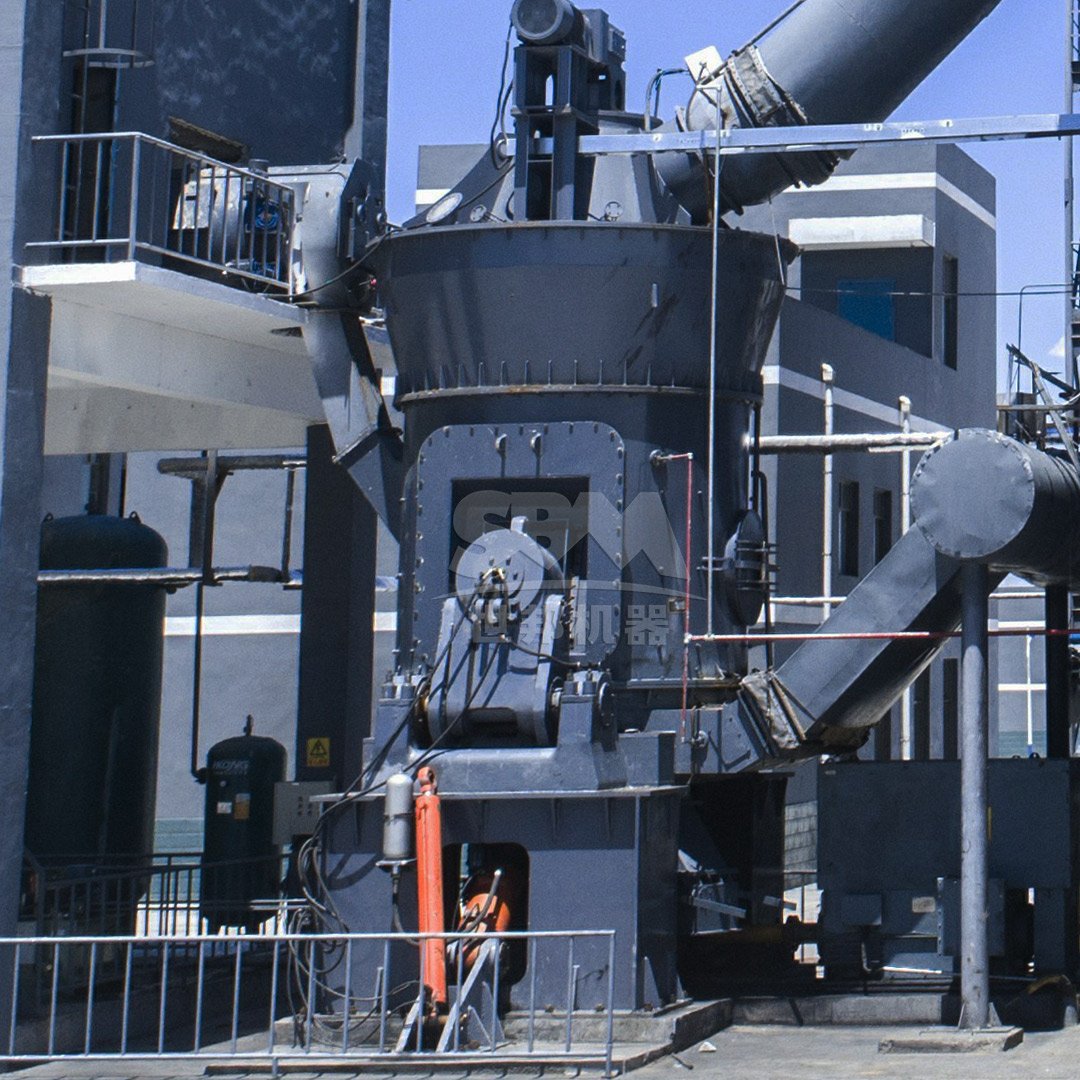

For larger feed sizes and high-capacity production requirements in initial crushing stages, our MTW Series Trapezium Mill serves as an excellent primary size reduction solution. It handles input sizes up to 50mm with a capacity of 3-45 tons per hour, effectively preparing the slag for subsequent ultra-fine grinding in the SCM Mill. Its wear-resistant design and high transmission efficiency make it a reliable workhorse for tough materials like slag.

Challenges and Considerations

Despite its benefits, utilizing steel slag is not without challenges. Volume expansion due to the presence of free lime and magnesia must be managed through aging (weathering) or treatment processes. Consistent chemical composition from the source is crucial for producing reliable building materials. Furthermore, comprehensive leaching tests must be conducted to ensure the final product is environmentally safe. Advanced processing systems, like those mentioned above, are essential in mitigating these risks by ensuring a consistent and stable final product.

Conclusion

The utilization of steel slag in building materials represents a perfect synergy between industrial ecology and sustainable construction. It offers a pathway to reduce environmental pollution, conserve natural resources, and enhance the performance of construction materials. The full realization of this potential is intrinsically linked to advanced processing technologies. Grinding equipment, particularly ultra-fine mills like our SCM Series, is the key that unlocks the latent value within this industrial byproduct, transforming it from a waste management headache into a high-value, sustainable resource for the future of building.
