Utilization Methods of Laterite Nickel Smelting Slag: Sustainable Applications and Recycling
Introduction
Laterite nickel smelting has become a crucial process in the global nickel industry, generating substantial amounts of slag as a byproduct. With increasing environmental concerns and the push toward circular economy principles, the sustainable management and utilization of this slag have gained significant attention. This comprehensive analysis explores the current state and future potential of laterite nickel slag utilization, focusing on innovative recycling methods that transform this industrial waste into valuable resources.
Chemical and Physical Characteristics of Laterite Nickel Slag
Laterite nickel slag typically contains various metal oxides, including silica, iron oxide, magnesium oxide, and residual nickel. The chemical composition varies depending on the smelting process and ore characteristics, but generally consists of 35-45% SiO₂, 25-35% FeO, 10-20% MgO, and 2-8% Al₂O₃. The physical properties include a granular structure with particle sizes ranging from coarse aggregates to fine powders, presenting both challenges and opportunities for recycling applications.
The amorphous glassy phase in the slag, resulting from rapid cooling during smelting, contributes to its potential pozzolanic activity when finely ground. This characteristic makes it suitable for construction applications, particularly as a supplementary cementitious material in concrete production.
Current Utilization Methods
Construction and Building Materials
The construction industry represents the largest consumer of recycled nickel slag. When properly processed, the slag can be used as aggregate in concrete, road base materials, and cement production. The hardness and angular shape of slag particles provide excellent mechanical properties in concrete mixtures, while the pozzolanic activity contributes to long-term strength development.

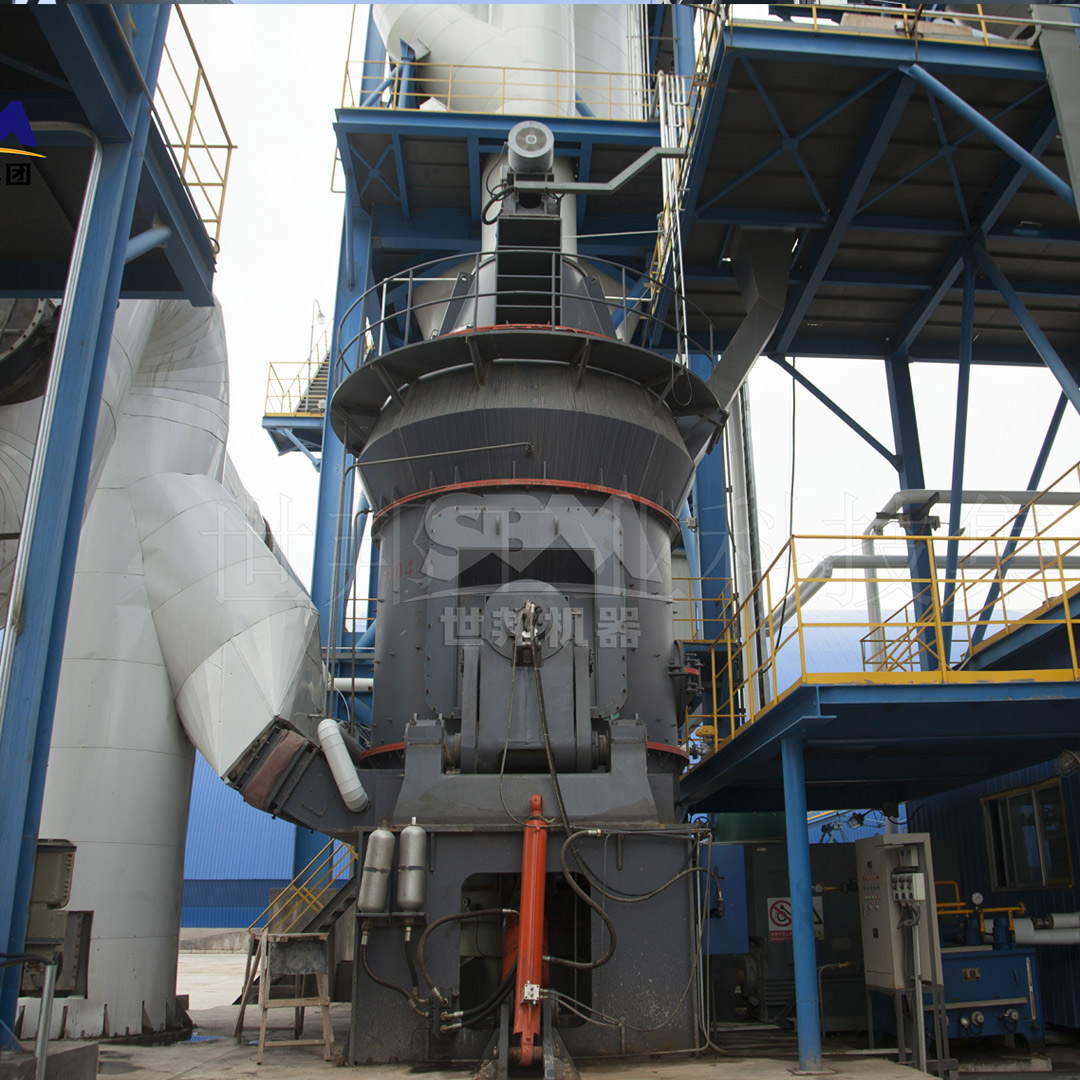

For optimal performance in construction applications, the slag requires precise grinding to achieve the necessary fineness and particle size distribution. Our SCM Ultrafine Mill series offers exceptional capabilities for processing nickel slag to the required specifications. With output fineness ranging from 325-2500 mesh (D97≤5μm) and processing capacity of 0.5-25 tons per hour, this equipment ensures consistent quality for high-value construction applications. The vertical turbine classifier provides precise particle size control, while the energy-efficient design reduces operational costs by 30% compared to conventional grinding systems.
Agricultural Applications
Research has demonstrated the potential of nickel slag in agricultural soil amendment. The slag contains essential micronutrients such as iron, magnesium, and silicon, which can improve soil fertility and crop yield. However, careful processing and quality control are necessary to ensure that heavy metal concentrations remain within safe limits for agricultural use.
Metal Recovery
Advanced extraction technologies enable the recovery of residual nickel, cobalt, and iron from the slag. Hydrometallurgical processes, including acid leaching and solvent extraction, can recover up to 80% of the remaining metals, improving the overall economics of nickel production while reducing waste generation.
Advanced Recycling Technologies
Mechanical Activation and Grinding

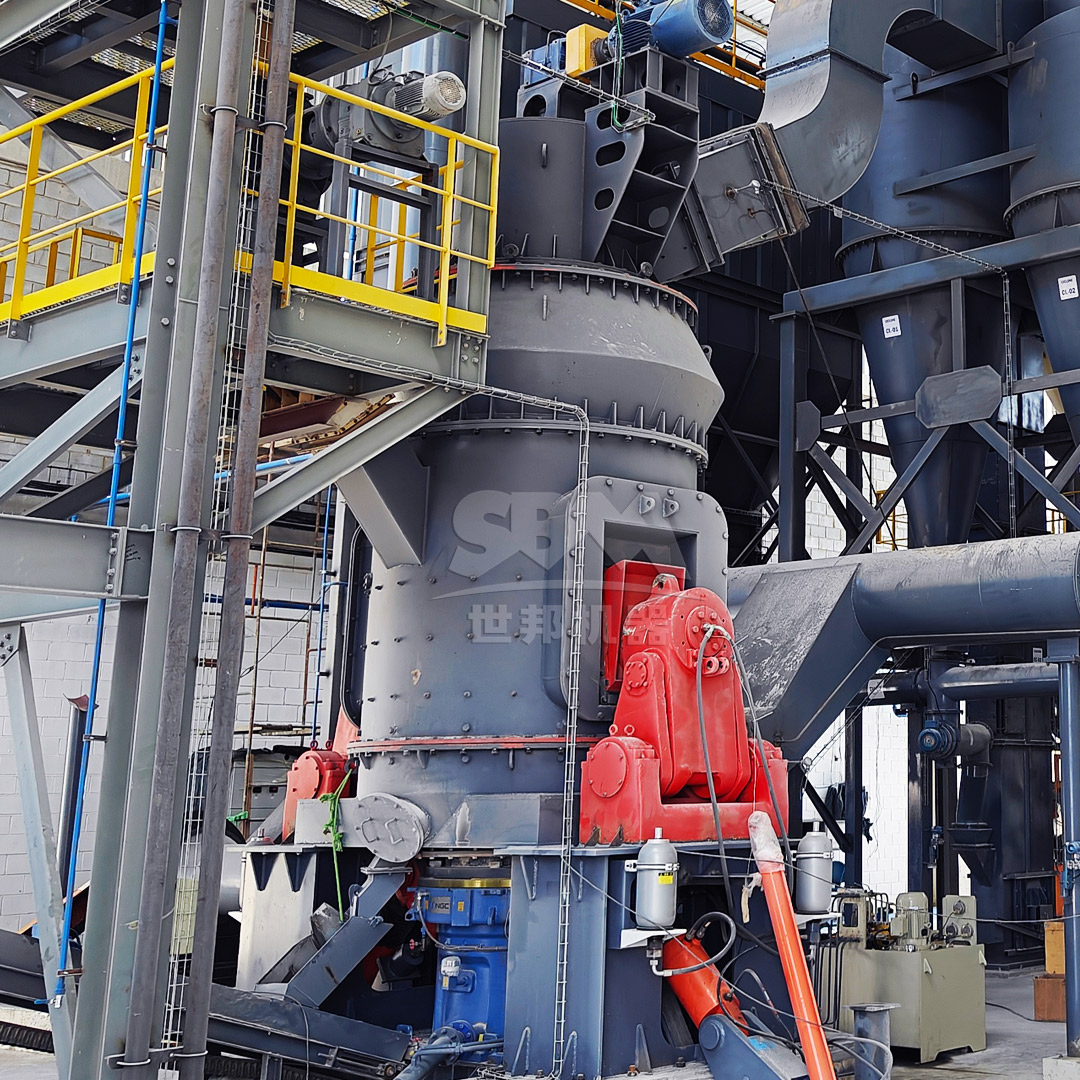

Mechanical activation through fine grinding significantly enhances the reactivity of nickel slag. The increased surface area and structural defects created during grinding improve the slag’s hydraulic and pozzolanic properties. For large-scale operations requiring high throughput, our MTW Series Trapezium Mill provides an optimal solution. With processing capacity ranging from 3-45 tons per hour and output fineness of 30-325 mesh, this equipment features innovative wear-resistant shovel design and curved air channel optimization that reduce maintenance costs by 30% while ensuring consistent product quality.
The grinding process parameters must be carefully controlled to achieve the desired particle size distribution while minimizing energy consumption. Modern grinding systems incorporate intelligent control systems that automatically adjust operational parameters based on real-time feedback, optimizing both product quality and energy efficiency.
Thermal Treatment and Mineral Modification
Controlled thermal treatment can modify the mineral composition and microstructure of nickel slag, enhancing its suitability for specific applications. Heat treatment at temperatures between 800°C and 1200°C can promote crystallization or convert amorphous phases into more reactive forms, depending on the intended use.
Chemical Activation
Chemical activators, including alkaline compounds and sulfate-based additives, can significantly improve the binding properties of nickel slag. These activators promote the dissolution of silicate and aluminate phases, facilitating the formation of cementitious compounds similar to those in Portland cement.
Environmental Considerations and Life Cycle Assessment
The environmental benefits of nickel slag utilization extend beyond waste reduction. Life cycle assessment studies demonstrate that using slag as a cement replacement can reduce CO₂ emissions by 30-40% compared to conventional cement production. Additionally, proper slag utilization minimizes the need for landfill space and reduces the environmental footprint of nickel production.
However, environmental considerations must include comprehensive leaching tests to ensure that heavy metals and other potentially harmful elements are effectively immobilized in the final products. Regulatory frameworks in most jurisdictions require extensive testing and certification before slag-derived products can be commercially deployed.
Economic Viability and Market Potential
The economic viability of nickel slag utilization depends on multiple factors, including processing costs, transportation, market demand for recycled products, and regulatory requirements. Current market trends indicate growing demand for sustainable construction materials, creating opportunities for value-added slag products. The global market for supplementary cementitious materials is projected to reach $25 billion by 2027, with industrial byproducts like nickel slag capturing an increasing market share.
Case Studies and Industrial Applications
Case Study 1: Cement Industry Integration
A nickel smelter in Southeast Asia successfully integrated slag grinding facilities into their operations, producing high-quality supplementary cementitious material for the local construction industry. The project achieved a 85% utilization rate of generated slag, significantly reducing waste management costs while creating a new revenue stream.
Case Study 2: Road Construction Application
In Australia, processed nickel slag has been used as aggregate in road base construction, demonstrating superior performance compared to conventional materials. The project documented improved mechanical properties and reduced maintenance requirements over a five-year monitoring period.
Future Perspectives and Research Directions
Future research should focus on developing more efficient processing technologies, exploring novel applications, and improving the understanding of long-term performance and environmental behavior. Emerging areas include the use of nickel slag in geopolymer concrete, advanced ceramics, and wastewater treatment applications. Additionally, digitalization and Industry 4.0 technologies offer opportunities for optimizing slag processing operations through real-time monitoring and predictive maintenance.
Conclusion
The utilization of laterite nickel smelting slag represents a significant opportunity for the nickel industry to transition toward more sustainable and circular practices. With appropriate processing technologies and quality control measures, this industrial byproduct can be transformed into valuable materials for construction, agriculture, and other applications. The continued development of efficient grinding and activation technologies, such as our SCM Ultrafine Mill and MTW Series Trapezium Mill, will play a crucial role in enabling high-value applications while ensuring economic viability and environmental compliance. As regulatory pressures increase and market demand for sustainable materials grows, comprehensive slag utilization strategies will become increasingly important for the long-term sustainability of the nickel industry.
