Upcycling Waste Glass: How Glass Powder from Grinding Machines Enhances Concrete

Introduction: The Challenge of Waste Glass and the Opportunity in Concrete

The global construction industry is under increasing pressure to adopt sustainable practices and reduce its environmental footprint. One significant challenge is the vast amount of waste glass generated annually, much of which ends up in landfills. Concurrently, concrete, the world’s most consumed material after water, has a high carbon footprint primarily due to its cement content. This article explores a synergistic solution: upcycling waste glass into a finely ground powder, known as glass powder (GP), to serve as a supplementary cementitious material (SCM) in concrete. This process not only diverts waste from landfills but also enhances the performance and sustainability of concrete, and it all begins with the critical step of efficient and precise grinding.

The transformation of waste glass into a valuable resource is made possible by advanced grinding technology. The process requires machinery capable of reducing post-consumer and post-industrial glass to a very fine, consistent powder with specific particle size distributions. This is where the role of high-performance grinding equipment becomes paramount.

The Science Behind Glass Powder in Concrete

When mixed into concrete, glass powder contributes through two primary mechanisms: the filler effect and the pozzolanic reaction.

The Filler Effect: Ultra-fine glass particles, typically those below 45 micrometers (325 mesh), can fill the microscopic voids between cement grains. This densifies the concrete’s microstructure, leading to reduced permeability and increased compressive strength over time.

The Pozzolanic Reaction: Glass is primarily composed of silica (SiO₂). When ground finely enough, this silica becomes reactive. In the high-pH environment of hydrating cement, the silica in GP reacts with calcium hydroxide (a byproduct of cement hydration) to form additional calcium-silicate-hydrate (C-S-H) gel. This is the same compound that provides cement with its binding strength. This reaction enhances long-term strength and durability while reducing the concrete’s susceptibility to harmful chemical attacks like alkali-silica reaction (ASR), a common concern when using coarse glass aggregates.

The efficacy of these mechanisms is entirely dependent on the fineness and particle shape of the glass powder. This underscores the necessity for grinding technology that can deliver a product with precise and consistent specifications.

Key Requirements for Grinding Waste Glass

Not all grinding machines are suitable for processing waste glass into a high-value SCM. The ideal equipment must meet several critical criteria:

• High Fineness & Precise Classification: The target fineness for reactive glass powder is often between 325 mesh (45μm) and 2500 mesh (5μm). The machine must have an integrated, high-efficiency classifier to ensure no oversized particles contaminate the final product.
• Wear Resistance: Glass is highly abrasive. Grinding components like rollers, rings, and liners must be manufactured from special, hardened alloys to withstand wear and maintain consistent output over long operational periods.
• Energy Efficiency: The goal of sustainability is undermined if the grinding process itself is energy-intensive. Modern mills are designed to maximize throughput while minimizing power consumption.
• Environmental Control: The system must be fully enclosed with an effective pulse-jet baghouse dust collector to prevent silica dust from escaping, ensuring a clean and safe working environment and complying with air quality standards.

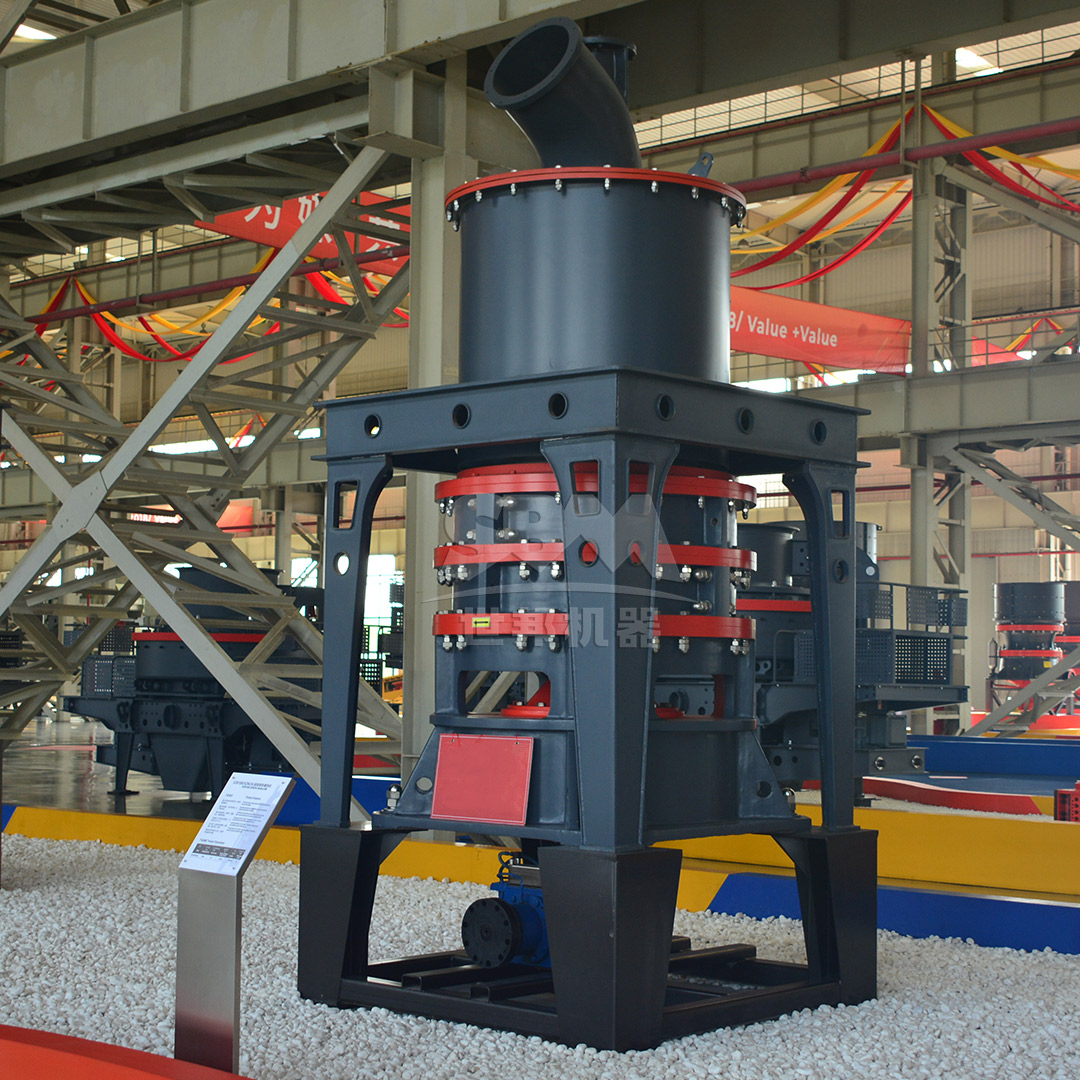

Recommended Grinding Solution: The SCM Ultrafine Mill

For producing the highest quality glass powder suitable for enhancing concrete, our SCM Series Ultrafine Mill is the industry-leading solution. Engineered specifically for producing micron and sub-micron level powders, the SCM Mill is perfectly suited for the demands of glass recycling.

Its core parameters align perfectly with the needs of this application:

• Input Size: ≤20mm (handles crushed glass cullet easily)
• Output Fineness: 325-2500 mesh (D97 ≤ 5μm) – precisely the range needed for optimal pozzolanic reactivity.
• Processing Capacity: 0.5-25 ton/h, offering scalability from pilot projects to large-scale industrial production.

The technical advantages of the SCM Ultrafine Mill make it exceptionally effective:

• Efficient & Energy-Saving: It offers twice the capacity of jet mills while reducing energy consumption by 30%, making the recycling process economically and environmentally viable.
• High-Precision Classification: Its vertical turbine classifier ensures sharp particle size cuts and delivers a uniformly fine product with no coarse grit, which is critical for preventing ASR and ensuring consistent concrete performance.
• Durable Design: Special alloy roller and ring assemblies offer a service life several times longer than standard components, directly countering the abrasive nature of glass. Its bearingless screw grinding chamber ensures stable, vibration-free operation.
• Environmental & Low-Noise: With a pulse dust collector exceeding international standards and soundproofing that keeps noise levels below 75dB, it operates as a clean and neighbor-friendly system.

The SCM800 to SCM1680 models provide a wide range of options to match any production requirement, ensuring every operation, from a dedicated glass recycling facility to a ready-mix concrete producer, can find a suitable model.

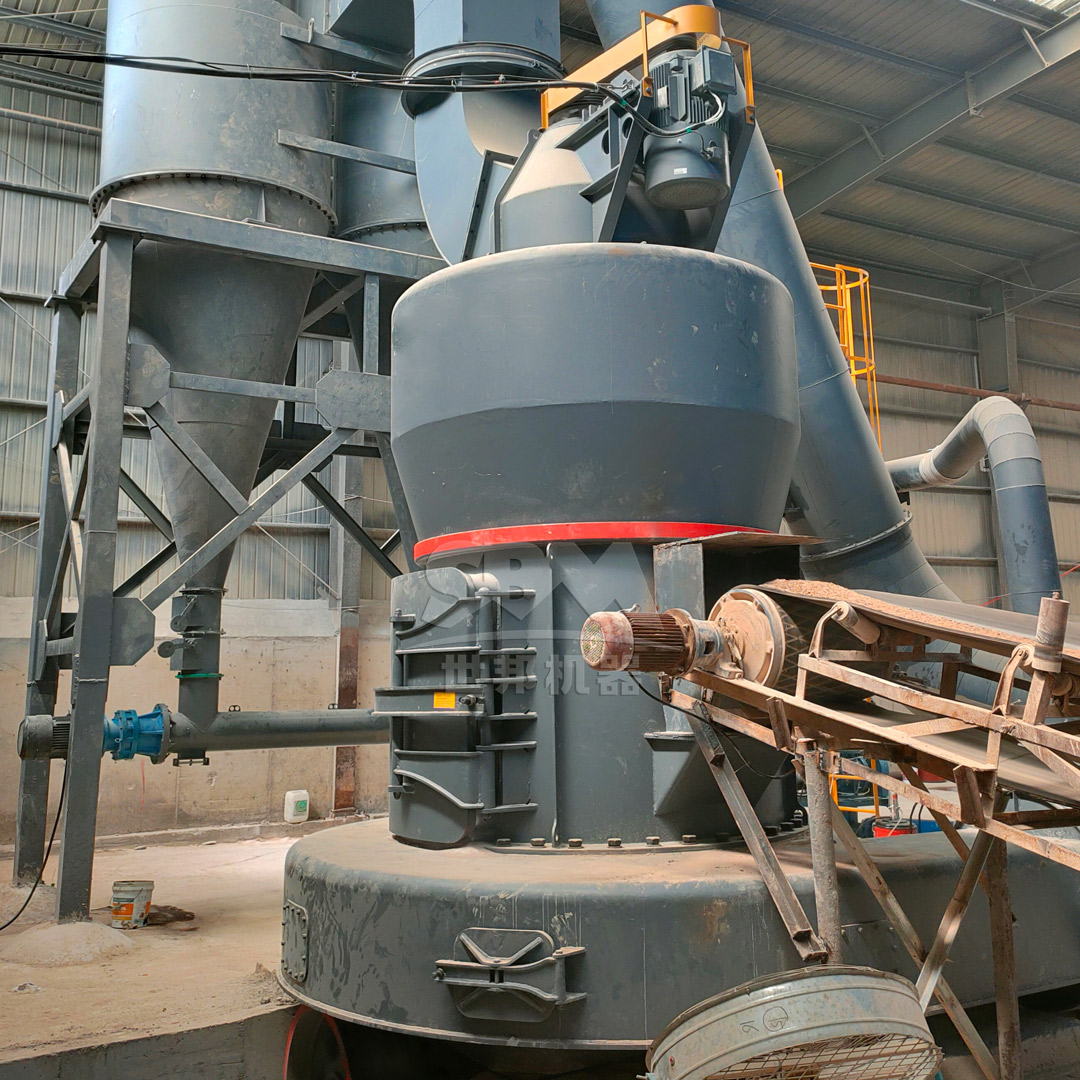

Alternative Solution: The MTW Series Trapezium Mill

For applications where the target fineness is slightly coarser or where a robust, high-capacity system is the priority, our MTW Series Trapezium Mill presents an excellent alternative. This mill is a workhorse designed for heavy-duty grinding with exceptional reliability.

Its key features include:

• Input Size: ≤50mm, allowing for larger feed size of glass cullet.
• Output Fineness: 30-325 mesh (can be adjusted down to 0.038mm).
• Processing Capacity: 3-45 tons/hour, ideal for very high-volume processing needs.

The MTW Series is renowned for its innovative and durable design, such as its wear-resistant combined shovel blades, curved air duct for reduced energy loss, and integral geared central transmission for high efficiency. Its sturdy construction makes it ideal for continuous, 24/7 operation in demanding recycling environments. Models like the MTW215G can process up to 45 tons per hour, making it one of the highest-capacity options on the market for preparing glass powder.

The Beneficial Impacts on Concrete Properties

Incorporating glass powder from these advanced grinders into concrete mixes leads to measurable improvements:

• Enhanced Strength: The pozzolanic reaction contributes to a continuous gain in compressive and flexural strength beyond 28 days, often surpassing the performance of plain cement concrete at later ages.
• Improved Durability: The densified microstructure significantly lowers permeability, making the concrete more resistant to water ingress, chloride ion penetration (which causes rebar corrosion), and sulfate attack.
• Mitigation of ASR: When used in sufficient quantities (typically 20-30% cement replacement by weight), the finely ground glass powder effectively suppresses the destructive alkali-silica reaction.
• Sustainability Benefits: Every ton of cement replaced by glass powder reduces CO₂ emissions by approximately one ton. It also conserves natural resources and diverts waste from landfills.

Conclusion: Building a Sustainable Future with Advanced Technology

The upcycling of waste glass into a performance-enhancing additive for concrete represents a perfect example of a circular economy in action. This process transforms an environmental liability into a valuable commodity, simultaneously addressing waste management and sustainable construction challenges. The success of this transformation hinges entirely on the ability to produce a consistently high-quality glass powder, a task that demands robust, precise, and efficient grinding technology.

Our SCM Series Ultrafine Mill and MTW Series Trapezium Mill are engineered to meet this demand head-on. By investing in the right grinding equipment, recyclers and concrete producers can not only improve their environmental credentials but also create a superior product that meets the evolving demands of the modern construction industry. The path to greener, stronger, and more durable concrete is paved with finely ground glass.
