Ultrafine Graphite Processing Technology and Equipment for Superfine Grinding

Introduction to Ultrafine Graphite Processing

Ultrafine graphite powder has become increasingly important in various industrial applications, including lithium-ion batteries, conductive coatings, lubricants, and advanced composite materials. The production of high-quality ultrafine graphite requires specialized grinding technology and equipment capable of achieving precise particle size distribution while maintaining the material’s crystalline structure and properties. This article explores the latest advancements in ultrafine graphite processing technology and introduces cutting-edge equipment solutions for superfine grinding applications.

Technical Challenges in Ultrafine Graphite Grinding

Processing graphite to ultrafine specifications presents several significant challenges that must be addressed through advanced equipment design and operational parameters. The layered structure of graphite makes it prone to delamination rather than proper fracturing during grinding. Additionally, graphite’s natural lubricity can cause processing issues, while its electrical conductivity requires special consideration in electrostatic separation systems. Maintaining consistent particle size distribution below 5μm while preserving the material’s essential properties demands sophisticated grinding and classification systems.

Traditional grinding methods often result in excessive contamination, irregular particle shapes, and broad size distributions that fail to meet the stringent requirements of advanced applications. Furthermore, energy consumption becomes a critical factor when targeting sub-micron particle sizes, making efficiency a primary consideration in equipment selection.

Advanced Grinding Technologies for Graphite

Mechanical Grinding Approaches

Modern mechanical grinding systems for ultrafine graphite employ multiple technological innovations to overcome the material’s unique challenges. High-pressure grinding rolls (HPGR) create inter-particle comminution through compressive forces, which is particularly effective for graphite’s layered structure. Stirred media mills utilize high-energy density through rotating impellers and small grinding media, enabling efficient reduction to sub-micron sizes while minimizing contamination.

Planetary ball mills provide high-energy impacts through the Coriolis forces generated by rotating jars, offering another effective approach for graphite refinement. Each of these mechanical methods must be carefully optimized for graphite’s specific characteristics to achieve the desired balance between particle size reduction and preservation of material properties.

Classification and Separation Technologies

Advanced classification systems are equally critical to ultrafine graphite production. Turbo classifiers employ rotating blades to generate precise cut points through balanced centrifugal and drag forces. These systems enable tight control over particle size distribution, essential for applications requiring specific surface area characteristics.

Air classifiers utilize airflow patterns to separate particles according to size and density, while electrostatic separators leverage graphite’s conductivity to remove impurities and ensure product purity. Modern classification systems often incorporate multiple stages to achieve the narrow particle distributions required for premium graphite products.

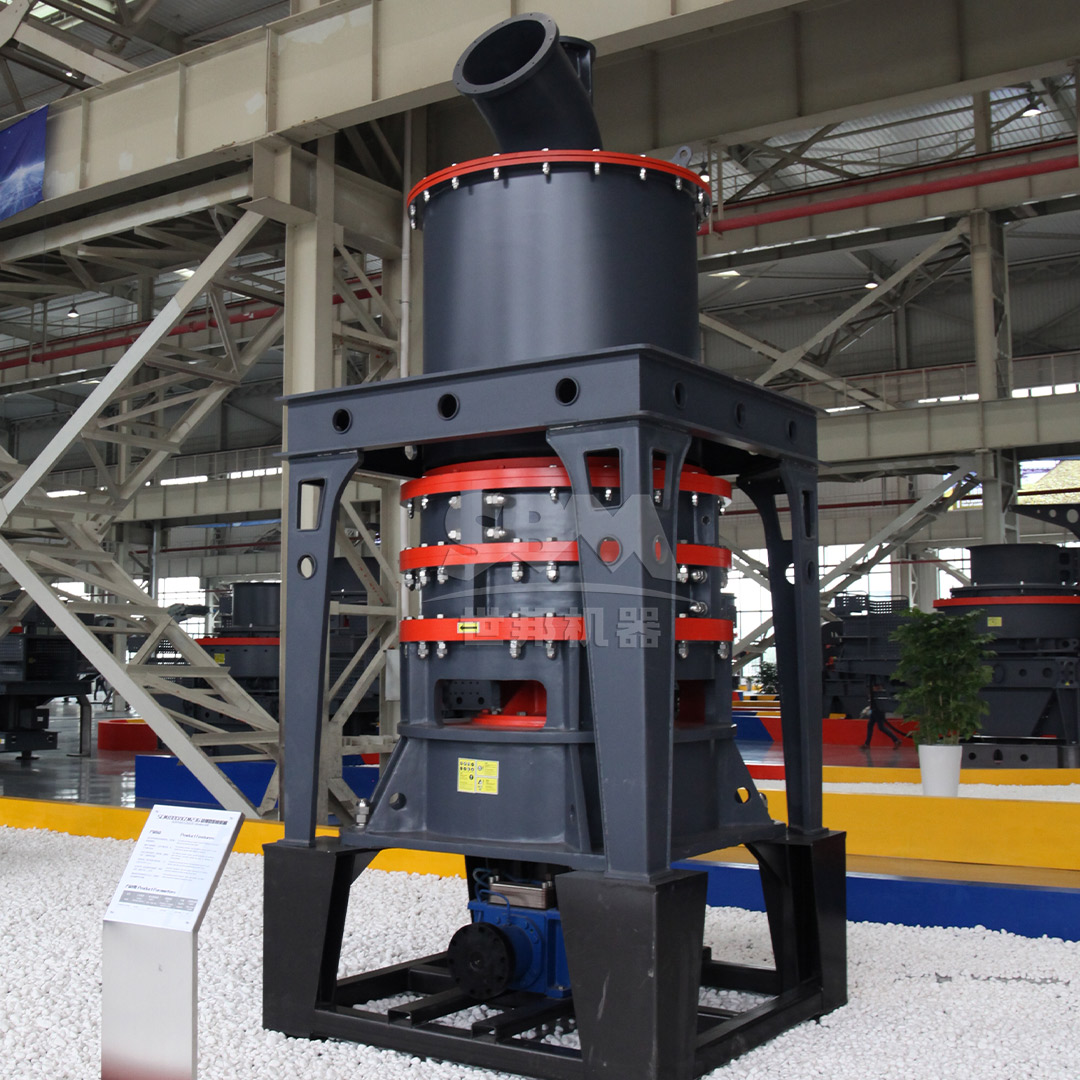

SCM Series Ultrafine Mill: Optimal Solution for Ultrafine Graphite

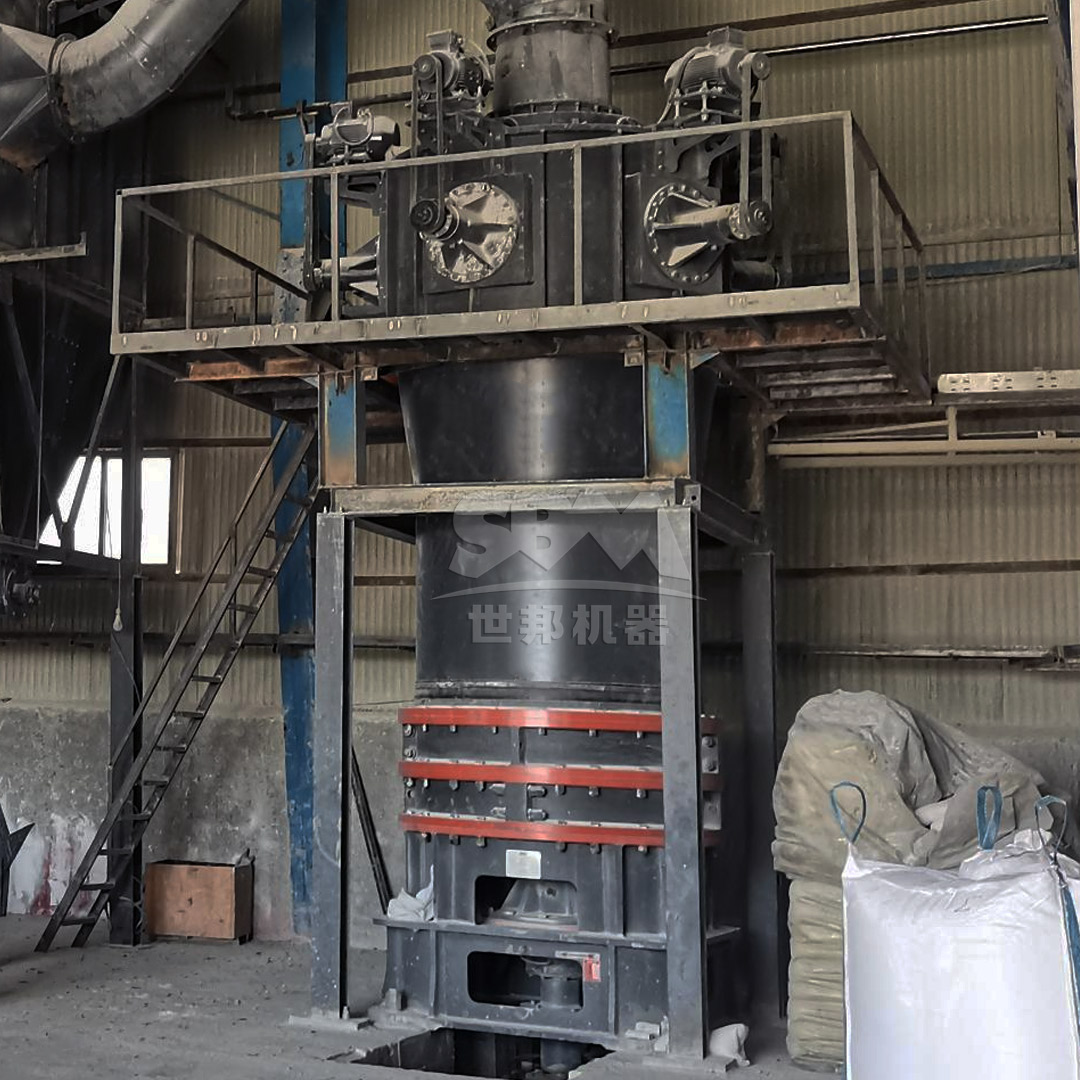

For operations requiring the highest level of fineness in graphite processing, the SCM Series Ultrafine Mill represents a technological breakthrough. This advanced grinding system is specifically engineered to handle the unique challenges of ultrafine graphite production, offering exceptional performance in the 325-2500 mesh range (D97≤5μm).

The SCM Ultrafine Mill incorporates several innovative features that make it particularly suitable for graphite applications. Its vertical turbine classifier enables precise particle size control, ensuring consistent product quality with no coarse powder contamination. The special material composition of grinding rollers and rings provides extended service life—critical when processing abrasive materials—while the bearing-free screw grinding chamber design ensures stable operation and minimal maintenance requirements.

From an efficiency perspective, the SCM Series demonstrates remarkable performance characteristics, delivering up to twice the capacity of jet mills while reducing energy consumption by 30%. The intelligent control system automatically monitors and adjusts for optimal product fineness, while the comprehensive dust collection system exceeds international environmental standards with noise levels maintained below 75dB.

Technical Specifications and Model Selection

The SCM Series offers multiple configurations to match specific production requirements:

• SCM800: Processing capacity 0.5-4.5 ton/h, main motor power 75kW
• SCM900: Processing capacity 0.8-6.5 ton/h, main motor power 90kW
• SCM1000: Processing capacity 1.0-8.5 ton/h, main motor power 132kW
• SCM1250: Processing capacity 2.5-14 ton/h, main motor power 185kW
• SCM1680: Processing capacity 5.0-25 ton/h, main motor power 315kW

All models accept feed material up to 20mm and produce finished product in the 325-2500 mesh range, making the SCM Series ideally suited for high-value graphite applications where precise particle size control is essential.

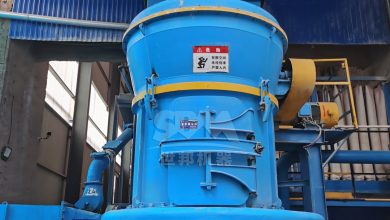

MTW Series Trapezium Mill for Intermediate Grinding Applications

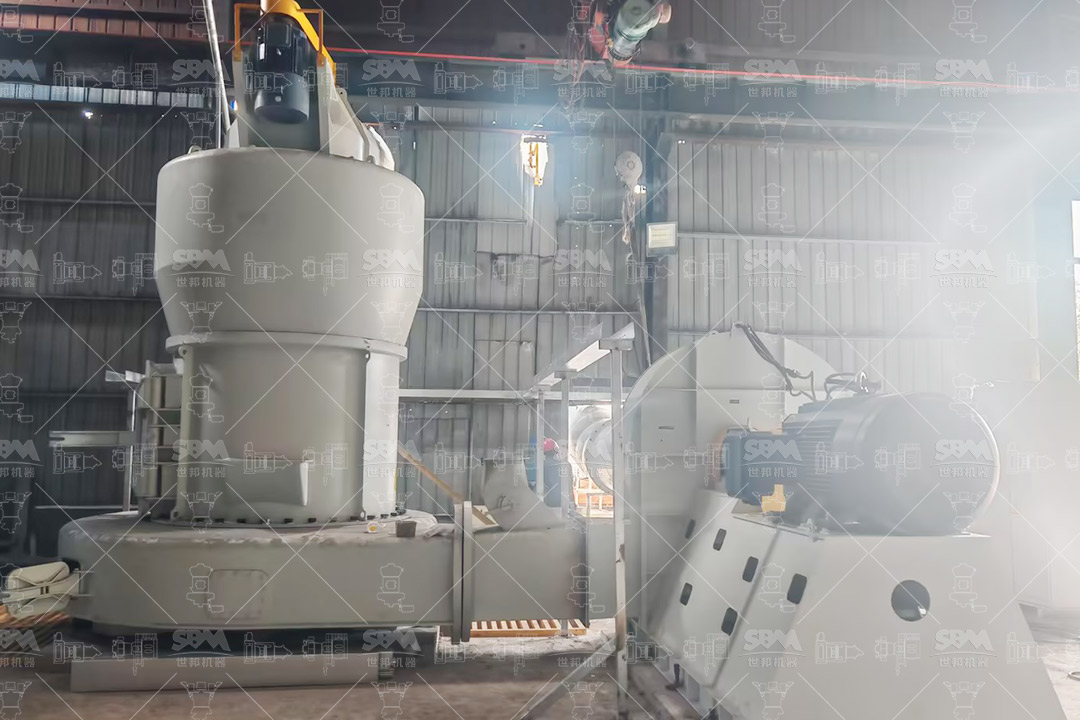

For operations requiring processing in the 30-325 mesh range, the MTW Series Trapezium Mill offers an excellent balance of performance, efficiency, and reliability. This European-style grinding mill incorporates multiple technological innovations that make it particularly suitable for graphite processing at intermediate fineness levels.

The MTW Series features several distinctive advantages for graphite applications. Its wear-resistant shovel design incorporates replaceable segments that significantly reduce maintenance costs, while the curved surface geometry extends roller service life. The optimized curved air channel minimizes energy losses during material transport, and the integrated cone gear transmission achieves remarkable 98% efficiency while saving installation space.

The durable snail shell structure eliminates flow resistance to enhance air classification efficiency, contributing to a 30% reduction in maintenance requirements. These features combine to create a grinding system that delivers consistent performance for graphite processing across a wide range of fineness requirements.

MTW Series Configuration Options

The MTW Series is available in multiple configurations to match specific production needs:

• MTW110: Processing capacity 3-9 ton/h, main motor power 55kW
• MTW138Z: Processing capacity 6-17 ton/h, main motor power 90kW
• MTW175G: Processing capacity 9.5-25 ton/h, main motor power 160kW
• MTW215G: Processing capacity 15-45 ton/h, main motor power 280kW

With maximum feed size of 50mm and output fineness adjustable from 30-325 mesh (down to 0.038mm), the MTW Series provides versatile processing capabilities for graphite operations requiring flexible production parameters.

Process Optimization for Graphite Grinding

Feed Material Preparation

Successful ultrafine graphite processing begins with proper feed material preparation. Raw graphite should be carefully characterized for purity, crystalline structure, and initial particle size distribution. Pre-crushing to the appropriate feed size for the selected grinding system is essential, with most ultrafine mills requiring material reduced to 20mm or smaller.

Moisture control represents another critical factor, as excessive moisture can lead to processing issues and compromised product quality. Drying systems should be integrated where necessary to maintain optimal moisture levels throughout the grinding process.

Grinding Parameter Optimization

Optimizing grinding parameters for graphite requires careful consideration of multiple factors. Grinding pressure must be balanced to achieve efficient size reduction without excessive energy consumption or equipment wear. Classifier speed directly influences product fineness and should be adjusted according to target specifications.

Airflow rates affect both grinding efficiency and classification performance, while feed rate optimization ensures stable operation and consistent product quality. Modern grinding systems incorporate automated control systems that continuously monitor and adjust these parameters to maintain optimal performance.

Quality Control in Ultrafine Graphite Production

Maintaining consistent quality in ultrafine graphite production requires comprehensive monitoring and control throughout the grinding process. Particle size distribution should be continuously monitored using laser diffraction or similar techniques, with automatic feedback to the grinding system when deviations occur.

Product purity must be verified through regular sampling and analysis, with particular attention to contamination from grinding media and equipment wear. The crystalline structure of the finished graphite should be preserved through appropriate grinding parameters, as damage to the crystal lattice can compromise performance in many applications.

Surface area measurement provides additional quality verification, particularly for applications where surface characteristics significantly influence performance. Modern production facilities implement statistical process control to identify trends and maintain consistent product quality.

Environmental Considerations and Sustainability

Modern graphite grinding operations must address multiple environmental considerations to ensure sustainable production. Dust control represents a primary concern, with advanced pulse-jet dust collection systems capable of capturing fine particles and maintaining workplace air quality.

Noise reduction technologies, including acoustic enclosures and vibration damping, help maintain acceptable noise levels in the production environment. Energy efficiency optimization not only reduces operating costs but also minimizes the environmental footprint of graphite processing operations.

Water consumption should be minimized in grinding operations, with closed-loop systems implemented where water is used for cooling or processing. Responsible sourcing of raw materials completes the sustainability picture, ensuring that graphite production meets both technical and ethical standards.

Future Trends in Ultrafine Graphite Processing

The field of ultrafine graphite processing continues to evolve, with several emerging trends likely to shape future equipment development and processing methodologies. Integration of artificial intelligence and machine learning enables predictive optimization of grinding parameters, potentially improving efficiency and product consistency.

Nanotechnology applications continue to push the boundaries of fineness requirements, driving development of ever-more-precise grinding and classification systems. Hybrid processing approaches that combine multiple grinding technologies may offer new pathways to optimized particle size distributions with reduced energy consumption.

Advanced sensor technologies provide increasingly detailed process information, enabling more precise control and real-time quality verification. Sustainability considerations will continue to influence equipment design, with emphasis on energy efficiency, minimal consumable usage, and comprehensive environmental protection systems.

Conclusion

Ultrafine graphite processing represents a sophisticated technological field requiring specialized equipment and careful process optimization. The SCM Series Ultrafine Mill and MTW Series Trapezium Mill offer advanced solutions for operations targeting different fineness requirements, incorporating multiple innovations to address the unique challenges of graphite processing.

Successful implementation of ultrafine graphite production requires comprehensive understanding of both material characteristics and equipment capabilities. By selecting appropriate technology and optimizing processing parameters, producers can achieve the precise particle size distributions and quality standards required for advanced graphite applications across multiple industries.

As demand for high-performance graphite materials continues to grow, ongoing development of grinding technology will further enhance processing efficiency, product quality, and environmental performance. The integration of advanced control systems and sustainable operating principles ensures that ultrafine graphite production will continue to evolve to meet the challenges of tomorrow’s applications.
