Types of Neodymium Magnet Grinding Machines: A Comprehensive Guide

Introduction to Neodymium Magnet Grinding

Neodymium magnets, known for their exceptional magnetic properties and brittleness, require specialized grinding equipment to achieve precise particle sizes while maintaining material integrity. The manufacturing process demands machines capable of handling hard, fragile materials with extreme precision. This comprehensive guide explores the various types of grinding machines suitable for neodymium magnet production, their technical specifications, and industry applications.

Key Considerations for Magnet Grinding

Before selecting grinding equipment, manufacturers must consider several critical factors specific to neodymium magnets. The material’s hardness (typically 550-650 HV), thermal sensitivity, and tendency to oxidize require specialized approaches. Equipment must provide precise temperature control, minimize contamination, and offer adjustable fineness to meet specific application requirements ranging from coarse powders for bonded magnets to ultra-fine powders for injection molded magnets.

Ultra-Fine Grinding Machines

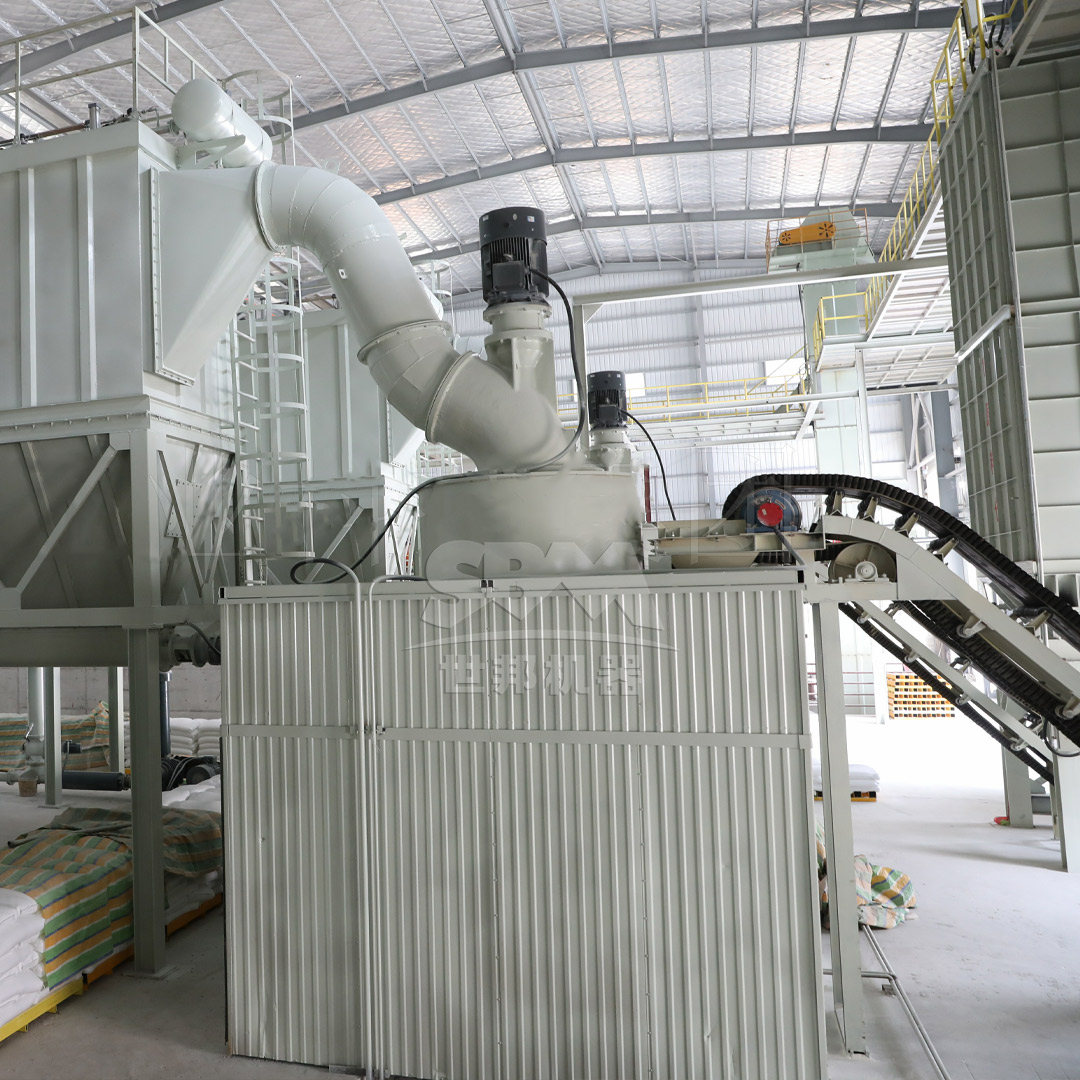

SCM Ultrafine Mill Series

For applications requiring extremely fine neodymium magnet powders, the SCM Ultrafine Mill represents the pinnacle of grinding technology. With output fineness ranging from 325 to 2500 mesh (D97≤5μm), this machine is ideal for high-performance magnet applications where particle size distribution critically affects magnetic properties.

The SCM series incorporates vertical turbine classifiers that enable precise particle size control, ensuring no coarse powder contamination in the final product. Its unique three-layer grinding ring design, driven by the main motor, creates centrifugal force that disperses material evenly throughout the grinding path. The progressive grinding action ensures consistent particle size reduction while maintaining low operating temperatures crucial for neodymium magnet materials.

For manufacturers seeking the ultimate in fine powder production, we specifically recommend our SCM1000 Ultrafine Mill. With a processing capacity of 1.0-8.5 tons per hour and main motor power of 132kW, this model balances production efficiency with exceptional fineness control. The intelligent control system automatically monitors and adjusts for consistent product quality, while the pulse dust collection system maintains operational cleanliness exceeding international standards.

LUM Ultra-Fine Vertical Mill

The LUM series represents another excellent option for ultra-fine neodymium magnet powder production. Featuring multiple rotor classification technology, this equipment ensures final products contain no coarse particles. The unique roller sleeve and liner curve design significantly improves grinding efficiency while the fully sealed negative pressure operation prevents dust leakage and oxidation.

Medium-Fine Grinding Solutions

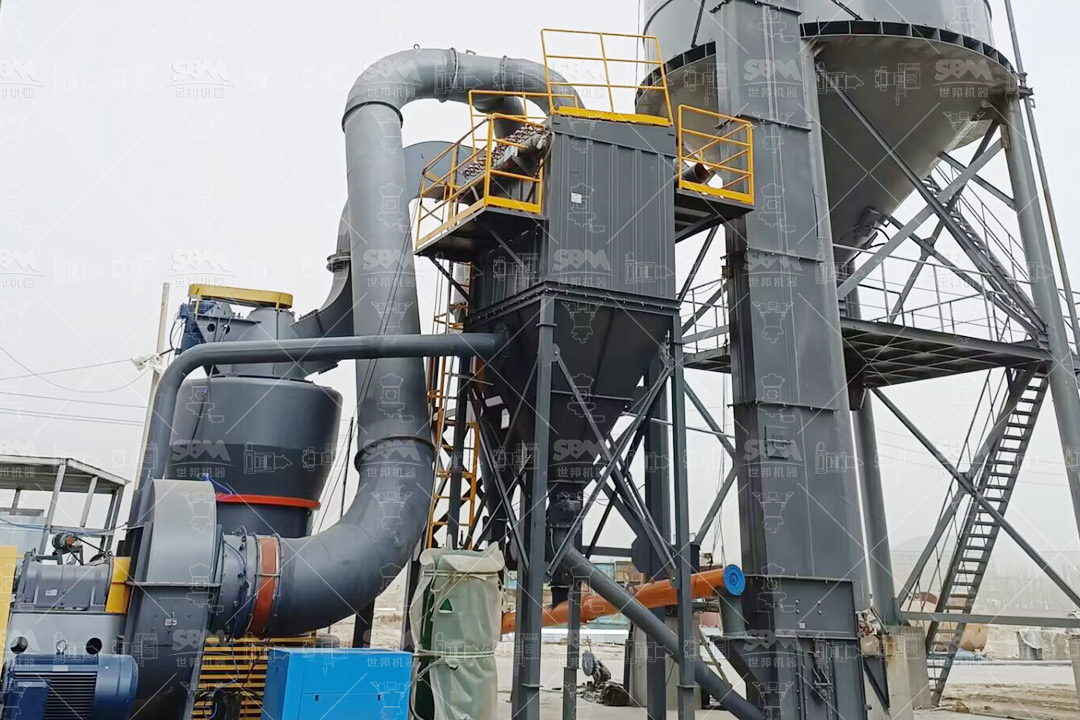

MTW Series Trapezium Mill

For applications requiring medium-fine neodymium magnet powders in the 30-325 mesh range, the MTW Series Trapezium Mill offers outstanding performance and reliability. This European-style grinding mill features several technological innovations specifically beneficial for magnet material processing.

The curved air channel design reduces energy consumption while improving material transport efficiency. Combined with the wear-resistant volute structure, this results in approximately 30% lower maintenance costs compared to conventional mills. The integrated bevel gear transmission achieves remarkable 98% transmission efficiency, saving space and reducing installation complexity.

Our MTW215G Trapezium Mill stands out for large-scale neodymium magnet powder production, offering processing capacities of 15-45 tons per hour with a main motor power of 280kW. The anti-wear shovel blade design, featuring combined replaceable blades, significantly reduces maintenance costs and extends roller service life. The scientific configuration of new classifiers and isolated cyclone powder collectors ensures optimal energy efficiency throughout the grinding process.

MTM Medium-Speed Trapezium Mill

The MTM series provides another reliable option for medium-fine grinding applications. Its intelligent pressure regulation system automatically compensates for roller wear, extending service life by approximately 30%. The innovative roller assembly design, with horizontal pull rod connection structure, protects main shaft bearings from radial forces when processing larger material chunks.

Vertical Grinding Systems

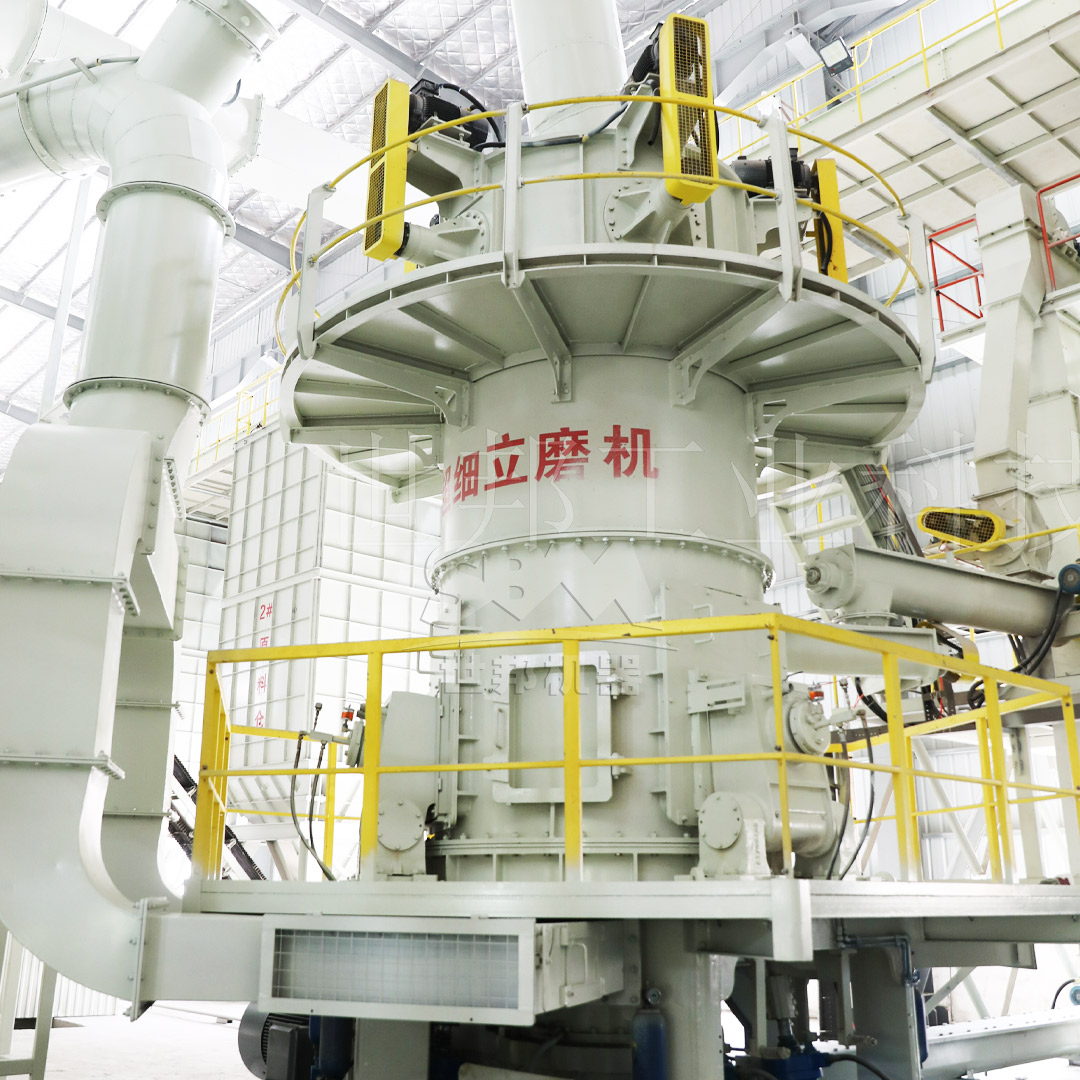

LM Series Vertical Roller Mills

Vertical roller mills offer significant advantages for neodymium magnet grinding, particularly in terms of energy efficiency and space utilization. The LM series integrates crushing, grinding, and separation functions in a single compact unit, reducing footprint requirements by up to 50% compared to traditional grinding systems.

These mills operate on the principle of material bed comminution, where grinding rollers apply pressure to material layers on a rotating grinding table. This method generates less heat than impact-based grinding, making it particularly suitable for temperature-sensitive neodymium materials. The non-contact design between rollers and grinding table extends wear part life up to three times conventional systems.

The expert automatic control system supports remote and local operation switching, with real-time monitoring of operational parameters to minimize manual intervention. Environmental performance meets stringent standards with dust emissions below 20mg/m³ and operating noise levels not exceeding 80dB(A).

Specialized Grinding Equipment

Ball Mills for Magnet Applications

While traditional in design, ball mills remain relevant for certain neodymium magnet grinding applications, particularly where wider particle size distributions are acceptable. Modern ball mills offer both dry and wet grinding modes, covering powder preparation and mineral separation requirements across multiple industries.

These systems achieve remarkable size reduction ratios up to 300:1 with continuously adjustable fineness. Large-capacity designs support continuous production with maximum effective volumes reaching 79m³. The mature technology platform results in approximately 40% reduced failure downtime compared to more complex systems.

The grinding principle involves cylinder rotation through gear transmission, with material evenly entering the grinding chamber through feed spirals. Lining plates and steel balls of various specifications create impact and grinding actions as centrifugal force lifts and drops the media. Qualified fine powder discharges through discharge grate plates while coarse material continues circulating for further grinding.

Pre-Grinding and Preliminary Size Reduction

Hammer Mills for Initial Processing

Before fine grinding, neodymium magnet materials often require preliminary size reduction. Hammer mills provide high-capacity, high-reduction ratio crushing with output sizes typically ranging from 0-3mm. The optimized chamber design and unique working principle ensure stable operation with minimal footprint requirements.

LM-Y Vertical Pre-Grinding Roller Mills

For integrated sand making and grinding applications, the LM-Y series offers multifunctional capability in a single machine. Utilizing the material bed grinding principle, these mills reduce power consumption by 30-50% compared to conventional systems while producing superior sand gradation and controllable powder particle size.

Selection Guidelines

Choosing the appropriate grinding equipment for neodymium magnet production depends on multiple factors including required production capacity, target particle size distribution, energy efficiency requirements, and available facility space. Ultra-fine applications typically benefit from SCM or LUM series mills, while medium-fine requirements may be better served by MTW or MTM series equipment. Vertical roller mills offer excellent overall efficiency for large-scale operations, while ball mills provide reliable performance for specific applications.

Conclusion

The diverse range of grinding machines available for neodymium magnet production ensures manufacturers can select equipment precisely matched to their specific requirements. From ultra-fine powders for advanced applications to coarse powders for bonded magnets, modern grinding technology delivers the precision, efficiency, and reliability demanded by today’s competitive magnet industry. By understanding the capabilities and advantages of each machine type, manufacturers can optimize their production processes for quality, efficiency, and cost-effectiveness.
