Turning Construction Waste into Green Building Materials with Grinding Mills

Introduction: The Urgency of Sustainable Construction

The construction industry generates enormous amounts of waste annually, contributing significantly to landfill overcrowding and environmental degradation. However, with advanced grinding technology, this waste can be transformed into valuable green building materials, promoting a circular economy. This article explores how modern grinding mills facilitate this conversion, focusing on efficiency, precision, and sustainability.

The Challenge of Construction Waste Recycling

Construction and demolition (C&D) waste typically includes concrete, bricks, ceramics, and asphalt. These materials are often heterogeneous and require precise processing to achieve the desired fineness for reuse in applications like concrete aggregate, soil stabilization, or supplementary cementitious materials. Traditional crushing methods may lack the finesse needed for high-value recycling, leading to suboptimal products.

Grinding Technology: The Key to High-Quality Recycled Materials

Advanced grinding mills offer controlled size reduction, enabling the production of fine powders with consistent particle size distribution. This is crucial for ensuring the performance and durability of recycled materials in new construction projects. Key parameters include input size, output fineness, and processing capacity, which vary based on the mill type.

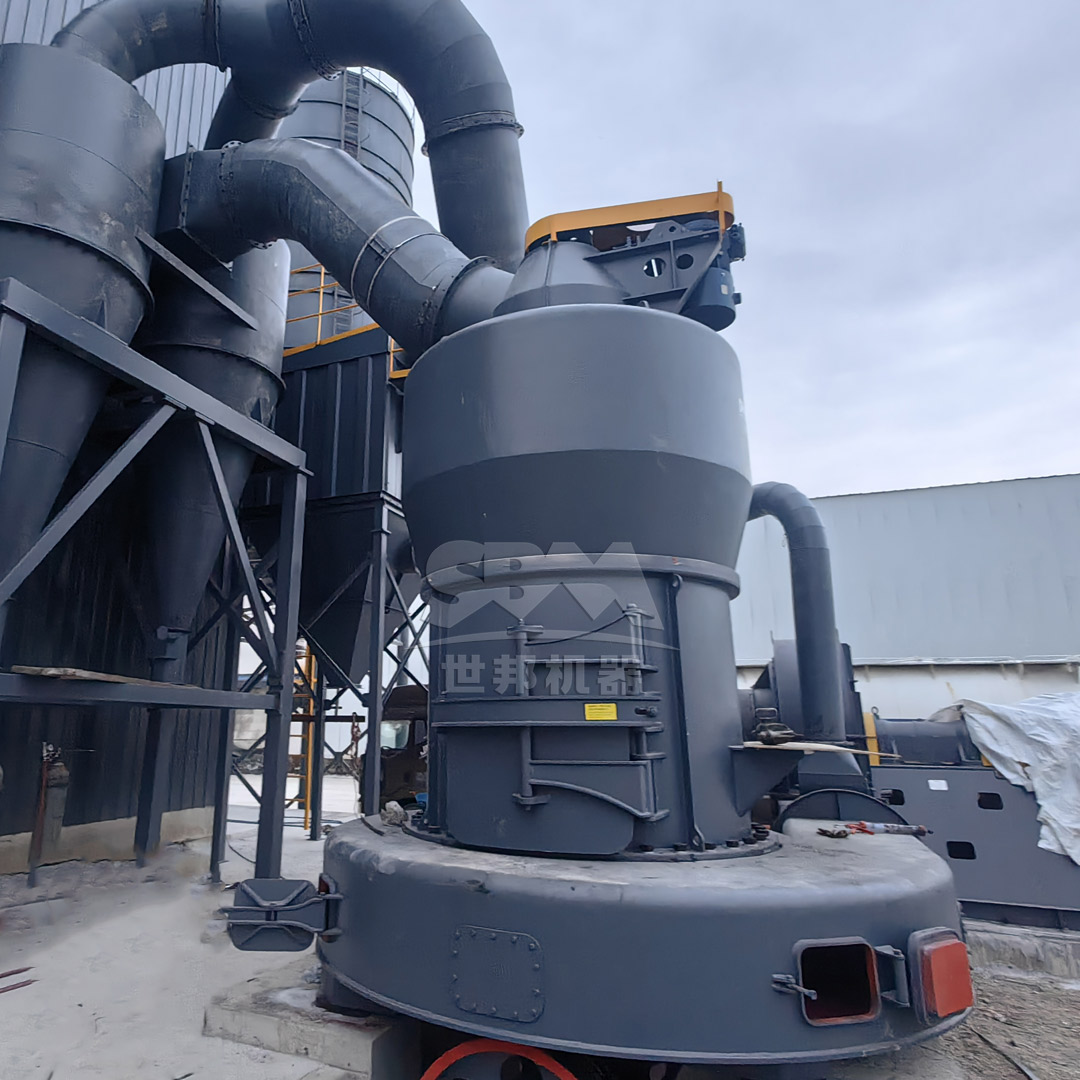

Recommended Product: SCM Ultrafine Mill for Precision Grinding

For applications requiring ultra-fine powders, such as pozzolanic additives or high-strength composites, the SCM Ultrafine Mill is an excellent choice. It handles input sizes up to 20mm and produces output fineness ranging from 325 to 2500 mesh (D97 ≤5μm), with processing capacities from 0.5 to 25 tons per hour depending on the model. Its technical advantages include:

• High Efficiency and Energy Savings: Offers twice the capacity of jet mills while reducing energy consumption by 30%, thanks to intelligent control systems that automatically adjust for consistent product fineness.
• Precision Classification: Utilizes a vertical turbine classifier for accurate particle size cut-off, ensuring uniform product quality without coarse particle contamination.
• Durability and Stability: Features wear-resistant rollers and grinding rings that extend service life, along with a bearing-free screw grinding chamber for stable operation.
• Environmental Compliance: Equipped with pulse dust collectors exceeding international standards and noise levels below 75dB due to soundproofing design.

The SCM series operates via a main motor driving three-layer grinding rings. Material is dispersed into the grinding path by centrifugal force, progressively crushed by rollers, and finally collected by a cyclone and pulse dust removal system. Models like the SCM1680, with a 315kW main motor and capacity up to 25 t/h, are ideal for large-scale recycling operations.

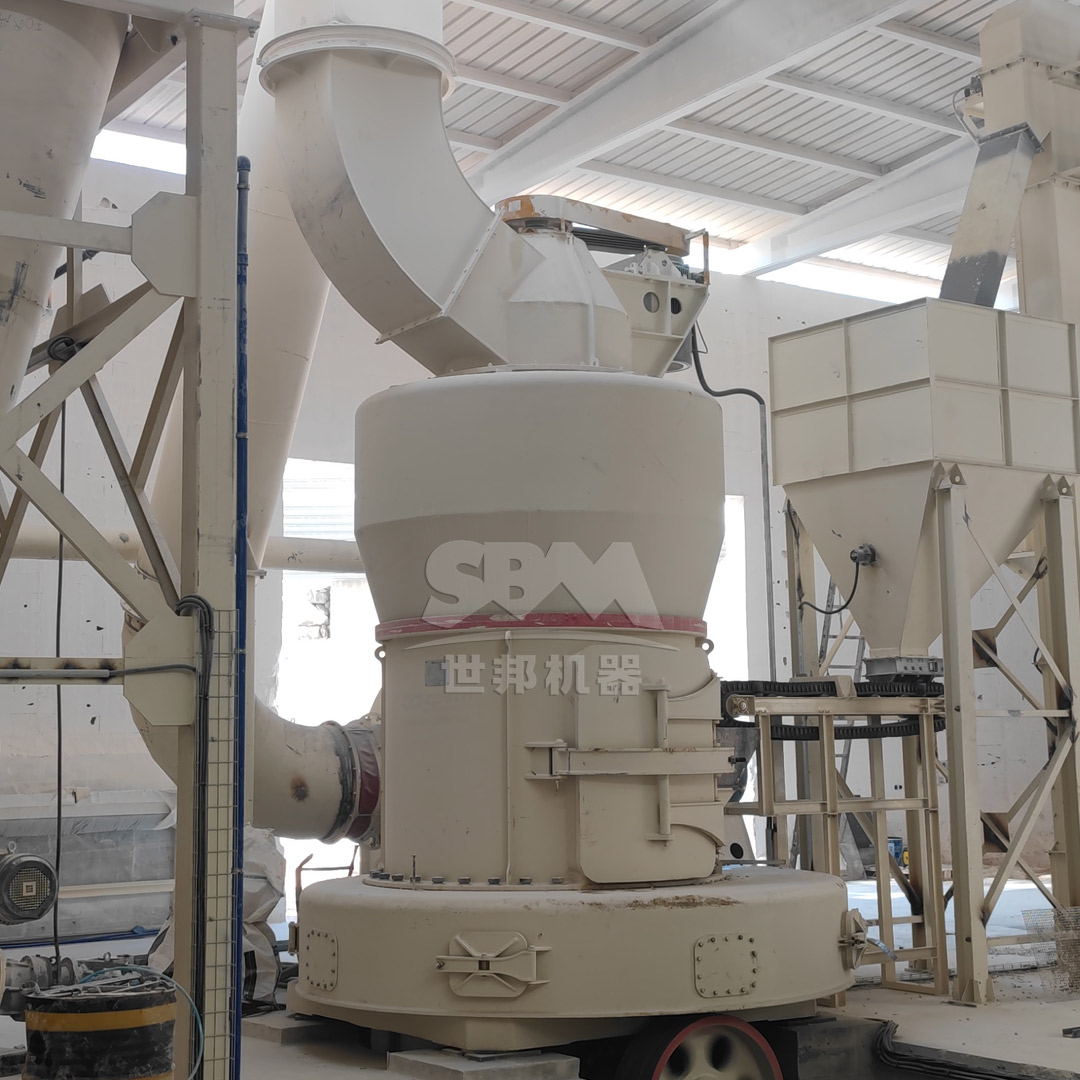

Another Option: MTW Series Trapezium Mill for Coarser Applications

For projects where slightly coarser materials are acceptable, such as recycled aggregates for road base, the MTW Series Trapezium Mill is highly effective. It processes input up to 50mm and delivers output fineness from 30 to 325 mesh (up to 0.038mm), with capacities ranging from 3 to 45 tons per hour. Key features include:

• Wear-Resistant Design: Combined shovel blades reduce maintenance costs, and curved surfaces extend roller life.
• Optimized Airflow: Curved air ducts minimize energy loss and improve transmission efficiency, supported by high-strength guard plates.
• Efficient Transmission: Integrated bevel gear transmission achieves 98% efficiency, saving space and installation costs.
• Durable Shell Structure: Wear-resistant volute design enhances air classification efficiency and lowers maintenance by 30%.

In the MTW mill, the main motor drives rollers to revolve around the central axis while rotating themselves, generating centrifugal force. Shovels throw material between the grinding ring and rollers for compression-based粉碎, with a classification system ensuring precise particle size control. Models like the MTW215G, with a 280kW main motor and capacity up to 45 t/h, are suitable for high-throughput recycling plants.

Application in Green Building Material Production

Ground construction waste can be used in various green building applications. For instance, finely ground concrete powder can serve as a substitute for cement in low-strength applications, reducing the carbon footprint. Brick and ceramic powders can be incorporated into tiles or lightweight aggregates. The consistency provided by mills like the SCM and MTW ensures that these materials meet industry standards for strength and durability.

Environmental and Economic Benefits

Using grinding mills for construction waste recycling not only reduces landfill use but also conserves natural resources by decreasing the demand for virgin materials. Economically, it lowers disposal costs and creates new revenue streams from sold recycled products. The energy-efficient designs of modern mills, such as the SCM’s 30% energy savings, further enhance sustainability by minimizing operational carbon emissions.

Conclusion: Embracing Technology for a Greener Future

The transformation of construction waste into green building materials is a viable and necessary step toward sustainable development. With advanced grinding mills like the SCM Ultrafine Mill and MTW Series Trapezium Mill, industries can achieve high-quality recycling efficiently and economically. Investing in such technology not only supports environmental goals but also promotes innovation in the construction sector.
