The Role of Raymond Mill Calcium Powder in Board Production: Enhancing Quality and Efficiency

Introduction

The production of high-quality boards, ranging from particleboard and MDF to specialized calcium silicate boards, relies heavily on the precise properties of its raw materials. Among these, calcium carbonate powder, particularly that produced by advanced Raymond Mill technology, plays a pivotal and multifaceted role. It is far more than just a filler; it is a functional additive that significantly enhances the final product’s structural integrity, surface quality, manufacturing efficiency, and overall cost-effectiveness. This article delves into the critical functions of high-purity calcium powder in board production and explores how modern grinding equipment, such as our SCM Ultrafine Mill, is engineered to deliver the consistent quality required by today’s demanding industries.

The Multifunctional Role of Calcium Powder in Boards

1. Filling and Volume Extension

The primary economic function of calcium carbonate (CaCO3) is as a filler. It extends the volume of more expensive binding resins (e.g., urea-formaldehyde, phenolic) and wood fibers, substantially reducing raw material costs without drastically compromising key properties. The fine, inert particles of CaCO3 integrate seamlessly into the matrix, displacing costlier components.

2. Enhancement of Physical and Mechanical Properties

Contrary to the misconception that fillers only dilute, properly ground calcium powder actively improves board quality:

• Density and Stability: The fine particles help create a more homogeneous and dense composite structure, improving internal bond (IB) strength and modulus of rupture (MOR).
• Dimensional Stability: Calcium carbonate is hygroscopic to a much lesser degree than wood fibers. Its inclusion reduces the board’s tendency to absorb moisture from the air, thereby minimizing swelling, warping, and twisting, which is crucial for applications in varying humidity conditions.
• Surface Smoothness: Ultra-fine calcium powder (< 10µm) is essential for achieving a perfectly smooth surface on boards like MDF, which is critical for high-quality laminating, veneering, or painting. It fills microscopic voids between wood fibers, creating an exceptionally even substrate.

3. Improved Processing and Manufacturing Efficiency

The addition of calcium powder positively impacts the manufacturing process itself:

• Thermal Conductivity: CaCO3 improves the thermal conductivity of the mat during the hot-pressing stage. This allows heat to penetrate more quickly and evenly, reducing press cycle times and ensuring a fully cured resin throughout the board thickness.
• Resin Cure: Some studies indicate that the alkaline nature of calcium carbonate can favorably influence the cure of certain thermosetting resins, leading to a more robust final bond.
• Tool Wear: Compared to silica-based fillers, calcium carbonate is significantly less abrasive. This results in reduced wear on cutting tools, saws, and routers during subsequent machining of the boards, lowering maintenance costs.

4. Functional Benefits: Fire Resistance and Beyond

In non-combustible boards like calcium silicate or cement-bonded boards, calcium carbonate is a primary component rather than just a filler. When exposed to fire, CaCO3 undergoes an endothermic decomposition reaction (CaCO3 → CaO + CO2), absorbing significant heat and releasing non-flammable carbon dioxide, which helps to retard the spread of flames.

Why Raymond Mill Technology is the Ideal Choice

Not all calcium powder is created equal. The performance benefits listed above are directly contingent on the powder’s key characteristics: fineness (and its distribution), purity, whiteness, and particle morphology. This is where Raymond Mill technology, and its modern descendants like ultrafine vertical roller mills, excel.

• Precise Particle Size Control: Board recipes require specific fineness levels. For bulk filling, a D97 of 45µm (325 mesh) may suffice, while surface layers demand ultrafine powders down to 5µm (2500 mesh). Modern mills offer unparalleled control over this range.
• Narrow Particle Size Distribution: A consistent grind with a narrow size distribution ensures predictable behavior in the mix, preventing issues like resin absorption variability or surface roughness. Advanced classification systems are key to achieving this.
• Low Iron Content & High Whiteness: For light-colored or white boards, the calcium powder must have high brightness and low contamination, especially from iron which can cause discoloration. Raymond mills with ceramic or special alloy grinding elements prevent metallic contamination.
• Dry Processing: The Raymond milling process is a dry method, delivering powder ready for immediate use in the dry blending processes standard in board mills, eliminating the need for costly drying steps.

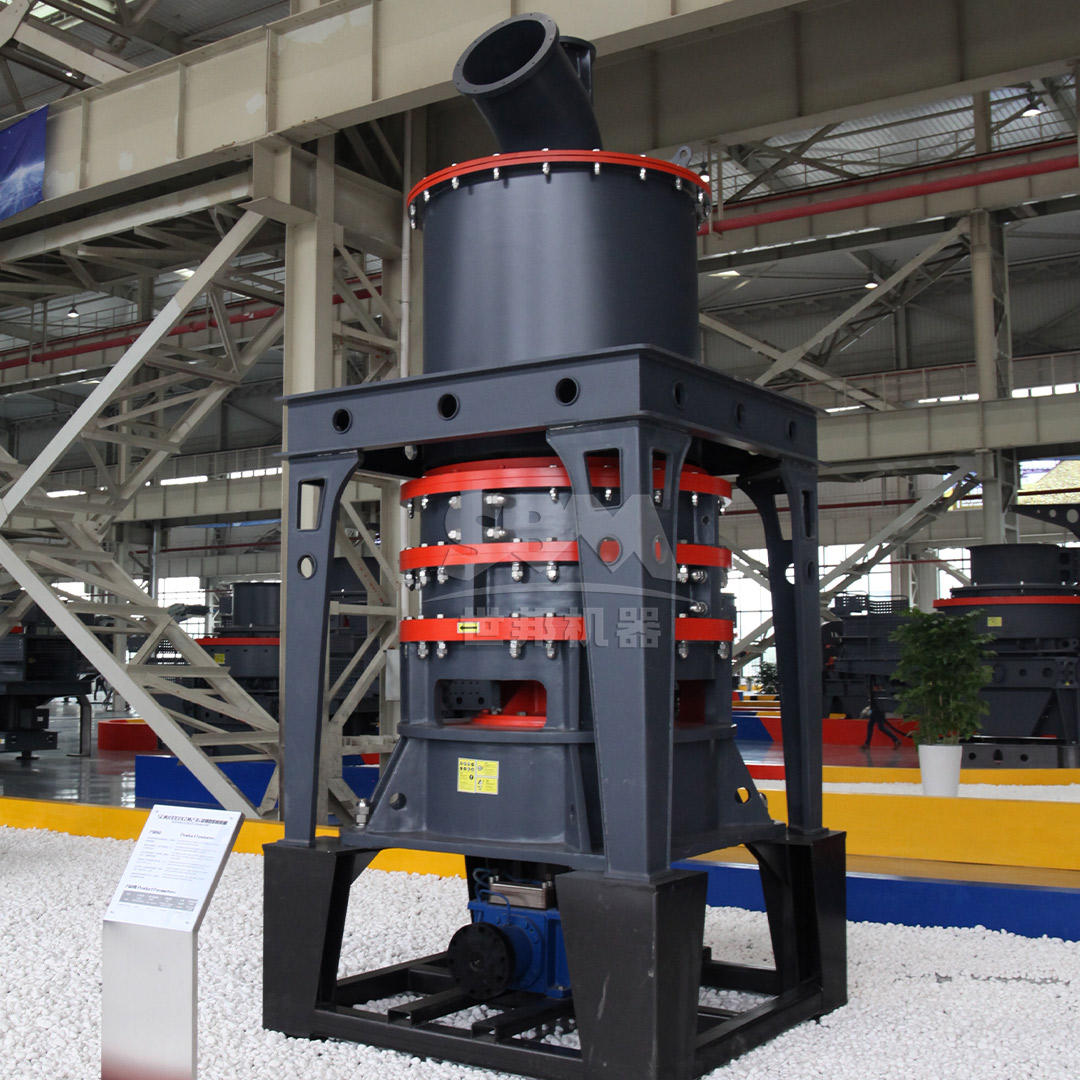

Recommendation: SCM Ultrafine Mill for Premium Board Production

For manufacturers aiming to produce high-end boards where surface quality, dimensional stability, and efficient production are paramount, investing in the right grinding technology is critical. We highly recommend our SCM Ultrafine Mill for this application.

The SCM series represents the pinnacle of dry ultrafine grinding technology, making it perfectly suited to produce the high-quality calcium powder demanded by the board industry:

• Exceptional Fineness: Capable of achieving a output fineness between 325-2500 mesh (45-5μm), it can produce everything from standard filler grades to the superfine powders needed for impeccable surface layers.
• High Efficiency & Energy Savings: Its innovative design offers twice the capacity of traditional jet mills while reducing energy consumption by 30%. This translates directly to lower operating costs per ton of powder produced.
• Superior Product Quality: The integrated high-precision vertical turbine classifier ensures a sharp and narrow particle size distribution, eliminating coarse grains. This results in a uniform powder that enhances board smoothness and stability.
• Robust and Low-Maintenance Design: Featuring special wear-resistant materials for the roller and grind ring, the mill’s core components have a lifespan several times longer than conventional mills, ensuring consistent output and reducing downtime.
• Environmental Compliance: With a pulse dust collector exceeding international efficiency standards and a noise level below 75dB, the SCM Ultrafine Mill supports modern, clean, and worker-friendly manufacturing environments.

With models like the SCM1000 (1.0-8.5 t/h, 132kW) and the SCM1680 (5.0-25 t/h, 315kW), we offer a range of capacities to fit any production scale, from pilot plants to large-scale industrial lines.

Conclusion

Calcium carbonate powder is an indispensable component in modern board production, delivering critical benefits in cost reduction, product enhancement, and process optimization. The quality of this powder, dictated by the grinding technology used, has a direct and measurable impact on the final board’s performance and marketability. By adopting advanced milling solutions like the SCM Ultrafine Mill, board manufacturers can ensure a reliable supply of high-purity, precisely graded calcium powder, empowering them to produce superior products, streamline their operations, and strengthen their competitive edge in a demanding market.
