The Manufacturing Process of Isostatic Graphite: A Step-by-Step Guide

Introduction to Isostatic Graphite

Isostatic graphite, also known as isomolded graphite, represents the pinnacle of synthetic graphite technology. Characterized by its exceptional isotropy, high purity, superior thermal and electrical conductivity, and remarkable mechanical strength at elevated temperatures, this engineered material is indispensable across a wide spectrum of high-tech industries. Its applications range from semiconductor processing and solar panel manufacturing to metallurgy, EDM (Electrical Discharge Machining), and aerospace. The unique properties of isostatic graphite are a direct result of its specialized manufacturing process, which involves the precise application of high pressure from all directions (isostatic pressing) to form a billet with a homogeneous, fine-grained structure. This guide provides a detailed, step-by-step overview of this sophisticated manufacturing journey.

Step 1: Raw Material Selection and Preparation

The foundation of high-quality isostatic graphite lies in the selection of its raw materials. The primary component is a high-purity carbonaceous filler, most commonly calcined petroleum coke (CPC) or pitch coke. This filler provides the fundamental carbon structure. The second critical component is the binder, typically coal tar pitch or petroleum pitch, which acts as the glue that holds the carbon particles together during the initial forming stage.

The process begins with the meticulous grinding of the solid coke into a fine, controlled powder. The particle size distribution of this powder is absolutely critical, as it directly influences the density, strength, and final microstructure of the finished product. Achieving the desired ultra-fine and consistent particle size requires advanced milling technology.

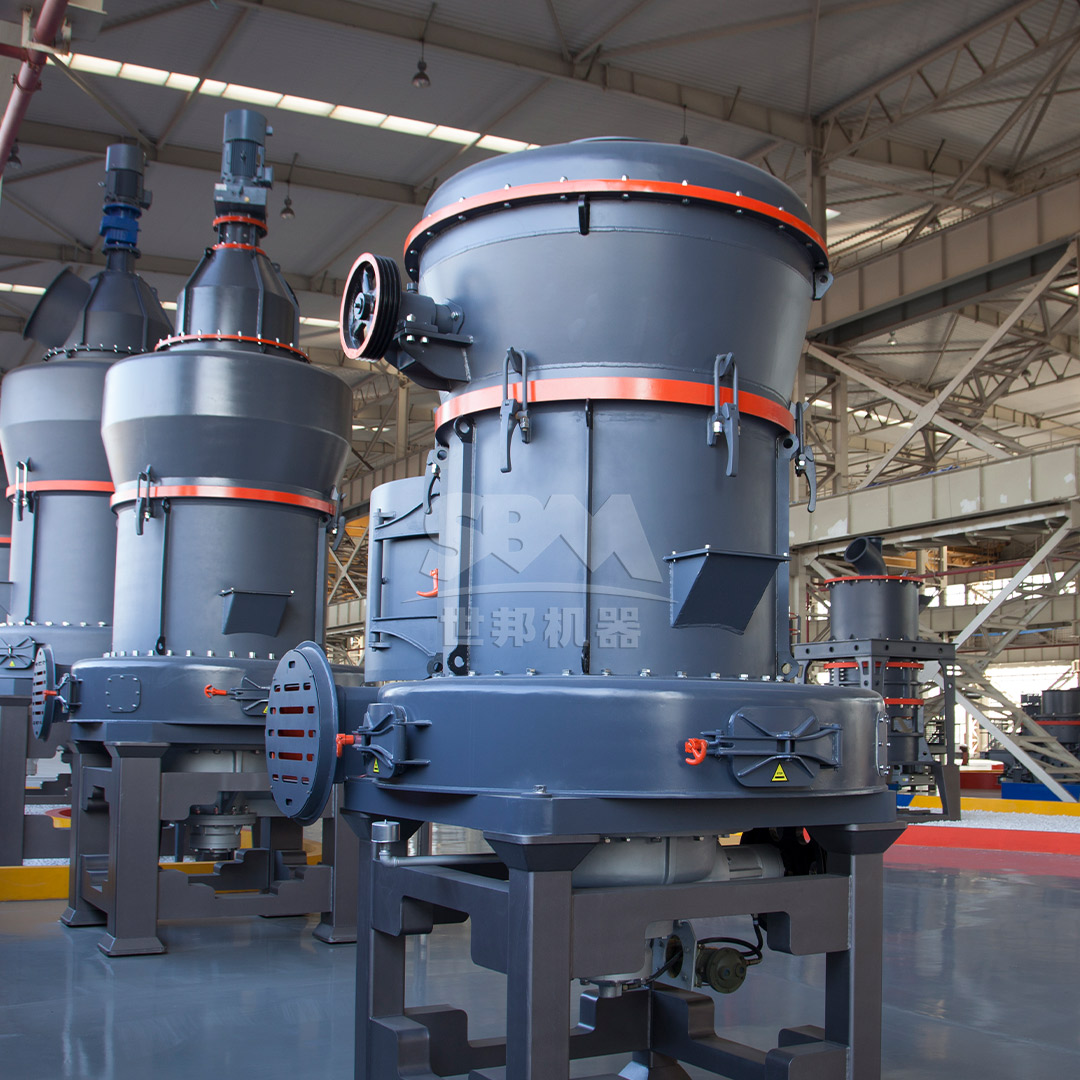

For this initial crushing stage, our Hammer Mill (0-3mm) is an ideal solution. Its high-capacity performance and ability to produce a controlled, fine output of 0-3mm make it perfect for the preliminary size reduction of raw petroleum coke, ensuring a consistent feed for the subsequent fine-grinding processes.

Step 2: Mixing and Homogenization

The finely ground coke powder is then mixed with the liquid binder pitch in a heated mixer. The temperature is carefully controlled to melt the pitch, allowing it to uniformly coat every individual coke particle. This process, known as ‘kneading,’ must be thorough to ensure a completely homogeneous mixture with no dry pockets. The resulting material is a pliable, carbon-rich paste. The ratio of filler to binder is a closely guarded secret for each manufacturer and grade of graphite, significantly impacting the final material’s characteristics.

Step 3: Isostatic Pressing (The Defining Step)

This is the core step that gives isostatic graphite its name and isotropic properties. The prepared mix is loaded into a flexible rubber or polyurethane mold, which is then sealed and placed inside a high-pressure vessel. This vessel is filled with a hydraulic fluid (typically oil or water) and pressurized to extremely high levels, typically between 100-200 MPa (14,500-29,000 psi).

The key principle of isostatic pressing is that the pressure is applied uniformly from all directions (isostatically). Unlike uniaxial pressing, which compacts the material from the top and bottom and can lead to density gradients and particle alignment, isostatic pressing ensures the carbon particles are compressed evenly in all planes. This results in a “green” billet with a perfectly uniform density distribution and no preferential orientation, which is the root of the material’s isotropy.

Step 4: Baking (Carbonization)

The pressed “green” billets are now mechanically stable but are held together by the thermoplastic binder pitch. The baking process transforms this physical bond into a permanent chemical carbon bond. The billets are packed in a bed of sand or coke powder to protect them from oxygen and are then slowly heated in a gas-fired or electric furnace to temperatures ranging from 800°C to 1200°C over a cycle that can take several weeks.

During this prolonged heat treatment, the binder pitch undergoes pyrolysis—it volatilizes lighter elements like hydrogen, oxygen, and nitrogen, leaving behind a solid carbon residue that forms a rigid, porous carbon matrix binding the coke particles together. The resulting product is known as “carbonized” or “baked” graphite. It possesses its basic shape and strength but is still very porous and lacks its final mechanical and thermal properties.

Step 5: Impregnation (Optional but Common)

To address the porosity created during baking (where volatiles escape), the billets often undergo an impregnation process. They are placed in a pressurized autoclave, and a vacuum is drawn to remove air from the pores. The vessel is then flooded with a secondary pitch. High pressure is applied, forcing the liquid pitch deep into the open pores of the billet. The billet is then re-baked to carbonize this new pitch, which deposits additional carbon within the pores, thereby increasing the overall density, strength, and impermeability of the material. This impregnation and re-baking cycle may be repeated multiple times to achieve the desired density for ultra-high-performance grades.

Step 6: Graphitization

This is the most critical high-temperature step that defines the final material properties. The baked carbon billets are loaded into an Acheson or induction furnace and heated to extreme temperatures between 2500°C and 3000°C in an inert atmosphere. At these phenomenal temperatures, the amorphous carbon atoms within the structure rearrange themselves into the ordered, crystalline structure of graphite—stacked layers of hexagonal carbon lattices.

This transformation dramatically enhances the material’s properties: electrical and thermal conductivity increase significantly, thermal stability improves, chemical resistance is perfected, and the material becomes easier to machine. The heat treatment also volatilizes any remaining impurities, resulting in a product of exceptional purity, often exceeding 99.99% carbon.

Step 7: Precision Machining and Quality Control

The final step involves precision machining the graphitized billets into their final shapes and dimensions as required by the customer. Due to its brittleness, graphite must be machined with specialized tools and techniques, often using CNC machines for high accuracy. Every single block undergoes rigorous quality control (QC) checks. Key parameters measured include:

• Bulk Density: A primary indicator of quality and performance.
• Flexural and Compressive Strength: To ensure mechanical integrity.
• Electrical Resistivity: Measured in different directions to confirm isotropy.
• Coefficient of Thermal Expansion (CTE): Critical for high-temperature applications.
• Particle Size and Microstructure: Analyzed using microscopy.
• Ash Content (Purity): Verified through chemical analysis.

The Role of Advanced Milling in Quality Assurance

As emphasized in Step 1, the initial particle size of the raw coke is paramount. A finer, more consistent particle size allows for a tighter particle packing arrangement during pressing. This leads directly to a higher green density, which translates into a higher final density after baking and graphitization. Higher density correlates strongly with improved mechanical strength, thermal conductivity, and structural homogeneity.

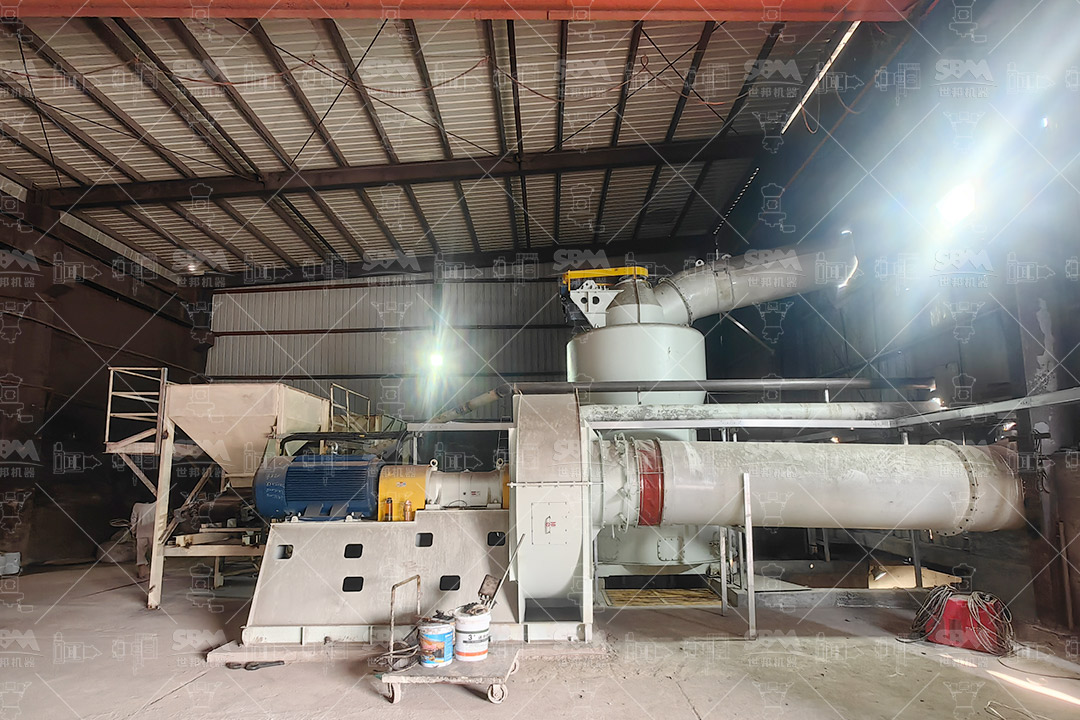

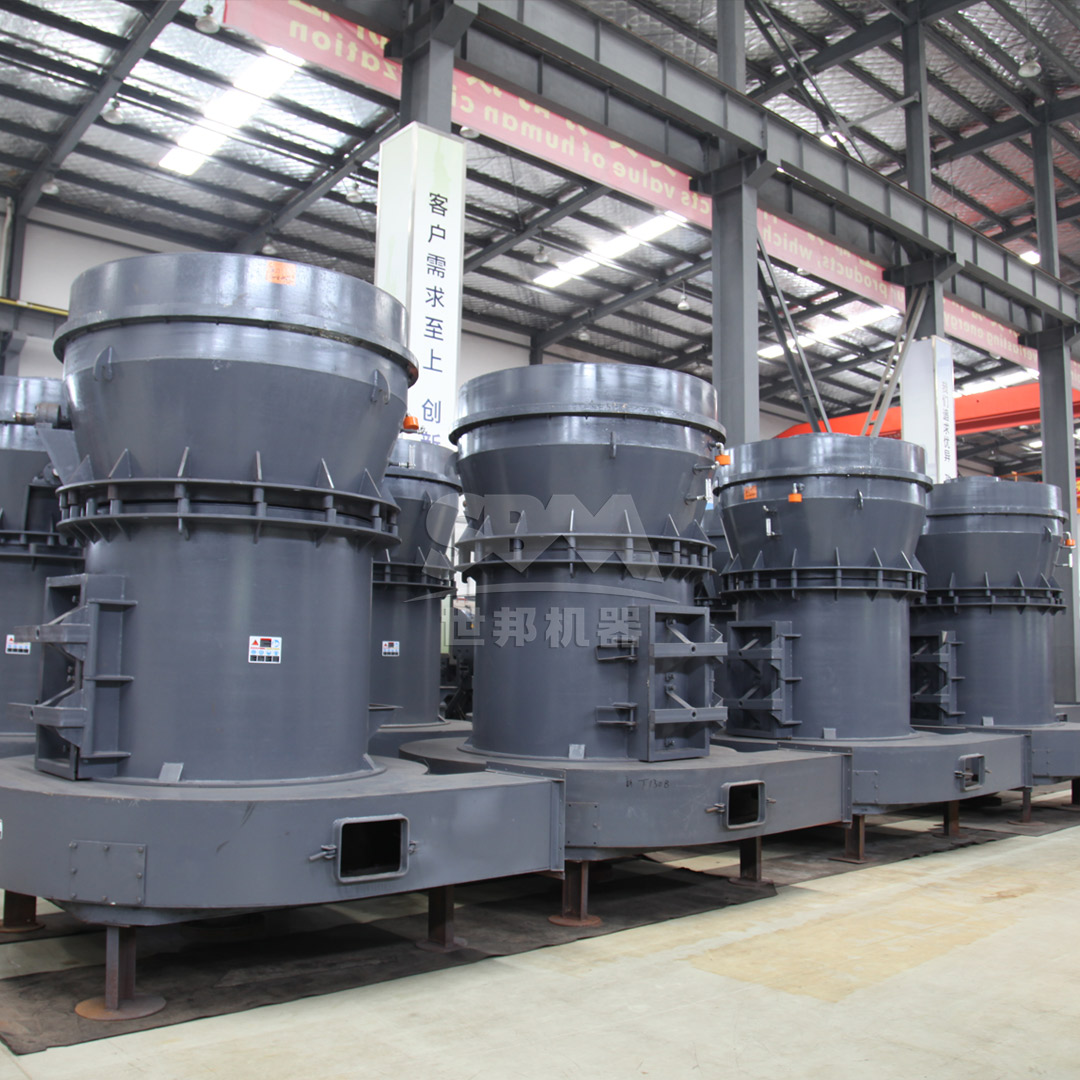

To achieve the ultra-fine and tightly controlled particle distributions required for premium-grade isostatic graphite, manufacturers rely on high-performance grinding mills. Our SCM Ultrafine Mill (45-5μm) is specifically engineered for this demanding application. Its ability to produce a consistent output fineness of 325-2500 mesh (D97 ≤ 5μm) from a feed of ≤20mm is unparalleled. The integrated vertical turbine classifier ensures precise particle size切割 (cutting) without coarse powder contamination, guaranteeing the powder consistency needed for a superior isotropic structure. Furthermore, its high efficiency and energy-saving design, consuming 30% less energy than jet mills, make it not only a tool for achieving superior quality but also for enhancing production sustainability.

Conclusion

The manufacturing of isostatic graphite is a complex, multi-stage process that blends material science, precise engineering, and meticulous process control. From the careful selection and preparation of raw materials to the transformative power of isostatic pressing and ultra-high-temperature graphitization, each step is crucial in building the exceptional properties that make this material a critical enabler of modern technology. The relentless pursuit of finer raw material powders, enabled by advanced milling technology like the SCM Ultrafine Mill, continues to push the boundaries of performance, allowing for the development of even higher grades of this remarkable engineered material to meet the evolving demands of the future.
