The Development Prospects of Calcium Carbonate Grinding Mills

Introduction

The global demand for ground calcium carbonate (GCC) continues to surge, driven by its extensive applications in industries such as plastics, paints, paper, adhesives, and construction. The quality and properties of GCC are critically dependent on the grinding technology employed. This article explores the development prospects of calcium carbonate grinding mills, focusing on technological advancements, market trends, and the future direction of grinding equipment. We will also highlight how innovative mill designs are meeting the evolving needs for higher efficiency, finer particle sizes, and reduced environmental impact.

Market Drivers and Application Requirements

The paper industry remains one of the largest consumers of GCC, utilizing it as a filler and coating pigment to improve brightness, opacity, and printability. The shift towards alkaline papermaking has further increased GCC consumption. In plastics, GCC enhances stiffness, impact strength, and thermal properties while reducing costs. The paint and coatings industry values GCC for its ability to improve weatherability, reduce gloss, and act as an extender pigment. Each application imposes specific requirements on the GCC’s particle size distribution (PSD), top cut, brightness, and surface area.

These demanding specifications necessitate grinding mills capable of producing powders with tight PSD control, high whiteness (minimal iron contamination), and superior surface properties. The trend is moving towards ultra-fine (d97 < 10µm) and even nano-grade (d97 < 1µm) products, pushing the boundaries of conventional grinding technology.

Technological Evolution in Grinding Mills

The evolution of calcium carbonate grinding has progressed from traditional ball mills and Raymond mills to more advanced vertical roller mills, roller presses, and sophisticated classifier mills. The key technological trends include:

• Integrated Grinding and Classification: Modern mills often integrate high-precision air classifiers within the grinding circuit. This allows for immediate separation of fines, preventing over-grinding and ensuring a sharp top cut. Closed-circuit systems enhance energy efficiency and product quality.
• Energy Efficiency: A significant focus of development is reducing the specific energy consumption (kWh/ton). Technologies like vertical roller mills and roller presses operate on the principle of bed compression, which is more energy-efficient than the impact/attrition mechanism of ball mills.
• Wear Resistance and Durability: The abrasive nature of calcium carbonate demands robust construction. Advancements in metallurgy, such as the use of high-chrome alloys, ceramic materials, and innovative hardening techniques, have dramatically extended the life of grinding elements like rollers, rings, and liners.
• Automation and Smart Control: Modern mills are equipped with PLC-based control systems that monitor key parameters like motor load, pressure, temperature, and classifier speed. These systems can automatically adjust operational parameters to maintain consistent product quality and optimize throughput.
• Environmental Compliance: Stringent environmental regulations require mills to operate with minimal dust emissions and noise. State-of-the-art pulse jet baghouse filters ensure dust emissions are kept well below 20 mg/Nm³. Acoustic enclosures and sound-dampening materials are used to reduce noise levels.

Spotlight on Advanced Mill Technology: The SCM Ultrafine Mill

For producers targeting the high-value ultra-fine and coating-grade GCC markets, the SCM Ultrafine Mill represents a pinnacle of grinding technology. This mill is engineered to consistently produce powders in the range of 325 to 2500 mesh (45-5µm) with exceptional uniformity and efficiency.

Key Advantages for Calcium Carbonate Production:

• Superior Energy Efficiency: Compared to traditional jet mills, the SCM Ultrafine Mill offers double the capacity while reducing energy consumption by up to 30%. Its intelligent control system provides automatic feedback on final particle size, ensuring optimal performance.
• Unmatched Particle Size Control: The integrated vertical turbo-classifier is the heart of its precision. It enables accurate particle size cuts, ensuring no coarse particles contaminate the final product. This results in a exceptionally uniform PSD, which is critical for applications like paper coating.
• Exceptional Durability: The grinding components, including the roller and ring, are manufactured from special wear-resistant materials, granting them a service life several times longer than conventional parts. The unique bearingless screw design in the grinding chamber enhances operational stability and reduces maintenance downtime.
• Environmentally Friendly Operation: The mill features a highly efficient pulse dust collection system that exceeds international emission standards. Furthermore, its integrated soundproofing design maintains operational noise levels below 75 dB, creating a better working environment.

The SCM series, with models like the SCM1250 (handling 2.5-14 t/h) and the high-capacity SCM1680 (handling 5.0-25 t/h), provides scalable solutions for operations of any size, making it an ideal choice for modern calcium carbonate processing plants focused on quality and sustainability.

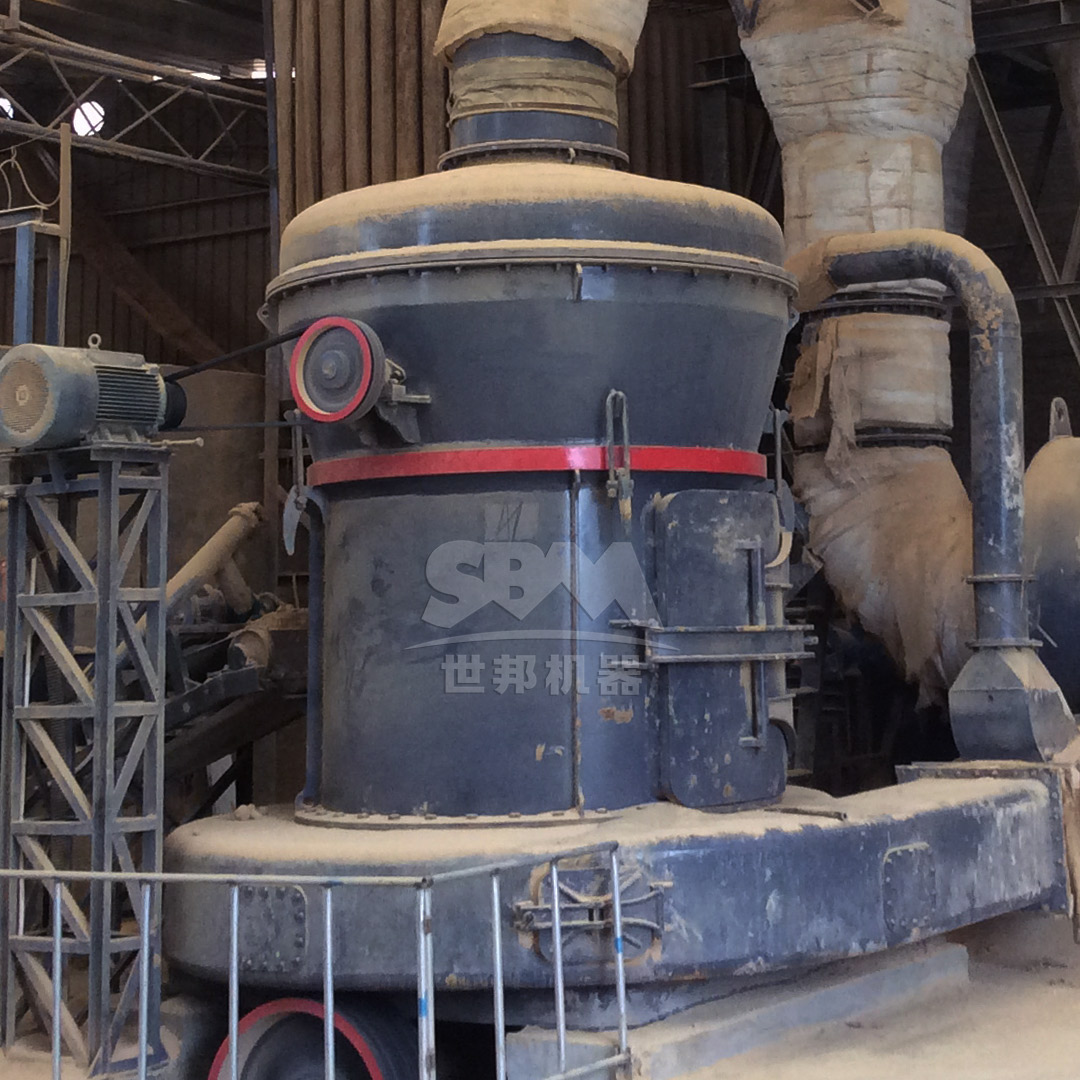

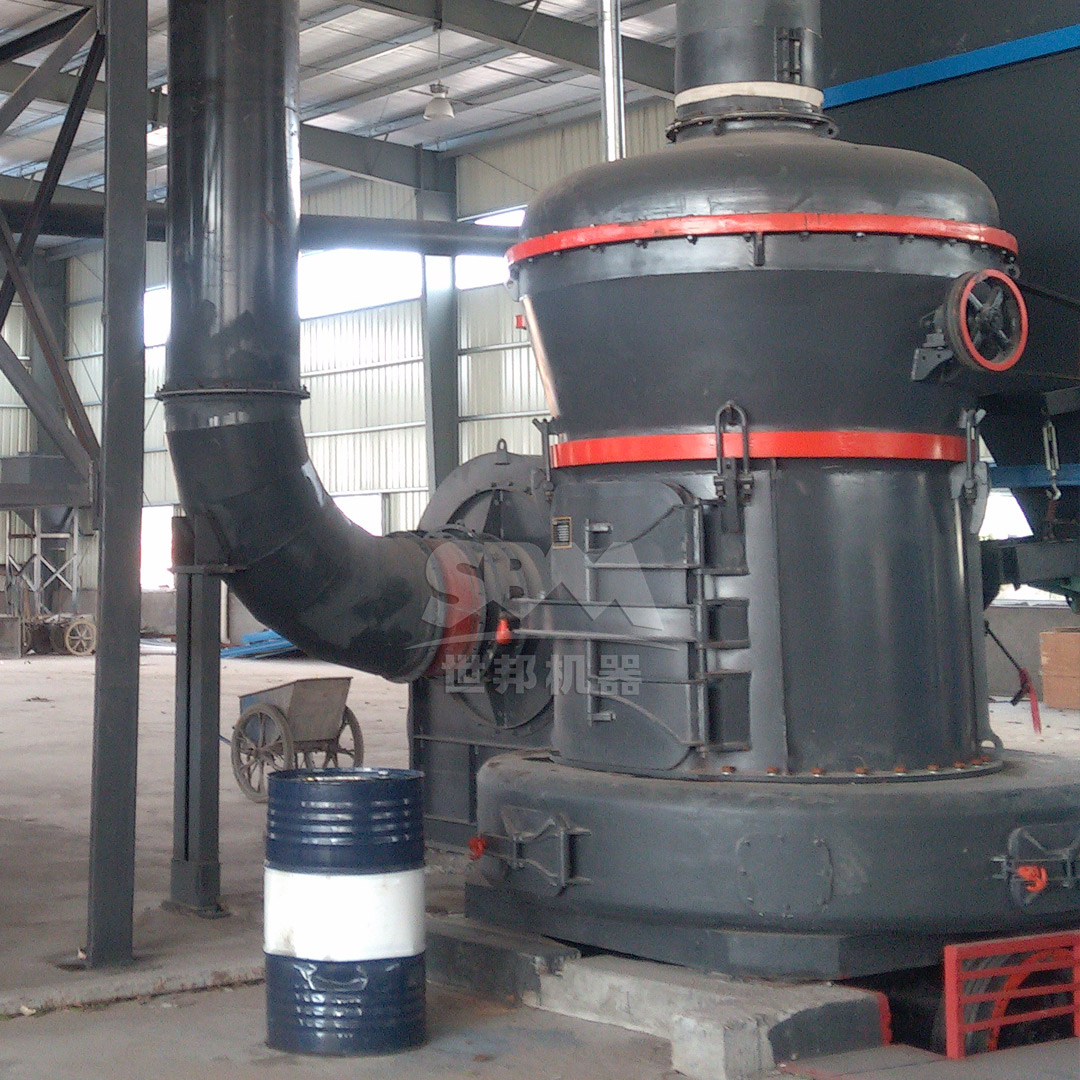

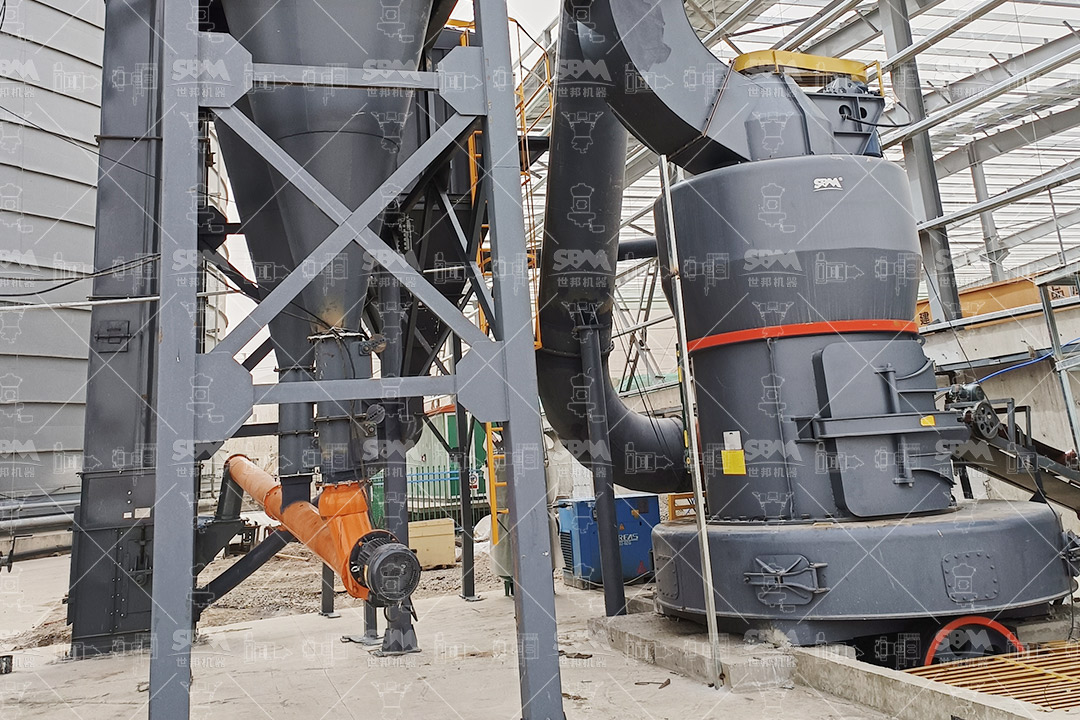

Another Robust Solution: The MTW Series Trapezium Mill

For applications requiring high-capacity production of fine to medium-fine calcium carbonate powders (30-325 mesh), the MTW Series Trapezium Mill offers an outstanding balance of performance, reliability, and cost-effectiveness.

Why it Excels in GCC Milling:

• Advanced Grinding Structure: Its curved air duct design minimizes air flow resistance and energy loss, significantly improving transmission efficiency. The wear-resistant volute structure further enhances air classification performance.
• Innovative Wear Parts: The modular design of the shovel blades drastically reduces maintenance time and cost. The curved blade design also contributes to a longer service life for the grinding rollers.
• Highly Efficient Drive System: The mill utilizes an integral conical gear transmission with an impressive efficiency of up to 98%. This compact and robust design saves space and reduces installation complexity.
• Proven Reliability: With models like the MTW215G offering capacities up to 45 tons per hour, this mill is built for large-scale, continuous production runs, ensuring consistent output for fillers in plastics, paints, and construction materials.

The MTW Series is a testament to the evolution of trapezium mill technology, providing a reliable and efficient workhorse for a broad spectrum of calcium carbonate grinding applications.

Future Prospects and Conclusion

The future of calcium carbonate grinding mills is intrinsically linked to the development of smarter, more connected, and more sustainable industrial processes. The integration of Industrial Internet of Things (IIoT) technology will enable predictive maintenance, where data analytics can forecast wear and schedule maintenance before failures occur, maximizing uptime.

Furthermore, the pursuit of energy neutrality will drive the adoption of more efficient drive systems and the potential recovery of waste heat from the grinding process. The development of new liner and roller materials, including advanced ceramics and composites, will continue to push the limits of wear resistance and product purity.

In conclusion, the development prospects for calcium carbonate grinding mills are exceptionally bright. The market’s demand for finer, more consistent, and functional products necessitates continuous innovation. Mills like the SCM Ultrafine Mill and the MTW Series Trapezium Mill are at the forefront of this evolution, offering the performance, efficiency, and environmental credentials required to succeed in a competitive global market. By investing in such advanced technology, producers can not only meet current application demands but also future-proof their operations for the challenges and opportunities ahead.
