Supercapacitor Activated Carbon Production Process and Milling Equipment Introduction

Introduction to Supercapacitor Activated Carbon

Supercapacitors, also known as ultracapacitors, represent a revolutionary energy storage technology that bridges the gap between traditional capacitors and batteries. At the heart of high-performance supercapacitors lies activated carbon, a material prized for its exceptionally high surface area, tunable pore structure, and excellent electrical conductivity. The performance of supercapacitors is directly influenced by the physical and chemical properties of the activated carbon used in their electrodes. Consequently, the production process, particularly the milling stage, is critical in defining the final material’s characteristics, such as specific surface area, particle size distribution, and purity.

This article delves into the production process of supercapacitor-grade activated carbon, with a specific focus on the crucial role of milling and grinding equipment. We will explore the technological requirements for producing high-quality carbon powder and introduce advanced milling solutions that meet these demanding specifications.

The Production Process of Supercapacitor Activated Carbon

The journey from raw carbonaceous material to high-purity activated carbon suitable for supercapacitors involves several meticulous steps:

Raw Material Selection and Preparation: Common precursors include coconut shells, coal pitch, phenolic resins, and other organic materials with high carbon content. These materials are first cleaned and crushed into smaller chunks.
Carbonization: The crushed material is subjected to high temperatures (600-900°C) in an inert atmosphere. This process drives off volatile components, leaving behind a fixed carbon structure with initial porosity.
Activation: This is the most critical step for developing the high surface area. It can be achieved through physical (thermal) activation using steam or CO₂ at 800-1100°C, or chemical activation using agents like KOH, NaOH, or ZnCl₂ at lower temperatures. Chemical activation often results in higher surface areas and is commonly used for supercapacitor applications.
Washing and Purification: The chemically activated carbon must be thoroughly washed to remove residual activation agents and impurities. This is vital for achieving high electrochemical stability and conductivity.
Drying: The purified carbon is dried to remove moisture.
Milling and Classification (The Key Focus): The dried carbon blocks are milled into a fine powder with a tightly controlled particle size distribution. This step is paramount as it directly affects the electrode’s packing density, ionic accessibility, and overall capacitance.
Post-treatment (Optional): Additional treatments, such as surface functionalization or doping with heteroatoms (e.g., nitrogen, oxygen), may be applied to enhance wettability and pseudocapacitance.

The Critical Role of Milling in Supercapacitor Carbon Production

Milling is not merely a size reduction step; it is a process that defines the quality of the final product. The ideal activated carbon powder for supercapacitors must possess:

Ultra-fine Particle Size: Typically in the range of 5-20 micrometers (D50) to ensure a high packing density and a large accessible surface area in the electrode.
Narrow Particle Size Distribution (PSD): A consistent PSD prevents larger particles from blocking pores and ensures uniform electrochemical properties throughout the electrode material.
High Purity: The milling process must not introduce metallic contaminants from wear parts, as these can degrade the electrolyte and reduce the supercapacitor’s lifespan.
Preservation of Pore Structure: Aggressive milling can destroy the delicate microporous and mesoporous structure created during activation. The milling technology must be gentle enough to preserve this crucial architecture while effectively reducing particle size.

Therefore, selecting the right milling equipment is not a choice but a necessity for manufacturers aiming for the high-end supercapacitor market.

Introduction to Advanced Milling Equipment

Traditional milling systems like ball mills or hammer mills often fall short of these requirements. They can cause contamination, generate excessive heat (which may alter the carbon structure), and produce a broad PSD. Modern, advanced milling technologies offer precise control, high efficiency, and minimal contamination.

Key Considerations for Milling Equipment Selection

Grinding Mechanism: Choose between impact, compression, or shear-based grinding based on the material’s hardness and brittleness.
Classifying System: An integrated, high-precision air classifier is essential for achieving a narrow PSD and for recycling oversize particles.
Wear Resistance: Grinding components must be made from advanced ceramics or specially hardened metals to minimize contamination.
Cooling System: Effective cooling is necessary to prevent thermal degradation of the heat-sensitive activated carbon.
Automation and Control: PLC-based systems allow for precise control over parameters like feed rate, grinding energy, and classifier speed, ensuring consistent product quality.

Conclusion

The production of high-quality activated carbon for supercapacitors is a complex process where each stage holds significant importance. The milling stage, in particular, is crucial for determining the electrochemical performance of the final product. Investing in advanced, precise, and reliable milling technology is not an operational expense but a strategic investment in product quality and market competitiveness.

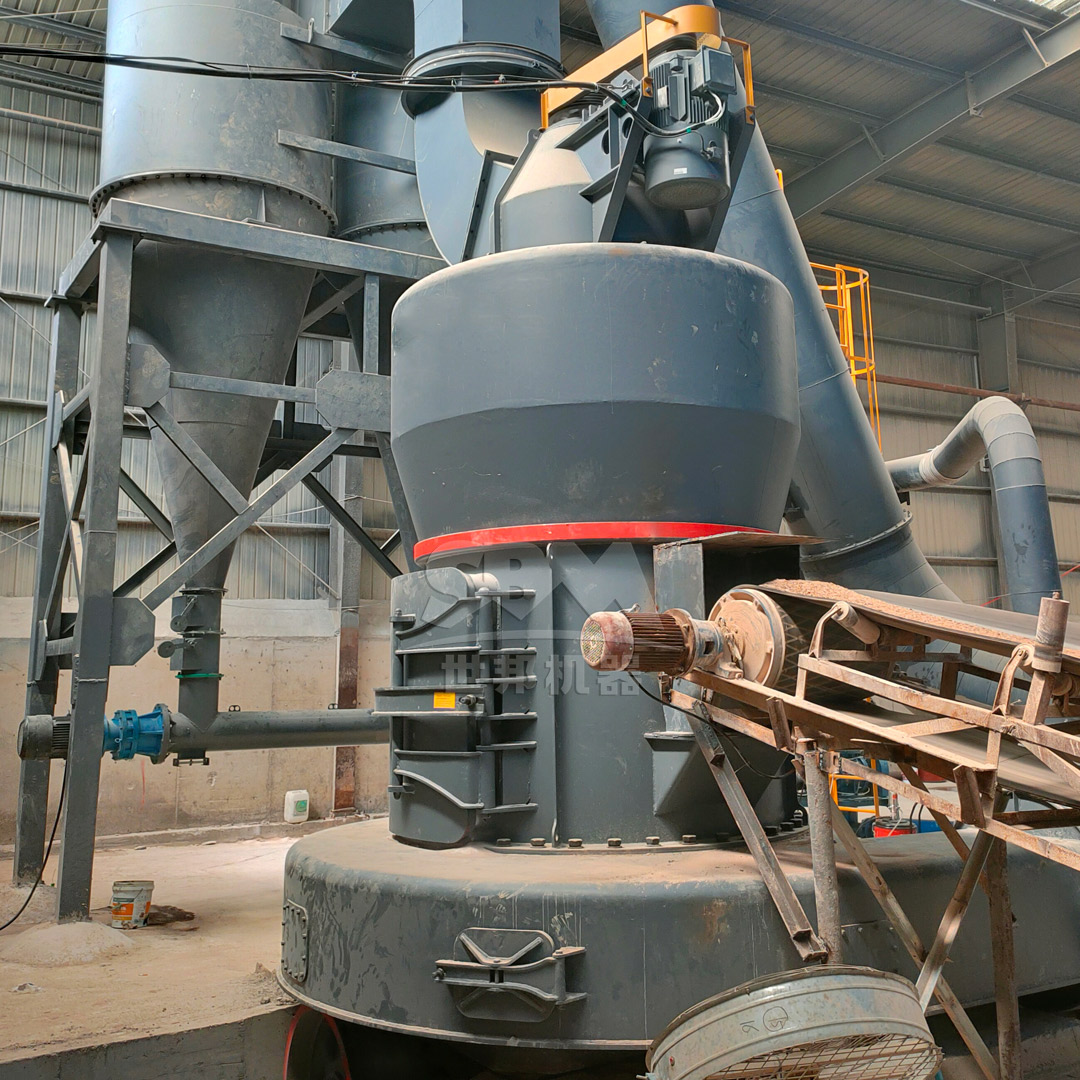

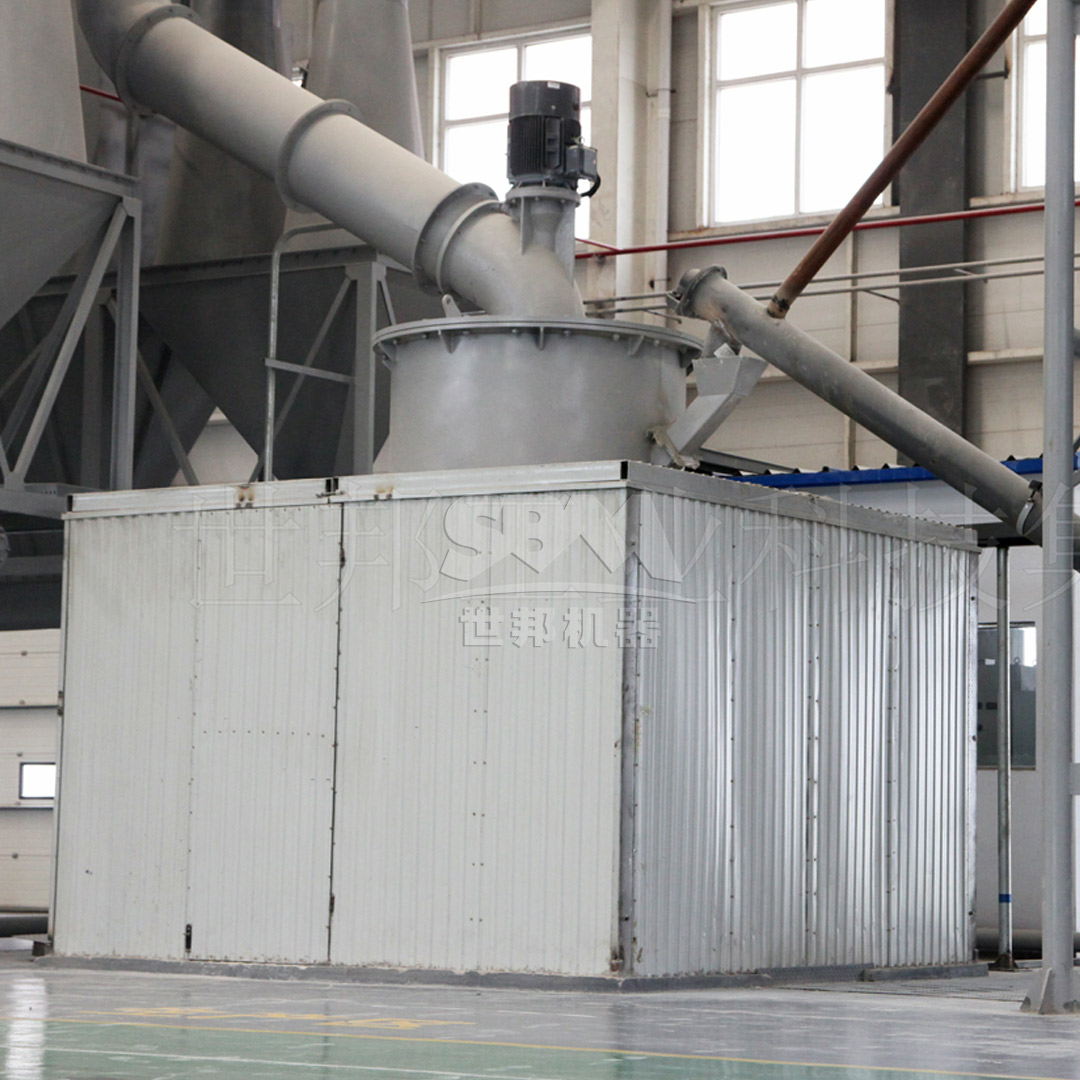

Our SCM Ultrafine Mill and MTW Series Trapezium Mill represent the pinnacle of grinding technology, offering the precision, efficiency, and cleanliness required for manufacturing superior supercapacitor-grade activated carbon. By choosing the right equipment, manufacturers can ensure consistent production of high-performance materials that meet the ever-growing demands of the advanced energy storage industry.
