Sulfate Process for Rutile Titanium Dioxide Production Flow Chart
Introduction to the Sulfate Process for Titanium Dioxide Production
The sulfate process represents one of the two primary industrial methods for manufacturing titanium dioxide (TiO₂) pigment, with the chloride process being the other. This comprehensive chemical process transforms titanium-bearing ores, primarily ilmenite (FeTiO₃) or titanium slag, into high-purity rutile titanium dioxide through a series of carefully controlled reactions and purification steps. The sulfate process is particularly advantageous for processing lower-grade ores and offers exceptional control over particle size and surface treatment, making it suitable for producing specialized pigment grades for various applications.
This article provides an in-depth examination of the sulfate process flow chart, detailing each operational stage from raw material preparation to final product packaging. We will explore the chemical reactions, equipment requirements, and quality control measures essential for producing premium-grade rutile titanium dioxide pigment that meets international standards for brightness, opacity, and durability.
Raw Material Preparation and Ore Digestion
The sulfate process begins with the careful selection and preparation of titanium-bearing raw materials. Ilmenite (FeTiO₃) remains the most commonly used ore, though titanium slag produced from ilmenite through smelting processes offers higher TiO₂ content and reduced iron levels. The selected raw material is first crushed and ground to optimal particle size, typically between 100-200 mesh, to maximize surface area for subsequent chemical reactions.
The ground ore undergoes digestion in concentrated sulfuric acid (H₂SO₄), typically ranging from 85-95% concentration. This exothermic reaction occurs in lead-lined or brick-lined digestion tanks equipped with efficient agitation systems. The digestion process can be represented by the following chemical equations:
FeTiO₃ + 2H₂SO₄ → TiOSO₄ + FeSO₄ + 2H₂O
For ilmenite containing ferric iron:
Fe₂O₃ + 3H₂SO₄ → Fe₂(SO₄)₃ + 3H₂O
The reaction generates substantial heat, raising the temperature to 170-220°C, and produces a porous solid mass known as the digestion cake. Water is then added to this cake to create a solution called titanyl sulfate solution or “black liquor,” which contains titanium in solution along with various impurities including iron, vanadium, chromium, and other trace elements.

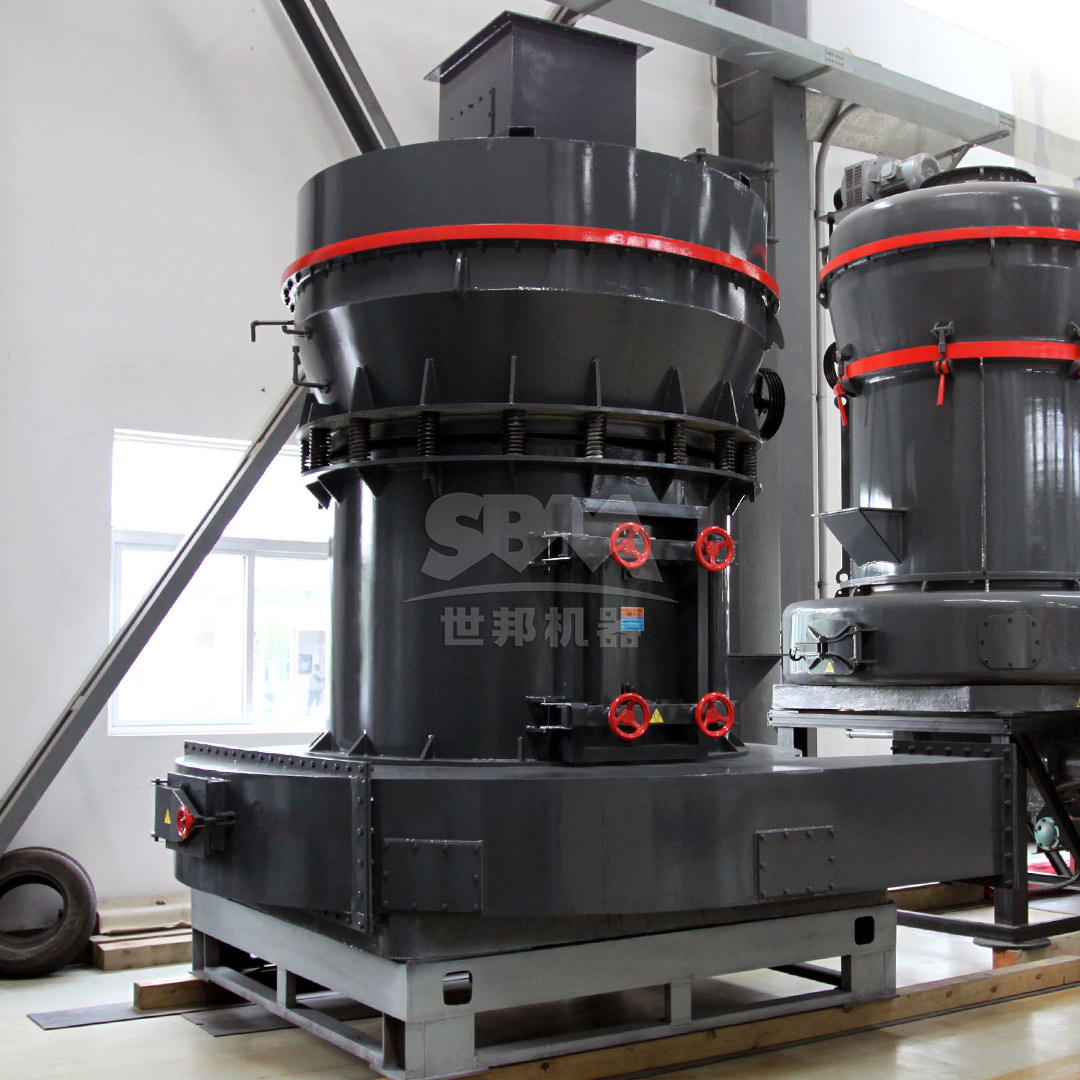

At this initial processing stage, efficient size reduction of the titanium-bearing ores is critical for optimizing acid digestion efficiency. Our SCM Ultrafine Mill series offers exceptional performance in preparing raw materials with output fineness ranging from 325-2500 mesh (D97≤5μm). With capacities from 0.5-25 tons per hour depending on model specifications, these mills provide the precise particle size control necessary for maximizing titanium extraction rates while reducing acid consumption. The SCM series’ energy-efficient design and durable construction make it particularly suitable for the demanding environment of titanium dioxide production facilities.
Purification and Crystallization Stages
Following digestion, the titanium sulfate solution undergoes a comprehensive purification process to remove impurities that would otherwise compromise the final pigment quality. The first purification step involves the reduction of ferric iron (Fe³⁺) to ferrous iron (Fe²⁺) using scrap iron or other reducing agents. This reduction is crucial as ferrous sulfate exhibits superior crystallization properties compared to ferric sulfate.
The solution is then cooled to approximately 10°C to crystallize ferrous sulfate heptahydrate (FeSO₄·7H₂O), commonly known as copperas. This crystallization step effectively removes a significant portion of the iron content from the solution. The copperas crystals are separated from the titanium solution using centrifuges or vacuum filters and may be sold as a by-product for water treatment applications or agricultural supplements.
Additional purification steps may include precipitation or solvent extraction methods to remove other metallic impurities such as vanadium, chromium, manganese, and niobium. Vanadium, in particular, must be carefully controlled as it can impart undesirable yellow coloration to the final titanium dioxide product. The purification process typically employs specific reagents such as phosphoric acid or organic extractants to target these impurities selectively.
For operations requiring intermediate grinding of by-products or preparation of additives, our MTW Series Trapezium Mill provides robust performance with output fineness from 30-325 mesh and capacities ranging from 3-45 tons per hour. The mill’s advanced features, including anti-wear shovel design and curved air channel optimization, ensure reliable operation with reduced maintenance requirements. The MTW series’ efficient grinding capabilities make it suitable for processing various materials throughout the titanium dioxide production cycle.
Hydrolysis and Rutile Formation
Hydrolysis represents the most critical step in the sulfate process, where soluble titanyl sulfate is converted to insoluble hydrated titanium dioxide through controlled precipitation. The purified titanium solution is concentrated to a specific density and titanium concentration, typically around 200-230 g/L TiO₂, before being transferred to hydrolysis tanks.
Hydrolysis is initiated by seeding the solution with specially prepared rutile nuclei or by adding steam to raise the temperature to the boiling point. The chemical reaction for hydrolysis can be represented as:
TiOSO₄ + (n+1)H₂O → TiO₂·nH₂O + H₂SO₄
The process conditions, including temperature profile, concentration, agitation, and seeding methodology, must be meticulously controlled to ensure the formation of the desired rutile crystal structure with optimal particle size distribution. The hydrolysis reaction typically requires several hours to complete, during which the metastable anatase form may initially precipitate before transforming to the more stable rutile modification.
Following hydrolysis, the precipitated hydrated titanium dioxide is separated from the weak sulfuric acid solution (approximately 20-25% concentration) using filtration equipment such as rotary vacuum filters or membrane presses. The recovered acid, known as “waste acid” or “by-product acid,” may be reconcentrated for reuse in the digestion stage or processed for other industrial applications.
Calcination and Particle Development
The filtered hydrated titanium dioxide cake undergoes calcination in rotary kilns or fluidized bed calciners at temperatures ranging from 850-1000°C. This thermal treatment serves multiple purposes: it removes chemically combined water, completes the development of the rutile crystal structure, and controls the primary particle size of the titanium dioxide.
The calcination process transforms the amorphous hydrated oxide into crystalline rutile TiO₂ through a series of phase transformations and crystal growth mechanisms. The temperature profile, residence time, and atmospheric conditions within the calciner significantly influence the final pigment properties, including crystal size, size distribution, and photochemical activity.
During calcination, various mineralizers or doping agents may be introduced to promote rutile formation, control crystal growth, and modify the pigment’s optical and surface properties. Common additives include compounds of zinc, potassium, phosphorus, and aluminum, which are incorporated into the crystal lattice or deposited on the particle surfaces to achieve specific performance characteristics.

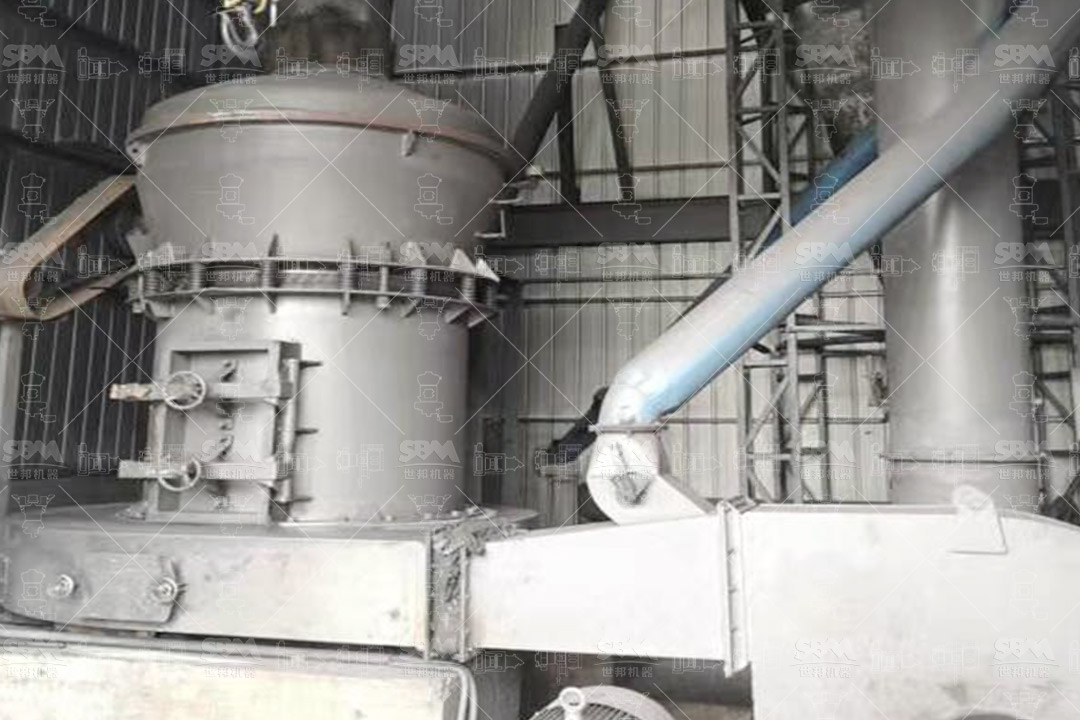

The calcined titanium dioxide typically emerges from the kiln as coarse aggregates that require substantial size reduction to achieve the optimal particle size for pigment applications. This is where advanced milling technology becomes essential for product quality. Our SCM Ultrafine Mill demonstrates exceptional performance in this final processing stage, capable of reducing calcined TiO₂ to the precise fineness required for premium pigment applications (325-2500 mesh). The mill’s high-precision classification system ensures uniform particle size distribution, while its energy-efficient operation significantly reduces production costs compared to conventional grinding systems.
Surface Treatment and Final Processing
Following calcination and milling, the titanium dioxide pigment undergoes surface treatment to enhance its performance properties for specific applications. This treatment typically involves the deposition of inorganic oxides, primarily silica (SiO₂) and alumina (Al₂O₃), through controlled precipitation reactions.
The surface treatment process begins by dispersing the base pigment in water to form a slurry, to which solutions of sodium silicate, aluminum sulfate, or other treatment chemicals are added under carefully controlled pH and temperature conditions. The precipitated hydrous oxides form continuous or discrete layers on the pigment particle surfaces, improving properties such as:
- Dispersion stability in application media
- Durability and weatherability
- Optical properties including opacity and brightness
- Chemical resistance
- Gloss development in coatings and plastics
After surface treatment, the pigment is filtered, washed to remove soluble salts, dried, and subjected to final milling to break down any soft aggregates formed during the treatment process. This final milling step requires equipment capable of delicate deagglomeration without fracturing the primary particles or damaging the applied surface treatments.
Quality Control and Product Packaging
Rigorous quality control measures are implemented throughout the sulfate process to ensure consistent product quality. Final product testing typically includes assessments of chemical composition, particle size distribution, crystal structure, surface treatment completeness, and application performance in representative systems.
Key quality parameters for rutile titanium dioxide pigment include:
- TiO₂ content (typically >94% for standard grades)
- Brightness and undertone
- Oil absorption
- Resistance to weathering and photochemical activity
- Dispersion characteristics
- Specific gravity and bulking value
The finished pigment is packaged in various formats depending on market requirements, including 25kg multi-wall paper bags, 1-ton big bags, or bulk shipments for large-scale industrial consumers. Proper packaging is essential to protect the product from contamination, moisture absorption, and compaction during storage and transportation.
Environmental Considerations and By-Product Management
The sulfate process generates several waste streams that require careful management to minimize environmental impact. The most significant by-product is ferrous sulfate heptahydrate (copperas), which can be marketed for water treatment, agricultural applications, or as a raw material for other chemical processes.
Weak sulfuric acid from the hydrolysis stage presents another substantial waste stream. Modern facilities often incorporate acid concentration units to recycle this stream back to the digestion stage, significantly reducing raw material consumption and waste generation. Advanced wastewater treatment systems are employed to remove heavy metals and other contaminants before discharge.
Emissions control represents another critical environmental consideration, with bag filters, electrostatic precipitators, and scrubbers employed to control particulate and gaseous emissions from calcination and other process stages. Modern titanium dioxide plants implement comprehensive environmental management systems to ensure compliance with increasingly stringent regulatory requirements.
Conclusion
The sulfate process for rutile titanium dioxide production represents a sophisticated integration of chemical engineering, materials science, and process control technologies. From initial ore preparation to final surface treatment, each stage requires precise operational control and high-performance equipment to produce pigments that meet the exacting standards of modern industrial applications.
The selection of appropriate processing equipment, particularly in critical size reduction stages, significantly impacts both product quality and production economics. Our grinding solutions, including the SCM Ultrafine Mill and MTW Series Trapezium Mill, offer titanium dioxide producers reliable, efficient options for optimizing their operations across multiple process stages. With advanced features such as precision classification, energy-efficient operation, and durable construction, these mills deliver the consistent performance necessary for competitive titanium dioxide manufacturing in today’s global market.
As environmental regulations tighten and customer expectations evolve, continuous improvement in sulfate process technology remains essential. Innovations in recycling, waste minimization, and energy efficiency will shape the future development of this important industrial process, ensuring its continued viability in the global pigments market.
