Steel Slag Grinding Mill Selection Guide for Recycling Projects
Introduction to Steel Slag Recycling
Steel slag, a byproduct of steelmaking processes, represents both an environmental challenge and a valuable resource opportunity. With global steel production exceeding 1.8 billion tons annually, the proper utilization of steel slag has become increasingly important for sustainable industrial development. The grinding process stands as a critical step in transforming this industrial waste into high-value products for construction, cement production, and various other applications. This comprehensive guide examines the key factors in selecting appropriate grinding equipment for steel slag recycling projects, with particular focus on technical specifications, operational efficiency, and economic viability.
Characteristics of Steel Slag and Grinding Challenges
Physical and Chemical Properties
Steel slag exhibits unique characteristics that present specific challenges for grinding operations. With Mohs hardness typically ranging from 5 to 7 and containing significant iron content (often 10-40%), steel slag demands robust grinding equipment capable of handling abrasive materials. The chemical composition varies depending on the steelmaking process but generally includes calcium oxide, silicon dioxide, aluminum oxide, and magnesium oxide, along with metallic iron. Understanding these properties is essential for selecting appropriate grinding technology that can maintain operational efficiency while minimizing wear and maintenance costs.
Grinding-Specific Challenges
The grinding of steel slag presents several technical challenges that must be addressed through proper equipment selection. The high abrasiveness of slag components accelerates wear on grinding elements, while the presence of metallic iron can cause equipment damage if not properly managed. Additionally, the moisture content in slag (typically 5-15%) can affect grinding efficiency and require specific handling considerations. The desired final product specifications, whether for cement replacement, aggregate production, or other applications, will significantly influence the choice of grinding technology and system configuration.
Key Selection Criteria for Steel Slag Grinding Mills
Production Capacity Requirements
The required production capacity represents one of the primary considerations in mill selection. Projects range from small-scale operations processing 5-10 tons per hour to large industrial facilities handling over 100 tons per hour. The mill must not only meet current production needs but also allow for future expansion. When evaluating capacity, consider both the raw feed rate and the finished product output, as these may differ significantly depending on the target fineness and material characteristics.
Final Product Specifications
The intended application of the ground steel slag directly determines the required fineness and particle size distribution. For use as a cementitious material in concrete production, specific surface areas of 400-500 m²/kg (comparable to 325-500 mesh) are typically required. For construction aggregate applications, coarser products in the range of 30-100 mesh may be sufficient. Advanced applications such as mineral wool production or soil amendment may require ultra-fine grinding down to 2500 mesh or finer. The grinding system must provide precise control over the final product characteristics to meet these diverse application requirements.
Energy Efficiency Considerations
Energy consumption represents a significant portion of operating costs in slag grinding operations, typically accounting for 40-60% of total production expenses. Modern grinding technologies offer substantial improvements in energy efficiency compared to traditional approaches. When evaluating different mill types, consider both the specific energy consumption (kWh/ton) and the overall system efficiency, including ancillary equipment such as classifiers, dust collectors, and material handling systems. The integration of energy recovery systems and intelligent control strategies can further enhance operational economy.
Grinding Mill Technologies for Steel Slag Processing
Vertical Roller Mills (VRM)

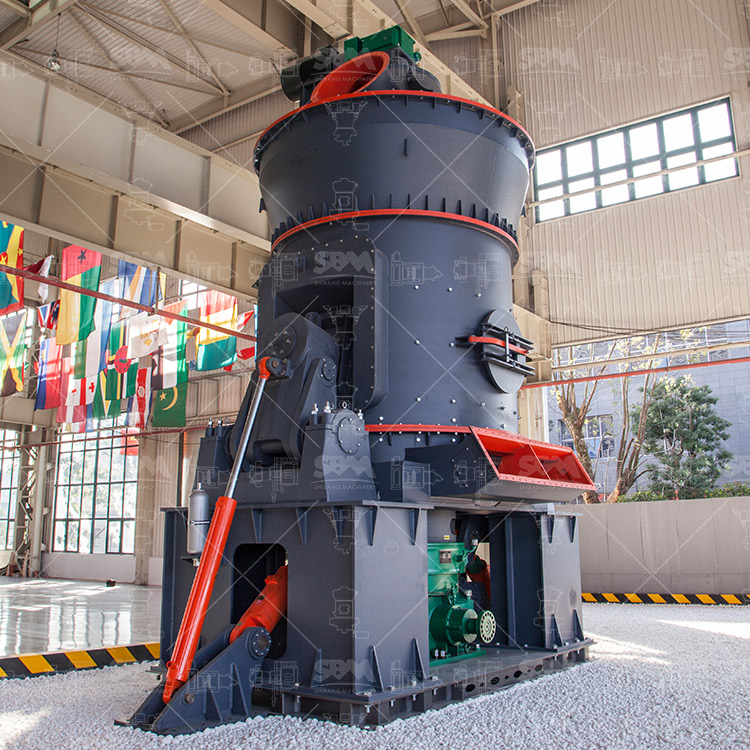

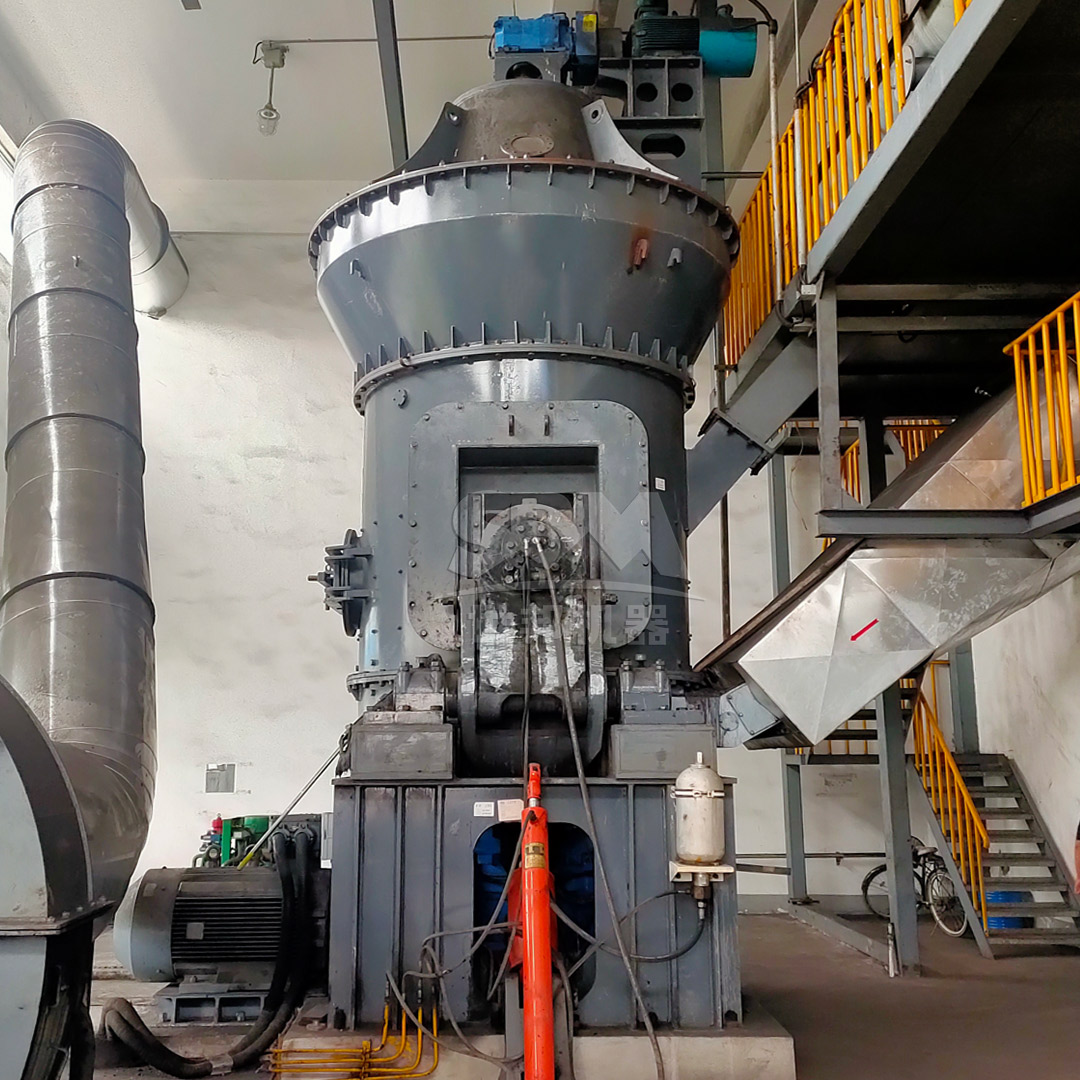

Vertical roller mills have become the preferred solution for large-scale steel slag grinding operations due to their high efficiency and relatively low energy consumption. These systems employ a bed compression grinding principle where material is ground between a rotating table and rollers pressed against it. The integrated drying capability allows processing of slag with moisture content up to 15-20% without requiring separate drying equipment. Modern VRM systems incorporate advanced classifier technology that enables precise control of product fineness while minimizing overgrinding.

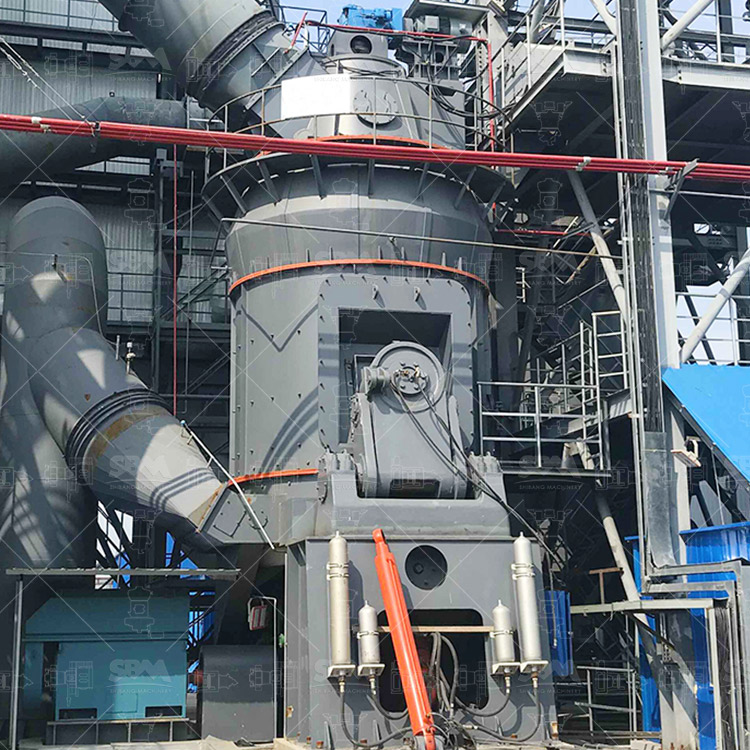

For steel slag applications, our LM Series Vertical Roller Mill offers exceptional performance with its robust construction and advanced features. With capacity ranging from 3-250 tons per hour and the ability to produce fineness from 30-325 mesh (special models up to 600 mesh), this system provides the flexibility needed for diverse slag recycling applications. The integrated design reduces footprint by 50% compared to traditional systems, while the low operating costs – with energy consumption 30-40% lower than ball mill systems – make it an economically attractive solution. The specialized wear protection systems ensure extended operational life even when processing highly abrasive slag materials.
Ultra-Fine Grinding Mills
For applications requiring extremely fine steel slag powders, ultra-fine grinding mills provide the necessary technology to achieve particle sizes down to 5μm (2500 mesh). These systems typically employ multiple grinding stages with integrated high-efficiency classifiers to produce narrow particle size distributions. The ability to produce ultra-fine slag powders opens opportunities for high-value applications such as specialty cements, functional fillers, and advanced composite materials.

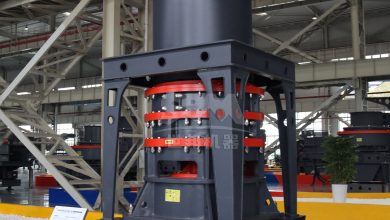

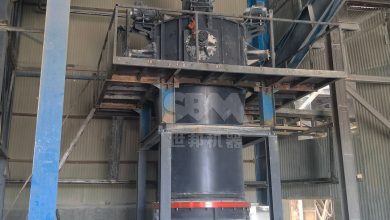

Our SCM Ultrafine Mill represents an optimal solution for projects requiring fine to ultra-fine steel slag powders. With output fineness ranging from 325-2500 mesh (D97≤5μm) and capacity from 0.5-25 tons per hour depending on model, this system delivers exceptional performance for specialized applications. The vertical turbine classifier ensures precise particle size control without coarse powder contamination, while the special material rollers and grinding rings provide extended service life when processing abrasive slag. The integrated pulse dust collection system exceeds international environmental standards, and the noise reduction design maintains operation below 75dB, creating a better working environment.
Trapezium Mills
Trapezium mills offer a balanced solution for medium to fine grinding of steel slag, particularly suitable for operations requiring product fineness in the 30-325 mesh range. These systems feature a unique grinding mechanism combining crushing, grinding, and classifying functions in a single unit. The curved air duct design minimizes energy loss while the wear-resistant components provide durability when processing abrasive materials.
Our MTW Series Trapezium Mill delivers reliable performance for steel slag grinding with capacities from 3-45 tons per hour. The innovative wear-resistant shovel design significantly reduces maintenance costs, while the integral transmission with bevel gears achieves 98% transmission efficiency. With multiple models available, this system can be precisely matched to specific project requirements, providing an optimal balance between capital investment and operating costs.
Technical Comparison of Grinding Systems
Performance Metrics
When evaluating different grinding technologies for steel slag applications, several key performance metrics should be considered. Energy efficiency varies significantly between technologies, with vertical roller mills typically consuming 25-40 kWh/ton for producing 400 m²/kg slag powder, while traditional ball mills may require 35-50 kWh/ton for similar products. Wear rates represent another critical factor, with advanced materials in modern mills extending component life by 2-3 times compared to conventional designs. Operational flexibility, including the ability to adjust product fineness quickly and handle variations in feed material characteristics, also differs substantially between technologies.
Economic Considerations
The economic evaluation of grinding systems must consider both capital investment and long-term operating costs. While vertical roller mills typically involve higher initial investment compared to traditional technologies, their superior energy efficiency and lower maintenance requirements often result in lower total cost of ownership over the equipment lifecycle. For projects with capacity requirements below 10 tons per hour, trapezium mills or smaller vertical mills may offer better economic returns. The specific local conditions, including electricity costs, labor rates, and availability of spare parts, should be factored into the economic analysis.
Case Study: Implementation Considerations
Project Planning and System Integration
Successful implementation of a steel slag grinding system requires careful planning and integration with upstream and downstream processes. The grinding circuit must be properly matched with pre-crushing equipment to ensure optimal feed size distribution. Material handling systems, including conveyors, elevators, and storage silos, must be designed to handle the abrasive characteristics of steel slag. Dust collection and noise control systems represent critical environmental considerations that must be addressed during the design phase.
Operational Best Practices
Establishing proper operational procedures significantly impacts the long-term performance and reliability of slag grinding systems. Regular monitoring of wear parts, systematic maintenance scheduling, and operator training contribute to maximizing equipment availability and product quality. Implementation of process control systems with real-time monitoring of key parameters such as mill pressure, temperature, and power consumption enables optimization of grinding efficiency and early detection of potential issues.
Future Trends in Steel Slag Grinding Technology
Digitalization and Smart Operation
The integration of digital technologies is transforming slag grinding operations through enhanced monitoring, control, and optimization capabilities. Advanced sensor systems combined with data analytics enable predictive maintenance, reducing unplanned downtime and extending equipment life. Artificial intelligence applications optimize grinding parameters in real-time based on changing material characteristics and operating conditions, maximizing efficiency and product quality.
Sustainability Developments
Increasing focus on sustainability drives innovation in grinding technology toward lower energy consumption, reduced environmental impact, and enhanced circular economy contributions. Developments in wear-resistant materials extend component life and reduce resource consumption, while advanced classification systems minimize overgrinding and associated energy waste. The integration of renewable energy sources and energy recovery systems further improves the environmental footprint of slag grinding operations.
Conclusion
Selecting the appropriate grinding mill for steel slag recycling projects requires careful consideration of multiple technical, operational, and economic factors. The specific characteristics of the slag material, required product specifications, production capacity needs, and local operating conditions all influence the optimal technology choice. Vertical roller mills generally offer the best combination of efficiency, flexibility, and operating economy for medium to large-scale operations, while specialized ultra-fine grinding systems enable high-value applications of finely ground slag powders. By applying the guidance presented in this document and conducting thorough project-specific analysis, operators can implement grinding solutions that maximize both economic returns and environmental benefits from steel slag recycling initiatives.
