Slag Recycling Solutions: Grinding Mill Equipment for Efficient Mineral Waste Processing
Introduction: The Growing Importance of Slag Recycling
In today’s environmentally conscious industrial landscape, the efficient processing of mineral waste has become a critical component of sustainable manufacturing. Slag, a byproduct of metal smelting and refining processes, represents both an environmental challenge and a significant economic opportunity. With proper processing through advanced grinding technologies, slag can be transformed into valuable materials for construction, cement production, and various industrial applications. This article explores the technical solutions available for slag recycling, with particular focus on grinding mill equipment that enables efficient mineral waste processing.
Understanding Slag Characteristics and Processing Requirements
Slag materials vary significantly depending on their origin—blast furnace slag, steel slag, copper slag, and others each present unique processing challenges. These materials typically exhibit high hardness, abrasiveness, and variable moisture content, requiring specialized grinding equipment capable of handling these demanding conditions. The ultimate goal of slag processing is to achieve consistent particle size distribution suitable for downstream applications while maximizing energy efficiency and minimizing operational costs.
Key Technical Considerations for Slag Grinding Equipment
Particle Size Requirements
The target fineness for processed slag depends on its intended application. For use as a cement additive, slag typically requires grinding to a fineness of 400-500 m²/kg Blaine surface area, corresponding to approximately 45-5μm particle size. Coarser grinds may be suitable for construction aggregates, while ultra-fine grinding opens opportunities for high-value applications in specialty concretes and advanced materials.
Throughput and Efficiency
Industrial slag processing operations demand equipment capable of handling significant volumes while maintaining consistent product quality. Throughput requirements can range from a few tons per hour for specialized applications to hundreds of tons per hour for large-scale industrial operations. Energy efficiency is particularly critical, as grinding typically represents the most energy-intensive stage of slag processing.
Wear Resistance and Maintenance
The abrasive nature of slag materials necessitates grinding equipment with exceptional wear resistance. Components such as grinding rollers, tables, and classifiers must be manufactured from specialized materials and designed for easy maintenance to minimize downtime and operating costs.
Advanced Grinding Technologies for Slag Processing

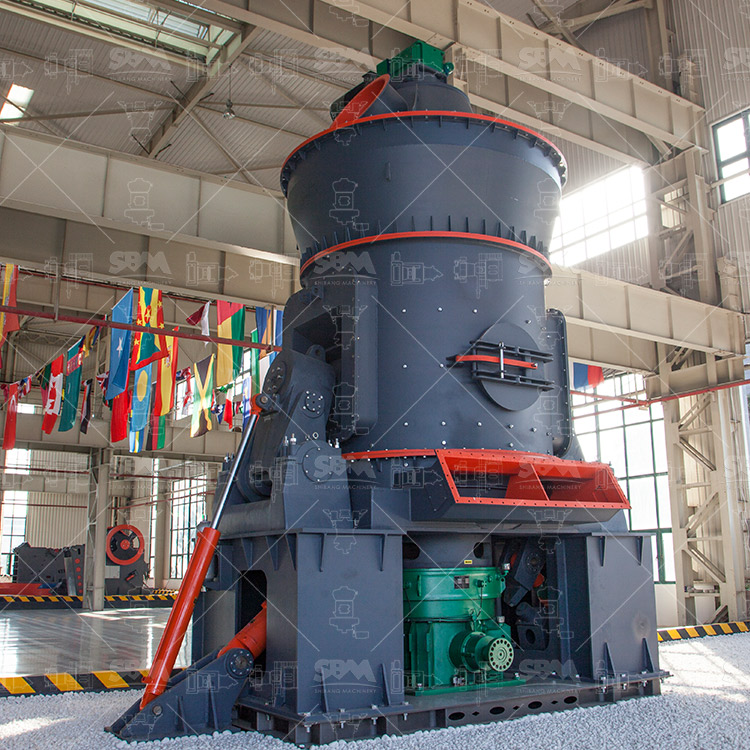

Vertical Roller Mills: The Industry Standard
Vertical roller mills (VRMs) have emerged as the preferred technology for large-scale slag grinding operations. Their advantages include higher energy efficiency compared to traditional ball mills, compact footprint, and ability to handle moist materials through integrated drying. The fundamental working principle involves material being ground between rotating grinding rollers and a stationary grinding table, with integrated classification ensuring precise particle size control.
Specialized Solutions for Ultra-Fine Applications

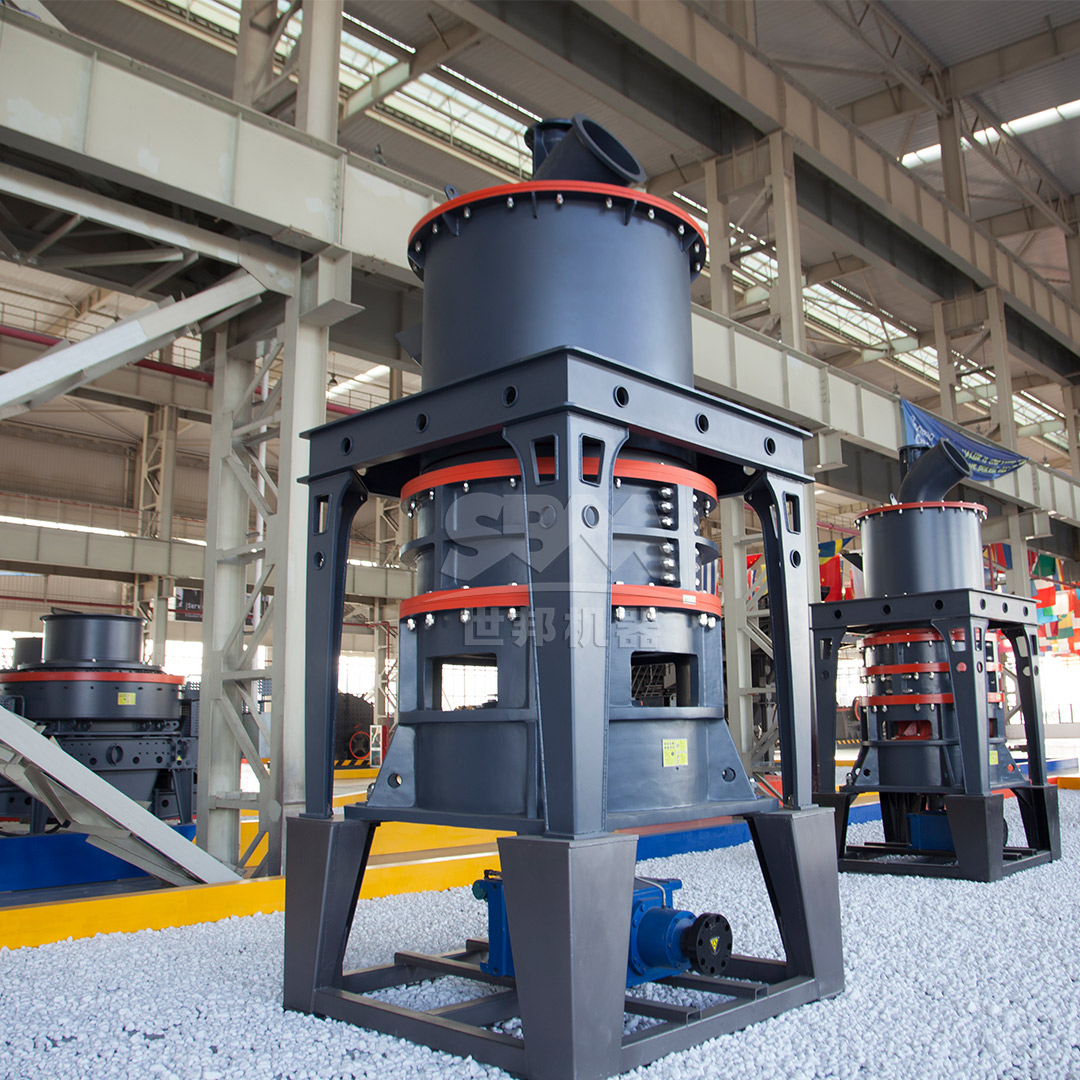

For applications requiring extremely fine slag powders, specialized grinding systems offer unique advantages. Our SCM Ultrafine Mill represents cutting-edge technology in this category, capable of producing slag powders with fineness ranging from 325 to 2500 mesh (D97 ≤ 5μm). This equipment features several technological innovations specifically designed for challenging materials like slag.
The SCM series incorporates a vertical turbine classification system that ensures precise particle size control without coarse powder contamination. With capacity reaching 25 tons per hour and energy consumption 30% lower than conventional air-jet mills, this technology offers significant operational advantages. The equipment’s durable design includes special material rollers and grinding rings that extend service life significantly, while the pulse dust collection system exceeds international environmental standards.
High-Capacity Processing Solutions
For operations requiring substantial throughput capabilities, the MTW Series Trapezium Mill provides an optimal balance of capacity, efficiency, and reliability. Designed to handle feed sizes up to 50mm and produce powders in the 30-325 mesh range (down to 0.038mm), this equipment can process 3-45 tons per hour depending on the specific model configuration.
The MTW series incorporates several proprietary technologies that make it particularly suitable for slag processing. The anti-abrasion shovel blade design reduces maintenance costs, while the curved air channel optimization minimizes energy loss and improves transmission efficiency. The integrated bevel gear transmission system achieves remarkable 98% transmission efficiency, contributing to overall energy savings. For slag processing operations, the MTW215G model offers particularly impressive capabilities with throughput up to 45 tons per hour and power configuration optimized for industrial-scale operations.
Technical Comparison of Grinding Solutions
Selecting the appropriate grinding technology requires careful consideration of multiple factors. The following comparison highlights key differences between major grinding system types:
| Technology | Optimal Fineness Range | Capacity Range (t/h) | Energy Efficiency | Maintenance Requirements |
|---|---|---|---|---|
| Ball Mills | 0.074-0.8mm | 0.65-450 | Moderate | High |
| Vertical Roller Mills | 30-600 mesh | 3-250 | High | Moderate |
| Ultrafine Mills (SCM) | 325-2500 mesh | 0.5-25 | Very High | Low |
| Trapezium Mills (MTW) | 30-325 mesh | 3-45 | High | Moderate-Low |
Integrated System Design for Optimal Slag Processing
Successful slag recycling operations require more than just individual grinding equipment—they demand integrated systems designed for specific material characteristics and production goals. A comprehensive slag processing system typically includes:
Pre-Crushing and Feeding Systems
Proper preparation of slag before grinding is essential for optimizing mill performance. Jaw crushers or hammer mills reduce oversized material to the appropriate feed size for the grinding equipment, while controlled feeding systems ensure consistent material flow and prevent equipment overload.
Drying Integration
Many slag materials contain significant moisture that must be addressed before or during grinding. Modern grinding mills often incorporate hot gas generators that enable simultaneous grinding and drying, eliminating the need for separate drying equipment and reducing overall energy consumption.
Classification and Product Collection
Efficient classification systems are critical for ensuring consistent product quality. Advanced classifiers allow real-time adjustment of product fineness to meet specific customer requirements. Product collection systems, including cyclones and baghouse filters, must be designed to handle the specific characteristics of ground slag powders.
Environmental and Economic Benefits of Advanced Slag Grinding
The implementation of modern grinding technologies for slag processing delivers significant environmental and economic advantages:
Resource Conservation
By transforming industrial waste into valuable products, slag recycling reduces the need for virgin raw materials and minimizes landfill requirements. Each ton of slag used in cement production typically replaces approximately one ton of clinker, resulting in substantial reductions in CO2 emissions from cement manufacturing.
Energy Efficiency
Modern grinding equipment achieves significantly higher energy efficiency compared to traditional technologies. For example, vertical roller mills typically consume 30-40% less energy than ball mills for equivalent grinding tasks, contributing to lower operating costs and reduced environmental impact.
Product Value Enhancement
Properly processed slag powders command premium prices in various markets. Ground granulated blast furnace slag (GGBFS) is particularly valuable as a cement additive, where it improves concrete durability and reduces heat of hydration. Ultra-fine slag powders find applications in high-performance concrete and specialized construction materials.
Case Study: Implementation of SCM Ultrafine Mill in Steel Slag Processing
A recent project involving the installation of an SCM1000 ultrafine mill for steel slag processing demonstrates the capabilities of modern grinding technology. The operation processes approximately 8 tons per hour of steel slag, producing powder with consistent fineness of 800 mesh (D97 ≤ 18μm). Key outcomes included:
- Energy consumption reduction of 35% compared to the previous ball mill system
- Product quality improvement with more consistent particle size distribution
- Reduced maintenance costs due to the equipment’s durable design
- Environmental compliance with dust emissions below regulatory limits
The success of this installation highlights how appropriate technology selection can transform slag from a waste management challenge into a profitable product stream.
Future Trends in Slag Grinding Technology
The evolution of grinding technology continues to address the changing needs of the slag processing industry. Emerging trends include:
Digitalization and Smart Control Systems
Advanced control systems incorporating artificial intelligence and machine learning algorithms are becoming increasingly common in grinding operations. These systems optimize mill performance in real-time, adjusting operating parameters based on feed material characteristics and product requirements.
Hybrid Grinding Systems
Combinations of different grinding technologies offer potential for further optimization. For example, pre-grinding with high-pressure grinding rolls followed by finish grinding in a vertical roller mill can achieve significant energy savings while maintaining product quality.
Enhanced Wear Protection
Ongoing developments in materials science continue to improve the wear resistance of grinding components. Advanced ceramic and composite materials promise extended service life in the highly abrasive environment of slag grinding.
Conclusion: Selecting the Right Technology for Slag Recycling
The successful implementation of slag recycling operations requires careful matching of grinding technology to specific material characteristics and production objectives. From high-capacity vertical roller mills for large-scale operations to precision ultrafine mills for specialized applications, modern grinding equipment offers solutions for virtually every slag processing requirement. As environmental regulations tighten and resource efficiency becomes increasingly important, investments in advanced grinding technology will continue to deliver both economic and environmental returns. By transforming industrial byproducts into valuable materials, slag recycling represents a key component of the circular economy, and advanced grinding equipment serves as the enabling technology that makes this transformation possible.
