Silicon Micro Powder: Properties and Manufacturing Process Explained

Introduction to Silicon Micro Powder

Silicon micro powder, also known as silica fume or microsilica, is an ultra-fine powder consisting of amorphous silicon dioxide (SiO₂) particles. This material is typically a byproduct of silicon metal and ferrosilicon alloy production, where silica fumes are collected through sophisticated filtration systems. With particle sizes ranging from 0.1 to 1.0 micrometers and specific surface areas between 15,000-30,000 m²/kg, silicon micro powder exhibits exceptional properties that make it valuable across numerous industrial applications.

The unique characteristics of silicon micro powder stem from its extreme fineness, high amorphous silica content (typically 85-98%), and spherical particle morphology. These properties contribute to its remarkable performance in enhancing material strength, durability, and chemical resistance when used as a supplementary cementitious material in concrete, as a functional filler in polymers, or as a raw material in refractory products.

Key Properties of Silicon Micro Powder

Physical Properties

The physical characteristics of silicon micro powder are primarily defined by its extreme fineness and particle size distribution. With average particle sizes approximately 100 times smaller than typical cement particles, silicon micro powder creates a dense packing effect when incorporated into composite materials. The spherical nature of the particles reduces internal friction and improves workability, while the high surface area provides extensive reactive sites for chemical interactions.

Bulk density of silicon micro powder typically ranges from 200-300 kg/m³ for the as-produced material, though densified versions can reach 500-700 kg/m³. The specific gravity falls between 2.2-2.3, slightly lower than Portland cement, contributing to weight reduction in final products. The powder’s extreme fineness necessitates specialized handling and storage systems to prevent dusting and ensure worker safety.

Chemical Properties

Silicon micro powder consists predominantly of amorphous silicon dioxide (SiO₂), with content typically exceeding 90% and often reaching 98% in high-quality grades. The amorphous structure differentiates it from crystalline silica forms, eliminating the health risks associated with crystalline silica dust while providing enhanced reactivity. This high silica content contributes to pozzolanic activity, enabling reactions with calcium hydroxide in cementitious systems to form additional calcium silicate hydrate (C-S-H) phases.

Other chemical components include minor amounts of carbon (typically 0.5-2.5%), along with trace elements from the original raw materials used in silicon metal production. The material exhibits high chemical stability and resistance to most acids, though it is susceptible to strong alkalis and hydrofluoric acid. The pH of silicon micro powder in water suspension is generally neutral to slightly alkaline, ranging from 6.5-8.5.

Performance Characteristics

When incorporated into concrete, silicon micro powder significantly enhances mechanical properties and durability. Compressive strength improvements of 20-35% are commonly achieved, with even greater enhancements in later ages due to continued pozzolanic reactions. The material dramatically reduces permeability by filling capillary pores and transition zones between cement particles and aggregates, decreasing chloride ion penetration by up to 90% compared to conventional concrete.

The addition of silicon micro powder improves abrasion resistance by 30-50%, making it ideal for industrial floors, pavements, and hydraulic structures. It also enhances resistance to chemical attack from sulfates, chlorides, and acidic environments. In refractory applications, silicon micro powder improves packing density, reduces porosity, and enhances high-temperature strength through the formation of secondary mullite phases.

Manufacturing Processes for Silicon Micro Powder

Raw Material Preparation

The production of high-quality silicon micro powder begins with careful selection and preparation of raw materials. Quartzite or high-purity silica sand with SiO₂ content exceeding 98% is typically used as the primary raw material. These materials are crushed and screened to achieve optimal sizing before being introduced to the electric arc furnaces used in silicon metal production.

In the furnace, temperatures exceeding 2000°C reduce the silica to elemental silicon, with silica fumes being generated as a byproduct. The composition and quality of these fumes are influenced by furnace operating parameters, raw material purity, and the specific alloy being produced. Consistent raw material quality is essential for producing silicon micro powder with uniform chemical and physical properties.

Collection and Preliminary Processing

The silica fumes generated during silicon production are collected through sophisticated baghouse filtration systems capable of capturing submicron particles. These systems typically achieve collection efficiencies exceeding 99%, ensuring minimal environmental emissions while maximizing product yield. The as-collected material has a bulk density of 200-300 kg/m³ and requires processing to improve handling characteristics.

Densification processes may be employed to increase bulk density to 500-700 kg/m³, reducing transportation costs and improving handling. This is typically achieved through mechanical agitation or compression, causing the fine particles to adhere together while maintaining their individual characteristics. The material may also undergo classification to remove oversize particles or impurities that could affect performance in specific applications.

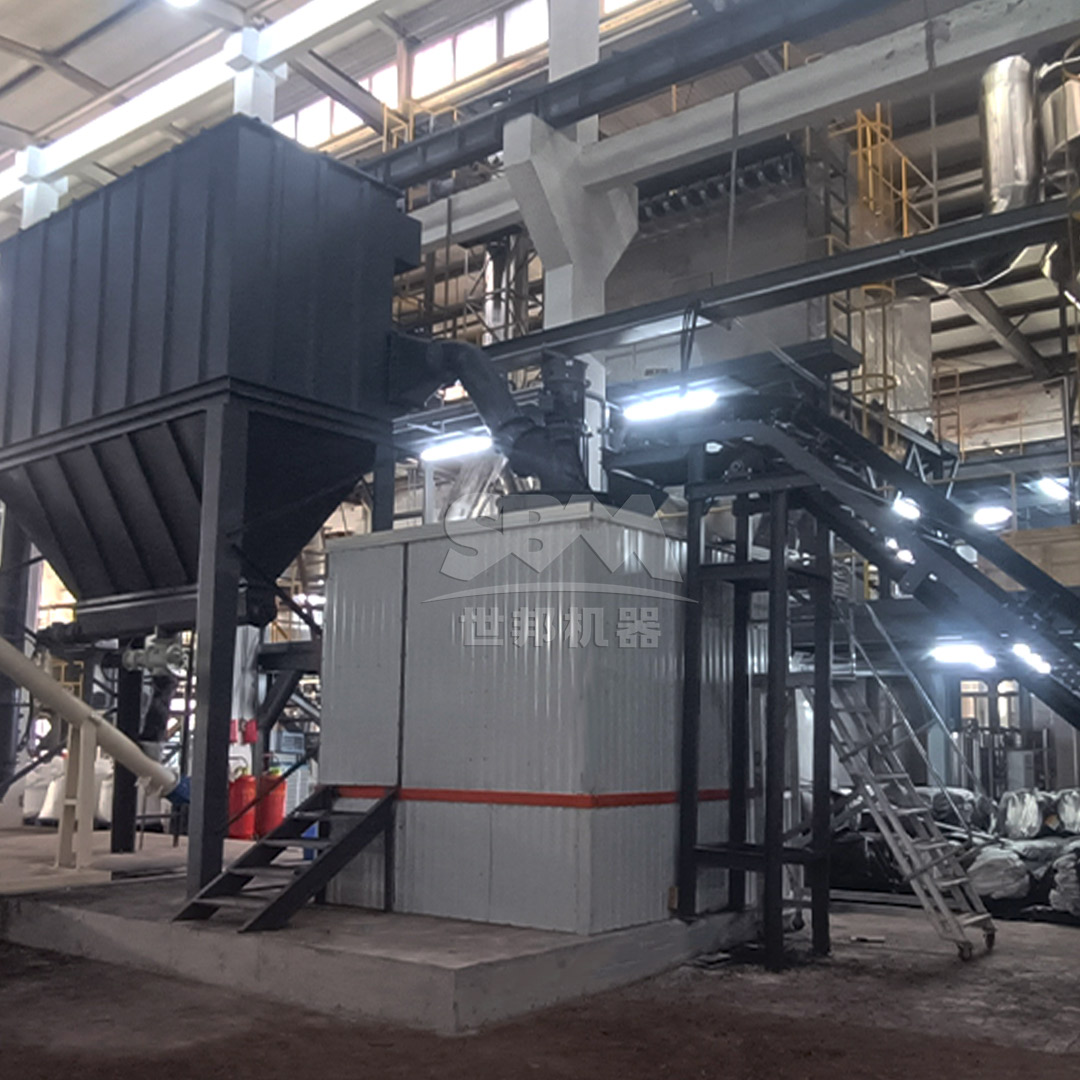

Grinding and Classification Technologies

While silicon micro powder is naturally fine, some applications require additional processing to achieve specific particle size distributions or to break up weakly agglomerated particles. Modern grinding systems must balance the need for ultra-fine particle sizes with energy efficiency and production economics. Advanced grinding technologies have revolutionized the production of high-quality silicon micro powders with precisely controlled properties.

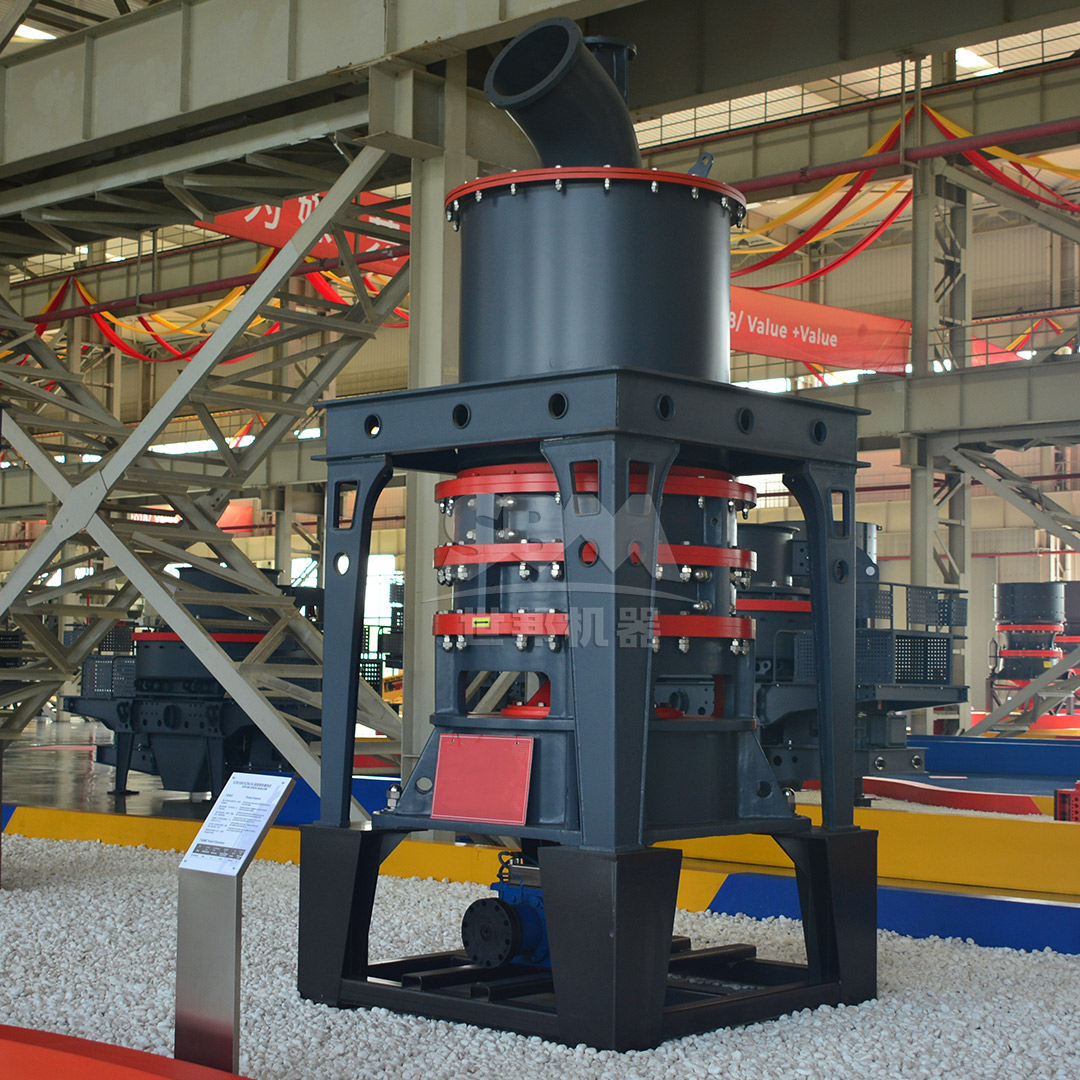

For applications requiring the finest silicon powders with D97 ≤ 5μm (2500 mesh), our SCM Ultrafine Mill represents the optimal solution. This advanced grinding system delivers exceptional performance with output fineness ranging from 325-2500 mesh and processing capacities from 0.5-25 tons per hour depending on model selection. The SCM series incorporates multiple technological innovations including vertical turbine classifiers for precise particle size control, special wear-resistant materials for extended component life, and intelligent control systems that automatically maintain target product fineness.

The efficiency advantages of the SCM Ultrafine Mill are particularly noteworthy, with capacity doubling that of jet mills while reducing energy consumption by 30%. The environmental performance includes pulse dust collection exceeding international standards and noise levels below 75dB. For operations requiring medium-fine silicon powders in the 45-600μm range, our LM Series Vertical Roller Mill offers outstanding capabilities with processing capacities from 3-250 tons per hour and integrated crushing, grinding, and classification functions that reduce footprint requirements by 50%.

Quality Control and Packaging

Rigorous quality control is maintained throughout the manufacturing process to ensure consistent product performance. Testing typically includes particle size distribution analysis using laser diffraction techniques, specific surface area measurement via BET methods, chemical composition verification through X-ray fluorescence, and amorphous content determination using X-ray diffraction. Performance testing in application-specific formulations may also be conducted for critical applications.

Packaging options range from 25kg paper bags to 1-ton big bags, with specialized options available for moisture protection or dust minimization during handling. Bulk tanker truck delivery is also available for high-volume consumers. Proper packaging and storage are essential to prevent moisture absorption, which can reduce the material’s reactivity in certain applications.

Applications of Silicon Micro Powder

Construction Industry

In the construction sector, silicon micro powder serves as a high-performance supplementary cementitious material in concrete, mortar, and grouts. Its primary function involves reacting with calcium hydroxide released during cement hydration to form additional C-S-H gel, the main strength-giving component in concrete. This pozzolanic reaction not only enhances strength but also refines pore structure, significantly improving durability against chemical attack, chloride penetration, and freeze-thaw cycles.

High-performance concrete incorporating silicon micro powder routinely achieves compressive strengths exceeding 100 MPa, with exceptional durability characteristics that extend service life in aggressive environments. Specific applications include bridge decks, marine structures, parking garages, industrial floors, and high-rise buildings where durability and long-term performance are critical. The material also improves bond strength to reinforcing steel and reduces efflorescence by minimizing lime migration.

Refractory and Ceramic Applications

The refractory industry utilizes silicon micro powder to enhance the properties of alumina-silica and basic refractories. When added to castables, plastics, and mortars, the ultra-fine particles improve packing density, reduce water demand, and enhance flow characteristics. During firing, silicon micro powder participates in mullite formation, enhancing high-temperature strength, thermal shock resistance, and corrosion resistance.

In advanced ceramics, silicon micro powder serves as a raw material for reaction-bonded silicon nitride and silicon carbide, as well as an additive in traditional clay-based ceramics to modify thermal expansion and improve mechanical properties. The material’s controlled particle size distribution and high purity make it particularly valuable in technical ceramics requiring precise microstructure control.

Polymer and Coating Composites

Silicon micro powder functions as a high-performance functional filler in polymer composites and coating systems. The spherical particle morphology improves flow and reduces viscosity compared to irregular fillers, enabling higher loading levels while maintaining processability. In epoxy flooring systems, silicon micro powder enhances abrasion resistance, chemical resistance, and compressive strength.

The material’s UV resistance and weatherability make it valuable in exterior coatings, while its thermal stability benefits high-temperature polymer applications. The electrical insulation properties of silicon micro powder are utilized in electronic encapsulants and high-voltage insulation compounds. Recent developments include surface-modified silicon micro powders designed to improve compatibility with specific polymer matrices.

Technical Considerations in Silicon Micro Powder Production

Particle Size Control

Achieving precise particle size distributions represents one of the most critical aspects of silicon micro powder production. Modern classification systems utilize advanced turbine classifiers capable of making sharp cuts in the submicron range. The selection of appropriate grinding and classification equipment depends on the target particle size distribution, production capacity requirements, and energy efficiency considerations.

For the most demanding applications requiring ultra-fine powders with narrow size distributions, technologies such as our SCM Ultrafine Mill with integrated precision classifiers deliver exceptional results. The vertical turbine classification system enables independent control of particle size without affecting grinding parameters, providing operational flexibility and consistent product quality. Sophisticated control systems continuously monitor and adjust operational parameters to maintain target particle size distributions despite variations in feed material characteristics.

Energy Efficiency Optimization

Grinding operations typically account for a significant portion of total production costs for silicon micro powder, making energy efficiency a critical consideration. Modern grinding systems incorporate multiple design features to minimize specific energy consumption while maintaining product quality. These include optimized grinding geometries, high-efficiency classifiers, advanced drive systems, and heat recovery options.

The energy efficiency advantages of modern grinding technologies are substantial. Our SCM Ultrafine Mill reduces energy consumption by 30% compared to conventional jet mills while doubling processing capacity. Similarly, the LM Series Vertical Roller Mill achieves 30-40% energy savings compared to ball mill systems. These efficiency improvements not only reduce operating costs but also decrease the environmental footprint of silicon micro powder production.

Environmental Management

Silicon micro powder production must address several environmental considerations, particularly dust control and energy consumption. Modern facilities employ comprehensive dust collection systems typically achieving efficiency ratings exceeding 99.9%. Pulse-jet baghouse filters with membrane-coated filter media provide effective collection of submicron particles while maintaining low pressure drop.

Noise control represents another important environmental consideration, with modern grinding equipment incorporating acoustic insulation and vibration damping technologies to maintain noise levels below 80 dB(A). Water consumption is minimized through closed-circuit cooling systems, while electrical energy efficiency is optimized through high-efficiency motors, power factor correction, and advanced process control systems. The environmental performance of our grinding equipment includes full compliance with international standards for emissions, noise, and workplace safety.

Future Trends in Silicon Micro Powder Technology

The silicon micro powder industry continues to evolve, with several emerging trends shaping future development. Surface modification technologies are enabling customized interactions with specific matrix materials, expanding application possibilities in polymer composites and specialty chemicals. Functionalized silicon micro powders with tailored surface chemistry are finding applications in advanced composites, electronics, and biomedical fields.

Process intensification through advanced grinding and classification technologies continues to improve production efficiency and product quality. The integration of Industry 4.0 concepts, including IoT connectivity, predictive maintenance, and artificial intelligence for process optimization, is transforming production facilities into highly automated, data-driven operations. These advancements are enabling tighter quality control, reduced operational costs, and enhanced sustainability through optimized resource utilization.

Sustainability considerations are increasingly influencing product development, with emphasis on circular economy principles and reduced environmental impact. Research continues into expanding applications in energy storage, environmental remediation, and advanced materials, ensuring that silicon micro powder will remain a valuable industrial material with evolving applications across multiple sectors.
