Revitalizing Efficiency: A Guide to Activated Carbon Reactivation Equipment & Production Processes

Introduction: The Critical Role of Reactivation

Activated carbon (AC) is a cornerstone of modern industrial purification, employed extensively in water treatment, air filtration, food and beverage decolorization, and chemical processing. Its efficacy stems from a vast network of micropores that adsorb impurities. However, this adsorption capacity is finite. Once saturated, spent carbon represents a significant operational cost and waste stream if discarded. Thermal reactivation—a process that desorbs contaminants and restores the carbon’s porous structure—is the economically and environmentally superior solution. This guide delves into the sophisticated equipment and production processes that make efficient, large-scale reactivation possible, with a focus on the crucial preparatory step of milling spent carbon to optimize thermal treatment.

The Reactivation Process: A Multi-Stage Overview

Successful reactivation is not a single-step operation but a carefully orchestrated sequence:

1. Pre-Treatment & Milling: Spent carbon often arrives in large, irregular chunks or granules. The first critical step is reducing this material to a fine, uniform powder. This drastically increases the surface-area-to-volume ratio, ensuring contaminants are closer to the surface and can be desorbed more efficiently and uniformly during the thermal phase. Consistent particle size is paramount for predictable fluid dynamics in the subsequent kiln or furnace.
2. Thermal Processing: The powdered carbon is then heated in a controlled, oxygen-deficient atmosphere (typically between 600°C and 900°C). This stage vaporizes and decomposes the adsorbed volatile organic compounds. Steam or CO₂ is often introduced to mildly gasify the carbon, clearing blocked pores and revitalizing the microporous structure.
3. Quenching and Post-Treatment: The reactivated carbon is rapidly cooled, usually by a water quench, to halt the thermal process and prevent re-adsorption of contaminants from the cooling atmosphere. It is then dried and often screened to ensure it meets the desired final particle size specification before being returned to service.

The Heart of Preparation: Milling Technology

The efficiency of the entire reactivation chain hinges on the pre-treatment milling stage. An inferior grind leads to uneven heating, incomplete contaminant removal, higher energy consumption in the kiln, and a lower-quality final product. The ideal mill for activated carbon must deliver ultra-fine, consistent particle sizes, high throughput, and operational reliability while managing the often abrasive nature of the material.

Two classes of mills are particularly well-suited for this application: ultra-fine grinding mills for the finest reactivation requirements and robust, high-capacity roller mills for large-scale operations.

Ultra-Fine Grinding for Maximum Efficiency

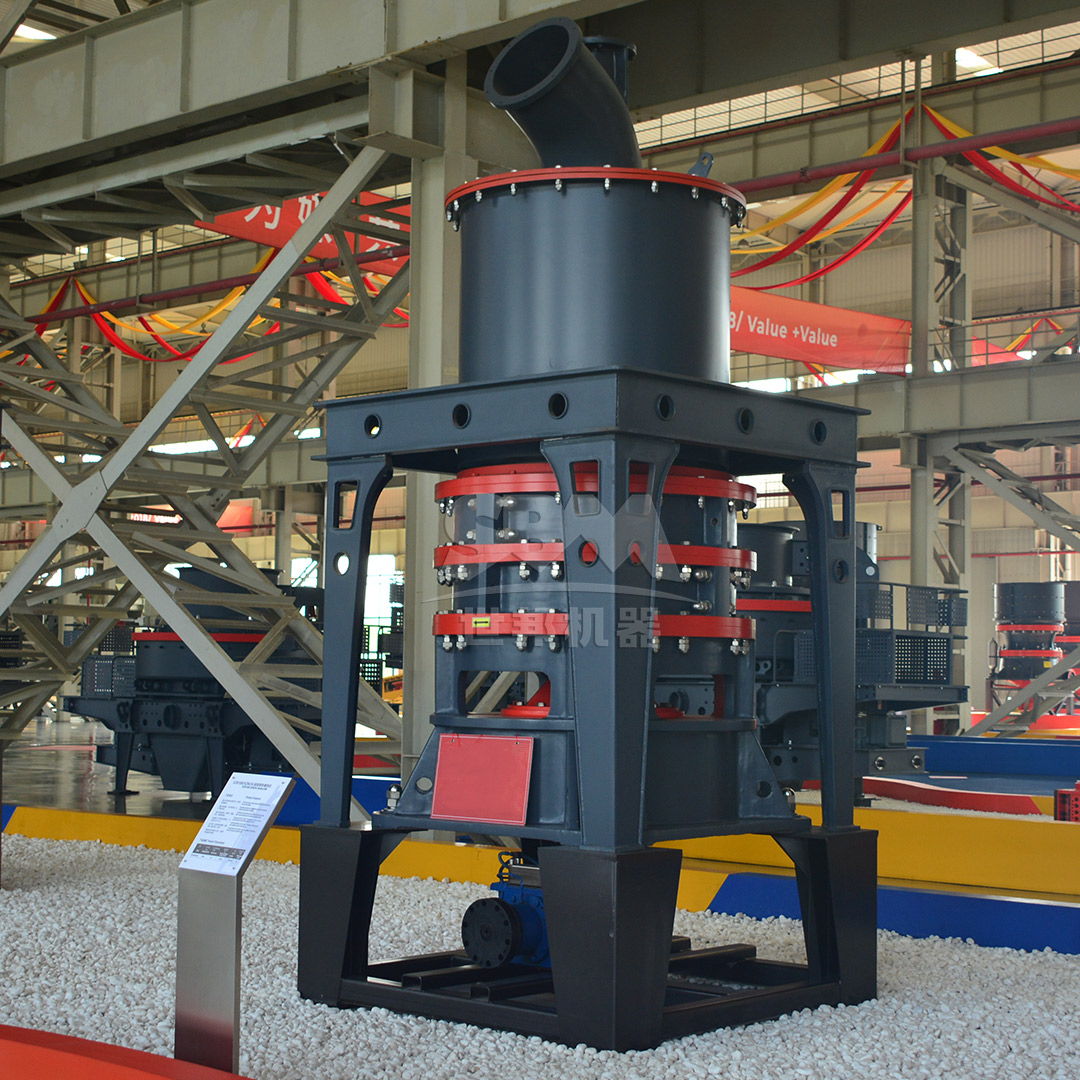

For reactivation processes demanding the utmost surface area reactivation, achieving a very fine and consistent powder is non-negotiable. Our SCM Series Ultrafine Mill is engineered specifically for this purpose. It is designed to pulverize spent carbon to a fineness between 325 and 2500 mesh (D97 ≤5µm), creating the ideal feedstock for thermal reactors.

The technological advantages of the SCM Mill make it a standout choice:

• Superior Efficiency: Its innovative grinding chamber design and vertical turbine classifier yield twice the capacity of traditional jet mills while reducing energy consumption by 30%. This directly translates to lower operating costs for high-volume reactivation facilities.
• Exceptional Precision: The integrated classifier ensures precise particle size cuts, guaranteeing a uniform product with no coarse grit contamination. This uniformity is critical for consistent behavior in the reactivation furnace.
• Durability & Stability: Key components like the grinding rollers and ring are manufactured from special wear-resistant materials, extending service life significantly. Its unique cantilever shaft design eliminates the need for bearings within the grinding chamber, ensuring stable, vibration-free operation and reducing maintenance downtime.
• Environmental Compliance: The mill system is equipped with a high-efficiency pulse dust collector that exceeds international emission standards, ensuring a clean working environment. An acoustic enclosure keeps operational noise below 75dB.

With models like the SCM1000 (8.5 TPH capacity, 132kW) or the large-scale SCM1680 (25 TPH capacity, 315kW), this mill can be matched to the precise needs of any reactivation plant.

High-Capacity Milling for Large-Scale Operations

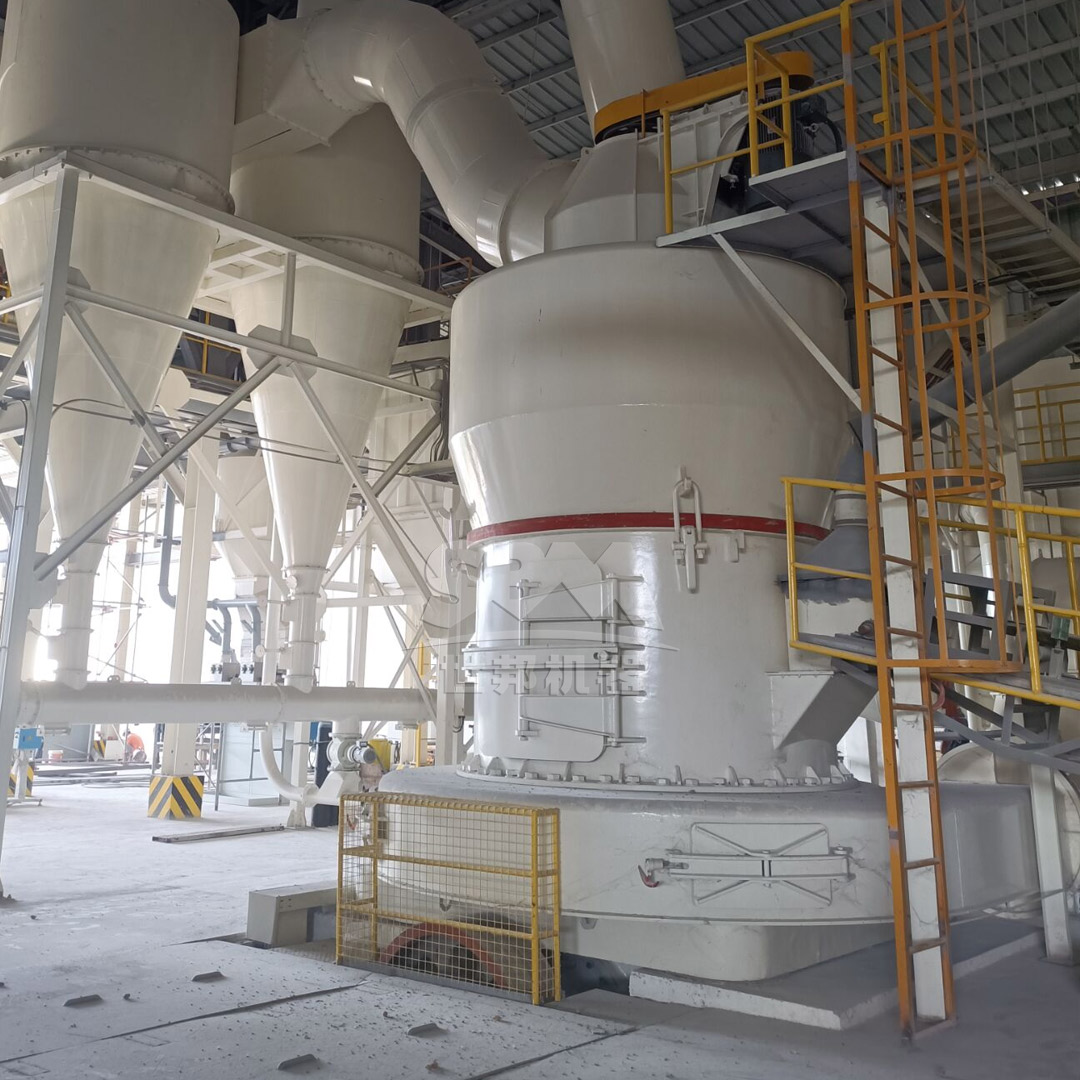

For facilities processing massive volumes of spent carbon where extreme fineness is secondary to high throughput and reliability, the MTW Series European Trapezium Mill offers an optimal solution. This robust mill handles input sizes up to 50mm and produces a consistent powder in the 30-325 mesh range.

Its design incorporates several features beneficial for continuous industrial duty:

• Advanced Wear Protection: Its modular shovel design and curved wear surfaces drastically reduce maintenance costs and extend the life of grinding components when processing abrasive carbons.
• Optimized Airflow: An internally curved air channel minimizes resistance and energy loss, improving conveying efficiency and reducing power draw from the system fan.
• Efficient Drive System: A monolithic geared central transmission delivers power with 98% efficiency, saving space and installation costs compared to traditional drive trains.

Models like the MTW215G, with a massive capacity of 15-45 tons per hour and a 280kW main motor, are built to serve as the backbone of a major reactivation center, ensuring a continuous and reliable supply of prepared carbon to the thermal units.

Integrating Milling into the Reactivation Workflow

The milling equipment does not operate in isolation. A complete pre-treatment system includes feed conveyors, magnetic separators to remove tramp metal that could damage the mill, and a sophisticated pneumatic conveying system to transport the finished powder to the thermal reactivation furnace feed hopper. The entire process is best managed by a centralized PLC system that monitors feed rates, power consumption, and particle size to ensure optimal and uninterrupted operation.

Conclusion: Investing in Efficiency

The reactivation of activated carbon is a powerful strategy for reducing costs and environmental impact. However, the ROI of a reactivation system is heavily dependent on the efficiency of its components. Investing in advanced, purpose-built milling technology like the SCM Ultrafine Mill or the MTW Trapezium Mill is not merely an purchase of equipment; it is an investment in the entire process’s vitality. By ensuring a perfectly prepared feedstock, these mills maximize the efficiency of the thermal reactivation stage, minimize energy and consumable costs, and guarantee the highest quality reactivated carbon product, ensuring your operations remain sustainable and profitable for years to come.
