Requirements for Barite Powder Processing Equipment in Producing API Grade Barite for Drilling Mud
Introduction
The oil and gas drilling industry relies heavily on high-quality barite powder as a weighting agent in drilling mud formulations. Producing API (American Petroleum Institute) grade barite requires specialized processing equipment that can meet stringent specifications for particle size distribution, specific gravity, and chemical purity. This comprehensive technical article examines the critical requirements for barite powder processing equipment and explores optimal solutions for producing API-compliant barite products.
API Grade Barite Specifications
API Specification 13A establishes rigorous standards for barite used in drilling fluids. The key requirements include:
- Specific gravity: Minimum 4.2 g/cm³
- Particle size distribution: 97% minimum passing through 75μm (200 mesh) sieve, 30% maximum passing through 6μm sieve
- Soluble alkaline earth metals: Maximum 250 mg/kg
- Residue greater than 75μm: Maximum 3.0%
Meeting these specifications demands precise control over grinding parameters, classification efficiency, and contamination prevention throughout the processing chain.
Key Equipment Requirements for Barite Processing
Crushing Stage Requirements

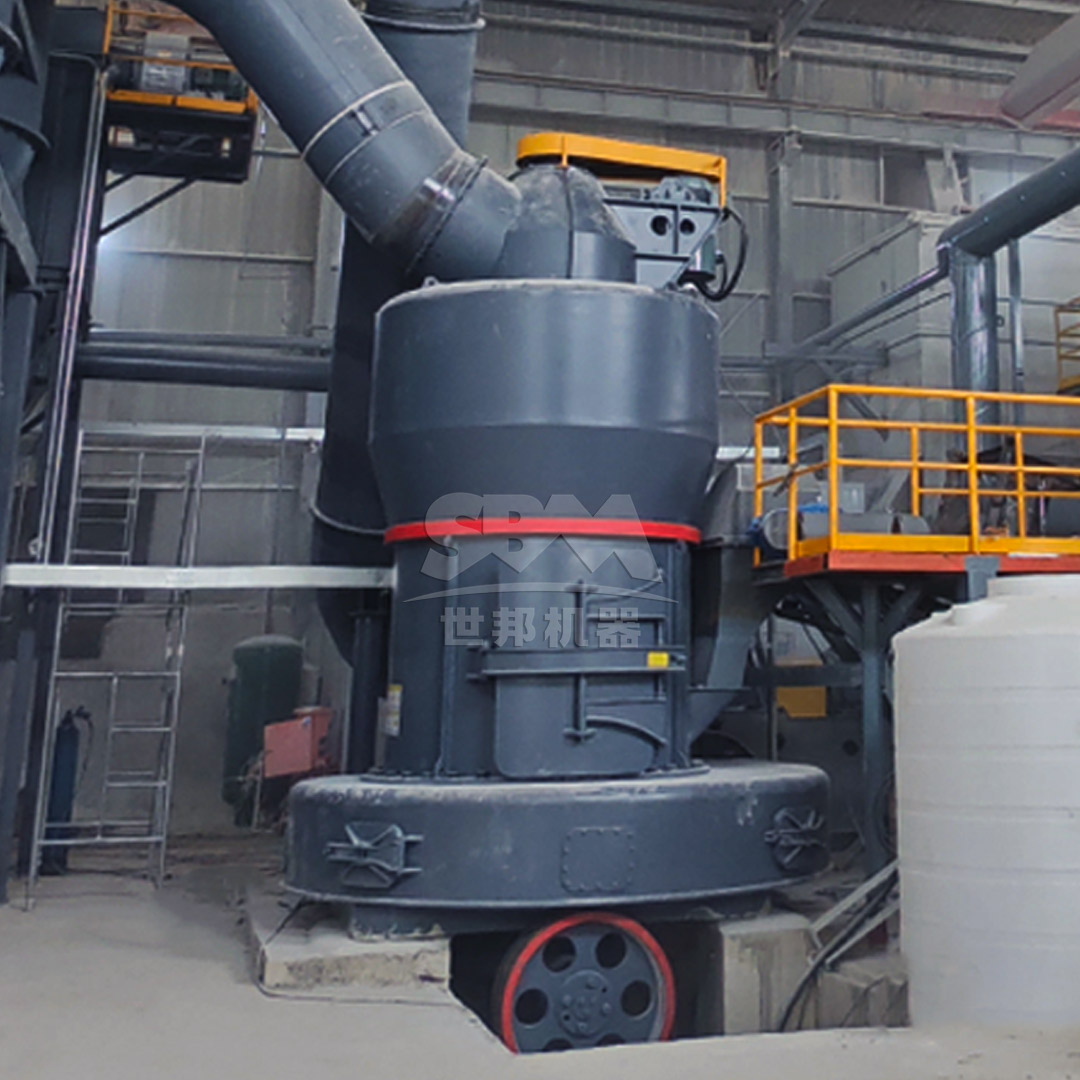

Primary crushing of raw barite ore requires robust equipment capable of handling materials with high specific gravity and moderate hardness. Jaw crushers and hammer mills are commonly employed, with the latter offering advantages in producing finer initial particle sizes that reduce downstream grinding load.
The hammer mill, with its high reduction ratio and ability to handle moist materials, proves particularly effective for barite preprocessing. Key considerations include wear resistance of crushing elements, dust control systems, and throughput matching with subsequent grinding stages.
Grinding and Classification Systems
The heart of API barite production lies in the grinding and classification circuit. Equipment must achieve precise particle size control while maintaining the crystalline structure that contributes to barite’s high specific gravity. Several grinding technologies are applicable:
Ultra-Fine Grinding Mills
For producing the finest fractions required in API specifications, ultra-fine grinding mills offer superior performance. The SCM Ultrafine Mill represents an optimal solution for barite processing, with its ability to produce powders in the range of 325-2500 mesh (45-5μm) – precisely targeting the API specification requirements.
This equipment’s technological advantages include:
- High-efficiency classification: Vertical turbine classifiers ensure precise particle size cuts with no coarse powder contamination
- Energy optimization: 30% lower energy consumption compared to jet mills while delivering twice the output capacity
- Durability: Specially designed roller and grinding ring materials withstand barite’s abrasive nature, extending component life
- Environmental compliance: Pulse dust collection systems exceed international standards with noise levels below 75dB
With models ranging from SCM800 (0.5-4.5 ton/h) to SCM1680 (5.0-25 ton/h), processors can select capacity-appropriate solutions for their production requirements.
Medium-Speed Grinding Mills

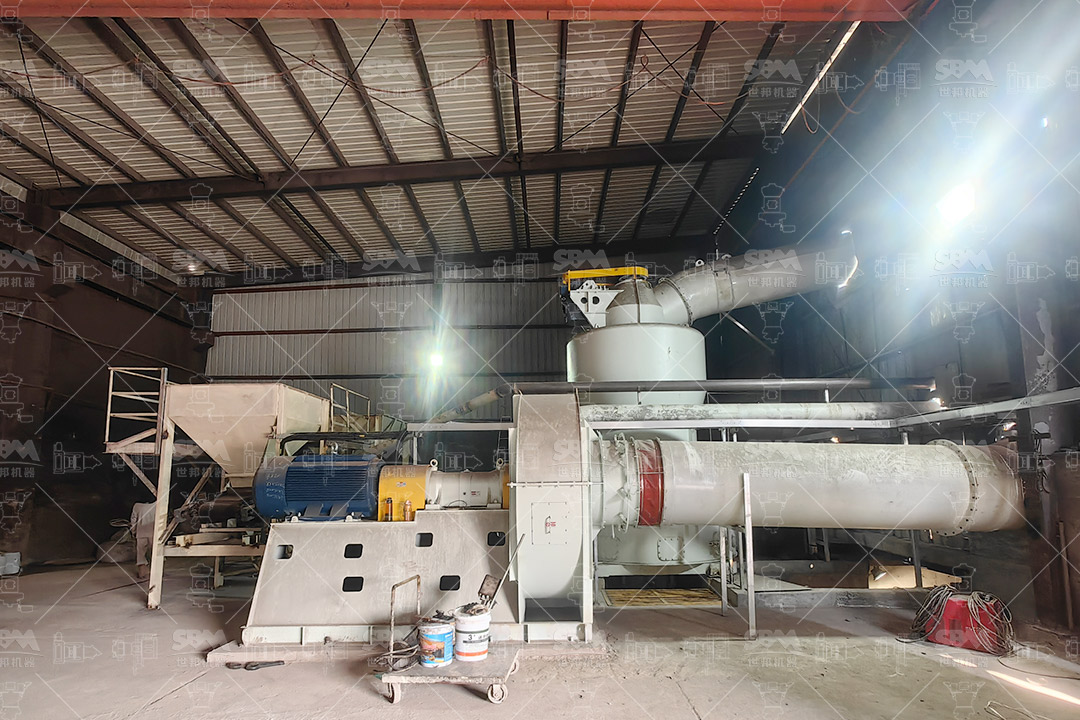

For operations requiring broader particle size distributions or higher throughput capacities, trapezium mills offer compelling advantages. The MTW Series Trapezium Mill processes barite at 3-45 ton/hour with output fineness of 30-325 mesh (600-45μm), making it suitable for both API-grade production and industrial barite applications.
Notable features include:
- Anti-wear shovel design with composite blades reducing maintenance costs
- Curved air channel optimization minimizing energy loss
- Integral bevel gear transmission achieving 98% efficiency
- Wear-resistant volute structure with maintenance costs reduced by 30%
Drying and Thermal Processing
Moisture control is critical in barite processing, as excessive moisture can affect both specific gravity measurements and drilling mud performance. Rotary dryers with indirect heating prevent contamination while reducing moisture to acceptable levels (typically below 1%). Temperature control must prevent thermal degradation of barite’s crystalline structure.
Classification and Air Separation
High-efficiency classifiers are essential for meeting API particle size specifications. Both static and dynamic air classifiers find application in barite circuits, with the latter offering superior precision for the fine cut points required. Key parameters include cut point accuracy, sharpness of separation, and capacity matching with grinding mills.
Quality Control and Process Monitoring
Producing consistent API-grade barite requires integrated quality control systems:
- Online particle size analyzers for real-time monitoring
- Automated sampling systems at critical process points
- X-ray fluorescence (XRF) for chemical composition verification
- Specific gravity testing equipment meeting API standards
Modern processing plants incorporate PLC systems that automatically adjust mill parameters based on feedback from quality monitoring instruments, ensuring consistent product quality despite variations in feed material characteristics.
Equipment Selection Criteria for Barite Processing
When selecting equipment for API barite production, processors should consider:
Technical Performance Factors
- Precision in particle size control, especially for the critical 6-75μm range
- Energy efficiency per ton of finished product
- Wear resistance and maintenance requirements
- Flexibility to adjust product specifications as market requirements change
Economic Considerations
- Capital investment versus operational costs
- Availability of spare parts and technical support
- Compatibility with existing infrastructure
- Scalability for future expansion
Environmental Compliance
- Dust emission control systems
- Noise pollution mitigation
- Water consumption and treatment requirements
- Overall carbon footprint

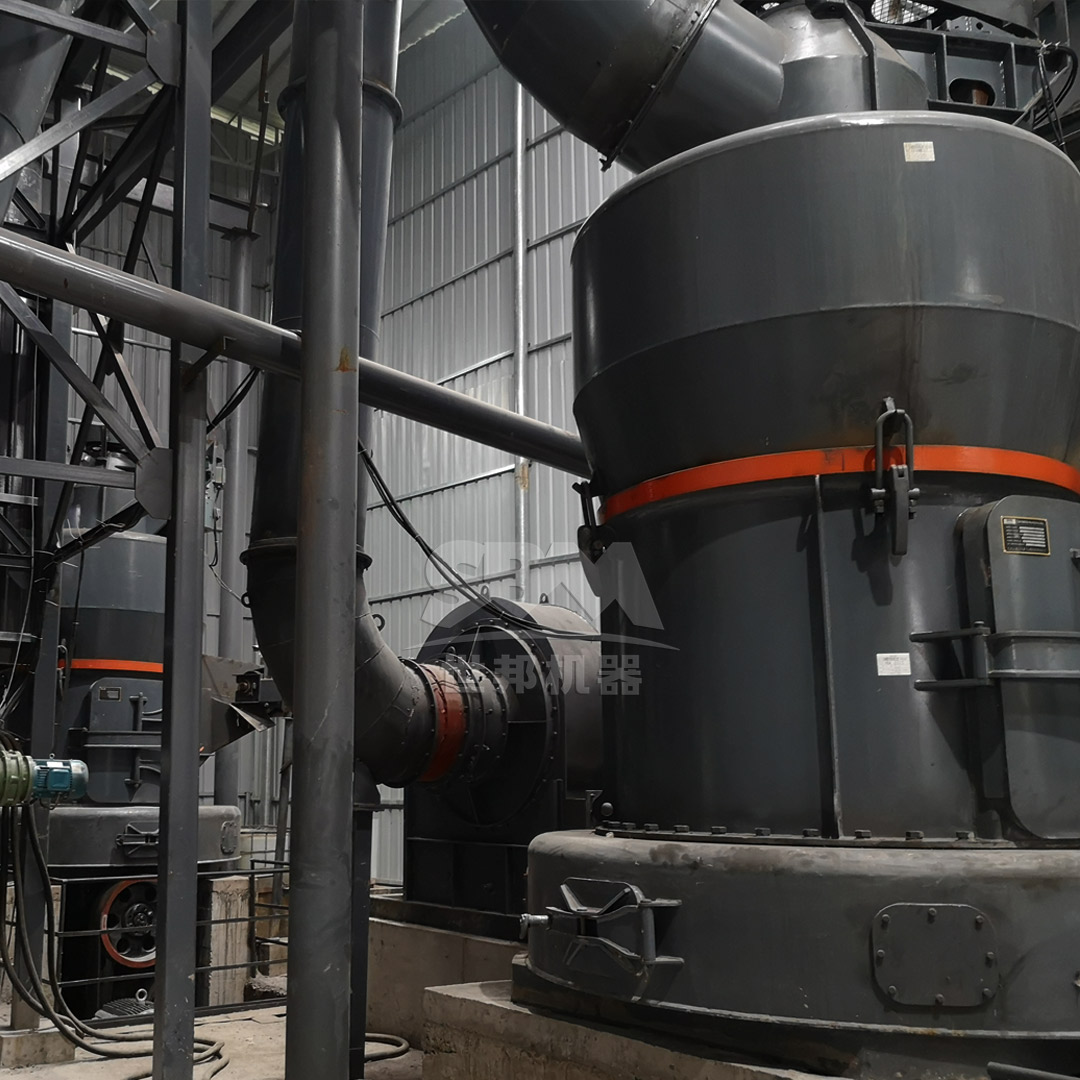

Case Study: Optimized Barite Processing Circuit
A successful barite processing plant in the Gulf region implemented a circuit comprising:
- Primary crushing with PC4012-90 hammer mill (15-40 ton/h capacity)
- Secondary grinding with MTW175G trapezium mill (9.5-25 ton/h capacity)
- Fine grinding with SCM1250 ultrafine mill (2.5-14 ton/h capacity)
- Dual-stage classification with high-efficiency air separators
This configuration achieved 98.5% compliance with API 13A specifications while reducing energy consumption by 22% compared to the previous ball mill-based circuit. The plant reported a return on investment within 18 months, attributed to higher product quality commanding premium pricing and reduced maintenance downtime.
Future Trends in Barite Processing Equipment
The evolution of barite processing equipment continues with several emerging trends:
- Digitalization and Industry 4.0 integration: AI-powered optimization of grinding parameters based on real-time quality data
- Hybrid energy systems: Integration of renewable energy sources to reduce operational costs
- Advanced materials: Development of ultra-wear-resistant alloys for grinding components
- Water-free processing: Dry classification technologies eliminating water consumption and treatment requirements
Conclusion
Producing API-grade barite for drilling mud applications requires sophisticated processing equipment capable of precise particle size control, high throughput efficiency, and consistent quality output. The selection of appropriate crushing, grinding, and classification technology directly impacts product quality, operational costs, and market competitiveness.
For processors seeking to establish or upgrade barite production facilities, the SCM Ultrafine Mill and MTW Series Trapezium Mill represent proven solutions that address the specific challenges of barite processing. Their combination of precision classification, energy efficiency, and robust construction makes them ideal choices for meeting the stringent requirements of API Specification 13A while maintaining economic viability in competitive markets.
As drilling technologies advance and environmental regulations tighten, continued innovation in barite processing equipment will be essential for producers to maintain their position in the global supply chain for oilfield services.
