Recommended Grinding Equipment for Fine Pyrophyllite Powder Production

Introduction to Pyrophyllite and Its Grinding Requirements

Pyrophyllite, a hydrous aluminum silicate mineral (Al2Si4O10(OH)2), is valued across numerous industries for its unique properties, including low thermal and electrical conductivity, high refractoriness, and chemical inertness. Its applications span ceramics, paints, plastics, rubber, insecticides, and as a carrier in various chemical processes. The performance of pyrophyllite in these applications is critically dependent on its particle size distribution and purity. Producing a consistent, high-quality fine powder, often in the range of 325 to 2500 mesh (45-5μm), requires specialized grinding technology that can achieve precise particle size control without contaminating the product or incurring excessive operational costs.

The ideal grinding system for pyrophyllite must efficiently handle its moderate hardness (1-2 on Mohs scale) and plate-like crystal structure, which can present challenges in achieving uniform comminution. Key selection criteria include energy efficiency, the ability to produce a narrow particle size distribution, low wear and maintenance costs, high system availability, and compliance with environmental standards regarding dust and noise emissions.

Microscopic view of raw pyrophyllite plate-like crystal structure

Critical Considerations for Pyrophyllite Grinding

Selecting the optimal grinding equipment involves a detailed analysis of the entire process, from feed preparation to final product collection.

1. Feed Material Preparation

The initial crushing stage is crucial for optimizing downstream milling efficiency. For pyrophyllite, a primary jaw crusher followed by a secondary hammer crusher is often employed to reduce large lumps to a consistent feed size suitable for fine grinding mills, typically below 20mm. Our Hammer Mill series, with its high破碎比 and stable operation, is perfectly suited for this preparatory stage, ensuring a uniform and optimally sized feed for the fine grinding process.

2. The Grinding Process: Dry vs. Wet

While wet ball milling is an option, the most common and efficient method for producing dry pyrophyllite powder is dry grinding. This eliminates the need for costly drying steps later in the process. Dry grinding systems must incorporate efficient air classification and dust collection to ensure product recovery and a clean working environment.

3. Product Collection and Classification

An efficient pulse-jet baghouse dust collector is non-negotiable for achieving high product yield and meeting environmental standards. Furthermore, an integrated or external dynamic classifier is essential for separating fine product from coarse particles, which are recirculated back to the mill for further size reduction. This closed-circuit system is key to achieving the target fineness and a sharp top-cut.

Recommended Grinding Solutions

Based on the specific requirements for fine and ultra-fine pyrophyllite powder, two of our mill series stand out as exceptional solutions.

Primary Recommendation: SCM Series Ultrafine Mill (45-5μm)

For the most demanding applications requiring ultra-fine pyrophyllite powder down to 2500 mesh (D97 ≤ 5μm), our flagship SCM Ultrafine Mill is the undisputed industry leader.

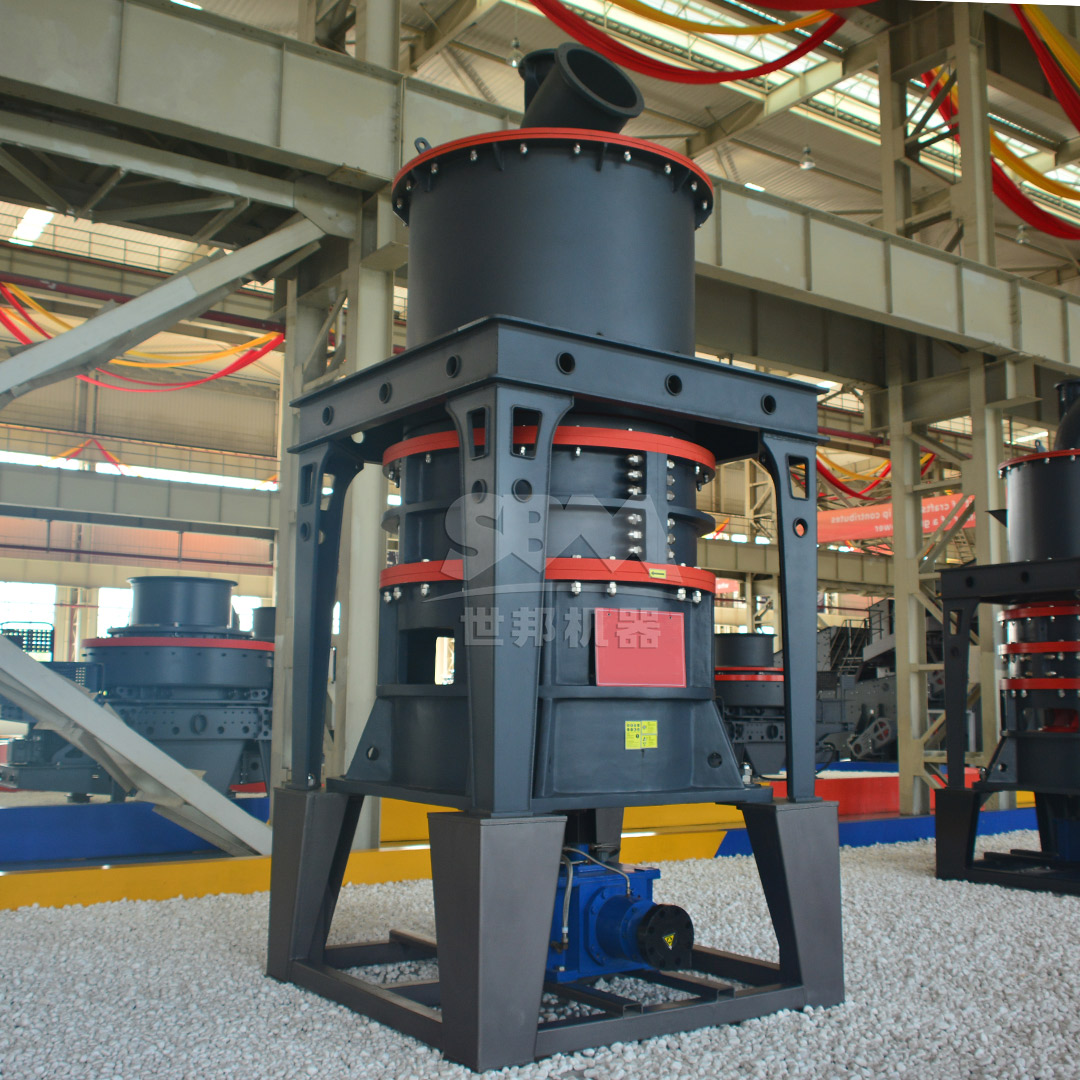

SCM Series Ultrafine Mill in a modern mineral processing plant

This mill combines high-efficiency grinding with precision air classification in a single integrated unit. Its core advantages for pyrophyllite processing include:

  • Superior Energy Efficiency: Engineered for high output with low energy consumption, the SCM Mill offers approximately twice the capacity of a traditional jet mill while reducing energy usage by up to 30%. Its intelligent control system automatically monitors and adjusts operational parameters to maintain the target product fineness.
  • Exceptional Product Quality: The integrated vertical turbine classifier ensures precise particle size切割, guaranteeing a consistent product with no coarse grit contamination. This results in a uniform powder critical for high-end applications in plastics and coatings.
  • Unmatched Reliability: Key wear parts, such as the roller and grinding ring, are manufactured from special wear-resistant materials, extending their service life multiple times over conventional components. The innovative bearing-free screw design in the grinding chamber enhances operational stability and reduces maintenance frequency.
  • Environmental Compliance: The mill system features a highly efficient pulse dust collector that exceeds international emission standards. Furthermore, its integrated soundproofing design ensures noise levels remain below 75dB, creating a safer and more comfortable working environment.

Technical Specifications (Example Models):

  • SCM800: Capacity 0.5-4.5 t/h, Main Motor Power 75kW
  • SCM1000: Capacity 1.0-8.5 t/h, Main Motor Power 132kW
  • SCM1250: Capacity 2.5-14 t/h, Main Motor Power 185kW
  • SCM1680: Capacity 5.0-25 t/h, Main Motor Power 315kW

All models accept a feed size of ≤20mm and can produce powder from 325 to 2500 mesh.

Secondary Recommendation: MTW Series European Trapezium Mill (600-45μm)

For projects targeting a slightly coarser product range or requiring higher volumetric throughput for fine pyrophyllite powder (30-325 mesh), our MTW Series Trapezium Mill presents a robust and cost-effective solution.

This mill is renowned for its advanced design features that translate directly into lower operating costs:

  • Advanced Wear Protection: Its modular shovel design significantly reduces maintenance time and cost. The curved blade design also contributes to an extended service life for the grinding roller.
  • Optimized Airflow: The uniquely designed arc air channel reduces airflow resistance and energy loss, improving overall system efficiency. High-strength wear plates protect critical surfaces within the channel.
  • Efficient Drive System The bevel gear integral transmission achieves a remarkable 98% transmission efficiency. This compact design saves space and reduces installation complexity and cost.
  • Durable System Components: The wear-resistant volute structure features a non-blocking design that enhances air classification efficiency and further drives down long-term maintenance expenses.

Technical Specifications (Example Models):

  • MTW138Z: Capacity 6-17 t/h, Main Motor Power 90kW, Feed Size <35mm
  • MTW175G: Capacity 9.5-25 t/h, Main Motor Power 160kW, Feed Size <40mm
  • MTW215G: Capacity 15-45 t/h, Main Motor Power 280kW, Feed Size <50mm

The MTW Series is an excellent choice for high-capacity production lines where ultimate fineness below 5μm is not the primary goal.

Conclusion

The production of high-quality fine pyrophyllite powder is a technically demanding process that hinges on the selection of the correct grinding equipment. The choice between an ultra-fine mill and a high-capacity trapezium mill depends on the specific target fineness, required production rate, and total investment and operational cost considerations.

Fine white pyrophyllite powder being used in a industrial application

For producers aiming at the most demanding high-value markets requiring ultra-fine grades, our SCM Series Ultrafine Mill provides an unbeatable combination of precision, efficiency, and reliability. For larger-volume production of fine powders, the MTW Series European Trapezium Mill offers superior economy and robust performance.

We recommend consulting with our technical engineering team to conduct a thorough analysis of your raw material characteristics and production goals. This will ensure the selection of the optimal mill model and configuration to maximize your return on investment and secure a leading position in the competitive pyrophyllite market.
