Recommended Bentonite Grinding Mill Production Line with Good Reputation

Introduction to Bentonite and Its Grinding Requirements

Bentonite, a clay mineral primarily composed of montmorillonite, is widely used in various industries such as foundry, drilling, construction, and environmental protection due to its unique properties like swelling, adsorption, and cation exchange. The effectiveness of bentonite in these applications heavily depends on its particle size and purity, making the grinding process a critical step in its production. Achieving the desired fineness, typically ranging from 200 to 2500 mesh, requires advanced grinding equipment that ensures high efficiency, precision, and reliability.

Selecting the right grinding mill for bentonite processing involves considering factors such as feed size, desired output fineness, capacity requirements, energy consumption, and overall operational costs. A well-designed production line not only enhances product quality but also reduces downtime and maintenance expenses, contributing to a higher return on investment.

Key Considerations for Bentonite Grinding

When designing a bentonite grinding production line, several factors must be taken into account to ensure optimal performance:

• Feed Size: Bentonite raw materials often come in lumps or coarse particles, requiring primary crushing before fine grinding. The input size for grinding mills typically ranges from ≤20mm to ≤50mm, depending on the equipment.
• Output Fineness: Different applications demand specific particle sizes. For instance, foundry-grade bentonite may require 200-325 mesh, while high-purity applications like cosmetics or pharmaceuticals might need ultrafine powders up to 2500 mesh (D97 ≤5μm).
• Capacity: Production capacity varies from small-scale operations (0.5 ton/h) to large industrial lines (over 100 ton/h). The choice of mill should align with the projected output requirements.
• Energy Efficiency: Grinding is an energy-intensive process. Modern mills incorporate features like intelligent control systems and optimized mechanical designs to reduce power consumption by up to 30-40% compared to traditional equipment.
• Environmental Impact: Dust control and noise reduction are critical for compliance with environmental regulations. Advanced mills feature pulse dust collectors and soundproofing technologies to minimize emissions and noise pollution.

Recommended Grinding Mills for Bentonite Processing

Based on years of industry experience and technological advancements, we recommend the following grinding mills for bentonite production lines due to their proven performance, reliability, and efficiency.

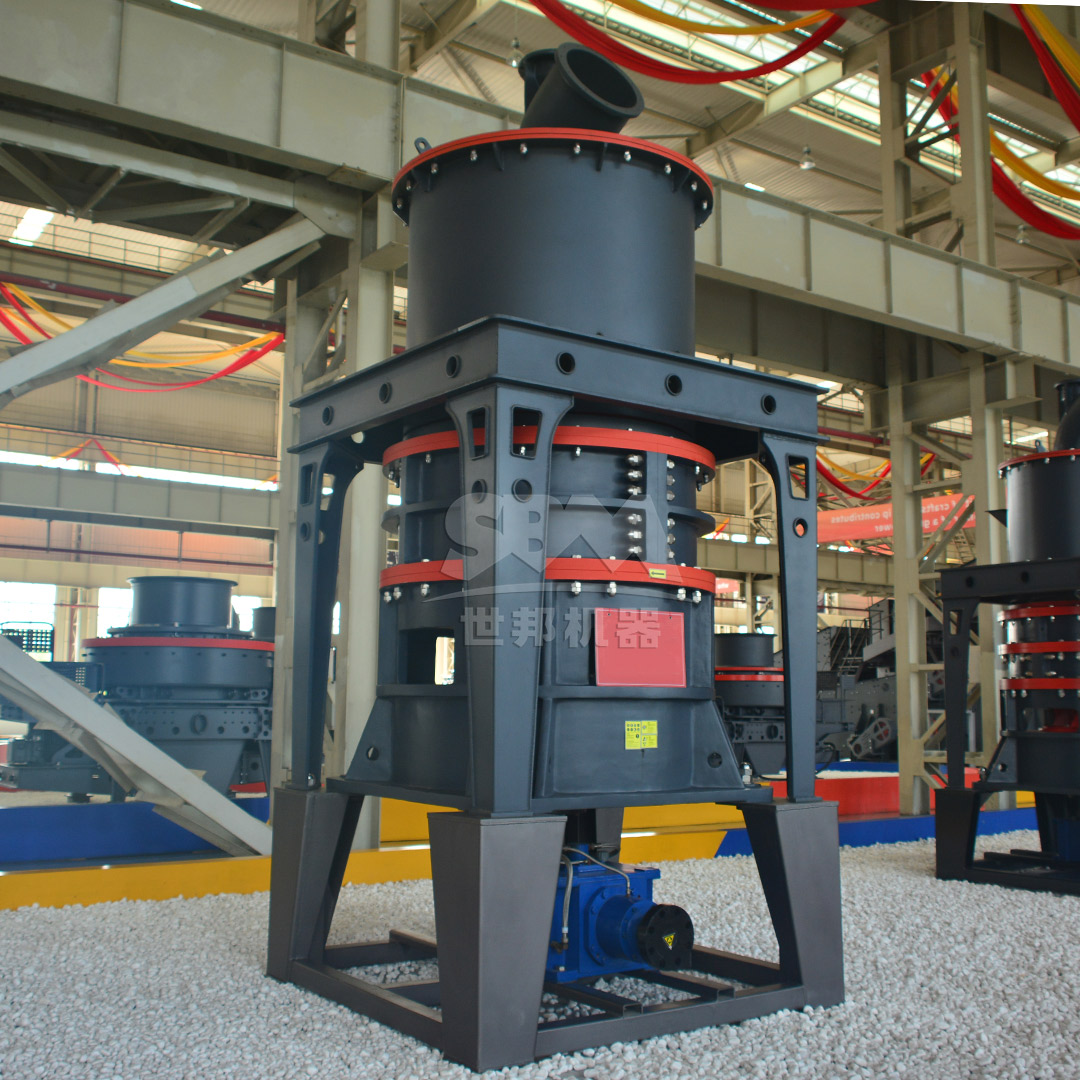

SCM Series Ultrafine Mill (45-5μm)

The SCM Ultrafine Mill is an ideal choice for producing high-quality bentonite powders with fineness ranging from 325 to 2500 mesh (D97 ≤5μm). This mill excels in applications requiring ultra-fine particles, such as high-end ceramics, pharmaceuticals, and advanced materials.

Key Features:

• High Efficiency and Energy Savings: With a capacity twice that of jet mills and energy consumption reduced by 30%, the SCM mill operates cost-effectively. Its intelligent control system automatically adjusts to maintain consistent product fineness.
• Precision Classification: Equipped with a vertical turbo classifier, it ensures accurate particle size distribution without coarse powder contamination, resulting in uniform output.
• Durable Design: The mill features specially hardened rollers and grinding rings that extend service life significantly. The bearing-free screw grinding chamber enhances operational stability.
• Environmental Friendly: The pulse dust collector exceeds international standards with efficiency over 99.9%, and the soundproofing design keeps noise levels below 75dB.

Working Principle: The main motor drives multiple layers of grinding rings to rotate. Material is fed into the grinding chamber and dispersed by centrifugal force, where it is crushed and ground between the rollers and rings. The finely ground powder is then collected by a cyclone separator and pulse dust removal system.

Model Specifications: The SCM series includes models like SCM800 (0.5-4.5 ton/h, 75kW), SCM900 (0.8-6.5 ton/h, 90kW), SCM1000 (1.0-8.5 ton/h, 132kW), SCM1250 (2.5-14 ton/h, 185kW), and SCM1680 (5.0-25 ton/h, 315kW), catering to various production needs.

MTW Series European Trapezium Mill (600-45μm)

For bentonite grinding applications requiring medium to fine powders (30-325 mesh), the MTW Series Trapezium Mill offers robust performance and high capacity. It is suitable for large-scale production lines in industries like construction, agriculture, and drilling fluids.

Key Features:

• Wear-Resistant Shovel Design: The combined shovel blades reduce maintenance costs, and the curved design extends the life of grinding rollers.
• Optimized Airflow Path: The curved air channel minimizes energy loss and improves transmission efficiency, with high-strength guard plates protecting the working surface.
• Integrated Gear Drive: The conical gear transmission system achieves 98% efficiency, saving space and installation costs.
• Durable蜗壳Structure: The无阻流design enhances air classification efficiency and reduces maintenance costs by 30%.

Working Principle: The main motor drives the grinding rollers to revolve around the central axis while rotating themselves, generating centrifugal force. Shovels throw material into the space between the grinding rings and rollers, where it is crushed by extrusion. A grading system precisely controls the final particle size.

Model Specifications: The MTW series includes models such as MTW110 (3-9 ton/h, 55kW), MTW138Z (6-17 ton/h, 90kW), MTW175G (9.5-25 ton/h, 160kW), and MTW215G (15-45 ton/h, 280kW), providing flexibility for different capacity requirements.

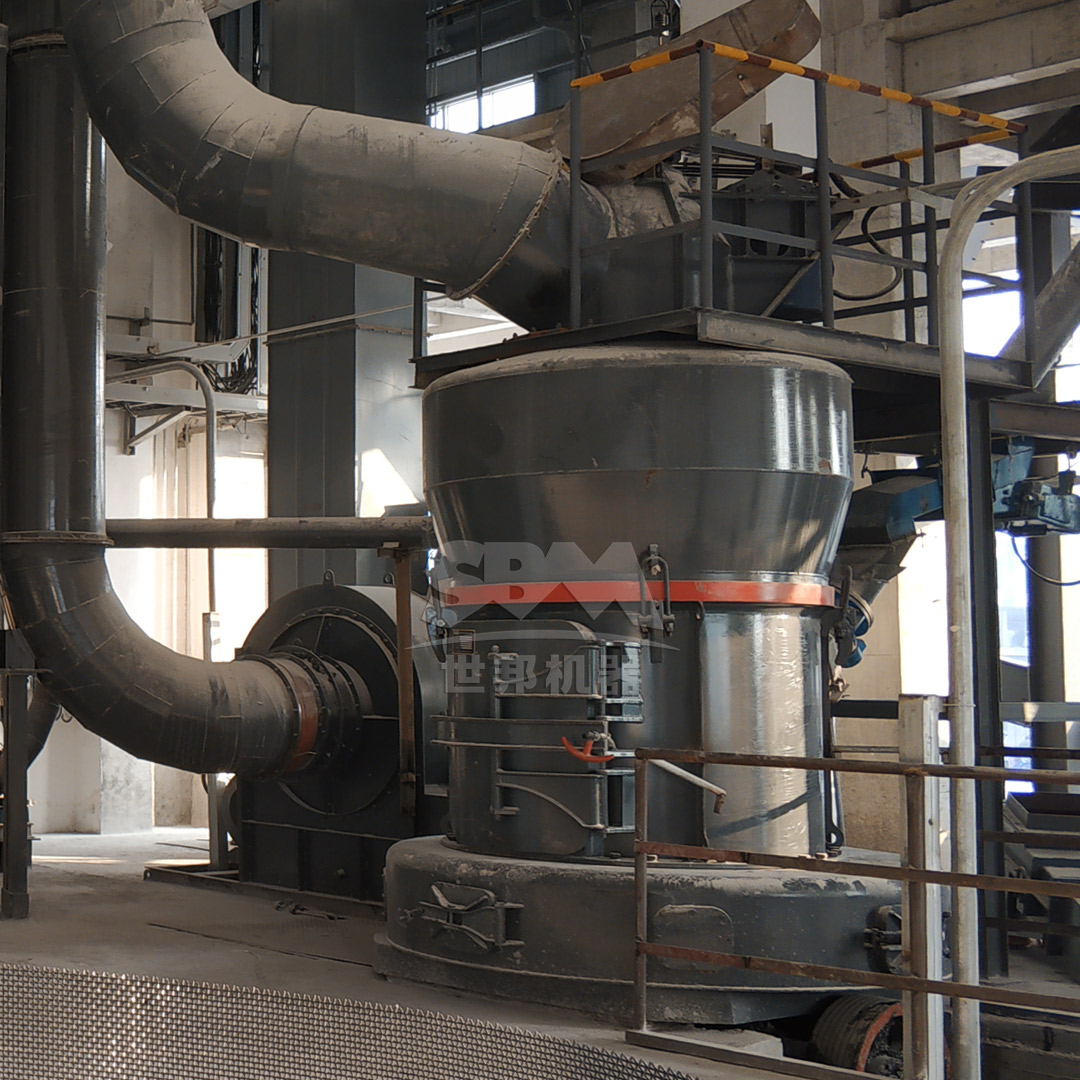

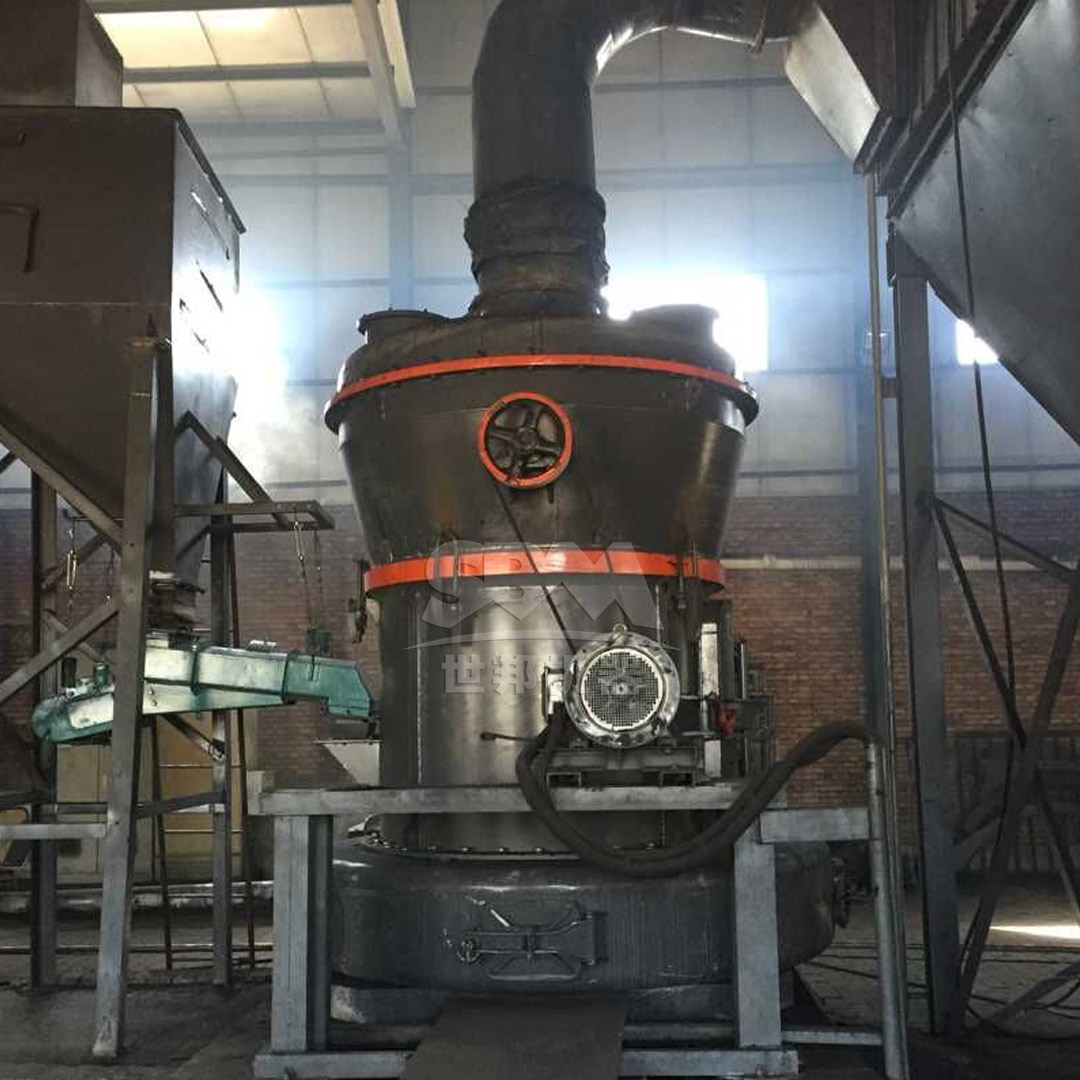

Designing a Complete Bentonite Grinding Production Line

A comprehensive bentonite grinding production line typically includes several key components:

1. Crushing Stage: Primary crushers like jaw crushers or hammer mills reduce raw bentonite to a size suitable for grinding (e.g., ≤20mm).
2. Grinding Stage: The core component, where recommended mills like the SCM Ultrafine Mill or MTW Trapezium Mill are used to achieve the desired fineness.
3. Classification Stage: Air classifiers or screens separate fine particles from coarse ones, ensuring product consistency.
4. Collection and Packaging: Cyclone separators, dust collectors, and packaging systems handle the final product.
5. Automation and Control: PLC systems monitor and adjust parameters in real-time, optimizing performance and reducing manual intervention.

Integrating these components into a seamless line enhances efficiency, reduces energy consumption, and ensures consistent product quality. For instance, using the SCM Ultrafine Mill in combination with advanced classifiers can produce bentonite powders with precise particle size distributions for specialized applications.

Conclusion

Selecting the right grinding mill is crucial for establishing a successful bentonite production line. The SCM Series Ultrafine Mill and MTW Series Trapezium Mill stand out for their efficiency, durability, and ability to meet diverse fineness requirements. By incorporating these mills into a well-designed production line, operators can achieve high-quality bentonite products while minimizing operational costs and environmental impact. We encourage potential users to evaluate their specific needs and consult with experts to choose the most suitable equipment for their applications.
