Raymond Mill Grinding Process for Silicon Carbide Powder Production

Introduction to Silicon Carbide Powder

Silicon Carbide (SiC), a synthetic compound of silicon and carbon, is renowned for its exceptional hardness, thermal conductivity, and chemical inertness. These properties make it an indispensable material in industries ranging from abrasives and refractories to advanced ceramics and semiconductors. The production of high-quality SiC powder is a precise and demanding process, where the choice of grinding technology is paramount. The grinding process must achieve a specific particle size distribution (PSD) without introducing impurities or compromising the material’s inherent properties. Raymond Mill technology, a form of roller grinding, has evolved significantly to meet these stringent requirements for hard, abrasive materials like Silicon Carbide.

The Raymond Mill Grinding Principle

The fundamental principle of a Raymond Mill, or more broadly, a roller mill, involves comminution through compression and shear forces. The core components are grinding rollers and a grinding ring (or bowl). The process can be broken down into several stages:

  1. Feeding: Crushed Silicon Carbide raw material (typically ≤20mm) is fed into the mill’s grinding chamber via a volumetric or gravimetric feeder.
  2. Grinding: The material is ground between the rotating grinding rollers and the stationary or rotating grinding ring. Centrifugal force forces the rollers against the ring, creating a high-pressure zone that fractures the SiC particles.
  3. Classification: An integral, or sometimes external, classifier (often a turbine type) immediately separates the ground powder. Particles that meet the target fineness are carried by the air stream towards the collection system. Oversized particles are rejected by the classifier and fall back onto the grinding bed for further size reduction.
  4. Collection: The fine powder-laden air passes through a cyclone separator, where the majority of the product is collected. The remaining fine particles are then captured by a high-efficiency pulse jet baghouse dust collector, ensuring minimal product loss and environmental emissions.

This closed-circuit system allows for precise control over the final product’s fineness and a highly efficient grinding operation.

Technical Challenges in Grinding Silicon Carbide

Grinding Silicon Carbide presents unique challenges that not all milling equipment can handle effectively:

  • Extreme Hardness: With a Mohs hardness of 9.5, SiC is one of the hardest materials commercially produced. This causes rapid wear on grinding components made from standard materials.
  • Abrasiveness: The abrasive nature of SiC particles accelerates the wear of all equipment parts they contact, leading to high maintenance costs and potential contamination.
  • Product Purity: Many applications require high-purity SiC powder. Contamination from worn grinding media is a significant concern.
  • Thermal Management: The grinding process generates heat, which must be managed to prevent affecting the material properties or causing thermal damage to the mill itself.

Overcoming these challenges requires a mill designed with robust materials, efficient cooling, and a precise classification system.

Selecting the Right Mill for Silicon Carbide Production

For producing fine and ultra-fine Silicon Carbide powders, traditional ball mills are often inefficient and can cause contamination. Modern Raymond Mill-based designs offer superior solutions. Two exemplary models from our product line are ideally suited for this application, catering to different fineness and capacity requirements.

1. SCM Series Ultrafine Mill (45-5μm)

For applications demanding ultra-fine Silicon Carbide powder (e.g., for advanced ceramics or polishing compounds), our SCM Ultrafine Mill is the optimal choice. This mill is engineered to achieve fineness levels up to 2500 mesh (D97 ≤ 5μm), which is often required for high-value SiC applications.

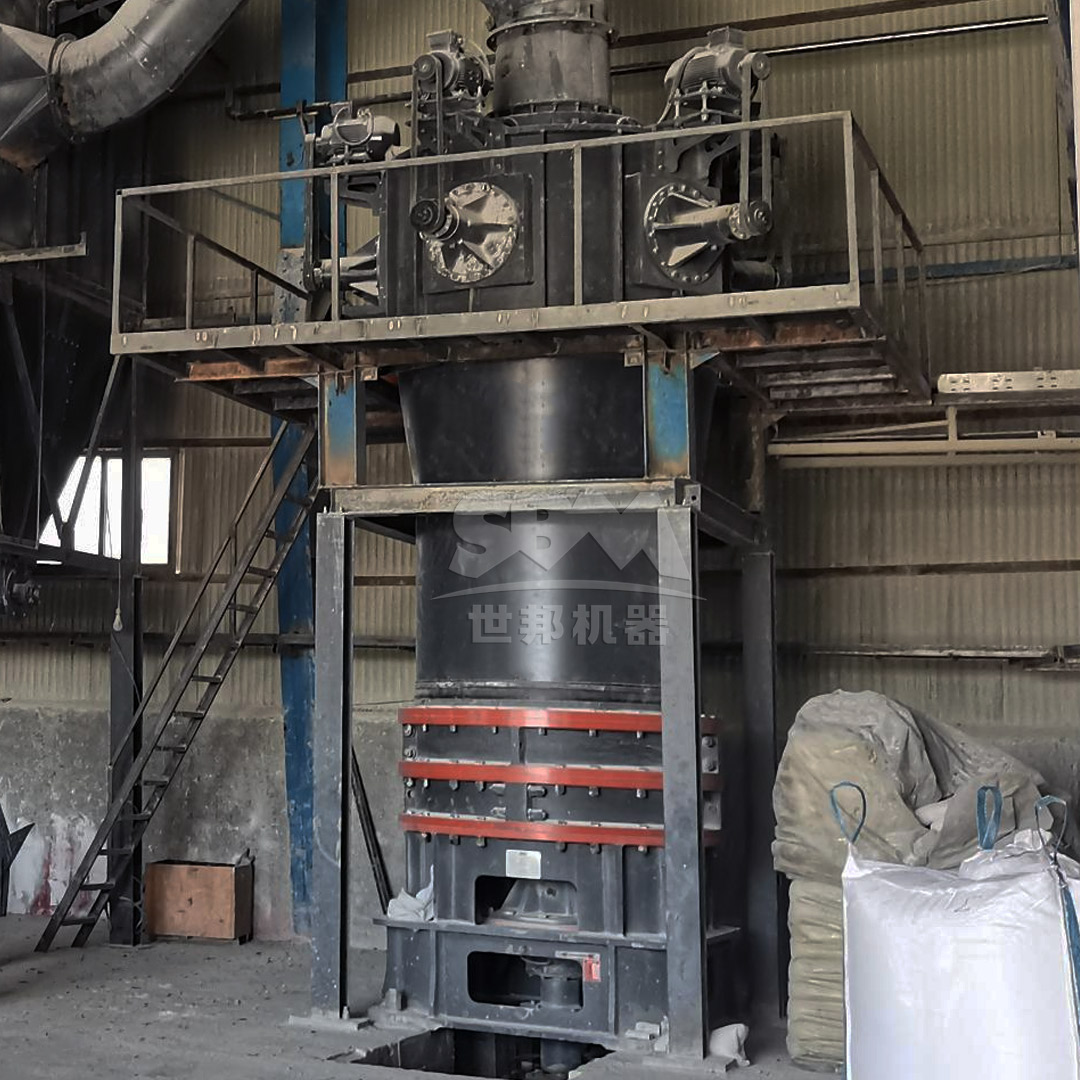

SCM Ultrafine Mill grinding Silicon Carbide powder in an industrial setting

Why it excels for SiC:

  • High-Precision Classification: Its vertical turbine classifier ensures sharp particle size cuts and prevents coarse particles from contaminating the final product, which is critical for consistent SiC quality.
  • Durable Construction: The grinding rollers and ring are equipped with special wear-resistant materials that offer a lifespan several times longer than conventional parts, directly combating SiC’s abrasiveness and reducing iron contamination.
  • Efficient & Cool Operation: The grinding principle and intelligent control system help maintain stable operating temperatures, preserving the integrity of the SiC powder. Its energy efficiency (30% less consumption than jet mills) also makes it a cost-effective solution.
  • Key Specifications: With a range of models from SCM800 to SCM1680, it offers handling capacities from 0.5 to 25 tons per hour, making it suitable for both pilot-scale and large-scale production of ultra-fine SiC powder.

2. MTW Series Trapezium Mill (600-45μm)

For the production of slightly coarser Silicon Carbide powders used in refractories, abrasives, and other industrial applications, our MTW Series Trapezium Mill provides a robust and high-capacity solution. It reliably produces powder in the range of 30 to 325 mesh (0.038mm).

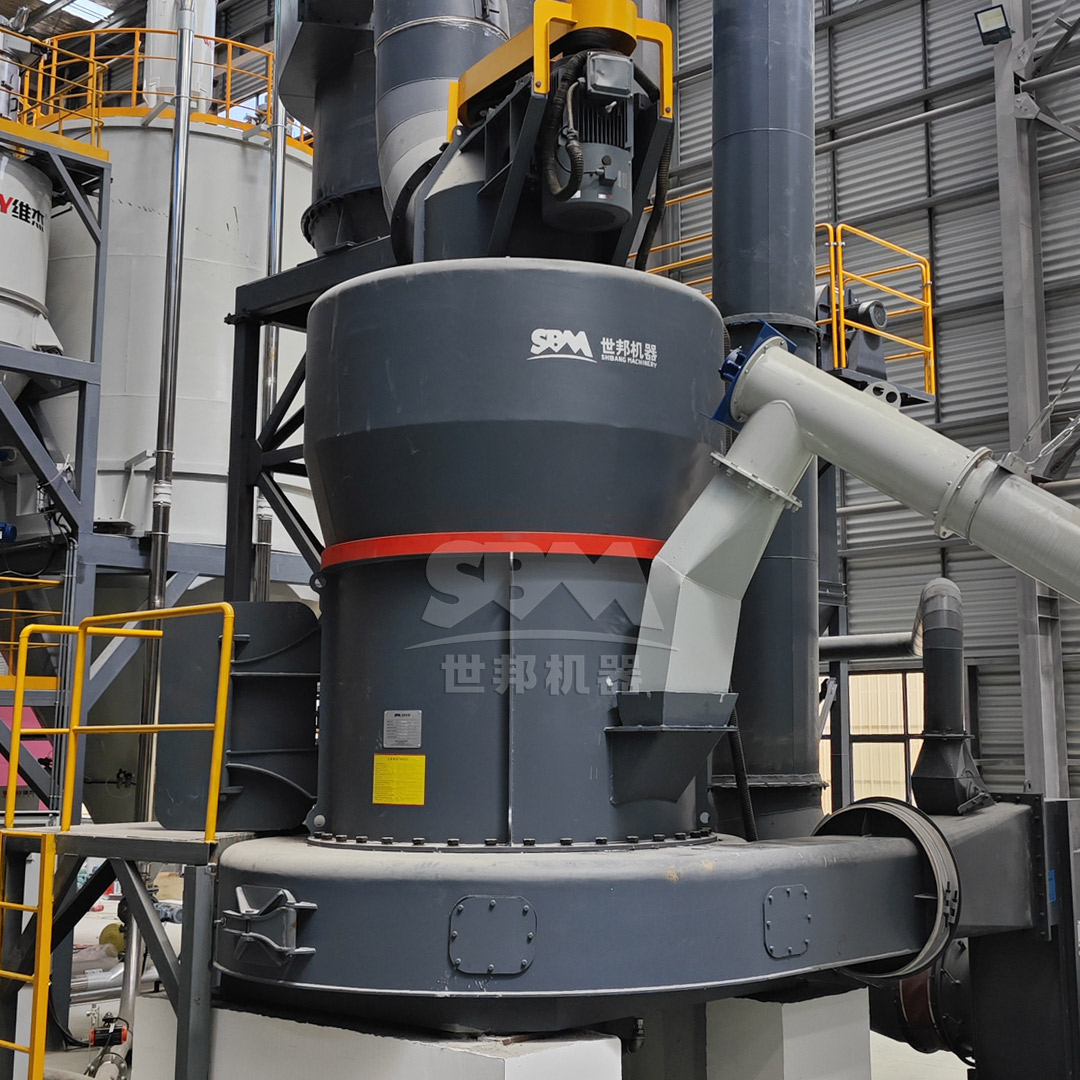

MTW Series Trapezium Mill internal grinding mechanism and external structure

Why it excels for SiC:

  • Anti-Wear Design: Its curved shovel blade design and wear-resistant components are specifically engineered to handle abrasive materials, minimizing downtime for maintenance.
  • Optimized Airflow: The curved air channel reduces air resistance and energy consumption, improving overall efficiency in transporting and classifying the dense SiC powder.
  • High Capacity: Models like the MTW215G can process up to 45 tons per hour, making it ideal for high-volume production lines.
  • Reliable Drive System: The integral conical gear transmission delivers high efficiency (98%) and stable power, ensuring consistent grinding performance under the high load of crushing SiC.

Optimizing the Grinding Process

Beyond selecting the right equipment, process optimization is key to efficient SiC powder production:

  • Feed Size: Ensuring a consistent and appropriately pre-crushed feed (e.g., ≤20mm) is crucial for stable mill operation and optimal throughput.
  • Airflow Management: The airflow within the mill is both a transport medium and a cooling agent. Proper calibration is essential for efficient classification and heat dissipation.
  • Wear Monitoring: Implementing a regular schedule for inspecting and replacing wear parts like rollers and rings prevents unexpected downtime and maintains product quality.
  • System Integration: A well-designed system includes auxiliary equipment such as jaw crushers for pre-breaking, elevators, feeders, and high-efficiency collectors to create a seamless and automated production line.

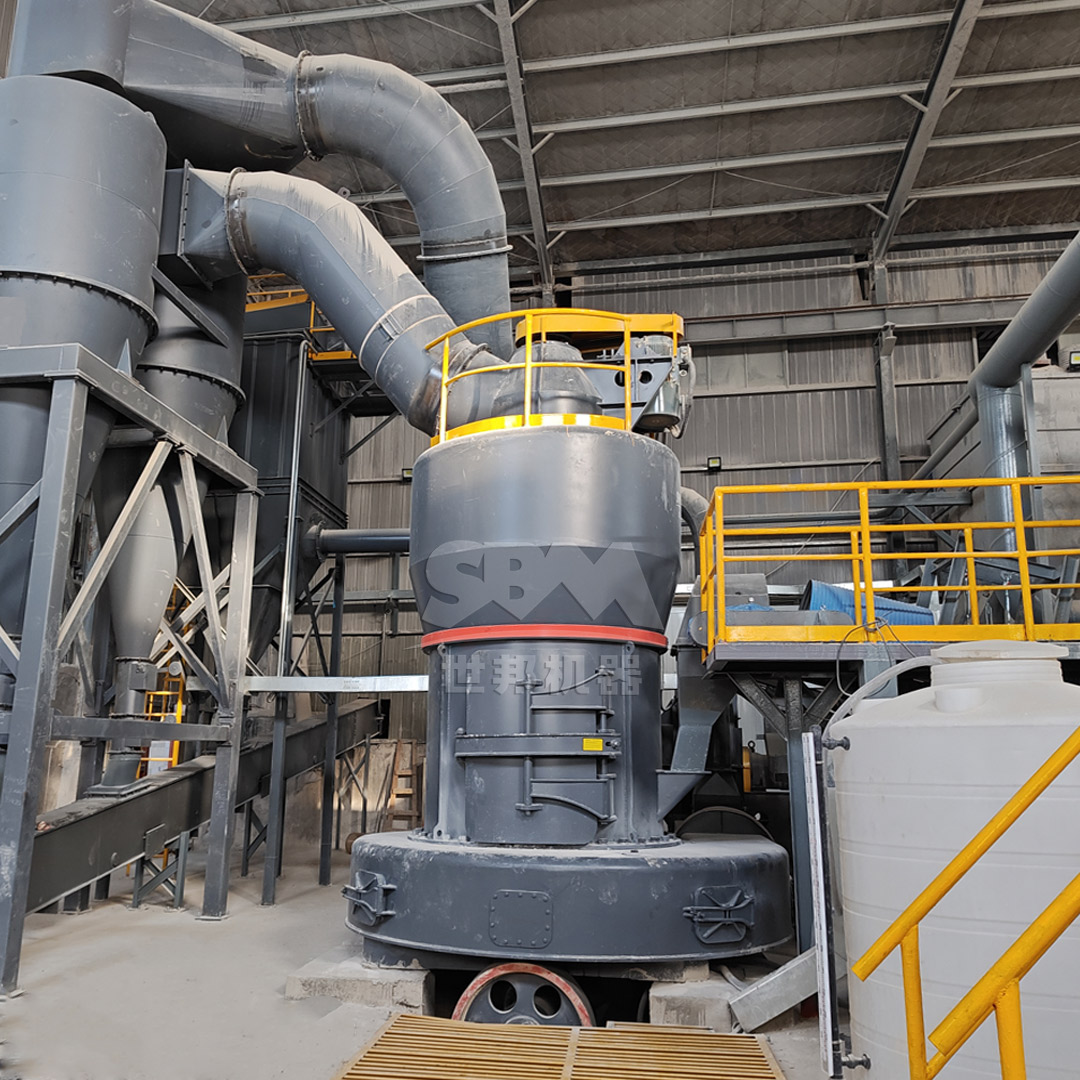

Microscopic view of high-purity, finely ground Silicon Carbide (SiC) powder

Conclusion

The production of high-grade Silicon Carbide powder demands grinding technology that can conquer extreme hardness and abrasiveness while delivering precise particle size control and high purity. Modern Raymond Mill systems, particularly advanced designs like our SCM Ultrafine Mill for ultra-fine applications and the MTW Series Trapezium Mill for high-capacity coarse grinding, are perfectly engineered to meet these challenges. By combining durable construction, efficient classification, and intelligent process control, these mills offer a reliable, economical, and high-quality solution for SiC producers worldwide, enabling them to meet the rigorous standards of modern industrial applications.
